Product Overview
Description
Overview
LS173 Colorimeter D/8°
LS173 is a portable multifunctional colorimeter with D/8° optical geometry design. The color analyzer is equipped with a 3.5-inch IPS color capacitive touch screen, which has an excellent operating experience. The colorimeter integrates multiple natural color charts, which can quickly match the measured color to the closest color codes. The color difference meter also has a color difference comparison function, supports a variety of standard color addition methods, the color difference threshold can be set. The color difference formula can be flexibly selected, which can realize rapid QC testing.
color contrast analyzer onlinecolor contrast analyzer optionsoil color analyzer oil cool
Application
Colorimeter Test High Gloss Materials
Colorimeter Test PC
Colorimeter Test Color Card

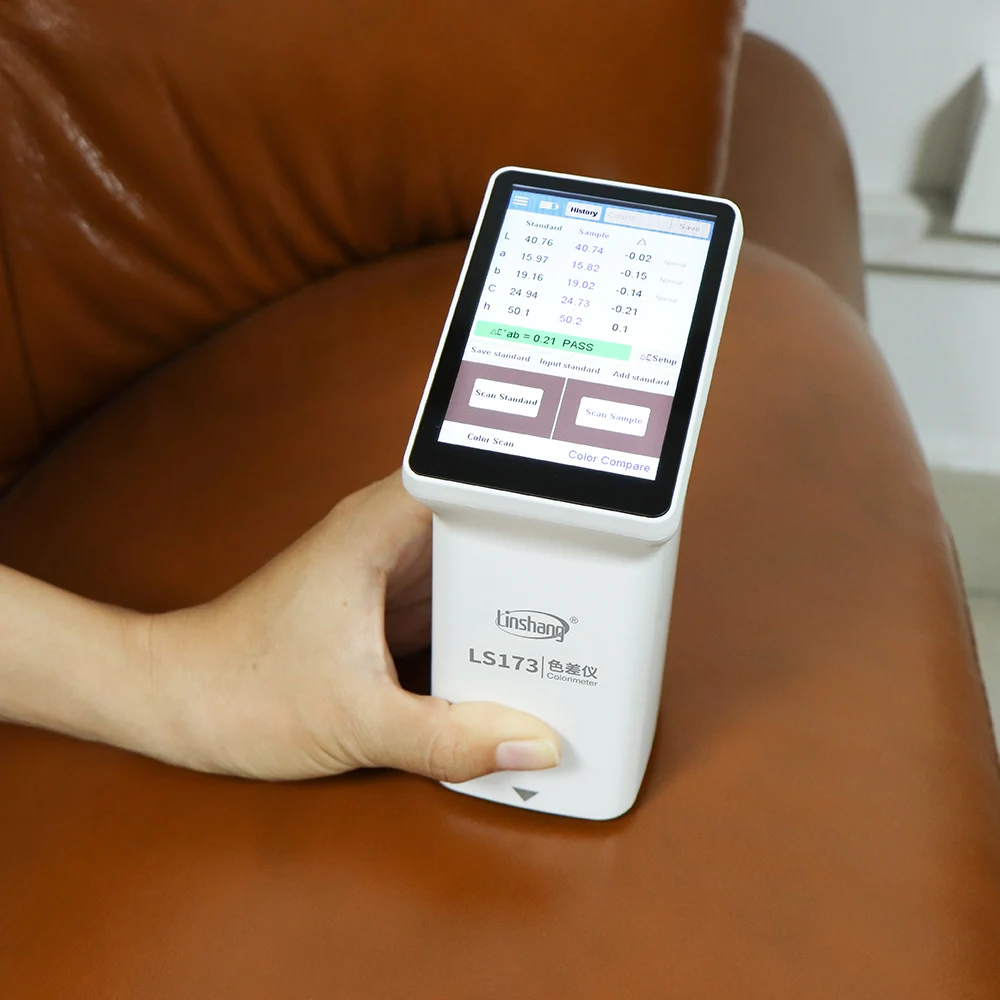

Colorimeter Test Leather
Features

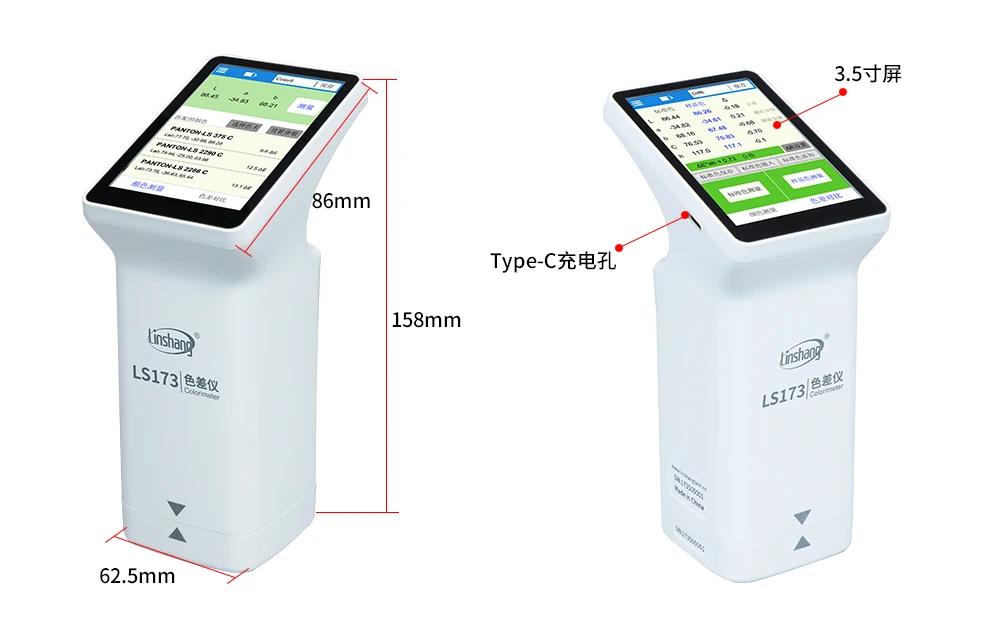

1. The large 3.5-inch touch screen makes the operation more convenient
The colorimeter comes with a 3.5-inch IPS color touch screen, no key operation is required; the screen is tilted at 20 degrees with a perfect viewing angle, convenient for reading. The color analyzer has a good user experience and human-computer interaction interface.
The colorimeter comes with a 3.5-inch IPS color touch screen, no key operation is required; the screen is tilted at 20 degrees with a perfect viewing angle, convenient for reading. The color analyzer has a good user experience and human-computer interaction interface.
Touch Screen

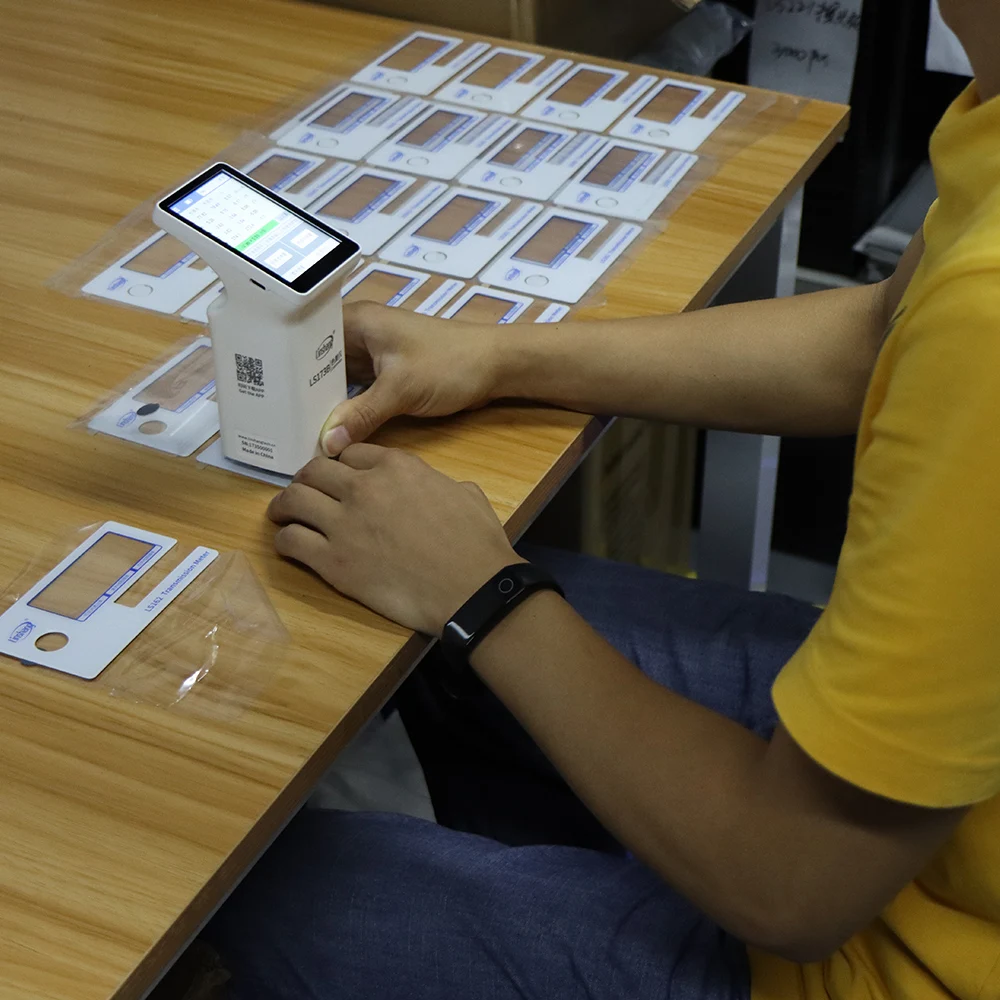

Handheld

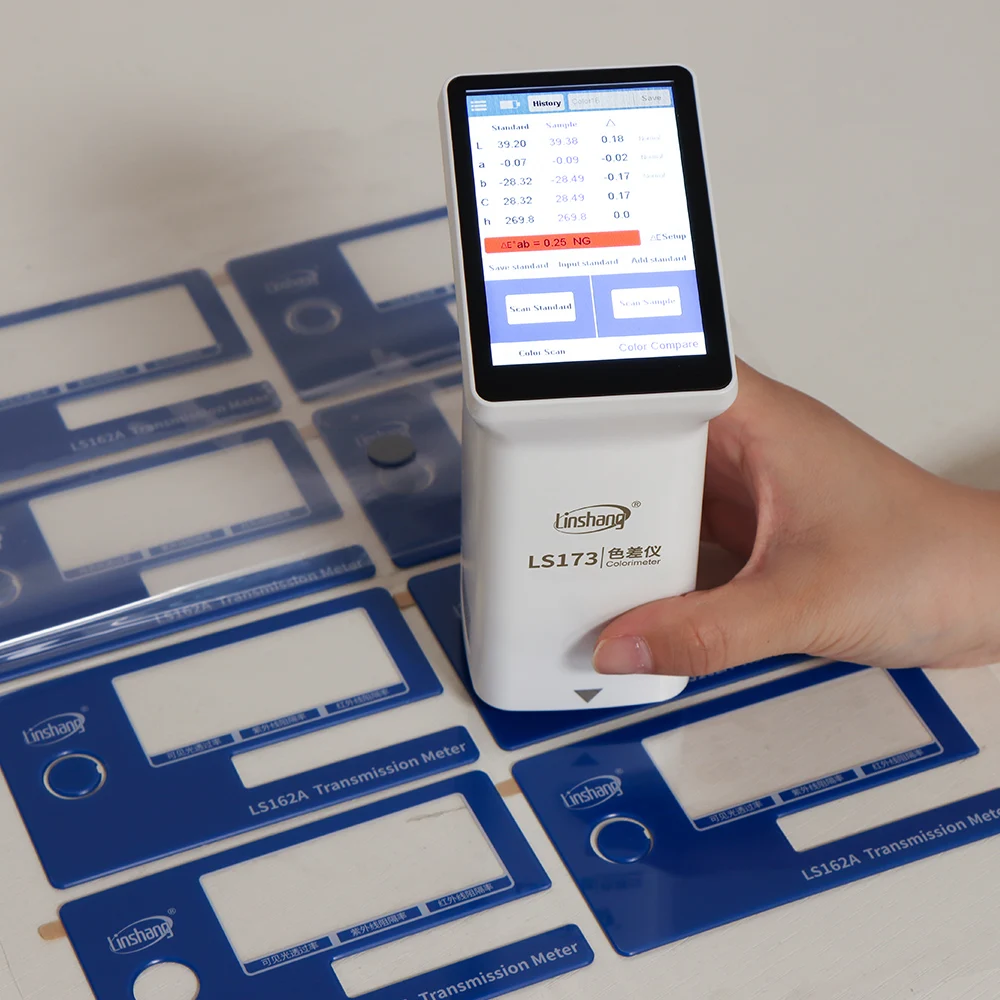

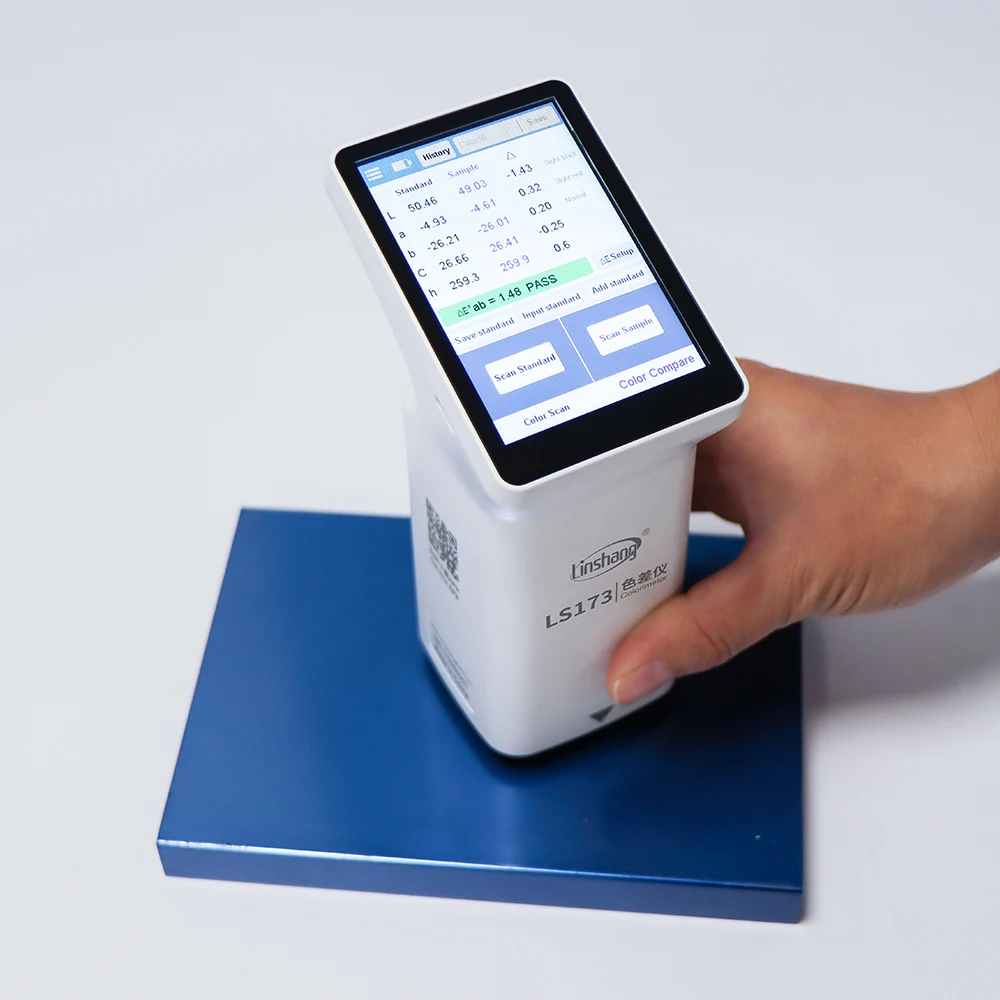

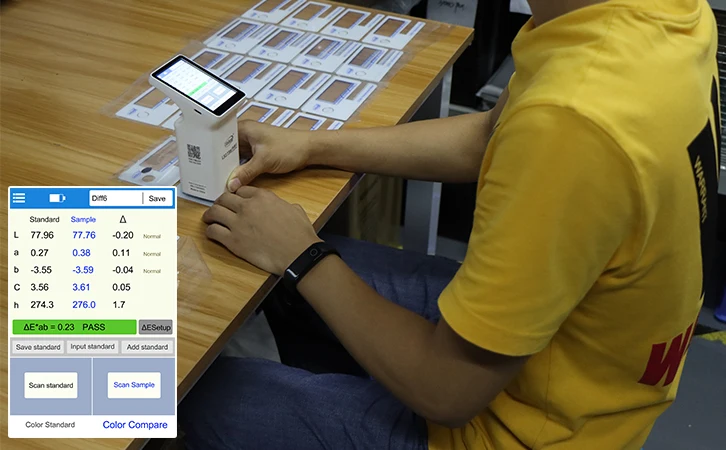

2. Color measurement and color difference comparison function
Color measurement can be achieved by touching the screen button or pressing the power button, and the color value can be measured in 1 second.
Two clicks can complete the color difference comparison, turn on the QC detection function, batch detection can be performed, and the color difference threshold can be customized to quickly achieve quality control.
Color measurement can be achieved by touching the screen button or pressing the power button, and the color value can be measured in 1 second.
Two clicks can complete the color difference comparison, turn on the QC detection function, batch detection can be performed, and the color difference threshold can be customized to quickly achieve quality control.
3. Lab values, making color adjustment easier
Provide the color deviation indicator of the three color channels of Lab and provides assistance for color adjustment.
4. Good repeatability, accurate and stable measurement data
Good repeatability, standard deviation △E*ab, within 0.03 (measurement conditions: after warm-up correction, the average value of 30 measurements on the whiteboard at an interval of 3s) to ensure that it can pass the inspection of China Institute of Metrology.

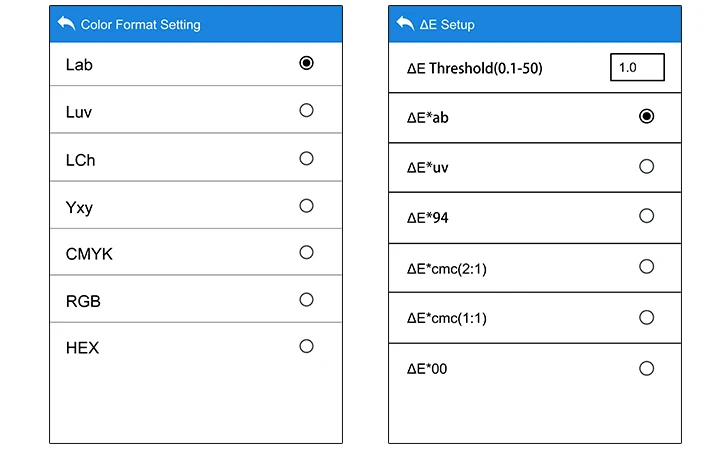

5. Seven color spaces and six color difference formulas, highly matching industry needs
The color analyzer has a variety of color spaces such as Lab\\RGB\\CMYK and a variety of color difference formulas to choose from, matching the color measurement needs of various industries.
Provide the color deviation indicator of the three color channels of Lab and provides assistance for color adjustment.
4. Good repeatability, accurate and stable measurement data
Good repeatability, standard deviation △E*ab, within 0.03 (measurement conditions: after warm-up correction, the average value of 30 measurements on the whiteboard at an interval of 3s) to ensure that it can pass the inspection of China Institute of Metrology.
5. Seven color spaces and six color difference formulas, highly matching industry needs
The color analyzer has a variety of color spaces such as Lab\\RGB\\CMYK and a variety of color difference formulas to choose from, matching the color measurement needs of various industries.
6. The body is small and portable
Small and portable, easy to store and carry; stable body, ergonomic design, more stable measurement data.
Small and portable, easy to store and carry; stable body, ergonomic design, more stable measurement data.

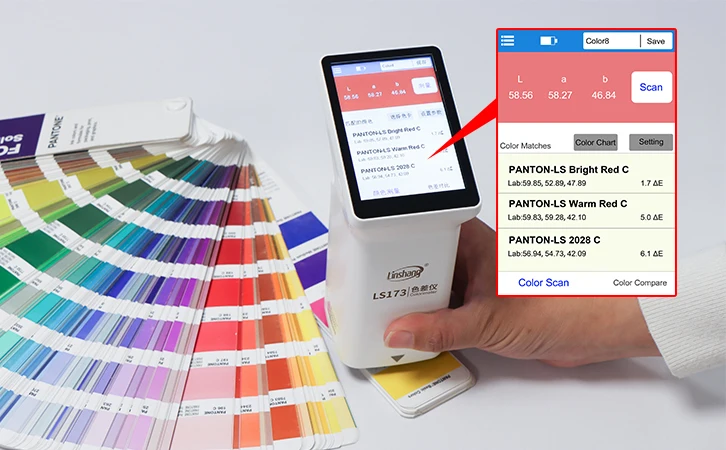

7. Built-in multiple electronic color charts
Built-in multiple standard electronic color charts, which can quickly match the 3 closest color codes, with an accuracy rate of over 90%.

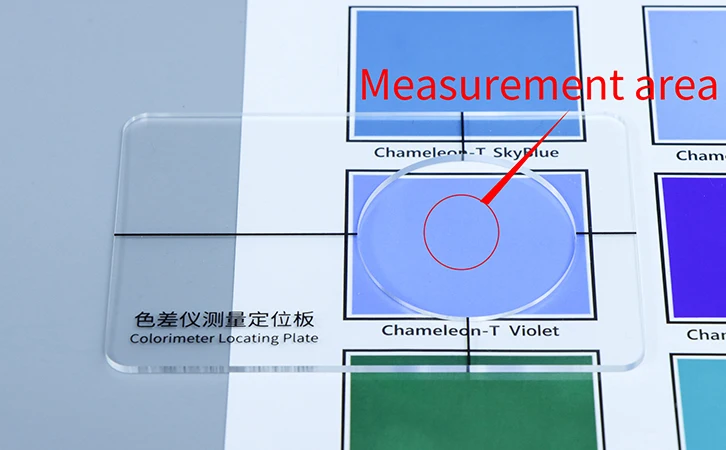

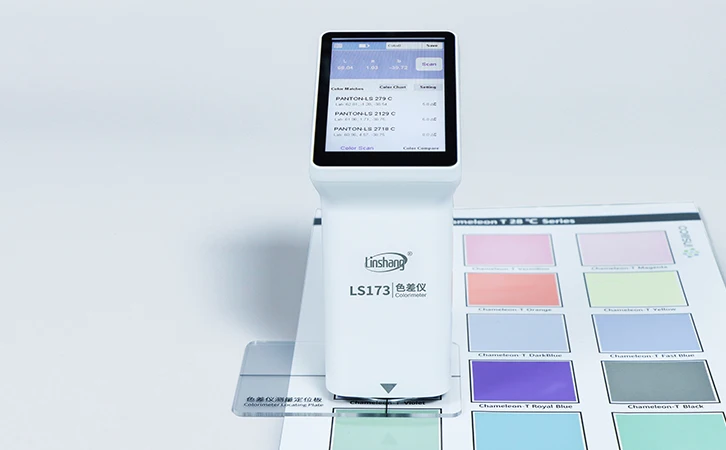

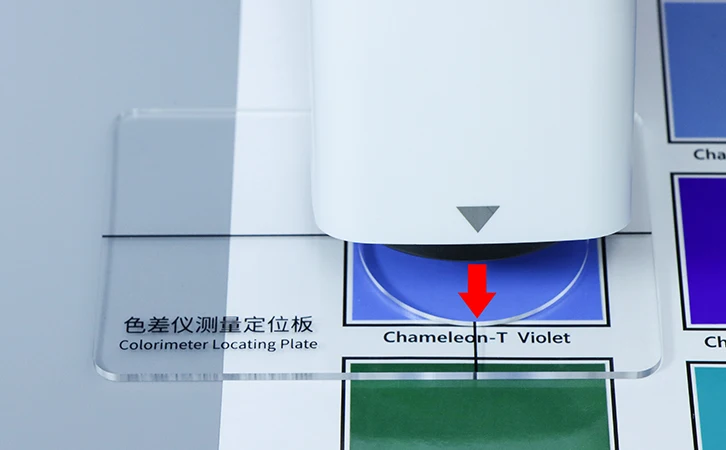

8. Measuring locating plate to make measurement more accurate
The color difference meter is equipped with a measurement locating plate to meet the needs of precise alignment and make the measurement more accurate.
The color difference meter is equipped with a measurement locating plate to meet the needs of precise alignment and make the measurement more accurate.
9. Large storage space
The color analyzer has built-in large storage space, which can store 1000 colors and 1000 color difference comparison records respectively. Perfectly solve the consistency problem caused by the fading of the standard product after long-term storage.
10. Compensation optical path technology
The instrument has a built-in compensation optical path with stable values and allows long-period calibration.

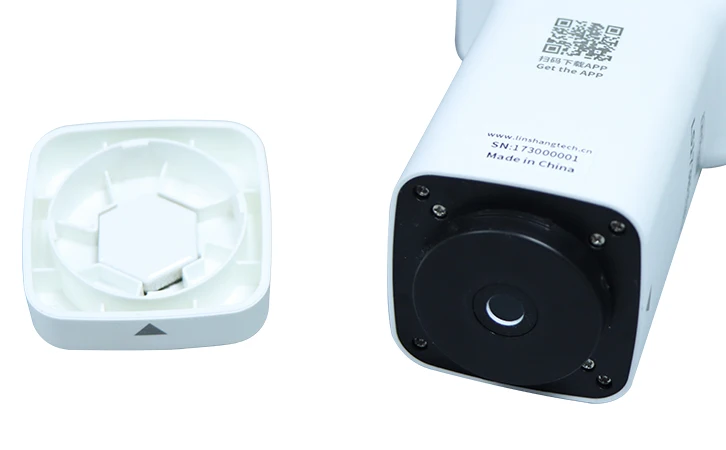

11. Whiteboard calibration, simple operation
The bottom cover integrates a calibration whiteboard, so there is no need to worry about losing it. No need for tedious
operations.
12. Energy saving, low power consumption
Built-in lithium battery, fully charged, can test 10,000 times continuously. The default automatic off time can be set.
The color analyzer has built-in large storage space, which can store 1000 colors and 1000 color difference comparison records respectively. Perfectly solve the consistency problem caused by the fading of the standard product after long-term storage.
10. Compensation optical path technology
The instrument has a built-in compensation optical path with stable values and allows long-period calibration.
11. Whiteboard calibration, simple operation
The bottom cover integrates a calibration whiteboard, so there is no need to worry about losing it. No need for tedious
operations.
12. Energy saving, low power consumption
Built-in lithium battery, fully charged, can test 10,000 times continuously. The default automatic off time can be set.
color contrast analyzer onlinecolor contrast analyzer optionsoil color analyzer oil cool
Paramenters
Illumination geometry | D/8, specular component include (SCI) |
Illumination light source | Full spectrum LED light source |
Measuring aperture | 8mm |
Measurement conditions | Light source D65, field of view 10° |
Measuring time | About 1s |
Color space | CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex |
Color difference formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 |
Repeatability | Standard deviation ΔE*ab is within 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration) |
Dimension | 86mm×62.5mm×158mm |
Weight | About 225g |
Power supply | Rechargeable lithium battery 3.7V@4000mAh, can measure 10,000 times continuously under full charge |
Display | 480×320 dot matrix IPS color screen |
Language | Simplified Chinese, English |
Charging port | USB (Type-C) |
Data transmission | USB |
Operating temperature | 0~45℃, 0~85%RH (no condensation) |
Storage temperature | -25~55℃, 0~85%RH (no condensation) |
Qualification and Standards
LS173 handheld colorimeter meets the following standards:
GBT 3978-2008 standard lighting body and geometric conditions
GBT 3979-2008 Method for measuring object color
GBT 7921-2008 Uniform color space and color difference formula
GBT 11186.1-1989 Coating Film Color Measurement Method Part 1: Principle
GBT 11186.2-1989 Coating Film Color Measurement Method Part 2: Color Measurement
GBT 11186.3-1989 Method for Measuring the Color of Coating Film Part 3 Calculation of Color Difference
JJG 595-2002 Verification Regulations for Color Measuring Colorimeter
GBT 3978-2008 standard lighting body and geometric conditions
GBT 3979-2008 Method for measuring object color
GBT 7921-2008 Uniform color space and color difference formula
GBT 11186.1-1989 Coating Film Color Measurement Method Part 1: Principle
GBT 11186.2-1989 Coating Film Color Measurement Method Part 2: Color Measurement
GBT 11186.3-1989 Method for Measuring the Color of Coating Film Part 3 Calculation of Color Difference
JJG 595-2002 Verification Regulations for Color Measuring Colorimeter
