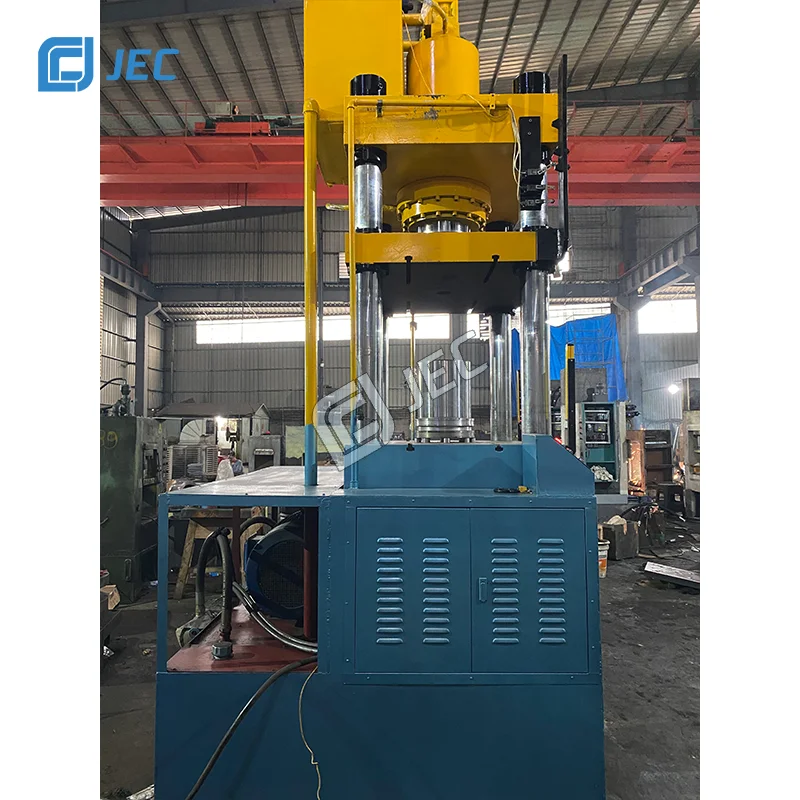

JEC High Efficiency 150 Ton Stainless Steel Utensils Making Machine Stretch Forming Hydraulic Press
- Category: >>>
- Supplier: Jieyang Jiedong Quxi Jingcheng Machinery Factory
Share on (1600438798301):
Product Overview
Description
Company Profile
Why Choose Us

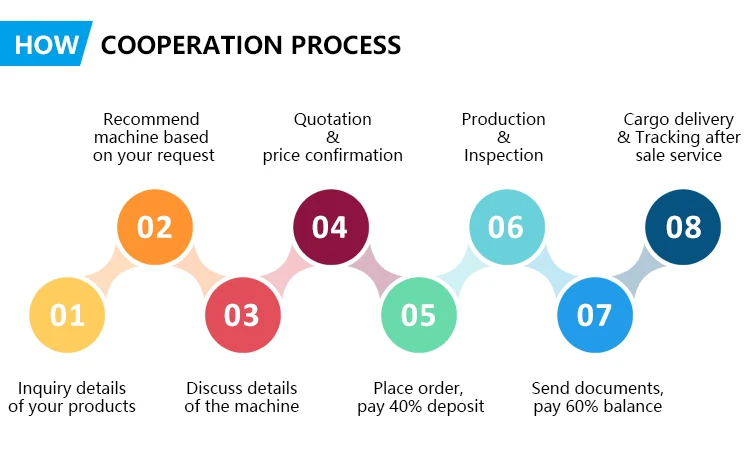

How To Cooperate
Product Details
Model | Y28-55 | Y28-75 | Y28-100 | Y28-120 | Y28-150 | Y28-200 | Y28-300 | Y28-350 | ||
Common cylinder force | KN | 550 | 750 | 1000 | 1200 | 1500 | 2000 | 3000 | 3500 | |
Main cylinder force | KN | 300 | 500 | 650 | 800 | 1000 | 1500 | 2000 | 2500 | |
Lower cylinder force | KN | 250 | 250 | 350 | 400 | 500 | 600 | 1000 | 1200 | |
Main cylinder stroke | mm | 450 | 450 | 450 | 450 | 600 | 600 | 600 | 700 | |
Lower cylinder stroke | mm | 200 | 200 | 200 | 200 | 300 | 300 | 300 | 350 | |
Active beam downhill speed | mm/s | 240 | 240 | 240 | 240 | 230 | 230 | 210 | 210 | |
Moving beam working speed | mm/s | 26 | 25 | 23 | 20 | 20 | 20 | 18 | 18 | |
Moving beam return speed | mm/s | 270 | 250 | 230 | 230 | 230 | 210 | 210 | 200 | |
Lower cylinder ejection speed | mm/s | 200 | 180 | 170 | 150 | 130 | 130 | 130 | 110 | |
Return cylinder force | KN | 10 | 10 | 10 | 10 | 30 | 30 | 30 | 30 | |
Return cylinder stroke | KN | 175 | 175 | 175 | 175 | 200 | 200 | 200 | 250 | |
Main cylinder oil pressure | Mpa | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | |
Lower cylinder oil pressure | Mpa | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | |
Motor Power | KW | 7.5 | 7.5 | 11 | 11 | 18.5 | 22 | 30 | 45 | |
Related Products

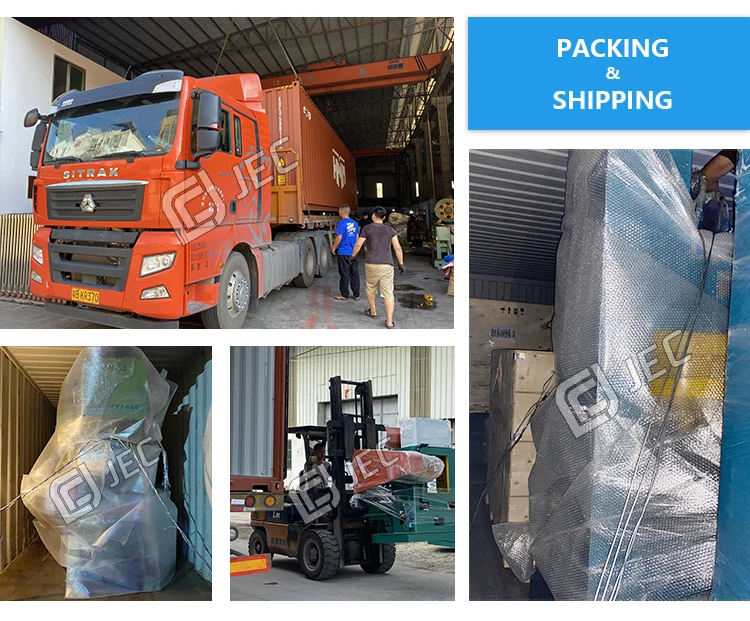

Packaging & Shipping
Our Service
FAQ
Q: How to select the right machine for your project?
A: Please just help send the below information, our engineers will help make the best solution for you. 1. Items information:photo, material, size, thickness 2, capacity equipment and how automatically do you need. Where is your location? We are in jieyang city, which is very famous on the sus material and cutlery making. Air port name is: chaoshan air port. High speed train station: chaoshan station.
Q: Are you factory or not?
A: We are factory specializing on cutlery making machine making for over 13years, but also help clients purchase some related machine or material for cutlery/tableware items.
Q: If I want to set up a factory, could you help?
A: Yes, our engineers will help you analysis on the samples situation, your capacity request and your project plan then we will help give the best suggestion on layout, design, quotation.
Q: Trade terms?
A: EXW or CIF, FOB are acceptable.
Q: Terms of payment?
A: 30% T/T deposit, 70% balance payment before shipment.
Q: Delivery time?
A: 15~60 days depend on the orders.
Q: Warranty?
A: One year of guarantee except the easy - damaged parts and engineers will provide the online technical supports all the time.
A: Please just help send the below information, our engineers will help make the best solution for you. 1. Items information:photo, material, size, thickness 2, capacity equipment and how automatically do you need. Where is your location? We are in jieyang city, which is very famous on the sus material and cutlery making. Air port name is: chaoshan air port. High speed train station: chaoshan station.
Q: Are you factory or not?
A: We are factory specializing on cutlery making machine making for over 13years, but also help clients purchase some related machine or material for cutlery/tableware items.
Q: If I want to set up a factory, could you help?
A: Yes, our engineers will help you analysis on the samples situation, your capacity request and your project plan then we will help give the best suggestion on layout, design, quotation.
Q: Trade terms?
A: EXW or CIF, FOB are acceptable.
Q: Terms of payment?
A: 30% T/T deposit, 70% balance payment before shipment.
Q: Delivery time?
A: 15~60 days depend on the orders.
Q: Warranty?
A: One year of guarantee except the easy - damaged parts and engineers will provide the online technical supports all the time.
