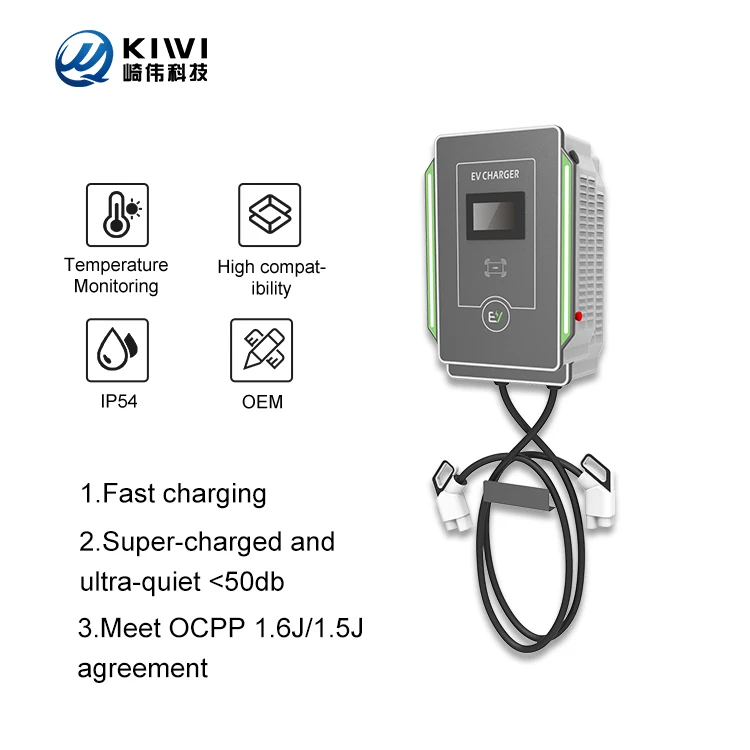

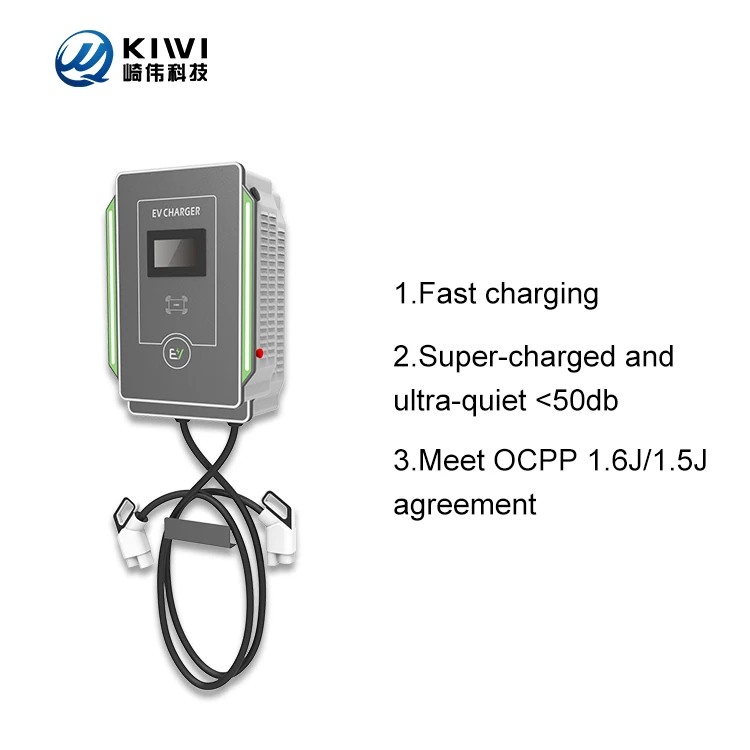

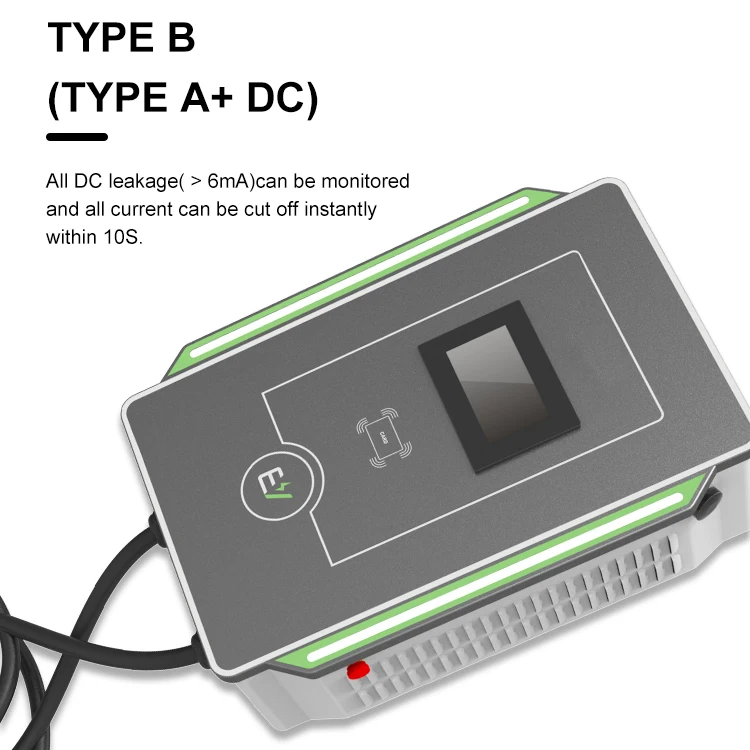

multi language support evse electric dc ev fast bidirectional car wall charging stations WITH led
- Category: >>>
- Supplier: Shenzhen Kiwi Technology Co. Ltd.
Share on (1600438813100):
Product Overview
Description
Keywords | public ev charging,ev dc charger,30kw charging pile for ev charging station | |
Installation Method | Floor-standing,wall-mounted | |
Rated Power | 30KW | |
Start-Up And Billing Method | RFID、CMS、plug and charge、Scan QR Code | |
Power Distribution Mode | Standalone mode,Plug switch, Master-slave mode | |
Input Characteristics | ||
Input Voltage | Three phase | |
DC1000V±20%（ABC+N+PE） | ||
Grid Frequency | 50Hz±10Hz | |
Input Current Range | AC 0A~45A | |
Power-On Input Impulse Current | ≤ Maximum input current 120% | |

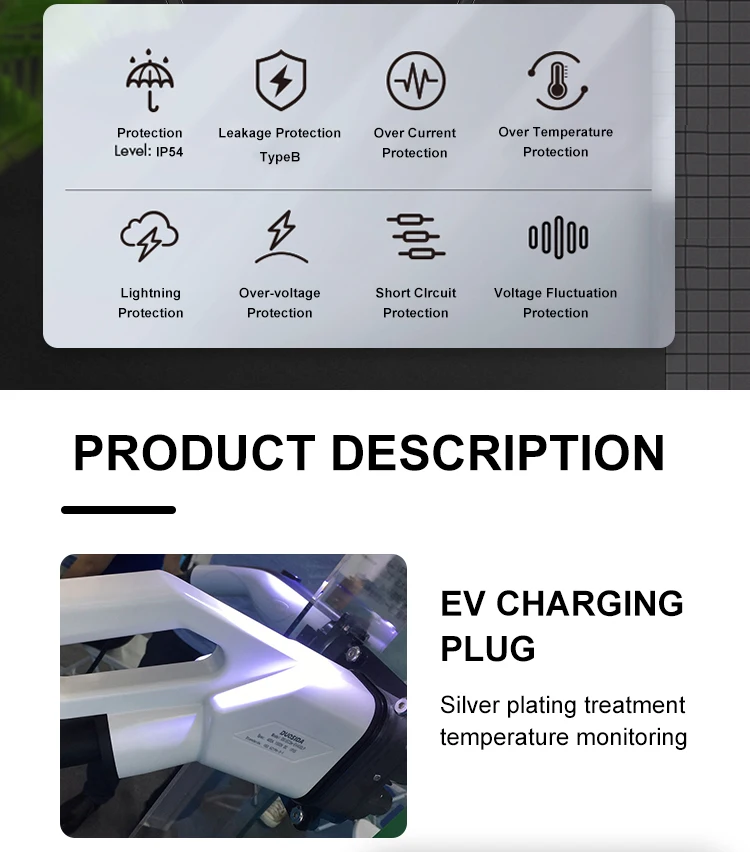

Input Protection | Overvoltage, dustproof and waterproof, overload, short circuit protection, lightning protection, energy load output | |
Input Break | With AC 30mA leakage plastic case | |
Output Characteristics | ||
Output Current | 30KW, DC 0~60A | |
The Output Voltage | DC 200V~1000V | |
Steady Flow Accuracy | ≤±0.5% | |
Stabilization Accuracy | ≤±0.5% | |
Ripple Factor | ≤±0.5% | |
Temperature Coefficient | ≤±0.2‰ | |
Effectiveness | ≥95% | |
Power Factor | ≥0.98 (Above 50% load) | |
Export Insurance | 100A | |
Working Temperature | -30℃～+55℃; -40℃(±4℃) module start-up; derating use above 55℃; shutdown above 70℃ | |
Storage Temperature | -40°C～+80°C | |
Structural Electrical | ||

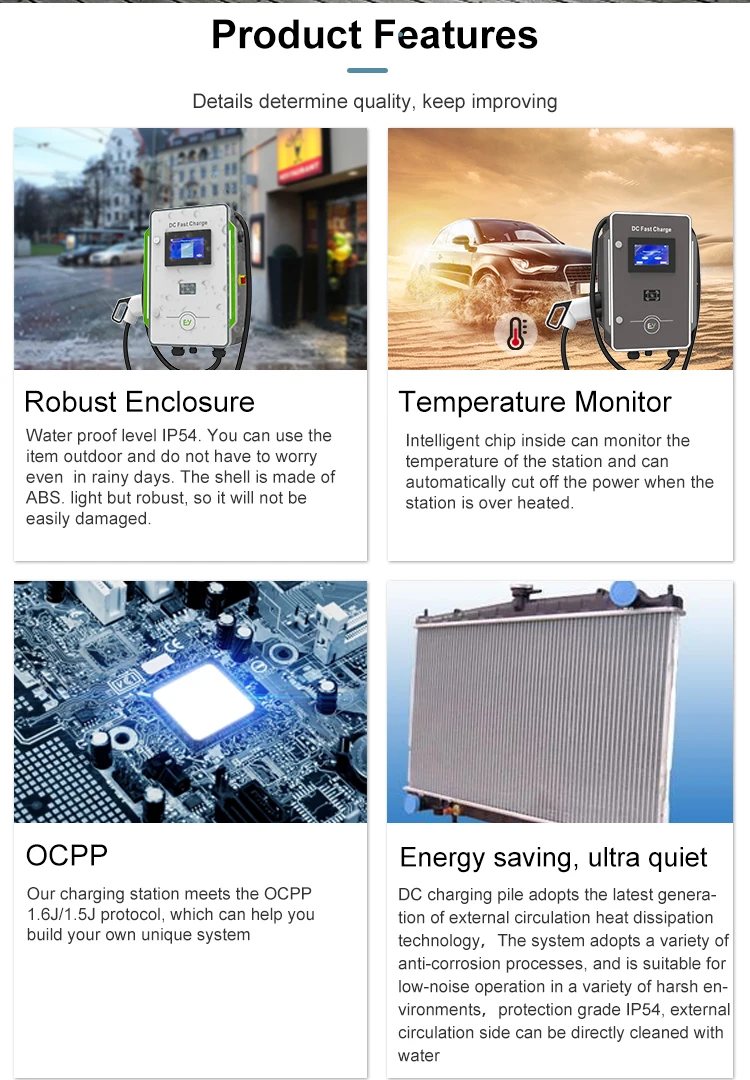

Ip Protection Level | IP54 | |
Equipment Size | 460*670*270mm | |
Wind Tunnel | Bottom in top out | |
Cooling Method | Smart air cooling | |
Base | Steel base is it steel or aluminum | |
Altitude | ≤2000m | |
Noise | ≤60dB | |
Features:

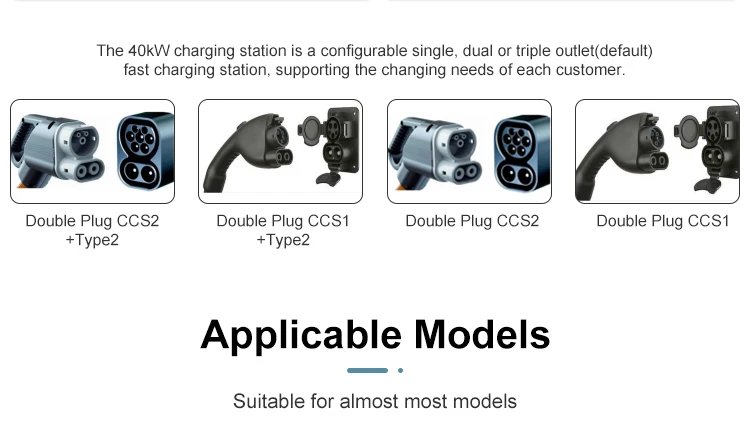

1. Support European standard CCS2, American standard CCS1, two kinds of charging Point
2. ISO15118/DIN70121, IEC61851, IEC62196 or SAE-J1772
3. OCPP1.5/OCPP1.6

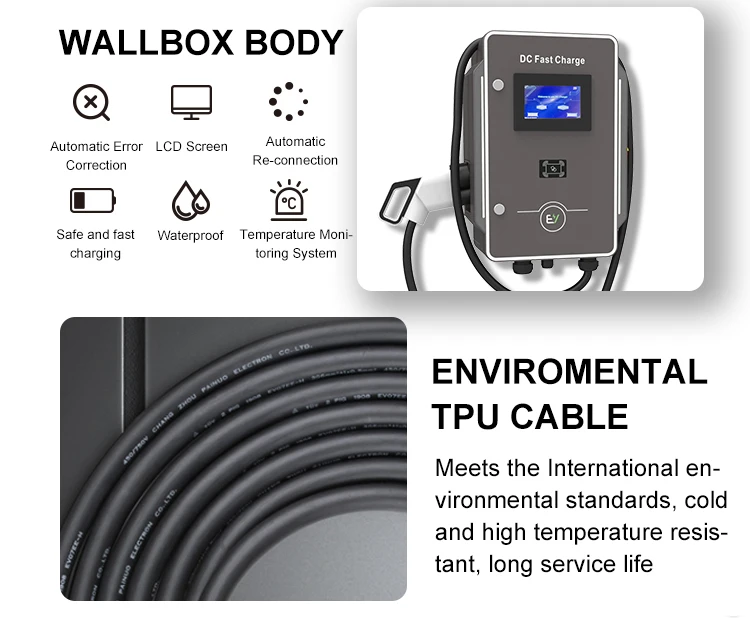

4. High-definition LCD , multi-language support
5. RFID, plug and charge, QRCode scan code
6. Wide voltage (200~1000V)
7. Power size, the number of modules can be set（ DC 0~60A）
1. Support European standard CCS2, American standard CCS1, two kinds of charging Point
2. ISO15118/DIN70121, IEC61851, IEC62196 or SAE-J1772
3. OCPP1.5/OCPP1.6
4. High-definition LCD , multi-language support
5. RFID, plug and charge, QRCode scan code
6. Wide voltage (200~1000V)
7. Power size, the number of modules can be set（ DC 0~60A）
FAQ
Q: What’s your QC system?
A: We can provide all kinds of testing certificates, material and dimensional inspection, etc.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: What’s your after-sale service?
A: If there is quality problem, please provide photos or test reports, we will replace defective goods or return funds.
Q:What is your terms of payment?
A:We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
Q:About Service?
A:We promise to react to any service demands within 2 hours, and solve the problem within 48 hours, to satisfy customers with the best perfect service.
If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as possible.
A: We can provide all kinds of testing certificates, material and dimensional inspection, etc.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: What’s your after-sale service?
A: If there is quality problem, please provide photos or test reports, we will replace defective goods or return funds.
Q:What is your terms of payment?
A:We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
Q:About Service?
A:We promise to react to any service demands within 2 hours, and solve the problem within 48 hours, to satisfy customers with the best perfect service.
If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as possible.
