Product Overview

Description

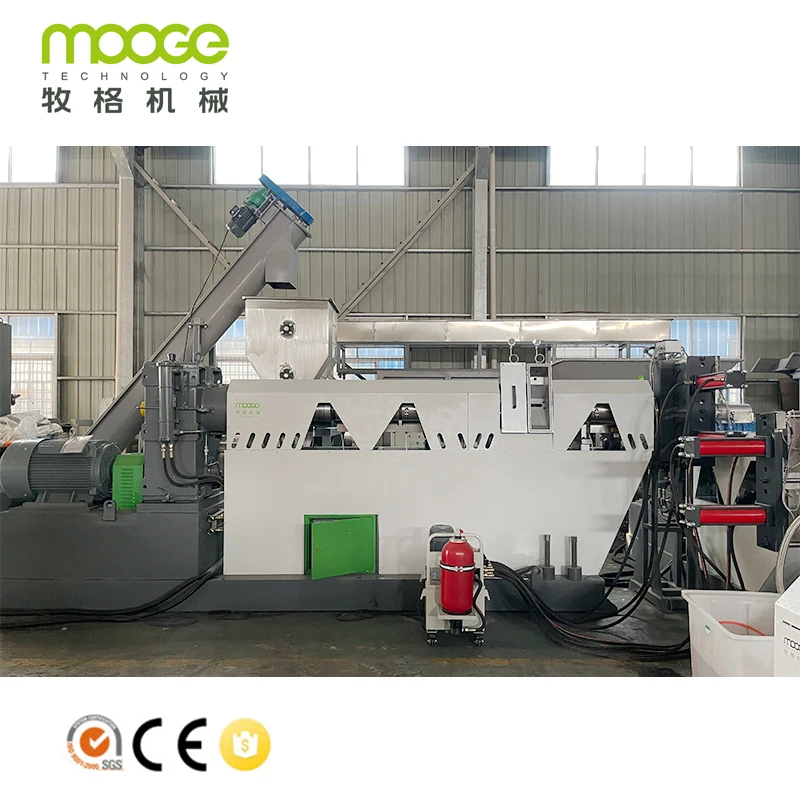

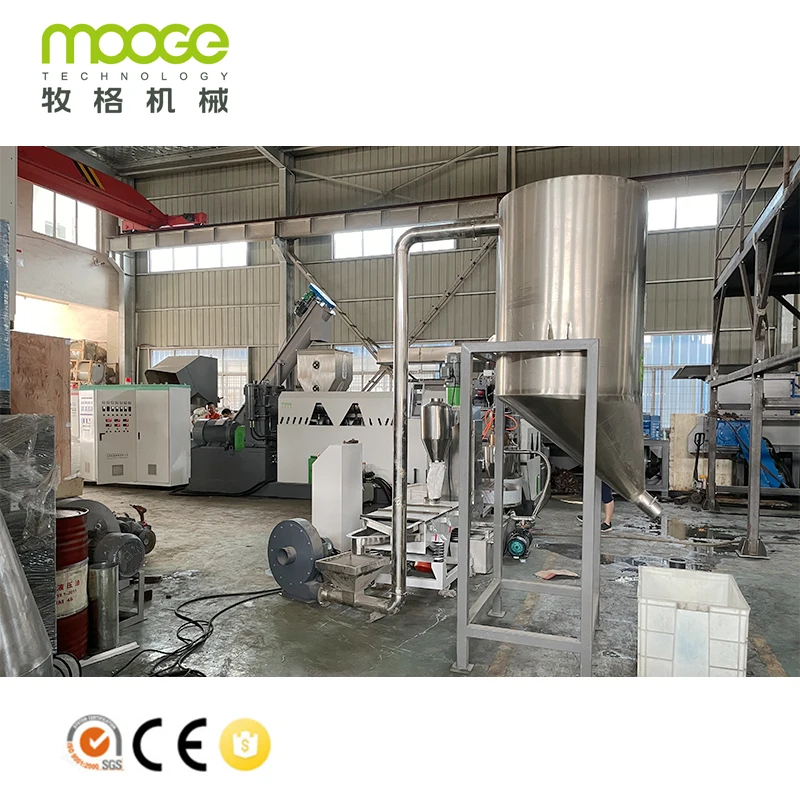

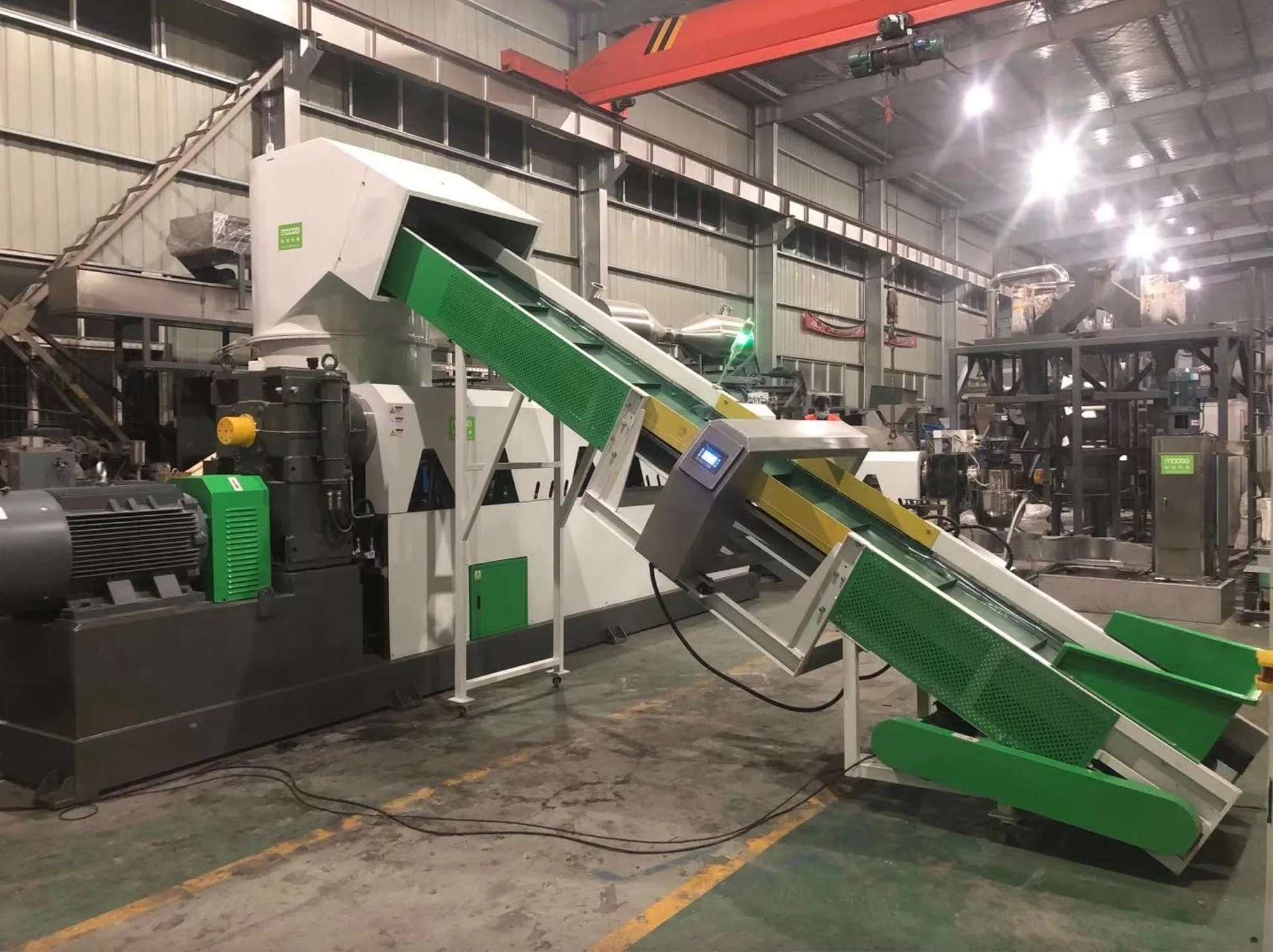

Film/Woven Bags Pelletizing Line

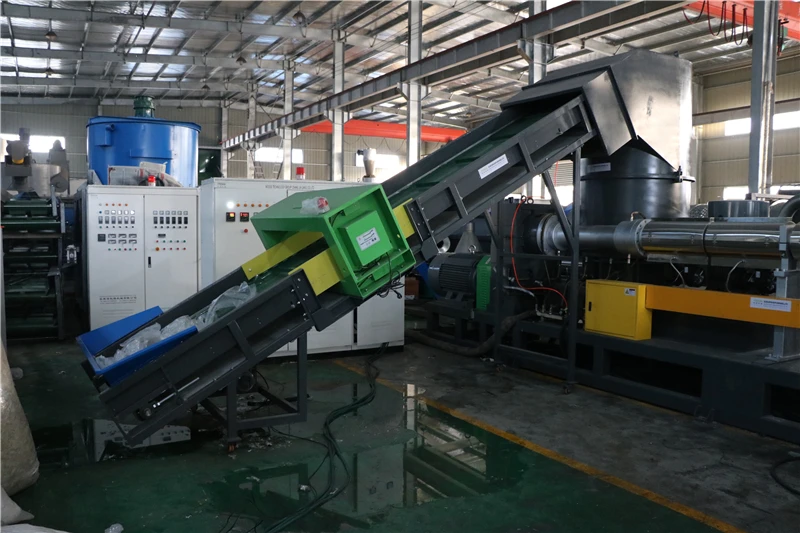

BOPP LLDPE HDPE LDPE PE PP recycling granulating machine is special equipment for the plastic film/bags recycling granulating, it equipped with compacting machine which pre-compact the film into smaller granules, then easily feed into screw barrel of extruder, its efficiency is high and can improve production capacity

it has vacuum exhausting system on extruder barrel which can fully vent the moisture in the material and hence the final granule quality will be very perfect.

end of screw barrel, it equipped with double station fast speed hydraulic non -stop screen changer which can efficiently filter out the dirty in the plastic melt.

the pelletizing adopts water cooling pelletizing which is easier to operate, and the shape and appearance of granule is good.






Product video




Product Specification


RDS Series Plastic film/bags pelletizing machine,it use 1 stage extruder pelletizing the film/bags flakes






Model
Screw Diameter
Screw L/D
Main Motor Power
Capacity
RDS-SJ85
85mm
28-33:1
55KW
150-200kg/hr
RDS-SJ100
100mm
28-33:1
75KW
200-300kg/hr
RDS-SJ130
130mm
28-33:1
90KW
300-400kg/hr
RDS-SJ150
150mm
28-33:1
110KW
400-500kg/hr
RDS-SJ160
160mm
28-33:1
132KW
500-600kg/hr
RDS-SJ180
180mm
28-33:1
160KW
600-800kg/hr
RDS-SJ200
200mm
28-33:1
200KW
800-1000kg/hr


RSS-Series Plastic film/bags pelletizing machine,it use 2 stage extruder pelletizing the film/bags flakes
(mother and baby stage)




Model
Screw Diameter
Screw L/D
Main Motor Power
Capacity
RSS-SJ85
85mm
28-33:1
55KW
150-200kg/hr
RSS-SJ100
100mm
28-33:1
75KW
200-300kg/hr
RSS-SJ130
130mm
28-33:1
90KW
300-400kg/hr
RSS-SJ150
150mm
28-33:1
110KW
400-500kg/hr
RSS-SJ160
160mm
28-33:1
132KW
500-600kg/hr
RSS-SJ180
180mm
28-33:1
160KW
600-800kg/hr
RSS-SJ200
200mm
28-33:1
200KW
800-1000kg/hr


FEATURES AT A GLANCE

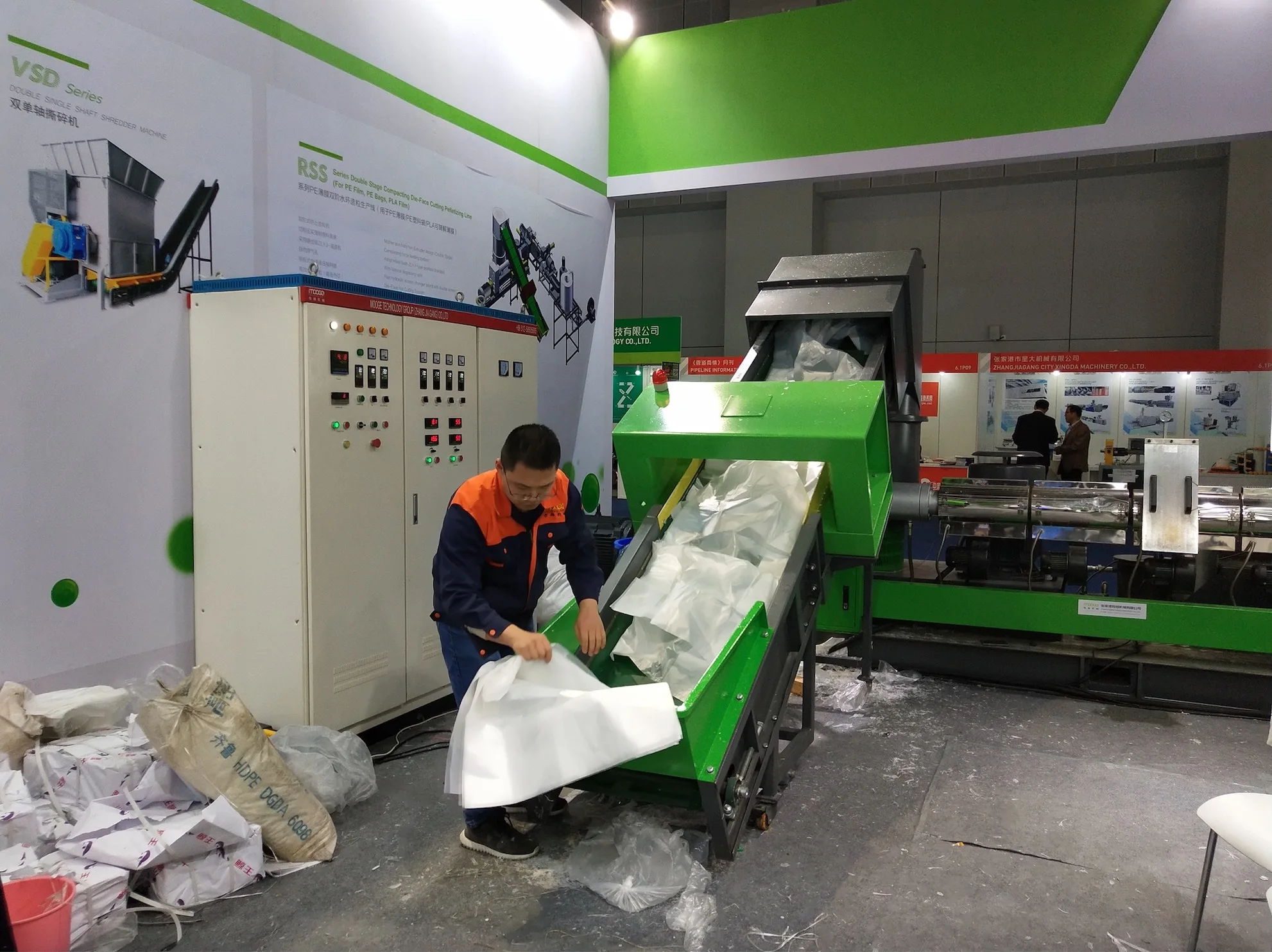

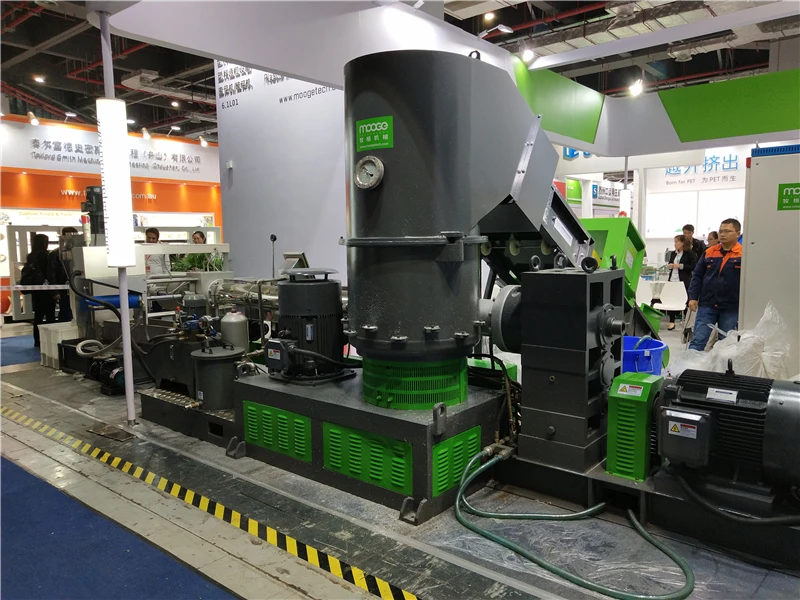

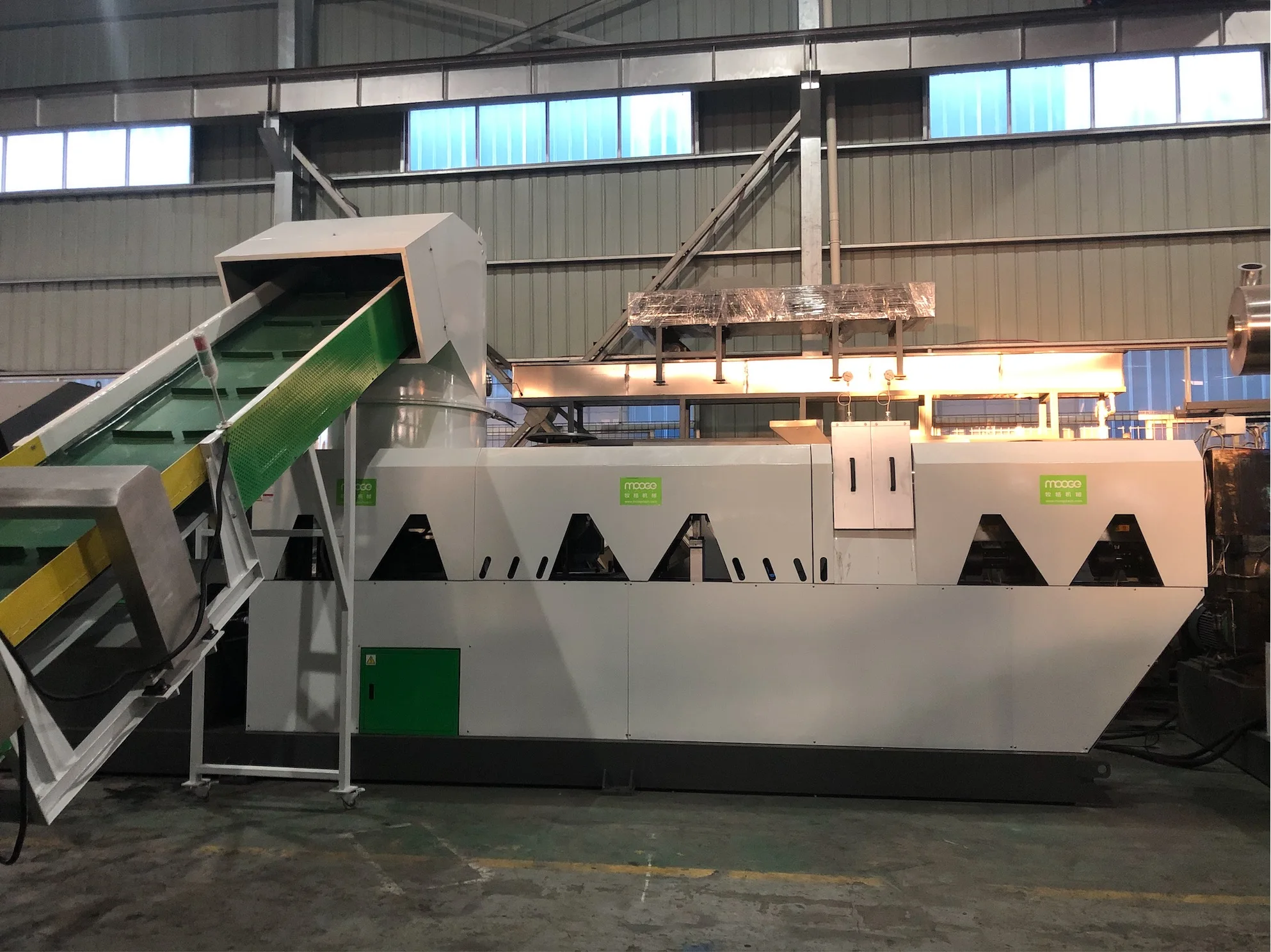

Force compactor machine
high speed rotary,compactor,plastify the film/bags flakes
Temperature protector, if the temperature is too high will automatic start the water cooling the compactor base
With amper meter detecting the compactor motor amper, if the compactor amper too high it will automatic stop the feeding conveyor,With water cooling system

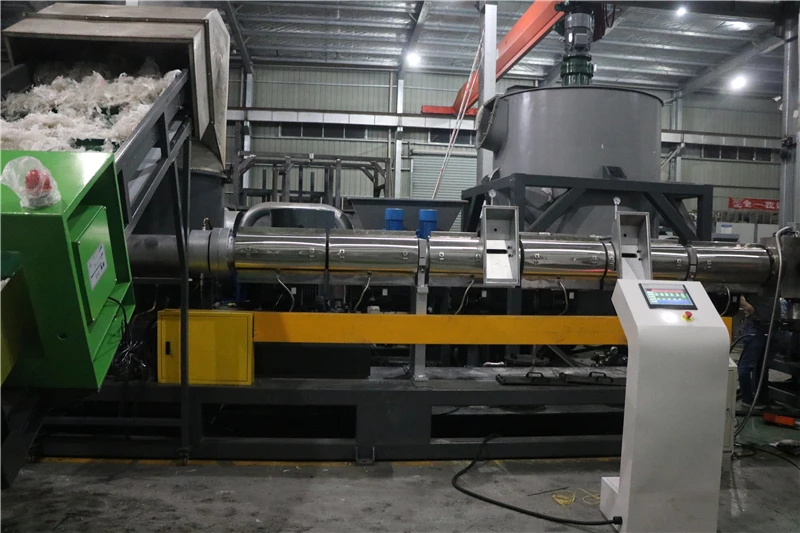

First Stage (mother stage)
Extruder barrel made by sturdy frame, heavy. No vibrating when machine running;
the whole frame where installed the gearbox, motor and screw has done the milling working.
Use 38CrMnAlA making screw, nitriding treatment which can used for long lifetime.

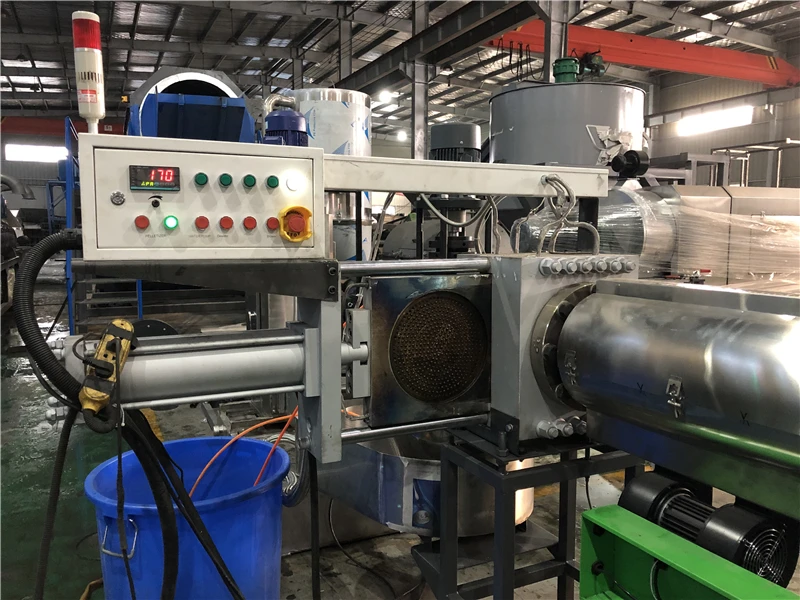

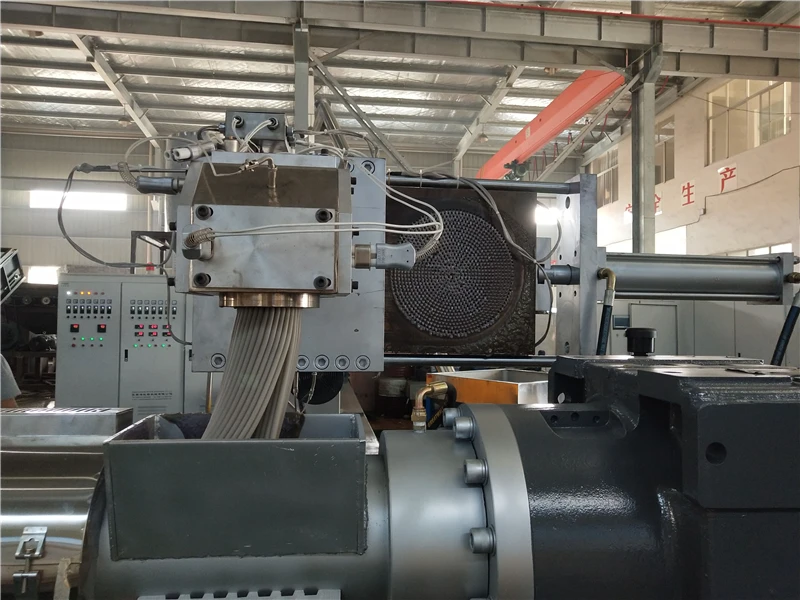

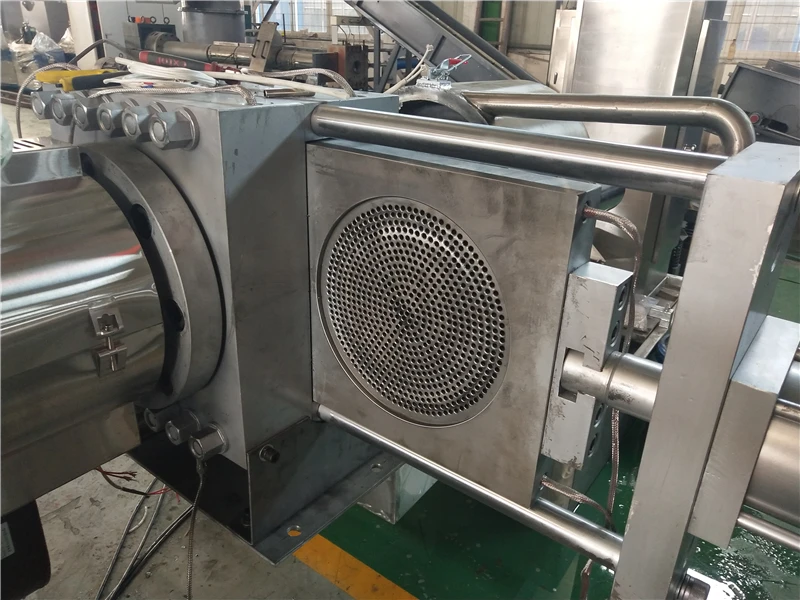

Hydraulic screen changer
Double position board model,non-stop change screen
Board made by 38CrMnAl with forging, heating treatment won’t deform after heating using.
Screen changing driven by hydraulic

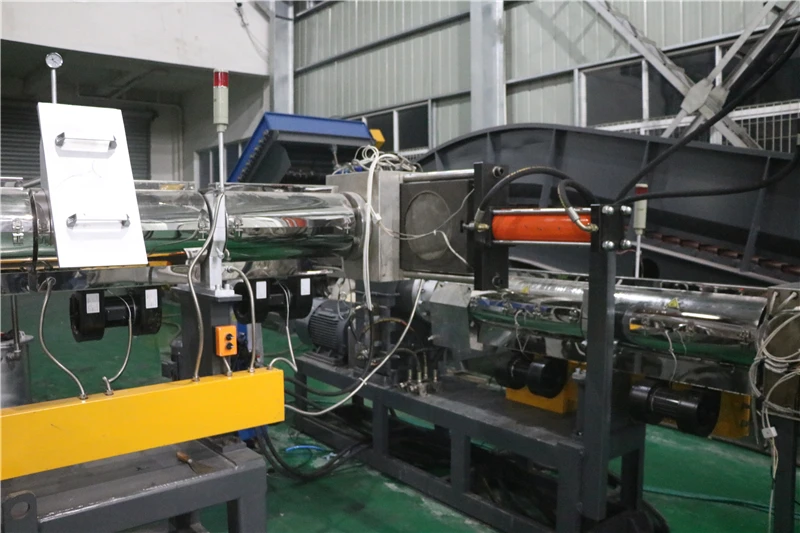

Vacuum degassing die head
Installed on the first Extruder
Made by 40Cr material with tempering and quenching treatment
Heating up by the heating core
Design as a material disperser so the material comes out as noddle, so it can remove the air and humidity from the material




Second Extruder (baby stage)
Extruder barrel made by sturdy frame, heavy. No vibrating when machine running;
the whole frame where installed the gearbox, motor and screw has done the milling working. Use 38CrMnAlA making screw, nitriding treatment which can used for long lifetime.

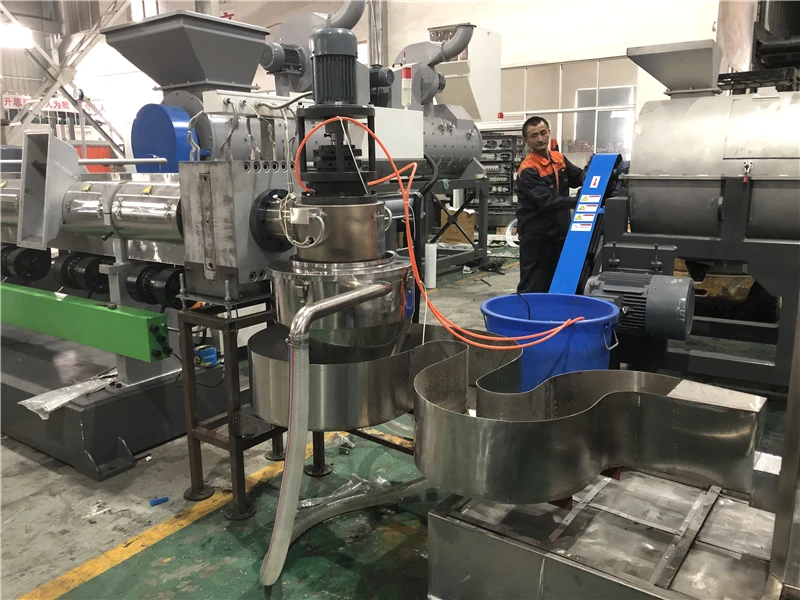

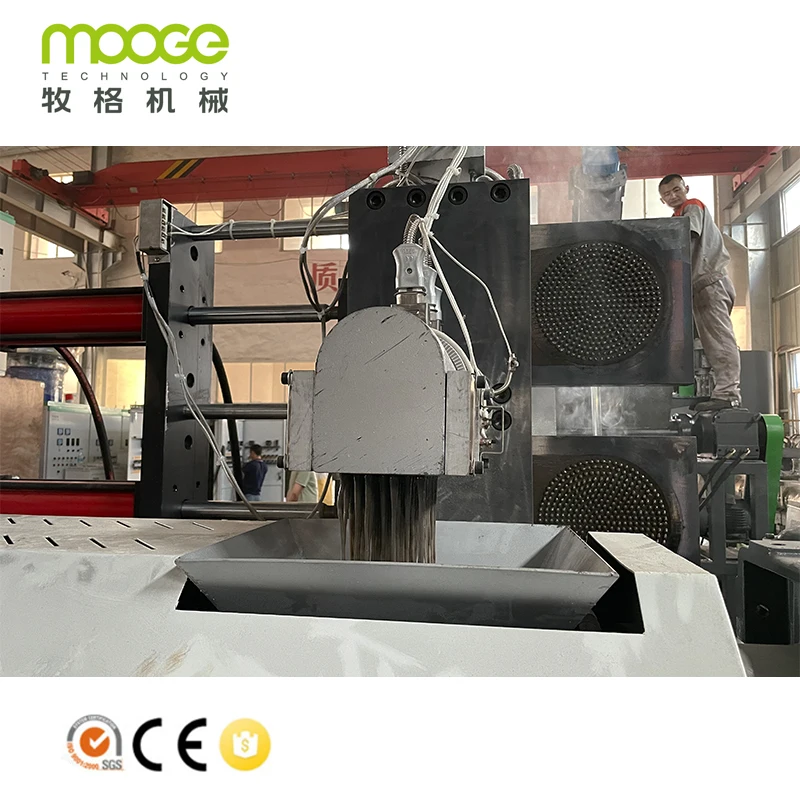

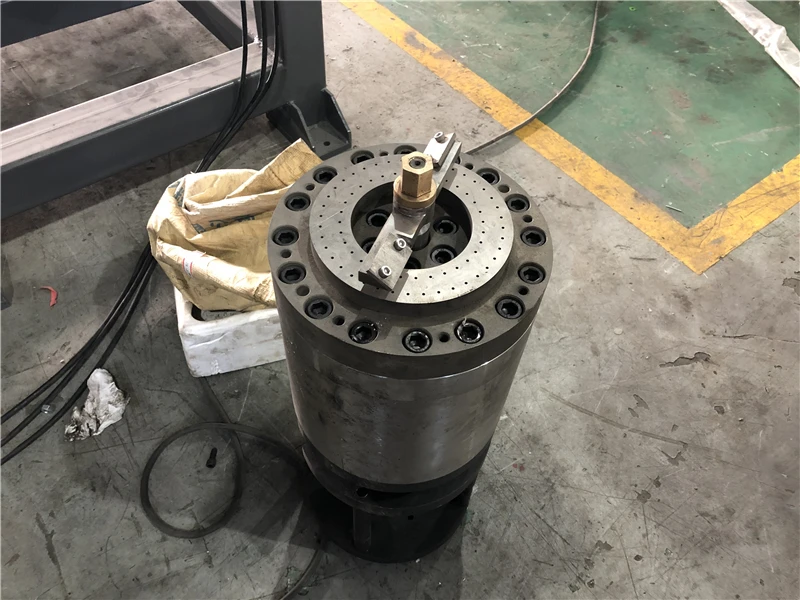

Vertical die head cutter
Use SKD-II blade material
Die mold Made by the 38CrMoALA material with forging treatment, surface been nitriding treatment and buffing.

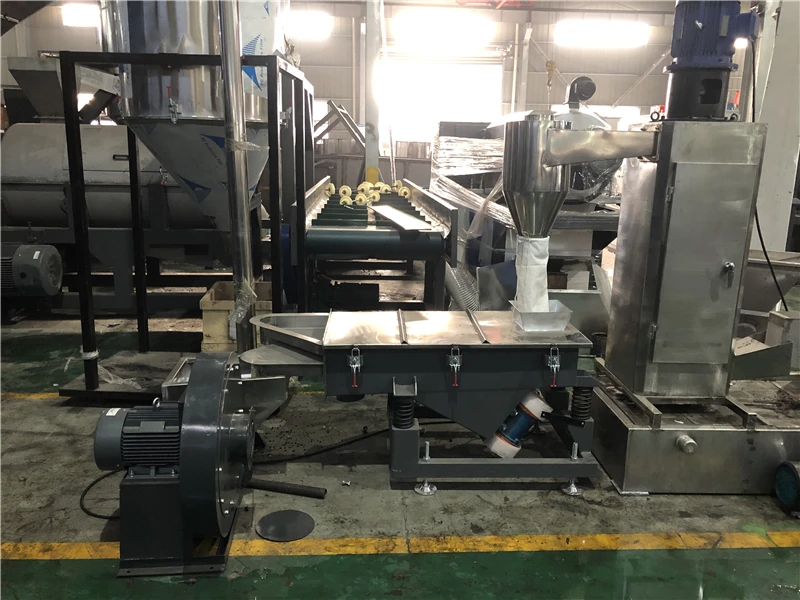

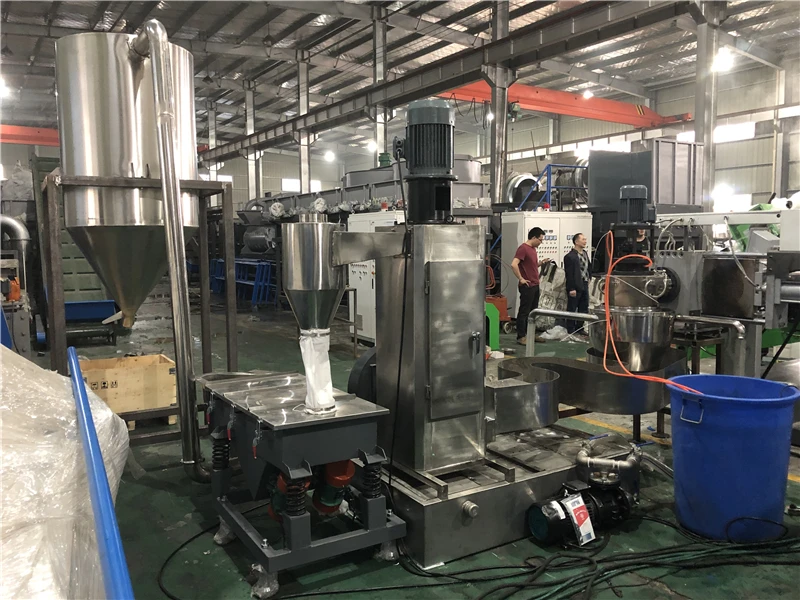

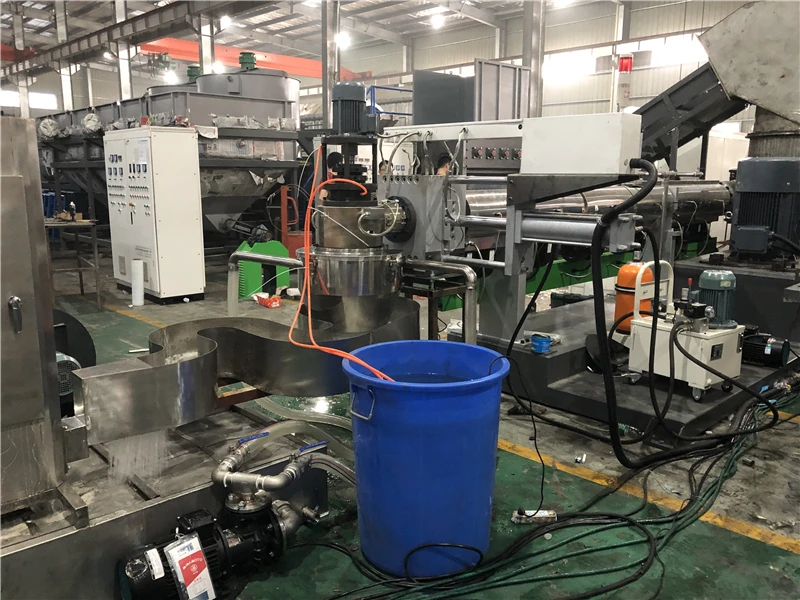

S Model cooling tank + vertical dewatering machine + vibrator machine

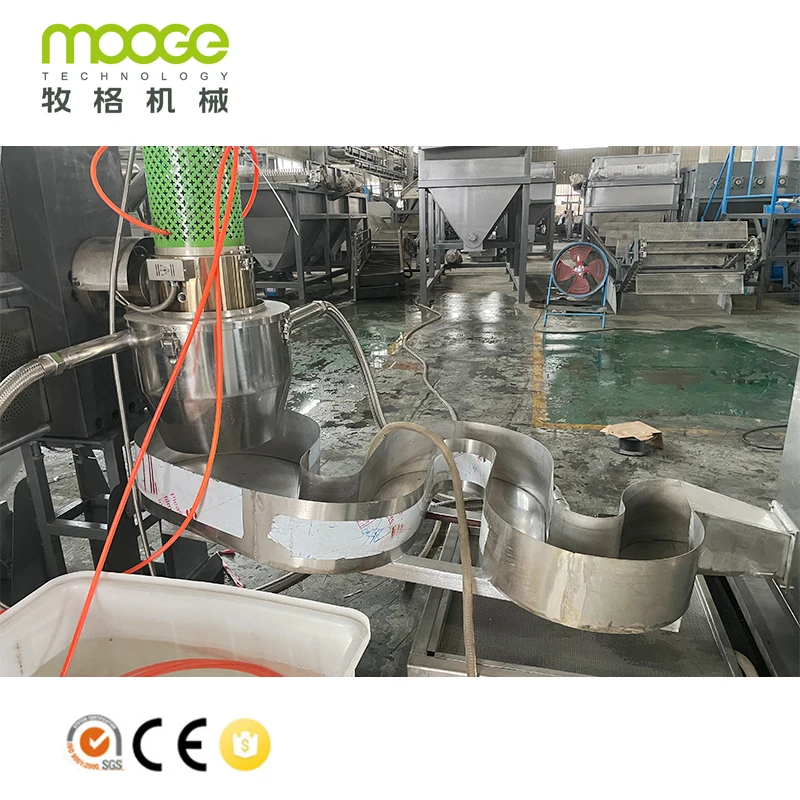

S type cooling tank design -high efficiency cooling the granules
by 1500 RPM rotor shaft , dewatering machine high speed dewatering
use vibrator machine screen different size




Big volume storage silo made by Stainless steel
