Original BELTTT off grid 12v to 220v UPS dc to ac modified sine wave inverter 2000 watts with charger
- Category: >>>
- Supplier: Guangzhou Poojin Electronic Co. Ltd.
Share on (1600438870876):
Product Overview
Description
Original BELTTT off grid 12v to 220v UPS dc to ac modified sine wave inverter 2000 watts with charger

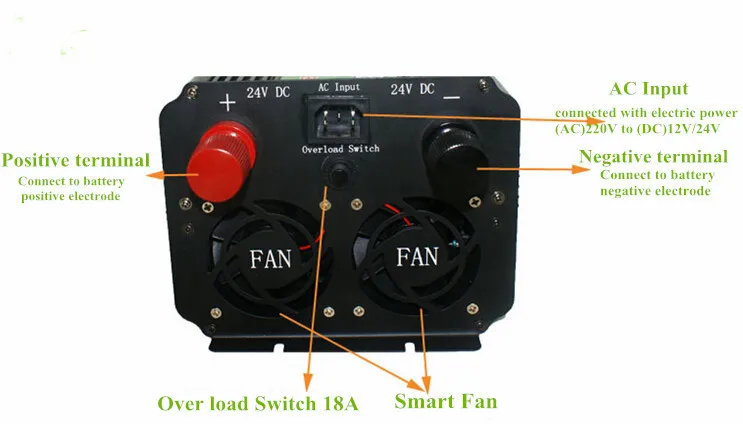

Figure-2

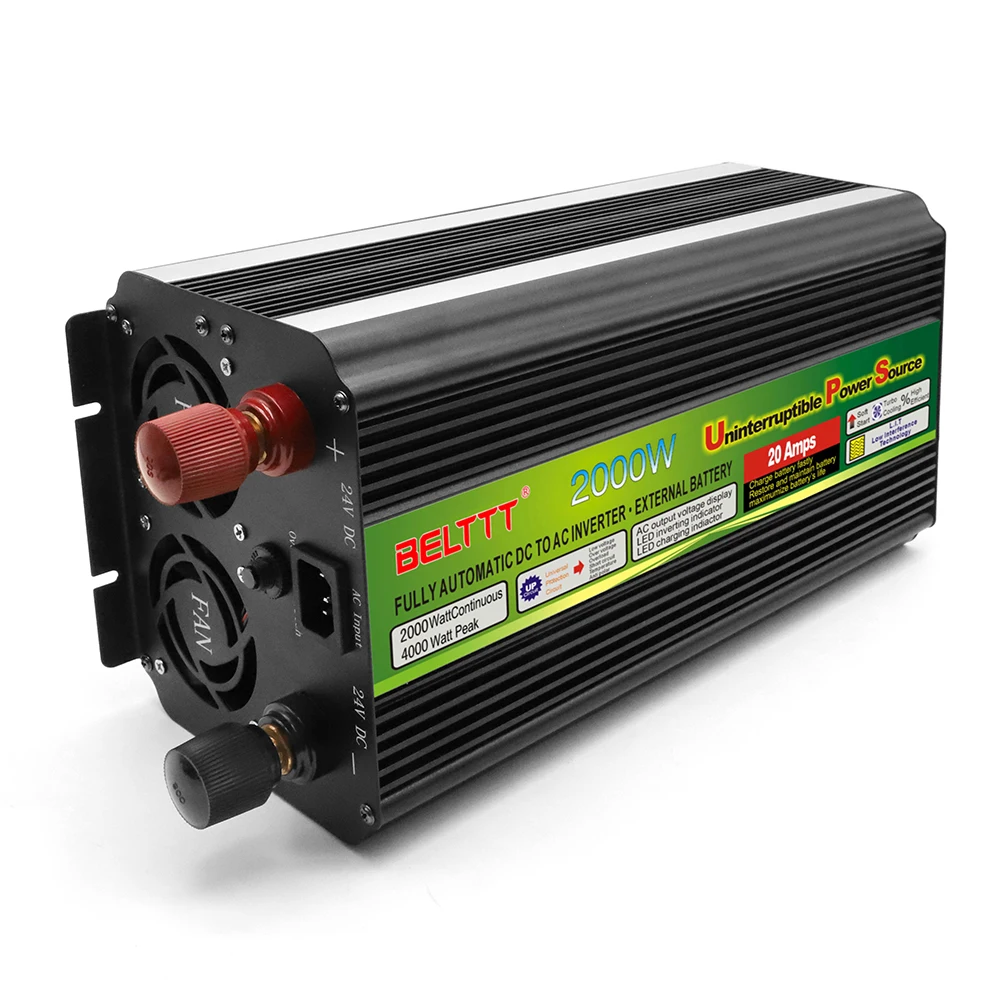

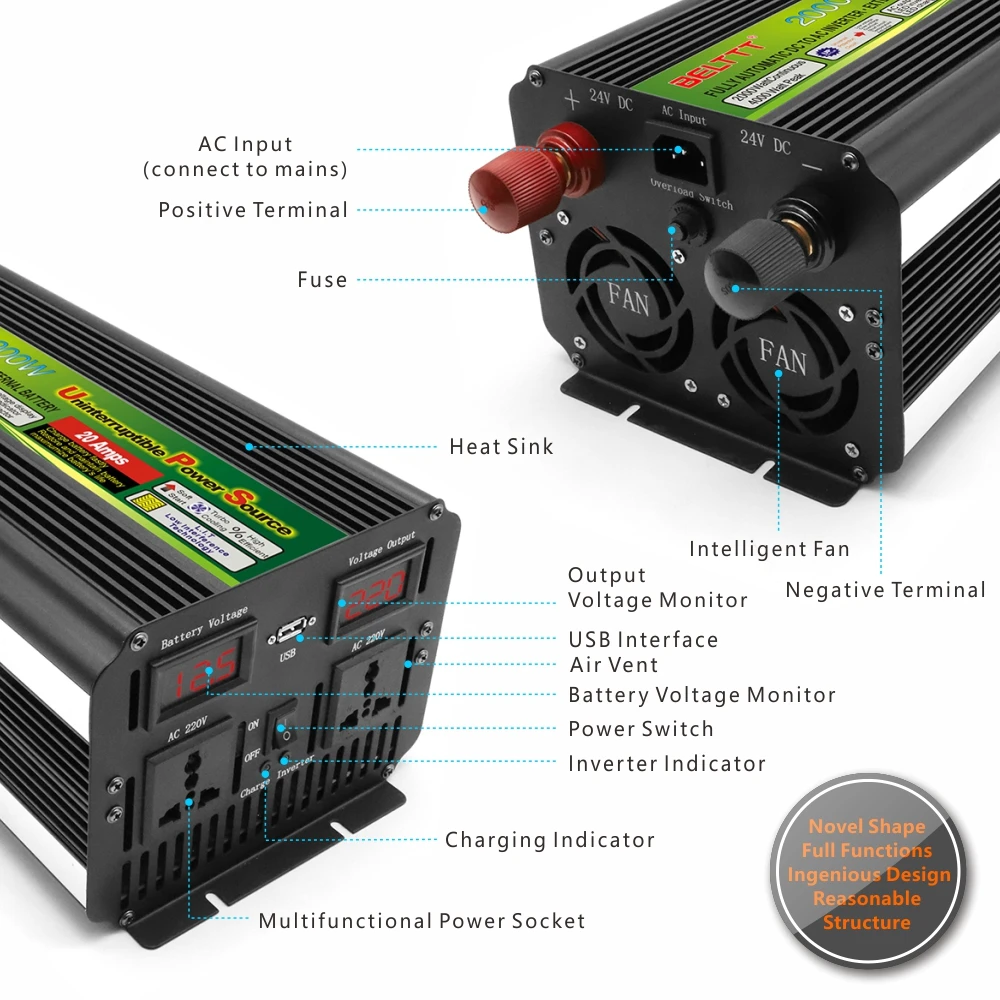

Figure-2. Input Panel with DC Input Terminals, AC Charger Input and Fan.

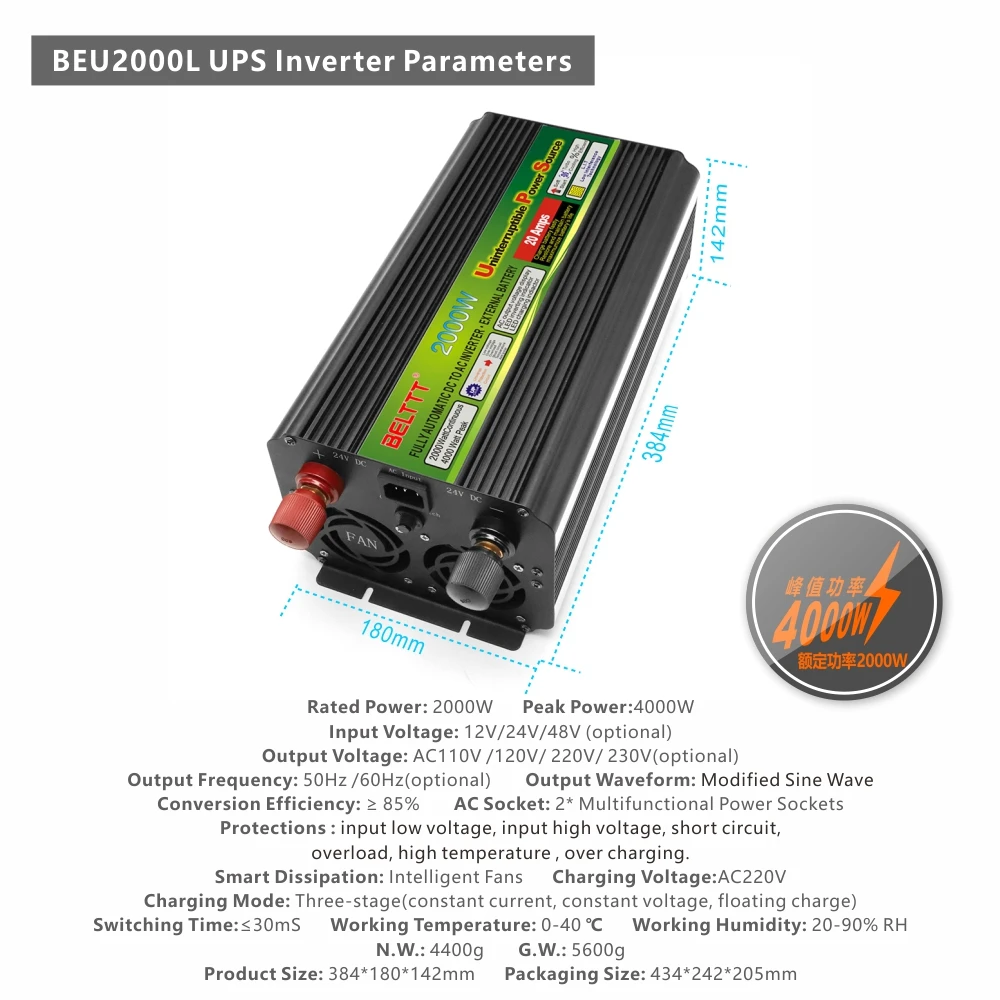

Specifications
| BEU2000L Output | |
| Rated Power | 2000W |
| Peak Power | 4000W |
| Voltage | AC110V or AC120V or AC220V±5% |
| Frequency | 50Hz or 60Hz±3Hz |
| Wave Form | Modified sine wave |
| Efficiency | ≥92% |
| Overload Protection | ≥2000W |
| Shortcircuit Protection | Yes |
| Temperature Protection | 65℃±5℃ |
| THD | <3% |
| BEU2000L Input | |
| Nominal Voltage | DC12V or DC24V |
| Voltage Range | DC10V-15V@12V, DC20V-30V@24V |
| Low Voltage Alarm | DC10.5V±0.5V or DC20V±1V |
| Low Voltage Cut off | DC9.5V±0.5V@12V, DC19V±1V |
| High Voltage Cut off | DC15.5V±0.5V@12V,DC30V±1V |
| Max Current | 72A @12V |
| No Load Current | ≤0.3A |
| Shut Down Current | ≤55mA |
| Battery Type | Lead Acid |
| Fuse | 40A*3@12V |
| Battery Input | |
| Input Voltage | AC 110V or AC 120V or AC 220V |
| Frequency | 50Hz/60Hz ± 3Hz |
| Charge Efficiency | ≥80% |
| Charger Fuse | 2A*1 |
| Input High Voltage Protection | Yes |
| Battery Output | |
| Constant Current | 6A |
| Constant Voltage | 14.4V |
| Float Charge Voltage | 13.5V |
| Short Circuit Protection | Yes |
| Mode Switching | |
| Switch Method | Automatically |
| witching Time | ≤20mS |
| From Mains to Invert | Mains Voltage is Below 90V or 200V |
| From Invert to Mains | Mains Voltage is Above 90V or 200V |
| Bypass Current | 4A |
| Other Parameters | |
| USB Port | 5V-1A*1 |
| Cooling | Smart Fan |
| Operation Environment | Temperature 0℃ ~ 40℃, Humidity 20%~ 90% |
| Noise Level(db) | <20(1m), <40db(1m) when fan running |
| Net Weight(KG) | 3.4 |
| Gross weight(KG) | 4 |
| Dimension(mm) | 427*150*107 |
| Packings | |
| Dimension of Outer Packings(mm) | 660*485*345 |
| QTY/CTN(pcs) | 6 |
| Inner Packing Marterial | Gift Box |

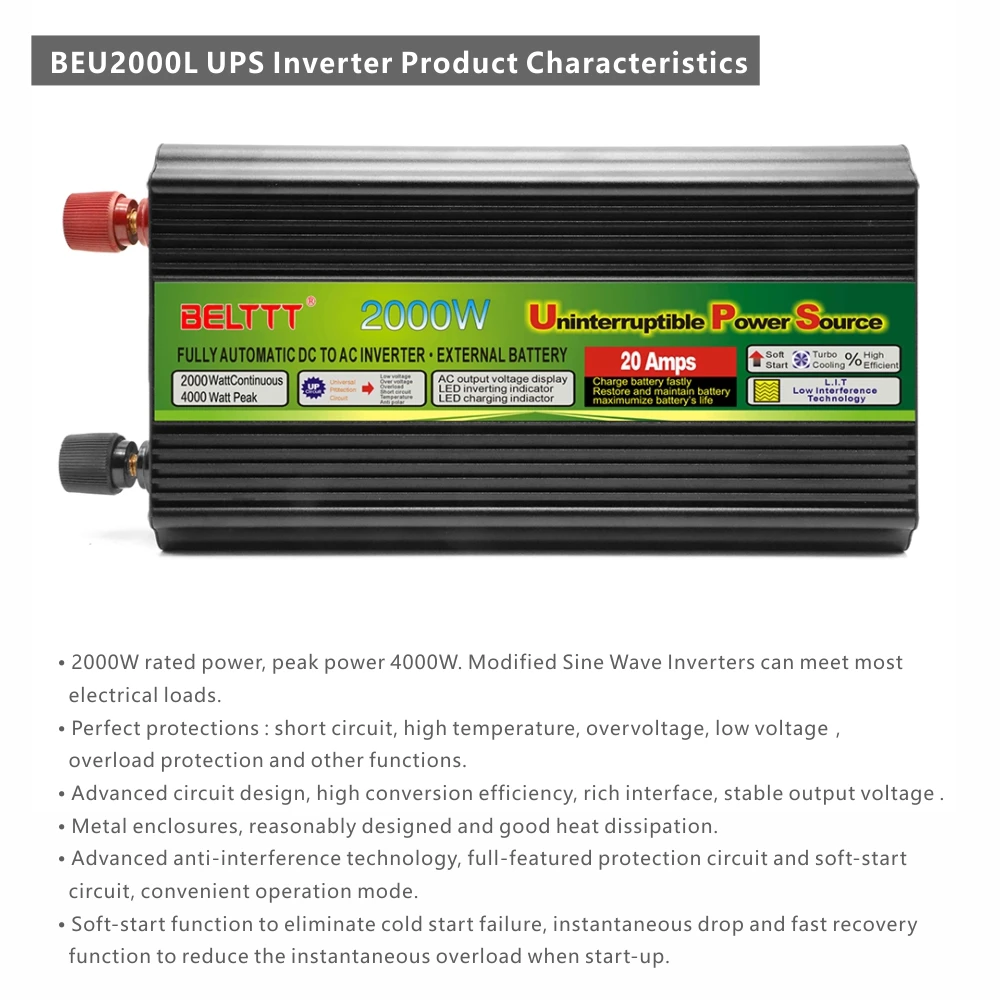

Features
- 1.Built-in cooling fan only starts working when temperature is over.
- 2. High efficiency.
- 3. multi-protection.
- 4. Universal Outlets.
- 5. Soft start-up.
- 6.Ideal for Camping, remote job sites or anywhere AC power is needed.
- 7.Easy to carry around
- 8.UPS function: when the device is connected to the battery and home mains,, the device will give priority to the home mains electricity. If the home mains is down,the device will automatically converted the DC battery power supply into AC power to run the home appliances.

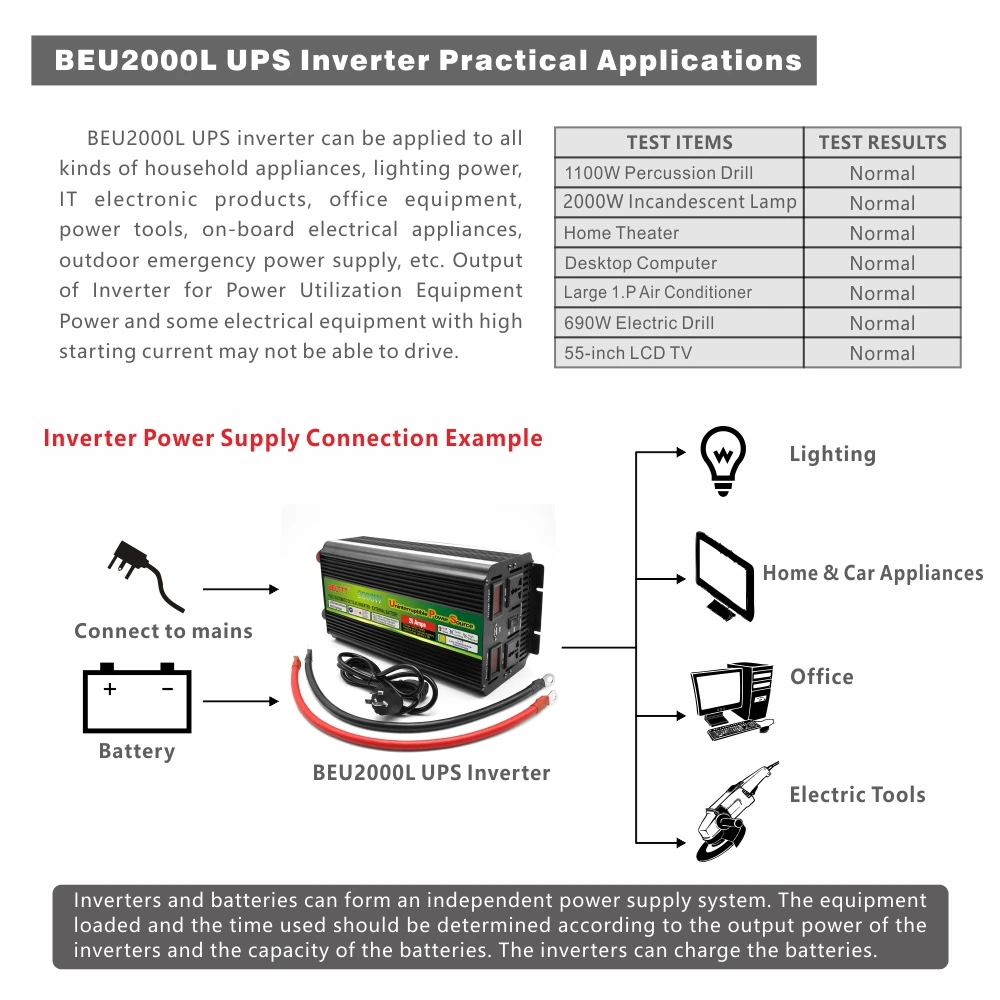

Product Applications

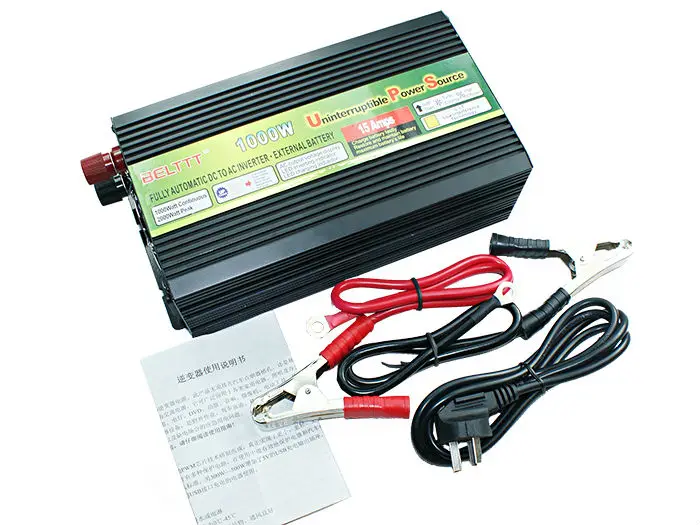

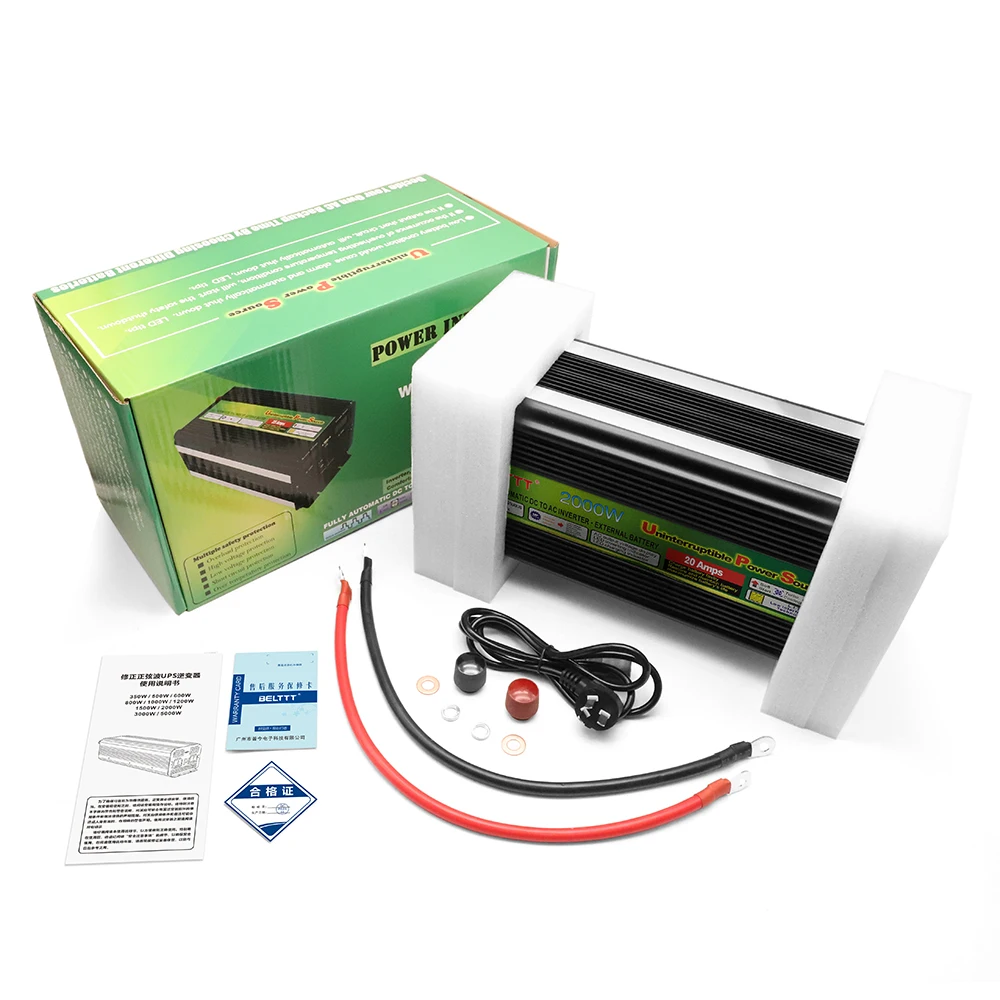

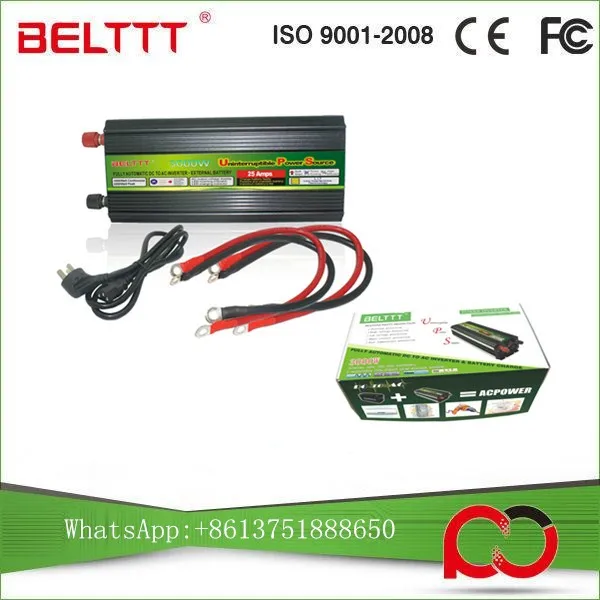

Box and Kits
Our Services
After delivery, we will keep tracking your orders before you receive it. It's alright to test our product after and very welcome to give us some feedbacks. If you have any questions, just contact us immediately, we will try our best to help you.
Customer Feedbacks
Company Profile
Product Line
Exhibitions
Outdoor Activities
Certifications
FAQ
Q1: How to choose a right inverter?
A: Contact us, our sales will recommend you a suitable product.
Q2: What's the difference between inverter and solar inverter?
A: Inverter will only accept DC input, but solar inverter can accept both DC input and PV input(solar input).
Q3. What is your packing terms?
A: Generally, we pack our goods with netural packing. However if you want us to use your boxes, we can do it under your authorization.
Q4. Do you support OEM?
A: Yes, we do support OEM. It's very welcome to ask more information.
Q5. What is the payment terms?
A: BY TT 30% deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.Small orders or sample can pay by TT, LC, Western Union, Paypal, Money Gram.
Q6. What is your delivery terms?
A: For EXW, FOB, CFR, CIF, DDU are accepetable.
Q7. How long is your delivery time?
A: Generally, it won't over 20 days after receiving your advance payment. It's all depend on type and quantity of the items you ordered.
