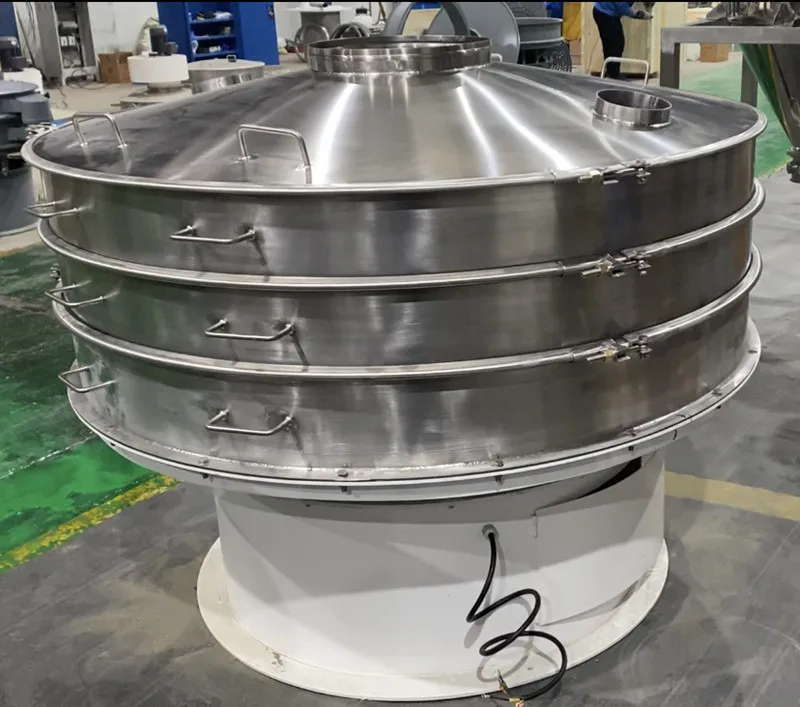

China high precision 1 stage food grade industrial vibrating sieve powder screening machine
- Category: >>>
- Supplier: Xinxiang Dezhong Intelligent Equipment Co. Ltd
Share on (1600438900871):
Product Overview
Description
Product Description

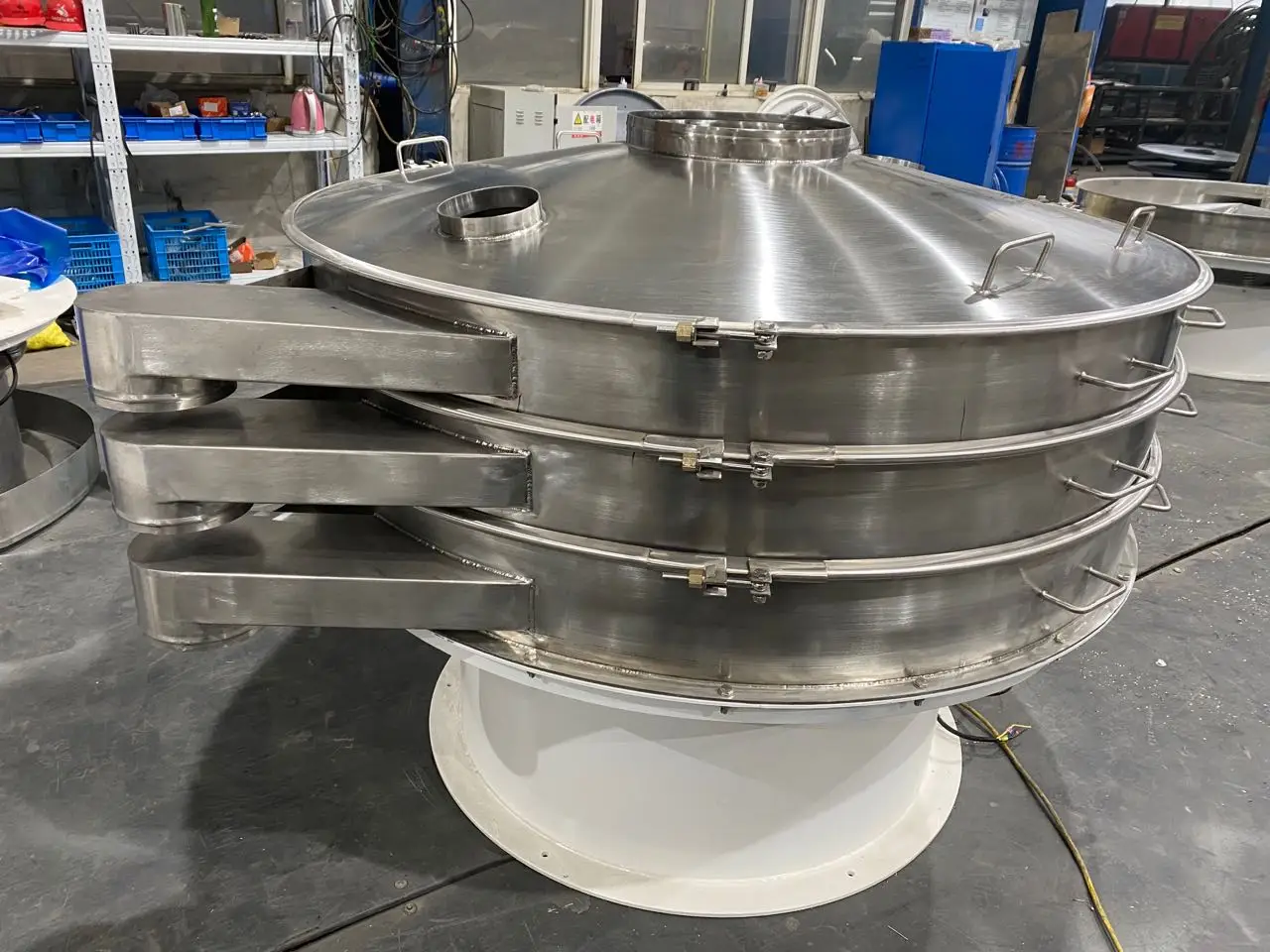

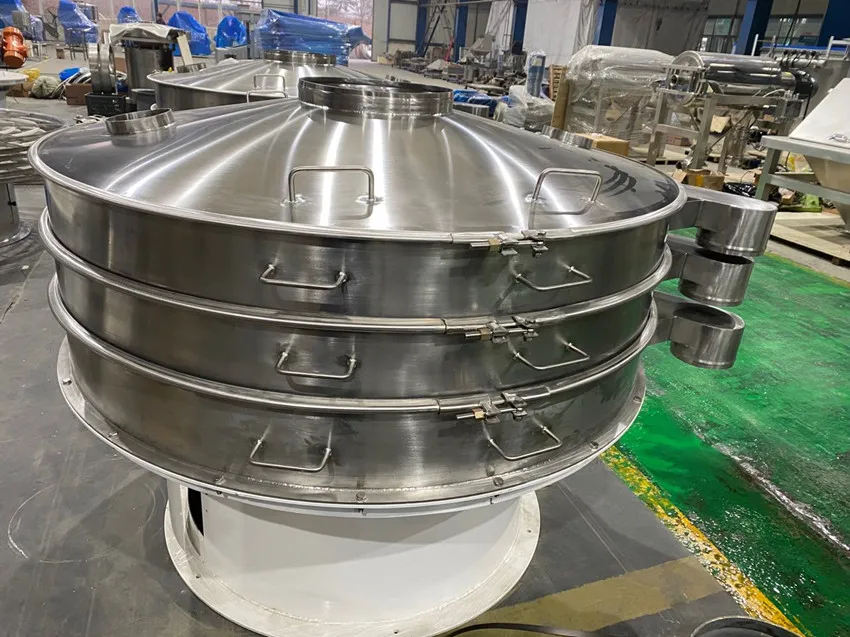

Rotary vibrating sieve use a vertical vibration motor as vibration source.The upper and lower ends of the motor are equipped with eccentric weights to change the rotary motion of the motor into horizontal ,vertical and inclined three -dimensional motions,and passed the force to the screen surface .Adjust the angle of upside and downside hammer to change the movement of the material on the screen surface.
Product Paramenters
Model | Effective diameter (mm) | Sieve area (㎡） | Sieving mesh | Layer (s) | Power(kW) | ||
Vibration motor | Common motor | ||||||
DZ-600 | φ560 | 0.23 | 2~500 mesh | 1~5 | 0.25 | 0.75 | |
DZ-800 | φ760 | 0.42 | 2~500 mesh | 1~5 | 0.55 | 1.1 | |
DZ-1000 | φ930 | 0.64 | 2~500 mesh | 1~5 | 1.1 | 1.5 | |
DZ-1200 | φ1130 | 0.95 | 2~500 mesh | 1~5 | 1.1 | 1.5 | |
DZ-1500 | φ1430 | 1.61 | 2~270 mesh | 1~5 | 1.5 | 2.2 | |
DZ-1800 | φ1730 | 2.35 | 2~270 mesh | 1~5 | 3 | 3 | |
DZ-2000 | φ1920 | 2.9 | 2~270 mesh | 1~5 | 3 | 3 | |
Application
Particle ,granular
Powder
Liquid
Food industry
wheat flour, salt ,sugar,starch ,coconut powder ,coffee powder ,milk powder ,spice powder ,etc
Chemical industry
resin powder, washing powder, soda ash, etc
Electromagnetic &Metallurgy Abrasives, ceramics industry:
titanium oxide, zinc oxide, metal powder,graphite,alumina, quartz sand,. etc
titanium oxide, zinc oxide, metal powder,graphite,alumina, quartz sand,. etc

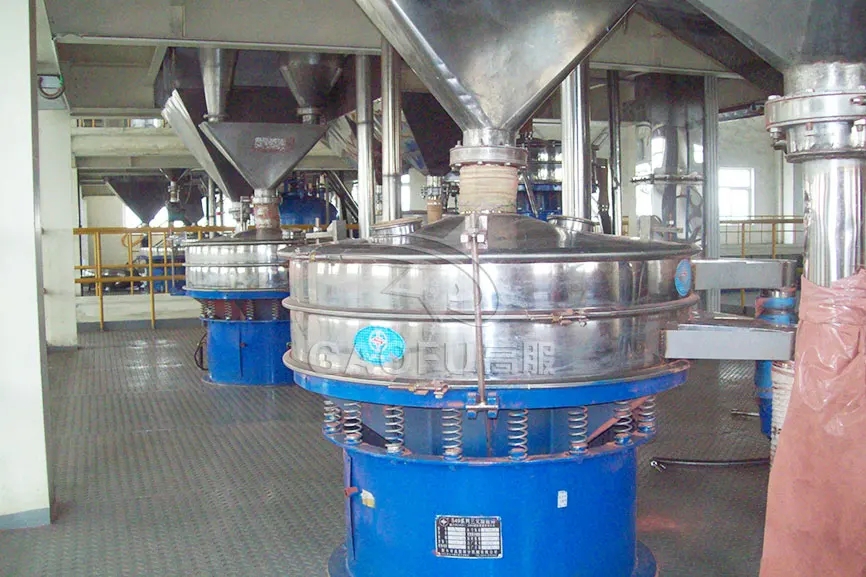

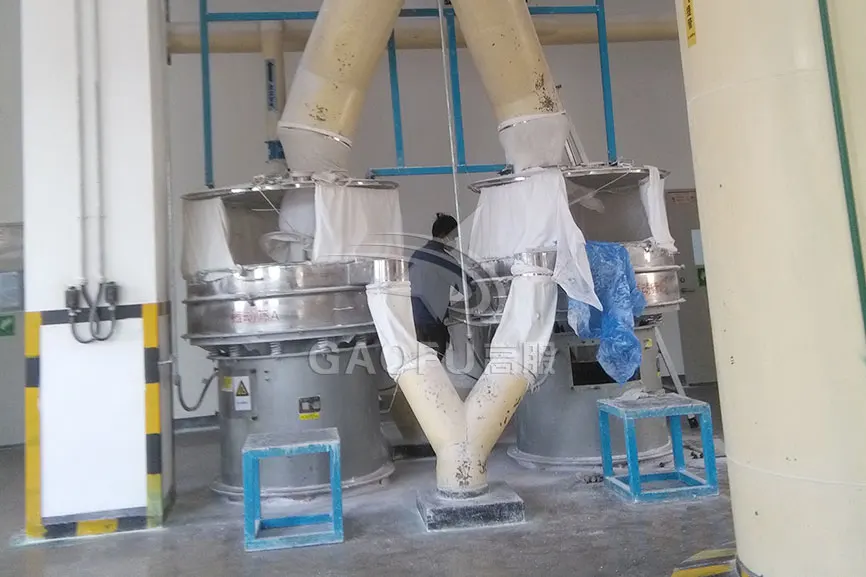

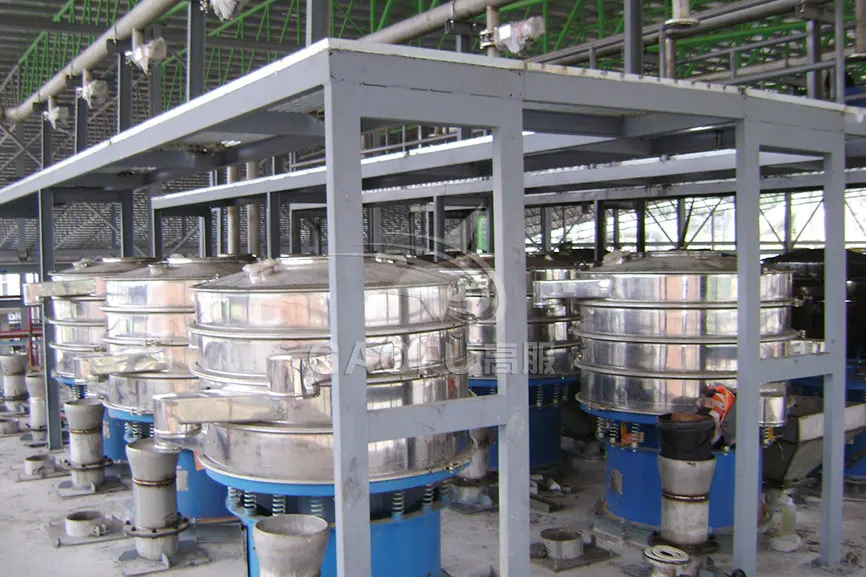

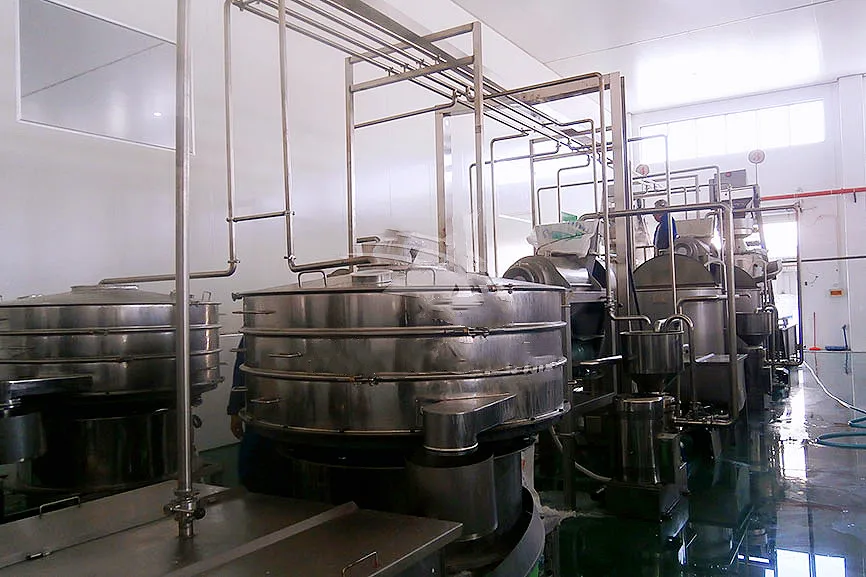

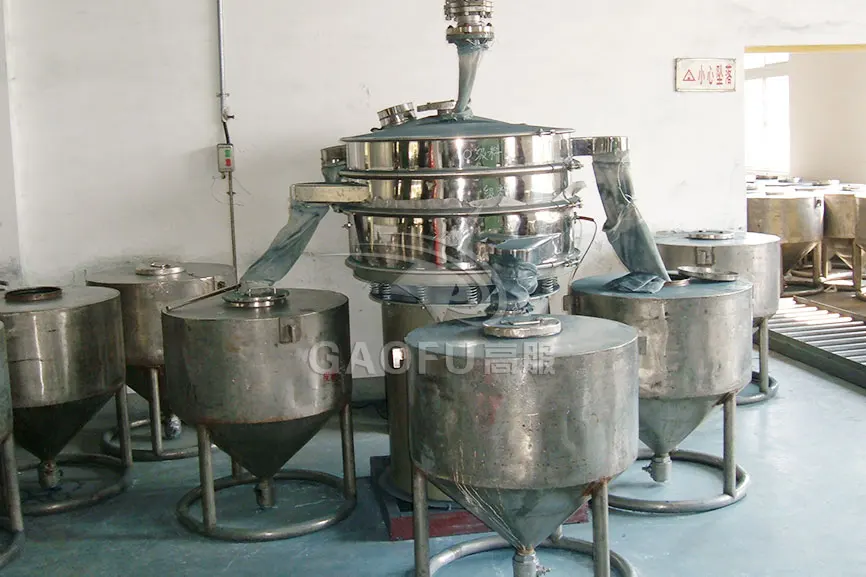

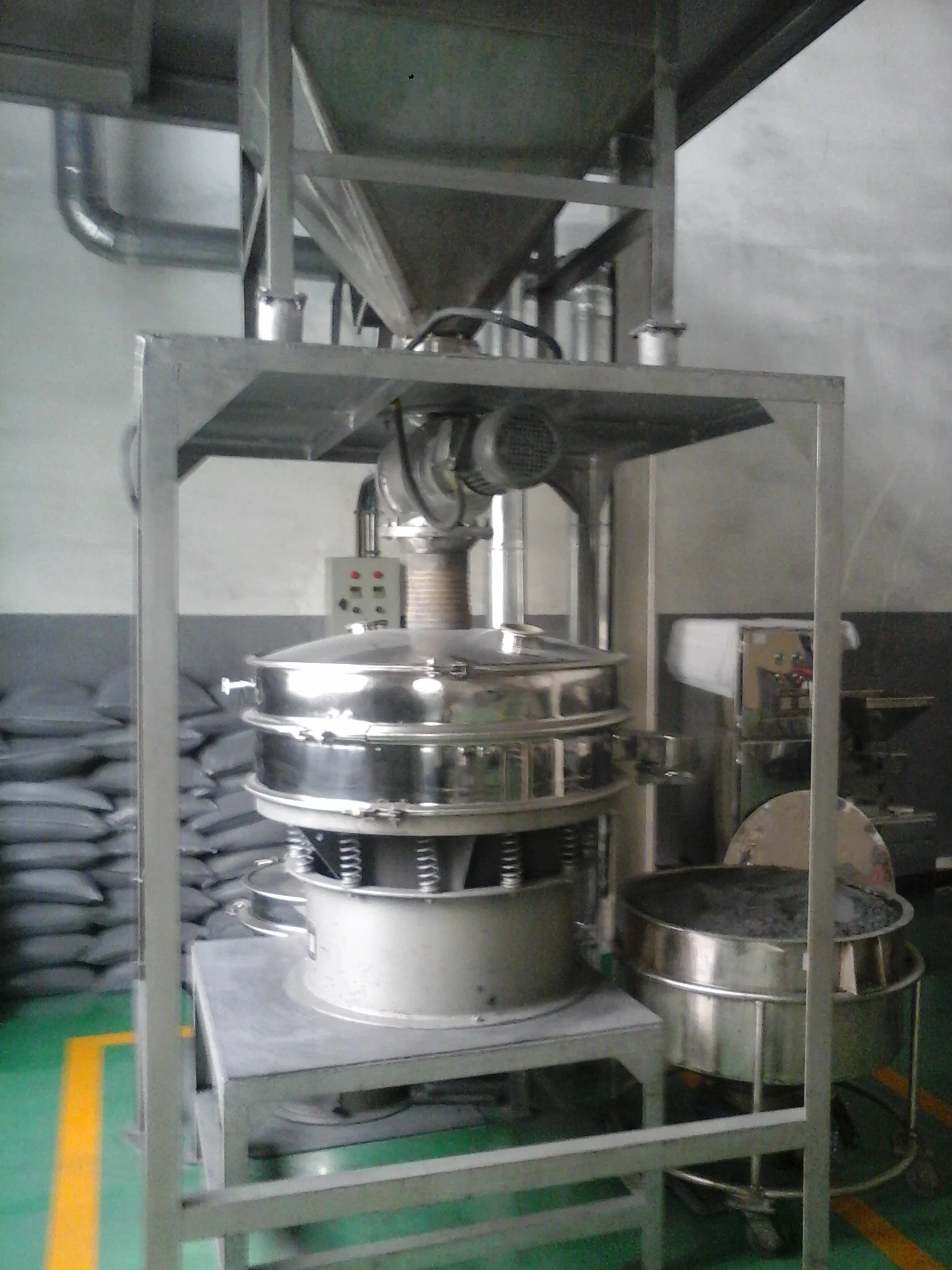

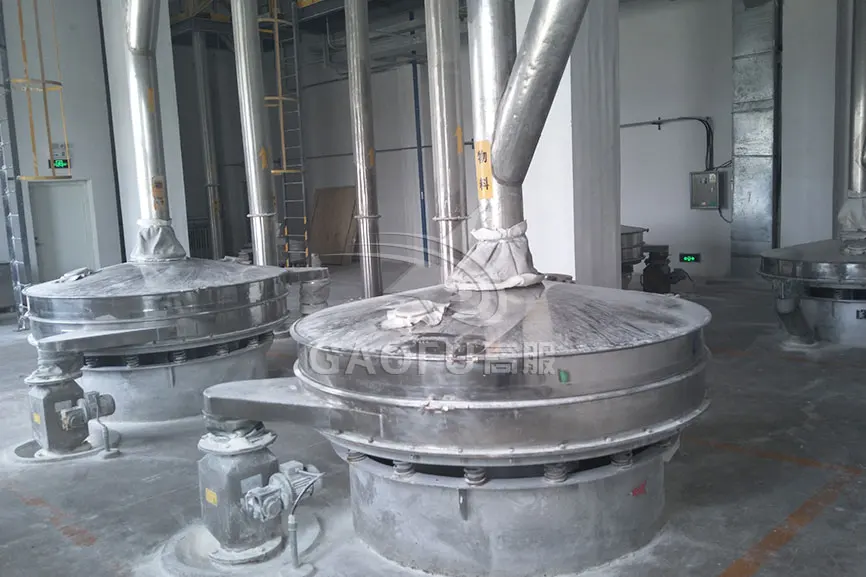

Working on site
