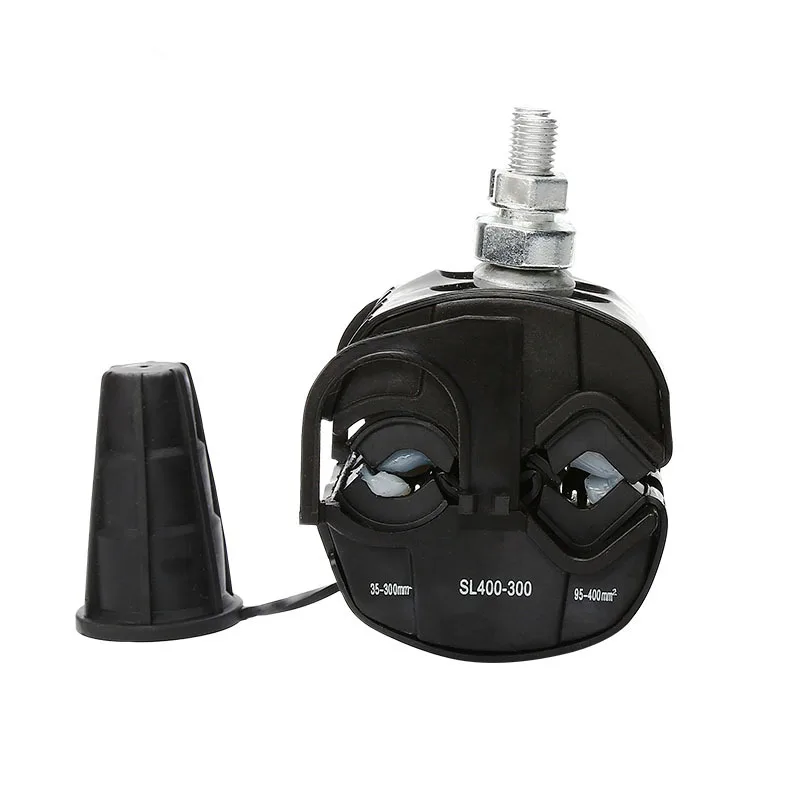

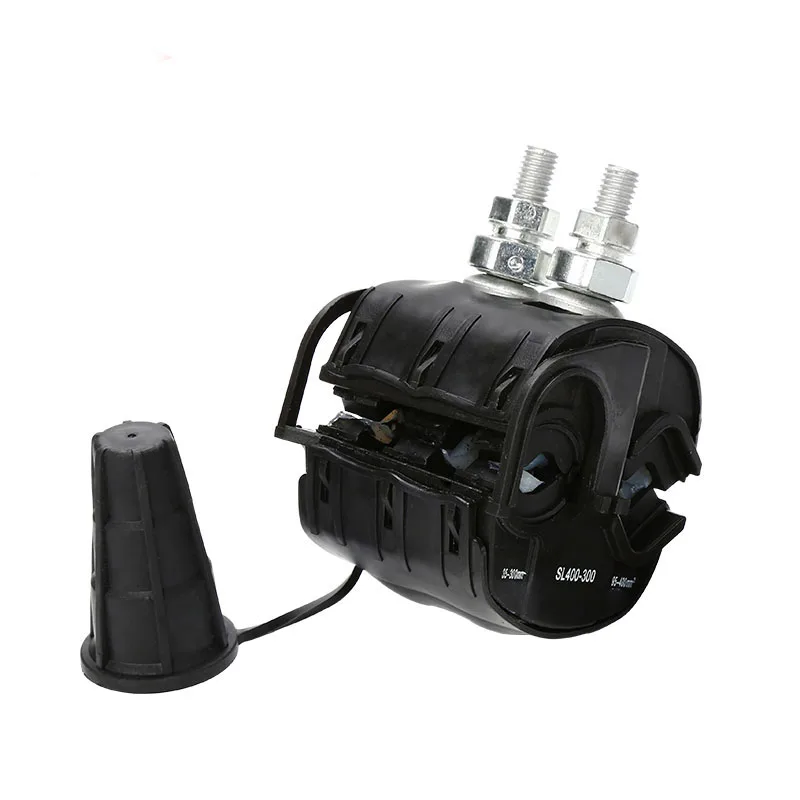

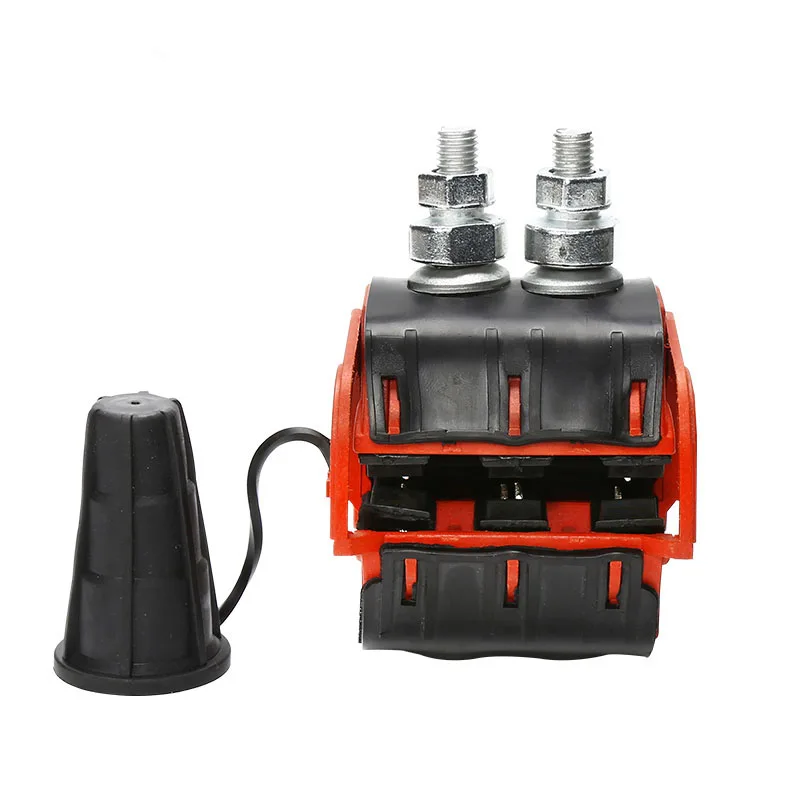

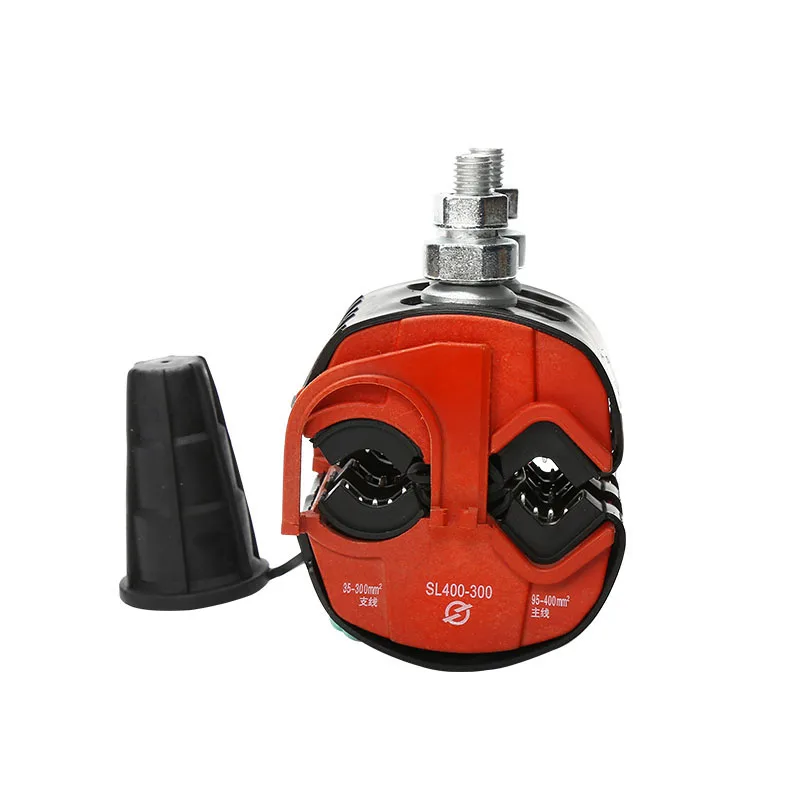

Электрический силовой фитинг SENTUO SL400, соединитель для изоляции подвесных линий, 1 кВ, Китай
- Category: Clamps >>>
- Supplier: Zhejiang Sentuo Electric Co. Ltd.
Share on (1600438921440):
Product Overview
Description
GENERAL:
1. Piercing connector, simple installation, need not strip the cable coat;
2. Moment nut, piercing pressure is constant, keep good electric connection and make no damage to lead;
3. Self-seam frame,wet-proof,waterproof,and anti-corrosion,extend the using life of insulated lead and connector;
4. Adopted special connecting tablet, apply to joint of Cu(AI) and Cu(AI) or Cu and AI;
1. Piercing connector, simple installation, need not strip the cable coat;
2. Moment nut, piercing pressure is constant, keep good electric connection and make no damage to lead;
3. Self-seam frame,wet-proof,waterproof,and anti-corrosion,extend the using life of insulated lead and connector;
4. Adopted special connecting tablet, apply to joint of Cu(AI) and Cu(AI) or Cu and AI;
7. Arc surface design , apply to connection with the same (different) diameter, wide connection scope (0.75mm2-400mm2/td);
5. Small electric connecting resistance, connecting resistance less than 2.5 times of the resistance of branch conductor with the same length . in accordance with the standard DL/T765.1-2001;6. Special insulated case body, resistance to illumination and environmental aging, the insulation strength can up to 12kV.
PRODUCT DETAIL:
FEATURES AND BENEFITS:
Insulated shell: Made of high-quality insulation and flame retardant material, the shell is hard and not easy to break, corrosion-resistant, aging-resistant, much more durable.
Torque nuts&bolts: Nut in hot dip galvanized steel, the bolts with 8.8grade or more higher.
Seal compound: 6KV/min underwater test qualified.
Piercing blades: Tin plated,copper/brass/aluminum available. Good electrical conductivity and effective oxidation prevention.
Cable end cap: Quality guarantee 36 month after assembly.
Insulated shell: Made of high-quality insulation and flame retardant material, the shell is hard and not easy to break, corrosion-resistant, aging-resistant, much more durable.
Torque nuts&bolts: Nut in hot dip galvanized steel, the bolts with 8.8grade or more higher.
Seal compound: 6KV/min underwater test qualified.
Piercing blades: Tin plated,copper/brass/aluminum available. Good electrical conductivity and effective oxidation prevention.
Cable end cap: Quality guarantee 36 month after assembly.
TECHNICAL DATA:
Model | SL400 |
Main Line (mm²) | 95-400 |
Tap Line (mm²） | 35-300 |
Norminal Current (A) | 425 |
Size (mm) | 83*130*130 |
Weight (g) | 1050 |
Piercing Depth (mm) | 5-6 |
Bolt (pcs) | 2 |
