Wholesale customized welded gate designs double wire mesh fence
- Category: >>>
- Supplier: Hebei Wanchi Metal Wire Mesh Products Co. Ltd.
Share on (1600438933207):
Product Overview
Description

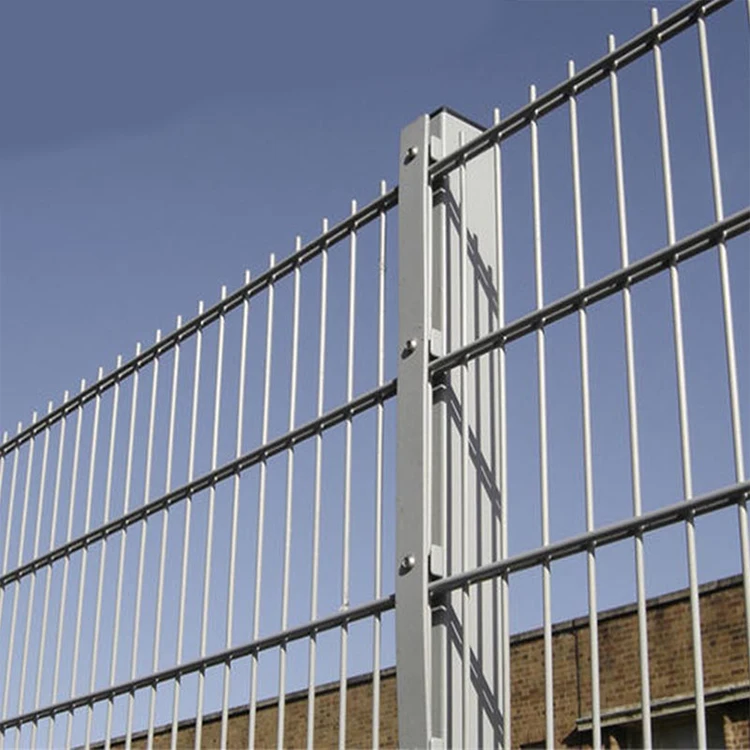

Wholesale customized welded gate designs double wire mesh fence
We have free samples, welcome to consult!
Product description
Each 2d double wire fence panel features twin 8mm wires welded either side of 6mm vertical wires (868 Double Wire Mesh), giving would-be intruders little chance of breaking through. It is also available as a 656 Twin Wire Panel option. Panels are fixed to steel posts using sturdy clamps and secured with pin hex security screws, with no visible fixings on the back of posts.
Panel height: 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1630 mm, 1830 mm, 2030 mm, 2230 mm, 2430 mm.
Panel width: 2000 mm, 2500 mm.
Materials: galvanized carbon steel wire, stainless steel wire, other material available.
Surface treatment: 2D fence panels made from galfan wire, then PVC powder coating (Min.100 micron), or PVC powder
painting. It provides additional protection and increases the potential life span.
Colors: green, black, blue, white. All RAL color is available.
Accessories: posts, post base feet, barbed wire, slotted clamp bars, post cap, bracket, bolts, spacer, nuts, washer, clips, etc.
Panel height: 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1630 mm, 1830 mm, 2030 mm, 2230 mm, 2430 mm.
Panel width: 2000 mm, 2500 mm.
Materials: galvanized carbon steel wire, stainless steel wire, other material available.
Surface treatment: 2D fence panels made from galfan wire, then PVC powder coating (Min.100 micron), or PVC powder
painting. It provides additional protection and increases the potential life span.
Colors: green, black, blue, white. All RAL color is available.
Accessories: posts, post base feet, barbed wire, slotted clamp bars, post cap, bracket, bolts, spacer, nuts, washer, clips, etc.
Specification
Specification of Double Wire Fence
Wire diameter | Mesh size | Panel size ( Hight × Width ) (mm) | Pole height (mm) | Pole type (mm) | Fittings |
8/6/8 mm 6/5/6 mm 5/4/5 mm | 200 × 50 mm | 630 × 2500 | 1100 | Rectangular type pole 60 × 60 × 2 | Non clip; rain cap |
830 × 2500 | 1300 | ||||
1030 × 2500 | 1500 | ||||
1230 × 2500 | 1700 | Rectangular Type pole 80 × 80 × 2 | Steel clips, plastic clip; rain cap | ||
1430 × 3000 | 1900 | ||||
1630 × 3000 | 2100 | ||||
1830 × 3000 | 2400 | ||||
2030 × 3000 | 2600 | ||||
2430 × 3000 | 2800 | ||||
2530 × 3000 | 3000 | ||||
2630 × 3000 | 3000 |
Installation Instructions
Quality Inspection
Application
Packing & Delivery
Fence Panel
Accessories:
Clips and Screw&nuts are filled into the plastic bag ,then put them into the carton box
1 There is a piece of plastic film(with small bubbles),The first panel can be prevented from damaging the metal pallet
2 Metal plate is fixed at each corner of the panels, which can keep the panels stay together and immovable.
3 The wood plate on the panels can prevent the last panel from being damaged by top pallet pole the pole with a cap is covered by plastic film, then packaged by metal pallet
2 Metal plate is fixed at each corner of the panels, which can keep the panels stay together and immovable.
3 The wood plate on the panels can prevent the last panel from being damaged by top pallet pole the pole with a cap is covered by plastic film, then packaged by metal pallet
Accessories:
Clips and Screw&nuts are filled into the plastic bag ,then put them into the carton box
Certifications
Why choose us ?
1.Professional & experienced factory(over 9 years)
2.Professional design team& excellent sales team for your service;
3.Quick delivery& superior quality
4.Alibaba golden supplier& SGS report
1.Professional & experienced factory(over 9 years)
2.Professional design team& excellent sales team for your service;
3.Quick delivery& superior quality
4.Alibaba golden supplier& SGS report
Company Profile
Office Building WareHouse
Office Picture Work Shop
Our company is a supplier of metal wire mesh certified by Alibaba，It has been established for 9 years. With strong technical force and complete manufacturing equipment, our products are widely used in construction, agriculture and other industries.
We have established business relations with many customers at home and abroad with high-quality service, excellent products and advanced technology. Our products are exported to the USA , Canada, Australia, South Asia,Middle East, European Countries and others.
OEM / ODM customization is acceptable. If you are interested in our products, please send an inquiry!
We have established business relations with many customers at home and abroad with high-quality service, excellent products and advanced technology. Our products are exported to the USA , Canada, Australia, South Asia,Middle East, European Countries and others.
OEM / ODM customization is acceptable. If you are interested in our products, please send an inquiry!
FAQ
Q: Are you a manufacture?
A: Yes, we have specialized in this field for more than 9 years.
Q:How do you look at your customers?
A:They are not only our customers, but also our partners, we will work together to develop, win-win cooperation.
Q:Do you sell products only?
A:We not only sell products, we also provide services, we have a comprehensive after-sales service system.
Q: Do you provide sample?
A: The samples are provided free, but the customer need to pay the postage.After the customer place order, we will deduct the postage from the payment.
Q: What information should i provide,if i want a lowest quotation?
A: The specification of products, such as size, color, package and quantity.
A: Yes, we have specialized in this field for more than 9 years.
Q:How do you look at your customers?
A:They are not only our customers, but also our partners, we will work together to develop, win-win cooperation.
Q:Do you sell products only?
A:We not only sell products, we also provide services, we have a comprehensive after-sales service system.
Q: Do you provide sample?
A: The samples are provided free, but the customer need to pay the postage.After the customer place order, we will deduct the postage from the payment.
Q: What information should i provide,if i want a lowest quotation?
A: The specification of products, such as size, color, package and quantity.
