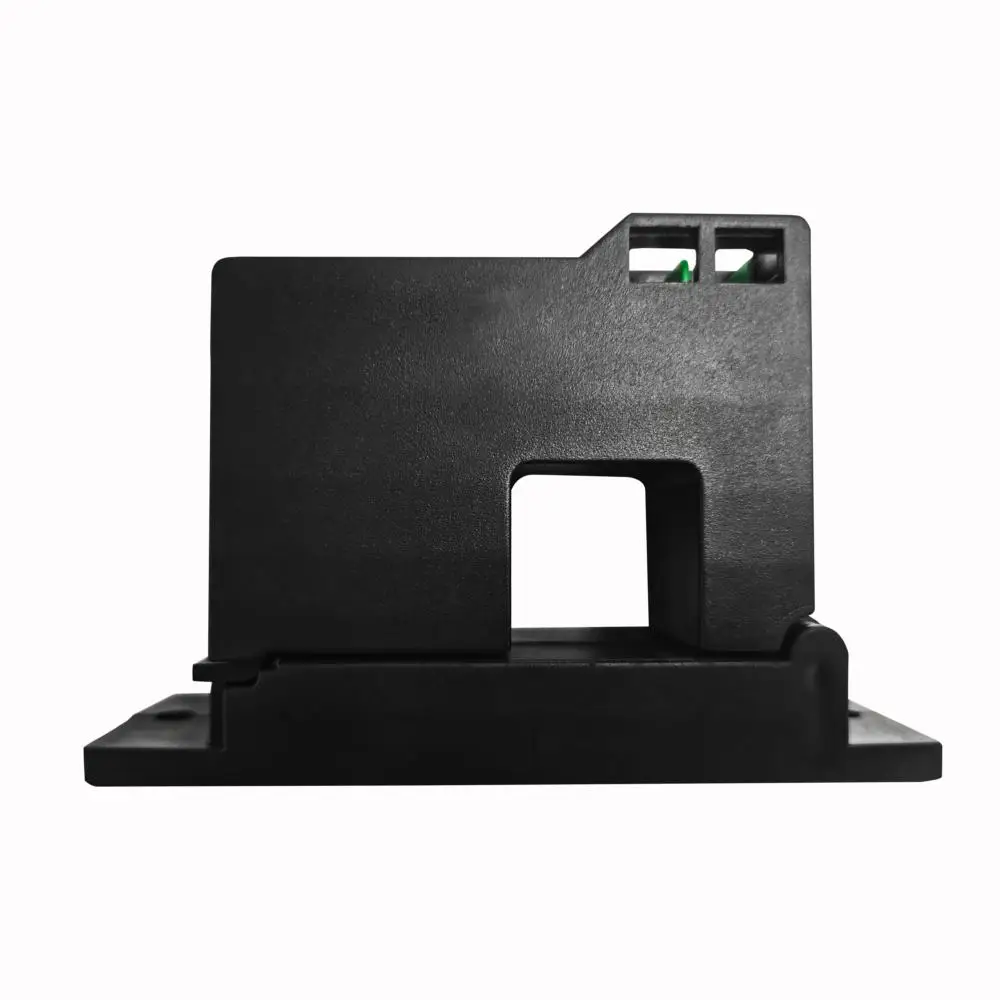

current sensor transformer output analog 4 20ma hall effect current transducer
- Category: >>>
- Supplier: Guangdong Fengli Electronics Co. Ltd.
Share on (1600438941934):
Product Overview
Description
Basic function
Current transducer is a device, which converts current into a proportional industrial standard electrical signal
The current goes in, usually it is current, voltage, frequency, power, etc. Then the sensitive component will detect the electrical parameter and give a signal.
After that the signal will be passed to conversion component, which can convert the signal to a small current signal. Then it will be passed to conversion circuit, which process the small current signal and provide an industrial standard electrical signal, usually is 0-5V, 0-10V,4-20mA, RS485.at the end the output signal goes to terminal equipment, such as display, PLC, alarm unit, automation control, etc.
PRODUCT SPECIFICATIONS
Item | Data |
Brand | Furison |

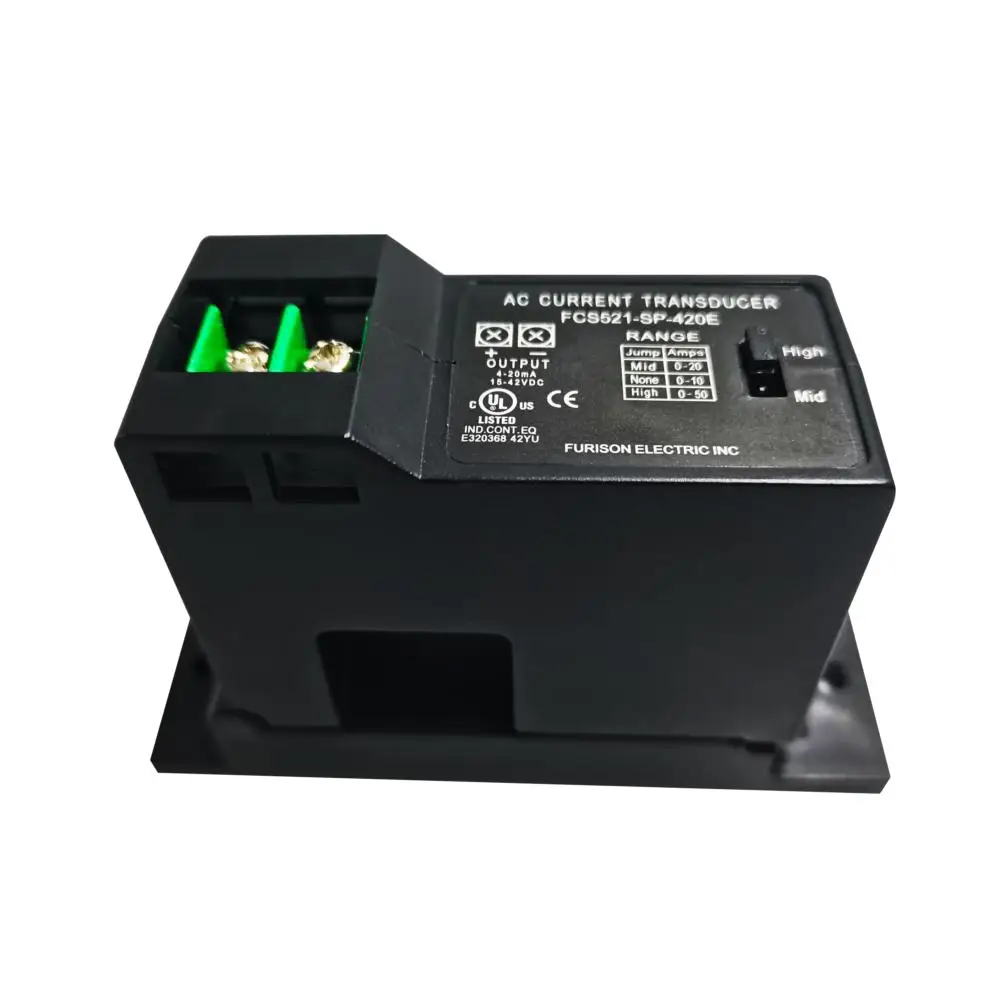

Model | FCS521-SP-420 |
Input current | 10A/20A/50A |
Dimensions | 100*31*65mm (Aperture 22mm) |
Output type | 4-20mA (voltage output type) |
Working temperature | -2 0～60℃ |
Working humidity | 0-9 5% (non-condensing) |
Response time | ≤2 0 0ms |
Overload | 2 0 0% |
Material | Plastic |
Insulation withstand voltage | 2 0 0 0V |
Certification | UL, CE, ROHS |
Power consumption | ≤1W |
Maximum leakage current | ≤ 1mA |
Hysteresis | ≤1% |
Linearity | 1 0%-1 0 0% |
Characteristics:
Adopt 24V DC (±10%) power supply
High current detection accuracy and stable performance
Maximum overload 200%
Easy to install and use, no need to connect DC in series in the circuit when measuring
Products have passed CE, CSA, UL, Rohs quality certification
The shell is made of self-extinguishing material ABS

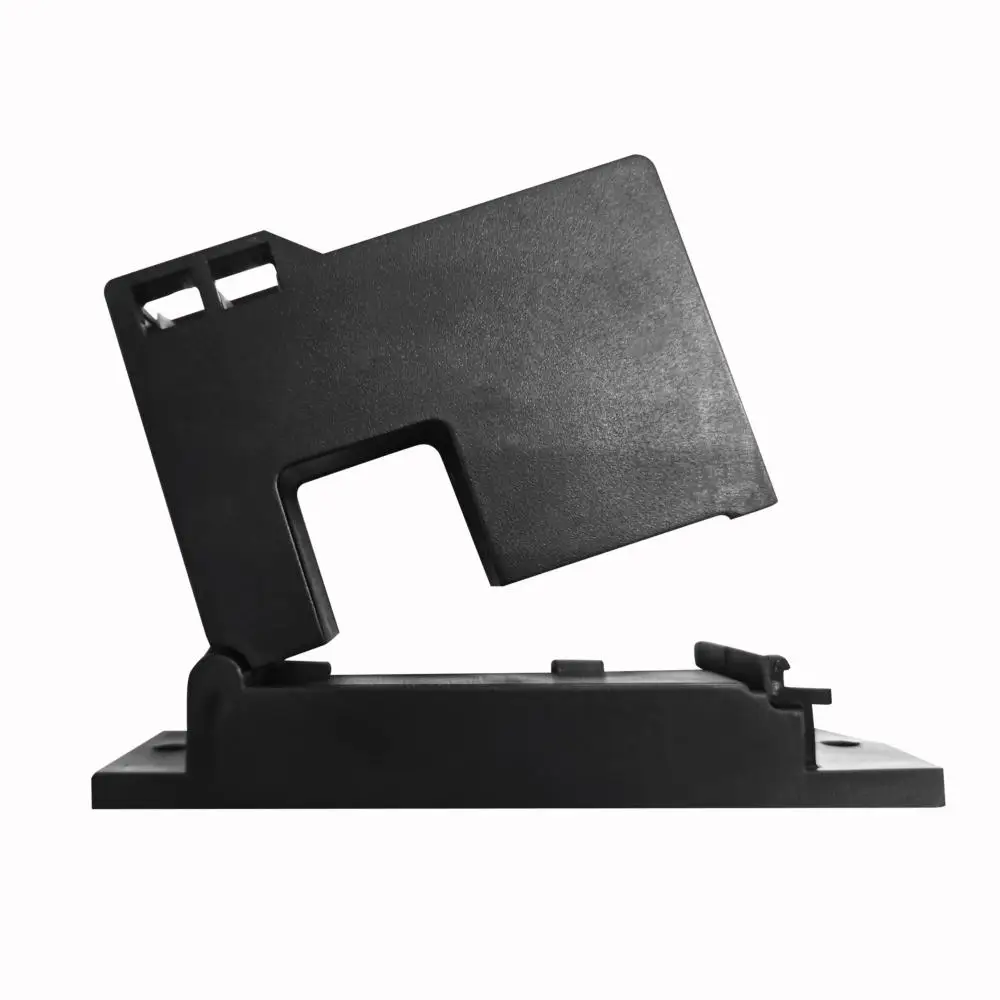

Through-core structure design, isolation withstand voltage up to 2000V
Hysteresis is less than 1%, can be used under strong magnetic field conditions
Leakage ≤1%
High current detection accuracy and stable performance
Maximum overload 200%
Easy to install and use, no need to connect DC in series in the circuit when measuring
Products have passed CE, CSA, UL, Rohs quality certification
The shell is made of self-extinguishing material ABS
Through-core structure design, isolation withstand voltage up to 2000V
Hysteresis is less than 1%, can be used under strong magnetic field conditions
Leakage ≤1%
PRODUCT CONFIGURATION
PRODUCT SIZE

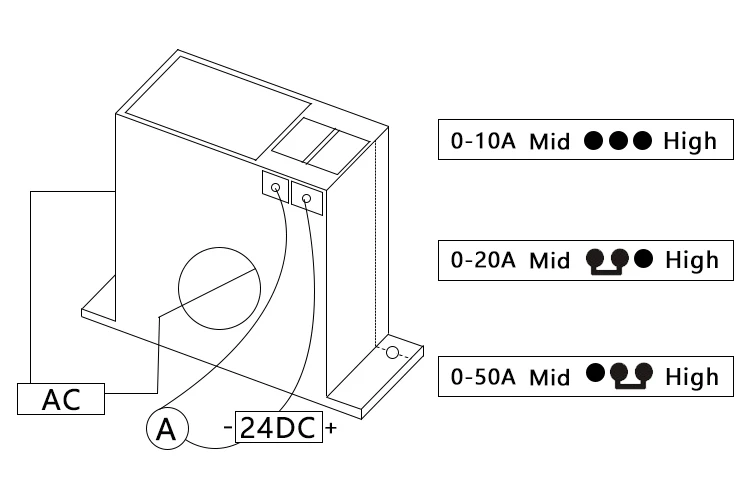

WIRING DIAGRAM
ENTERPRISE DISPLAY
Fengqi brand current mutual inductance switches have passed CE,FCC, and ROSH certifications, with reliable
and stable quality, and are widely welcomed by merchants, manufacturers and partners from all walks of life.
Guangdong Fengli Electronics Co., Ltd. is an electronic technology company integrating R&D, manufacturing
and sales. The company's main products include AC and DC mutual inductance switches, current transformers,
ammeters, current transmitters, digital display current mutual inductance switches, small intermediate relays
and other products.
