Frame
|
Alloy frame
|
Pedal
|
VP-F55, 9/16", plastic
|
Brake lever
|
LE-52A, mechanical power-off brake lever, right hand with cable, cable length 1.4M, 2-hole SM pin, black clip and black hand grip.
aluminum
|
Fork
|
20-inch shock-absorbing front fork, disc brake type,steel
|
Rim
|
10A (herringbone thickening) 20"*1.5"*13G*36H aluminum
|
Folding stem
|
801-5, extending and lowering folding with teeth riser, right folding aluminum
|
Tire
|
Kenda,K-1045, 20"*1.5" black tire,Rubber
|
Handlebar
|
Xiaoyan handle, 600*2.6t aluminum
|
Inner tube
|
Kenda,20"*1.5", A/V butyl
|
Seatpost
|
Zoom,SPS-C372, Ø27.2*300L shock-absorbing seat tube, with clamp head Aluminum
|
Lining tape
|
Kenda,20" butyl
|
Rear derailleur
|
Shimano,RD-TY300
|
Front hub
|
D041DSE, M9*100*108, 13G*36H, aluminum quick release, effective locking distance 108MM, six-hole aluminum
|
Motor
|
DWG-07, high-speed wheel motor 20" rear-drive rotary external seven-speed, V brake, 36V250W36H, waterproof
|
Spoke
|
45# steel, 14mm copper cap, F: 13*183*13G*184L (6 passes), R: 13G*138/140 full foot (2 passes)
|
Battery
|
36V*10.4AH (LG 2600 batteries)
|
Shift lever
|
Shimano,SL-RS35-7R, core 2100mm
|
Charger
|
Charger 36V1.8a
|
Flywheel
|
Shimano,14T-28T, seven pieces
|

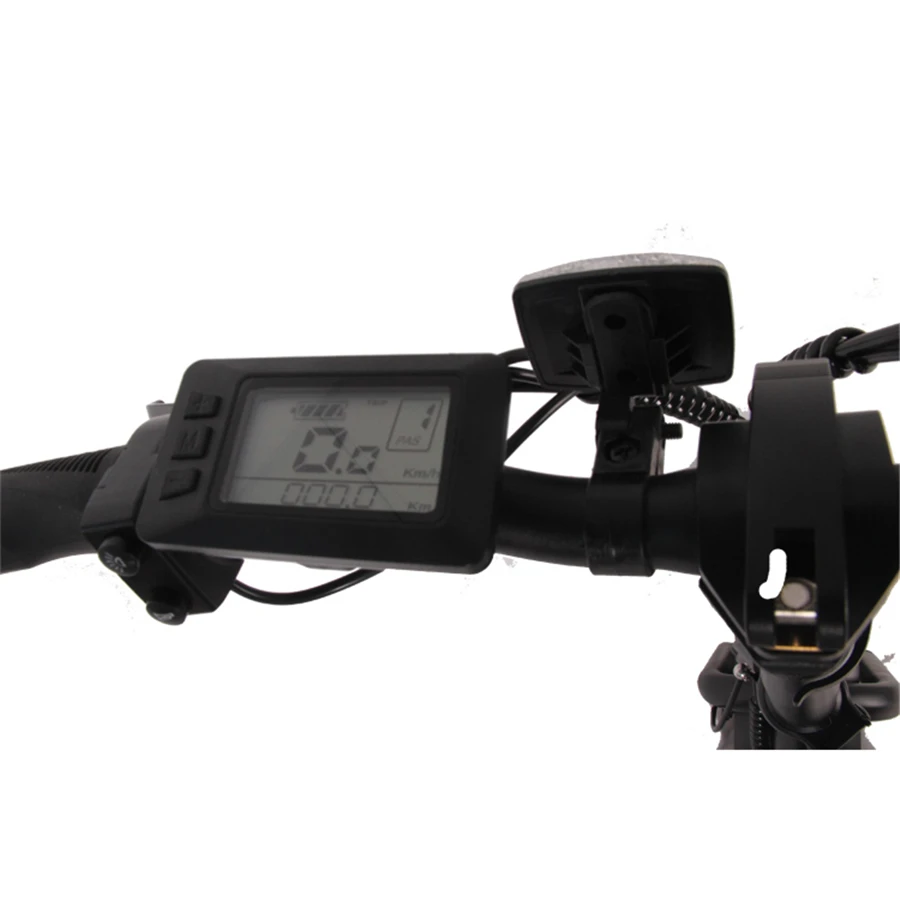

Instrument
|
C500 (V2.1), LCD, cable length (200+1300) mm waterproof plug-in
|
Chain
|
KMC,Z7, 1/2"*3/32"*114L
|
Controller
|
XCS-TXK24W 36V brushless controller
|
Crank
|
GS-L115, 3/32"*44T*170 aluminum legs, single-sided black cover
|
|
|
