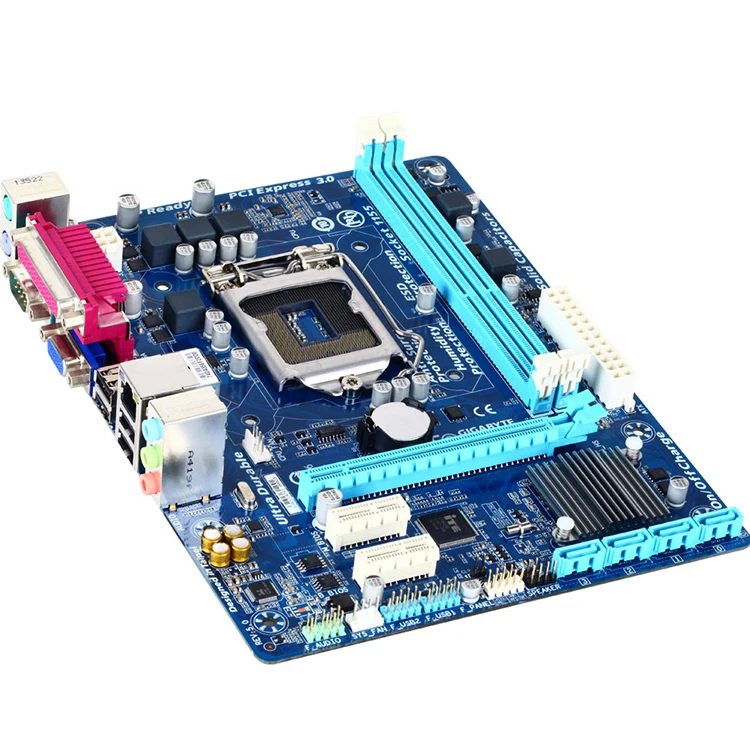

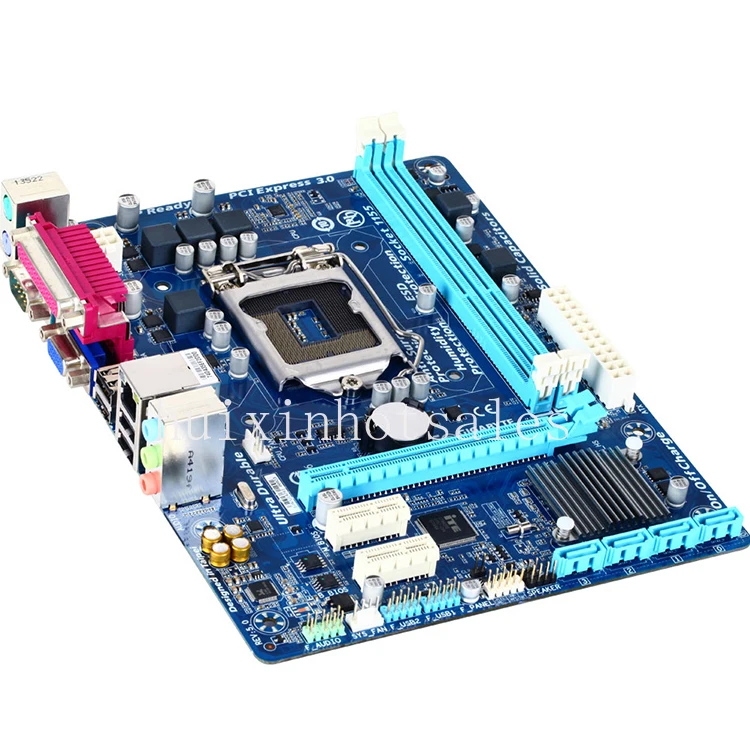

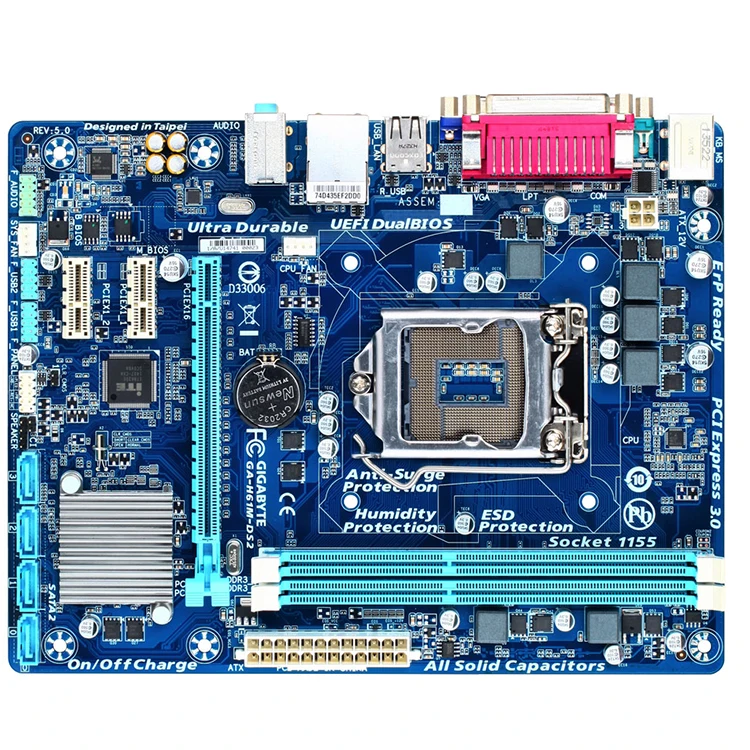

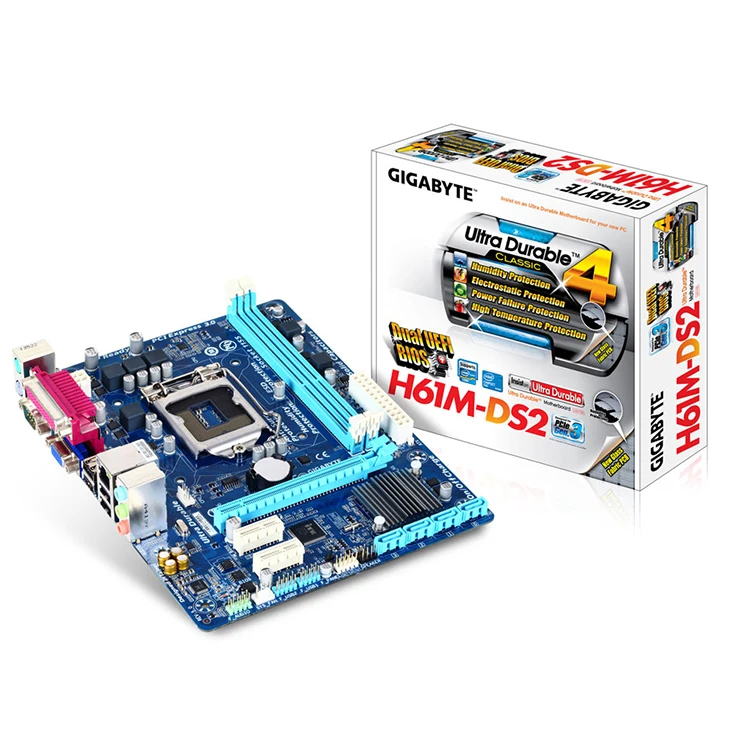

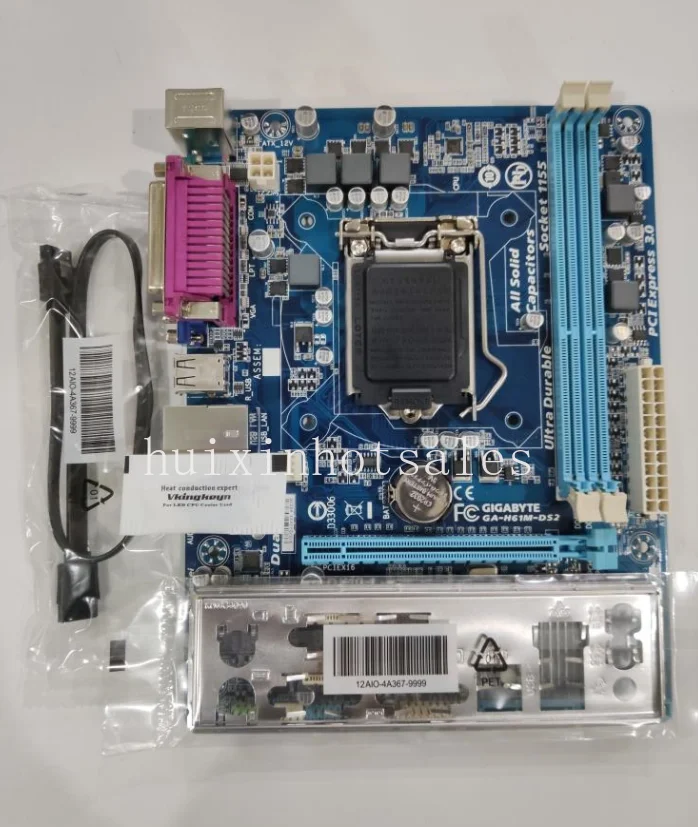

New GIGABYTE for Intel H61M DS2 Motherboard Intel LGA1155 Intel H61 mATX Motherboard (GA H61M DS2) 3 years warranty

Product Overview

Description



3 years warranty

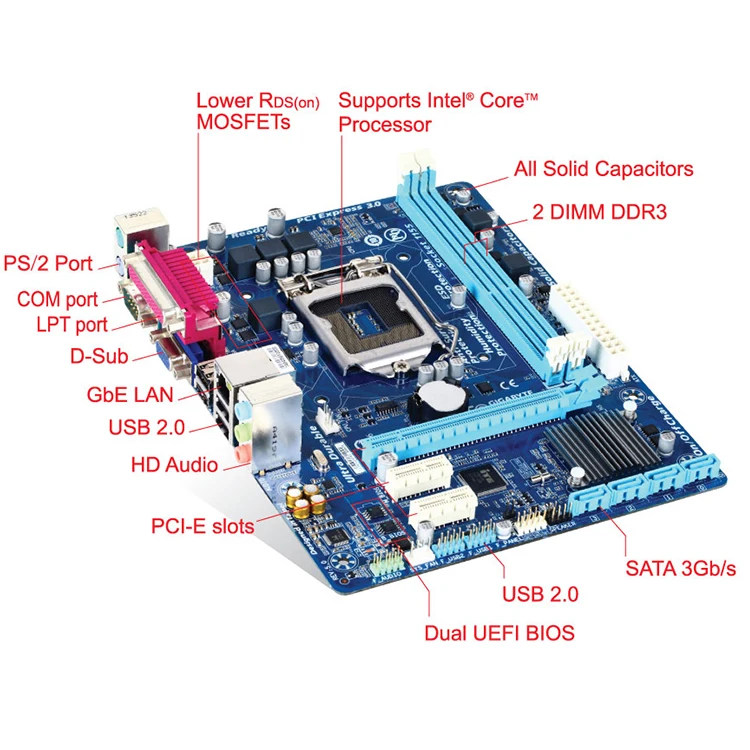

NEWGIGABYTE  Intel H61M-DS2 Motherboard Intel LGA1155 Socket Intel H61 mATX Motherboard (GA-H61M-DS2)



• All new design of Ultra Durable 4 classic


• Supports 3rd Gen. Intel^® 22nm CPUs and 2nd Gen. Intel^® Core™ CPUs (LGA1155 socket)


• Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch


• Supports 3rd generation PCI-Express interface


• Industry's Leading All Solid Capacitor Design


• Enhanced Intel HD Graphics 2000/3000 integrated with the processor


• Innovative Smart 6 technology for smarter PC management


• Dual UEFI BIOS protection with 3TB+ HDD boot up capability



• CPU



  1. Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^®Celeron^® processors in the LGA1155 package


  2. L3 cache varies with CPU





(Some Intel^® Core™ processors require a graphic card, please refer "CPU support List" for more information.)

• Chipset



  1. Intel^® H61 Express Chipset






• Memory



  1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
     * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.


  2. Dual channel memory architecture


  3. Support for DDR3 1333/1066/800 MHz memory modules


  4. Support for non-ECC memory modules


  5. Support for Extreme Memory Profile (XMP) memory modules
     * To support XMP memory, you must install an Intel^® 22nm (Ivy Bridge) CPU.





(Please refer "Memory Support List" for more information.)

• Onboard Graphics

Integrated Graphics Processor:

•



  1. 1 x D-Sub port






• Audio



  1. Realtek^® ALC887 codec


  2. High Definition Audio


  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.






• LAN



  1. Realtek^® GbE LAN chip (10/100/1000 Mbit)






• Expansion Slots



  1. 1 x PCI Express x16 slot, running at x16
     (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)





* Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.

•



  1. 2 x PCI Express x1 slots
     (The PCI Express x1 slots conform to PCI Express 2.0 standard.)






• Storage Interface

Chipset:

•



  1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices






• USB

Chipset:

•



  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)






• Internal I/O Connectors



  1. 1 x 24-pin ATX main power connector


  2. 1 x 4-pin ATX 12V power connector


  3. 4 x SATA 3Gb/s connectors


  4. 1 x CPU fan header


  5. 1 x system fan header


  6. 1 x front panel header


  7. 1 x front panel audio header


  8. 1 x speaker header


  9. 2 x USB 2.0/1.1 headers


  10. 1 x chassis intrusion header


  11. 1 x Clear CMOS jumper

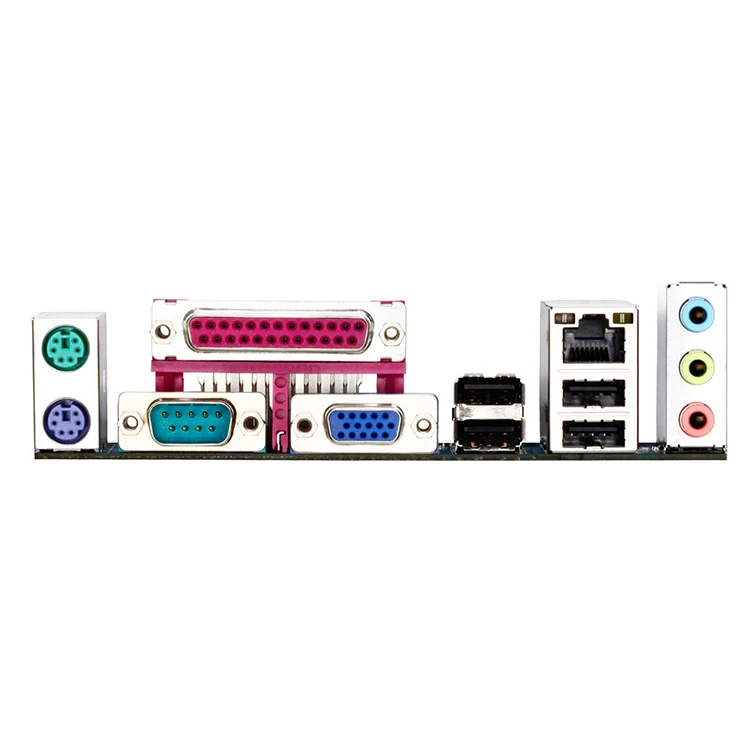

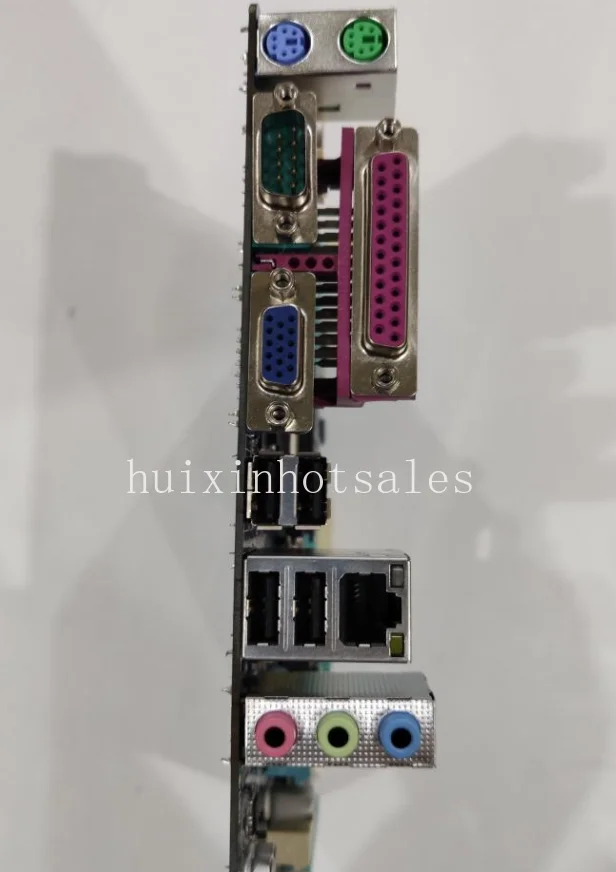

• Back Panel Connectors



  1. 1 x PS/2 keyboard port


  2. 1 x PS/2 mouse port


  3. 1 x D-Sub port


  4. 1 x parallel port


  5. 1 x serial port


  6. 4 x USB 2.0/1.1 ports


  7. 1 x RJ-45 port


  8. 3 x audio jacks (Line In, Line Out, Microphone)






• I/O Controller



  1. iTE^® I/O Controller Chip






• H/W Monitoring



  1. System voltage detection


  2. CPU/System temperature detection


  3. CPU/System fan speed detection


  4. CPU overheating warning


  5. CPU/System fan fail warning


  6. CPU/System fan speed control
     * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.






• BIOS



  1. 2 x 32 Mbit flash


  2. Use of licensed AMI EFI BIOS


  3. Support for DualBIOS™


  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0






• Unique Features



  1. Support for @BIOS


  2. Support for Q-Flash


  3. Support for Smart Recovery2


  4. Support for EasyTune
     * Available functions in EasyTune may differ by motherboard model.


  5. Support for ON/OFF Charge






• Bundle Software



  1. Norton^® Internet Security (OEM version)






• Operating System



  1. Support for Windows 8.1/8/7/Vista/XP






• Form Factor



  1. Micro ATX Form Factor; 22.6cm x 17.4cm






• Remark



  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.


  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
