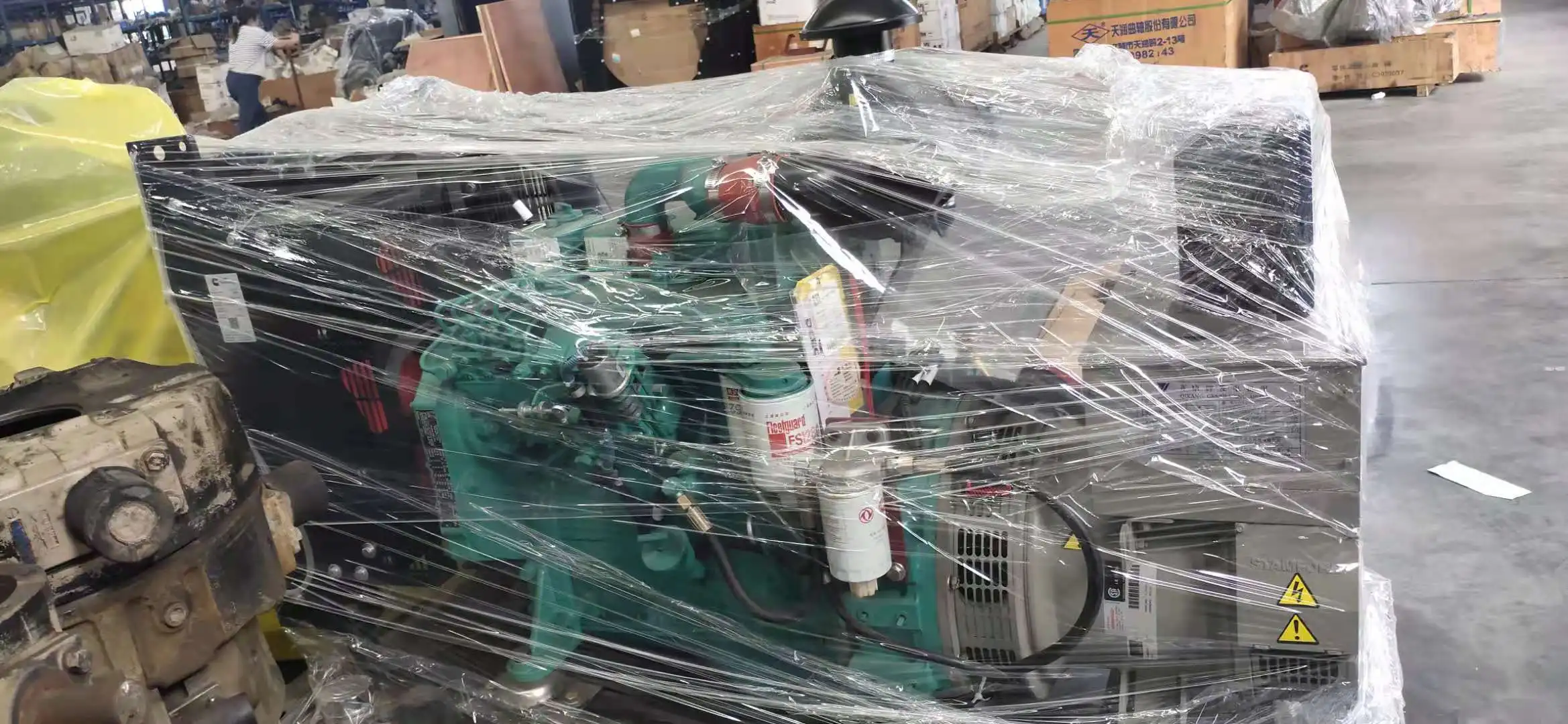

Dongfeng Three Phase open type diesel genset engine 20kw generators powered by 4B3.9 G11

Technical Specification and Parameters of 20KW DCEC Diesel Genset

Genset Technical Parameters :

Genset Model

JKDG

Steady-state Voltage Regulation Rate

≤±0.5%

Rated Power

20KW

Transient Voltage Regulation Rate

≤±15%

Rated Power Factor

COSΦ=0.8 (lag)

Voltage Fluctuation Rate

≤±0.5%

Rated Output Voltage

400V/230V

Voltage Waveform Distortion

≤5%

Rated Current

28.8A

Electricity Pressure Stabilization Time

≤1.5s

Rated Frequency/Speed

50Hz/1500r

Steady-state Frequency Adjustment Rate

≤±2%

Start-up Control Mode

Electric Start

Transient Frequency Adjustment Rate

≤±5%

Full-load Fuel Consumption

208g/kw/h

Frequency Stabilization Time

≤ 3s

Fuel Brand

0 # light diesel

Frequency Fluctuation Rate (%)

≤±0.5%
