Fixed Shank Hss Hand Twist Metal Drill Bit 10mm For Woodworking
- Category: >>>
- Supplier: Dongguan Harmonie Cutting Tools Co. ltd.
Share on (1600438962095):
Product Overview
Description
Products Description
[About Freight]
Due to the large weight difference between different specifications, the freight displayed when you submit the order is inaccurate and may be overcharged.
If the freight is relatively high, you can contact customer service to calculate a cheaper freight and delivery plan for you.
Due to the large weight difference between different specifications, the freight displayed when you submit the order is inaccurate and may be overcharged.
If the freight is relatively high, you can contact customer service to calculate a cheaper freight and delivery plan for you.
The small packaging unit of all sizes of drill bits in our factory is 10 pieces/bag. Each specification must be ordered in multiples of 10 pieces, otherwise the seller has the right not to deliver the goods.
0.5mm - 3.0mm is [200 pieces/box]; 3.1mm - 7.5mm is [100 pieces/box]; and above 8.0mm is [50 pieces/box].
[Note]
If you need to drill steel plates and stainless steel, please use HSS 4341, HSS6542 or cobalt-containing drill bits. Please contact customer service. You will be satisfied with the cost-effectiveness.
[Operation Instructions]
[Operation Instructions]
If you need to drill metal, please try to use it on a bench drill. Because electric hand drills drill metal, the drill bit is easy to break due to shaking during manual operation, and the power of hand electric drills is generally low, so it is relatively difficult to drill metal, which is not a quality problem. It is very easy to drill iron plates on the bench drill.

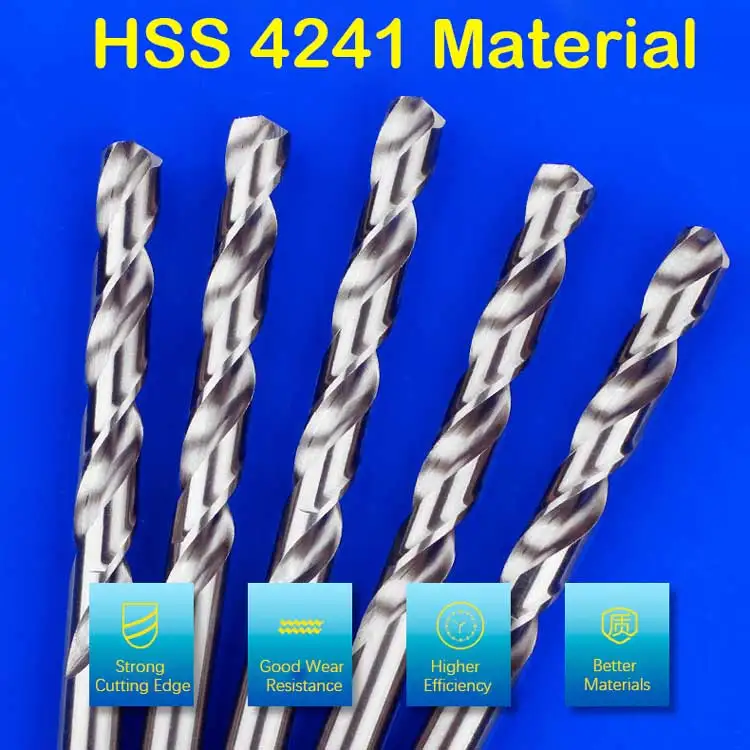

Procuct Name | HSS 4241 Twist Drill |
Hardness | HRC6O-62° |
Features | Sharp edge, wear-resistant, anti-fatigue |
Applicable | iron, wood, ordinary plastic; aluminum and copper drilling need to be cooled with water, not suitable for cast iron and stainless steel drilling |
Details Images
PRODUCT SPECIFICATIONS
Diameter | Length of Cut | Overall Length |
0.5 | 6 | 22 |
0.8 | 10 | 30 |
1.0 | 12 | 34 |
1.2 | 16 | 38 |
1.5 | 18 | 40 |
1.8 | 22 | 46 |
2.0 | 24 | 49 |
2.2 | 27 | 53 |
2.5 | 30 | 57 |
2.8 | 33 | 61 |
3.0 | 33 | 61 |
3.2 | 36 | 65 |
3.5 | 39 | 70 |
4.0 | 43 | 75 |
4.2 | 43 | 75 |
4.5 | 47 | 75 |
5.0 | 52 | 80 |
5.2 | 52 | 86 |
5.5 | 57 | 93 |
6.0 | 57 | 93 |
6.5 | 63 | 101 |
7.0 | 69 | 109 |
7.5 | 69 | 109 |
8.0 | 75 | 117 |
8.5 | 75 | 117 |
9.0 | 81 | 125 |
9.5 | 81 | 125 |
10.0 | 87 | 133 |
10.5 | 87 | 133 |
11.0 | 94 | 142 |
11.5 | 94 | 142 |
12.0 | 101 | 151 |
12.5 | 101 | 151 |
13.0 | 101 | 151 |
13.5 | 108 | 160 |
14.0 | 108 | 160 |
Hot Products
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Are sample avaliable?
A: Yes, you can ask some samples for testing after confirming our prices, but pls pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15 days
if the goods are not in stock, it is according to quantity.
if the goods are not in stock, it is according to quantity.
