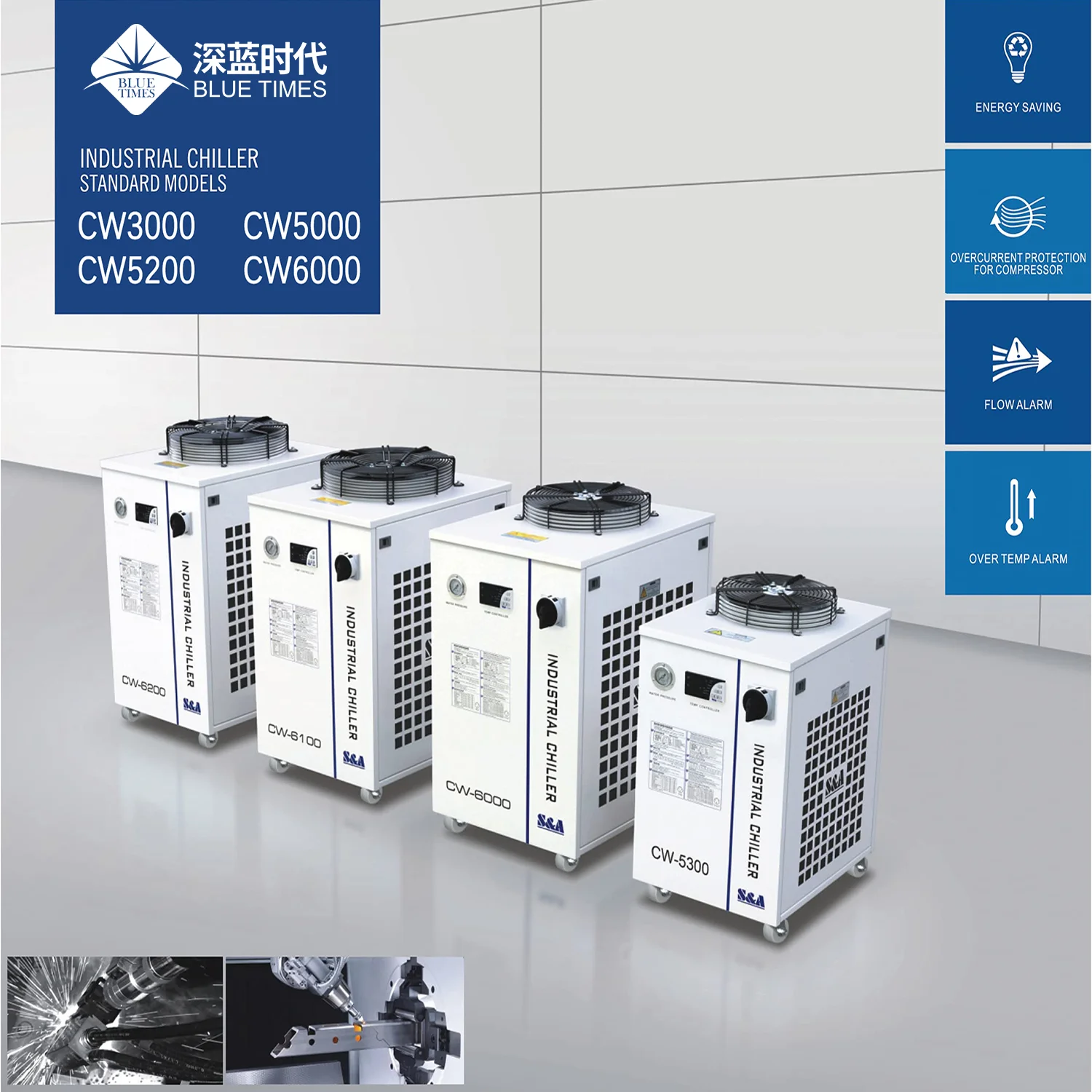

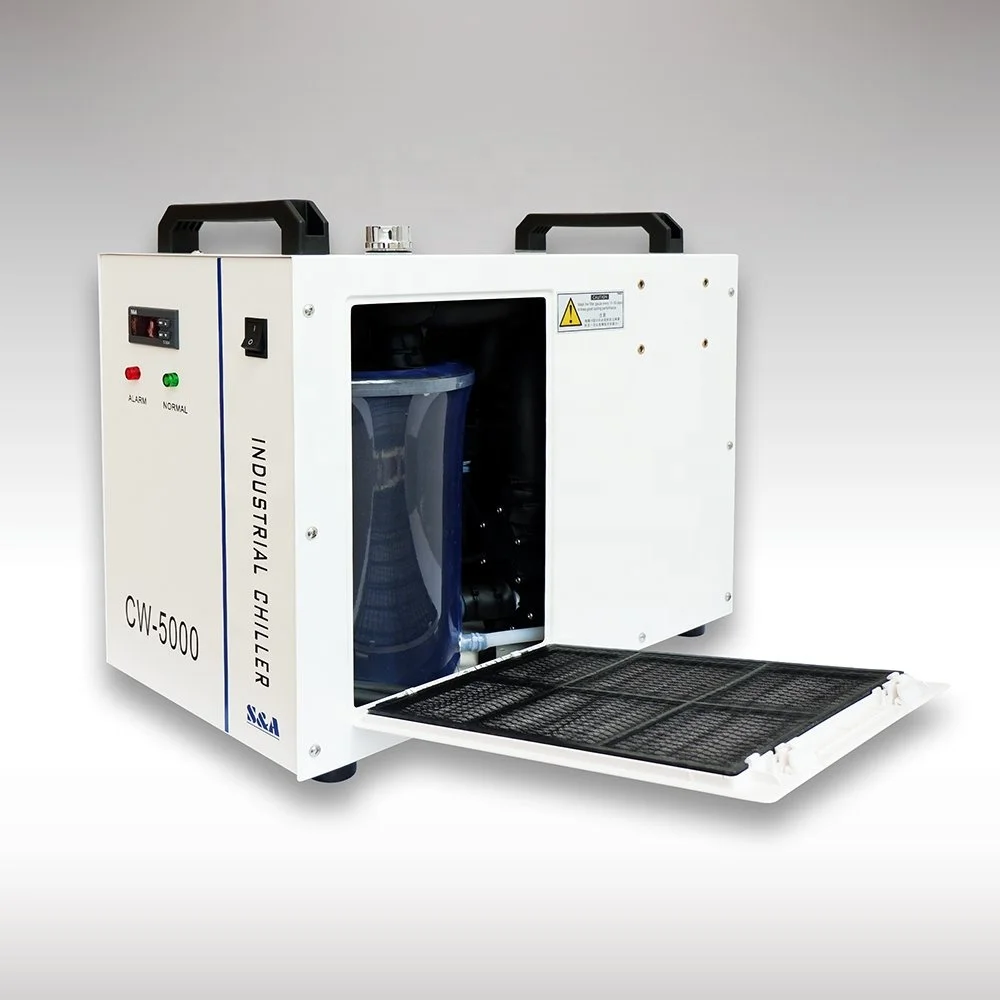

S&A CW3000 CW5000 CW5200 CW6000 co2 laser industrial cooling chiller water cooled
- Category: >>>
- Supplier: Changchun Blue Times International Trade Co. Ltd.
Share on (1600438971840):
Product Overview
Description
BlueTimes S&A Industrial Water Chiller industrial water cooler110/220V For CO2 Engraving Cutting Cooling System
CW3000DG/CW3000TG/CW5000DG/CW5000TG/CW5200DH /CW5200TH/CW6000AH/CW6000DH

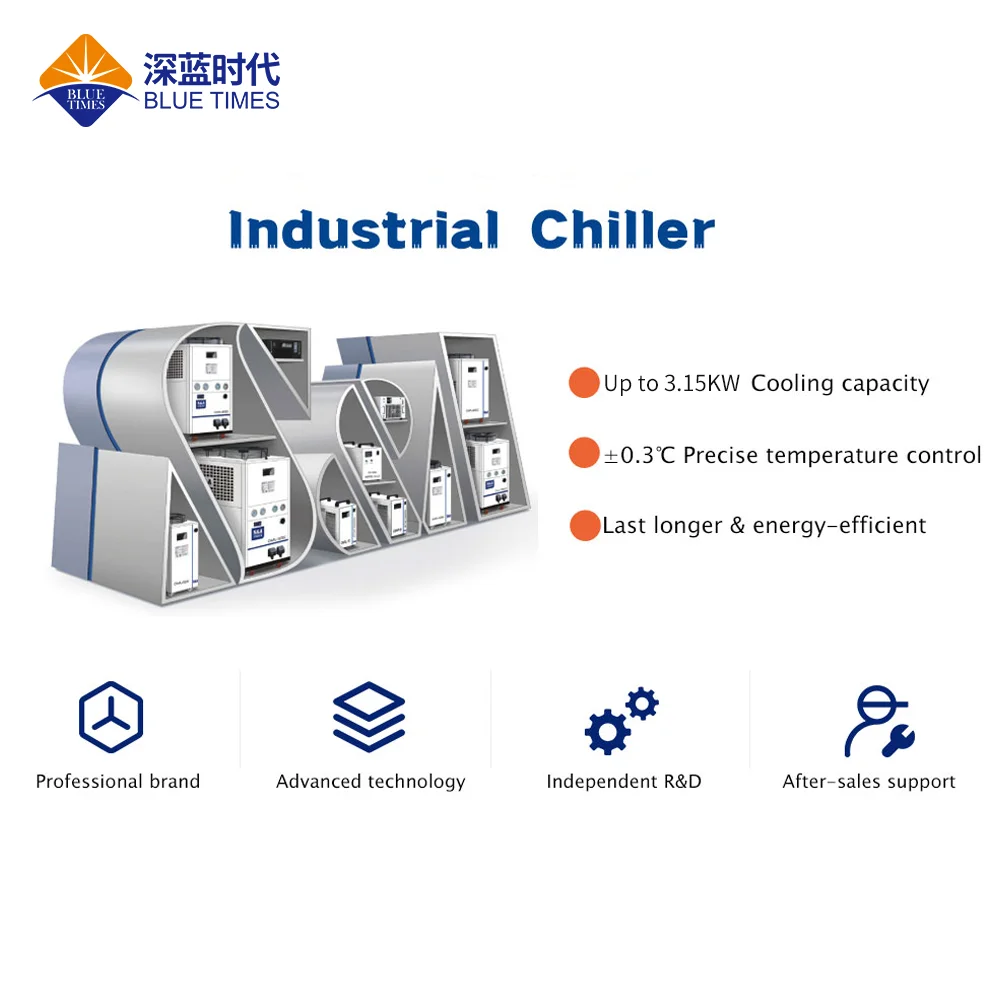

Cooling Capacity up to 3.15KW Co2 Laser Chiller industrial chiller water cooled
Products Description
POWERFUL COOLING: Sunlite S&A CW series water chiller uses standard R410a refrigerant to keep laser cutting and engraving machines up to 150W nice and cool during use; its 2.6 GPM flow rate and 0.9hp compressor can cool up to 5186 BTU per hour
CAPACIOUS TANK: The 1.6-gallon (6L) water tank is enclosed to reduce evaporation and provide long-term service between refills; the clear observation window lets you know when it's time to top off
HIGH-GRADE PORTS: Our water cooler's inlet and outlet ports are made of premium brass for long-term corrosion-free performance; their careful design prevents any issues with leaks as it operates
SAFE OPERATION: This industrial water cooling system includes internal sensors to keep temperatures within 0.3℃ of constant and to let you know via digital display, indicator lights, and alarms when everything's going smoothly and when it's time to make adjustments
SATISFACTION GUARANTEED: Strong warranty and friendly 24/7 customer service let you order with confidence that this product will meet all your cooling needs for your small to a medium-sized engraving tool.
CAPACIOUS TANK: The 1.6-gallon (6L) water tank is enclosed to reduce evaporation and provide long-term service between refills; the clear observation window lets you know when it's time to top off
HIGH-GRADE PORTS: Our water cooler's inlet and outlet ports are made of premium brass for long-term corrosion-free performance; their careful design prevents any issues with leaks as it operates
SAFE OPERATION: This industrial water cooling system includes internal sensors to keep temperatures within 0.3℃ of constant and to let you know via digital display, indicator lights, and alarms when everything's going smoothly and when it's time to make adjustments
SATISFACTION GUARANTEED: Strong warranty and friendly 24/7 customer service let you order with confidence that this product will meet all your cooling needs for your small to a medium-sized engraving tool.
Product Details

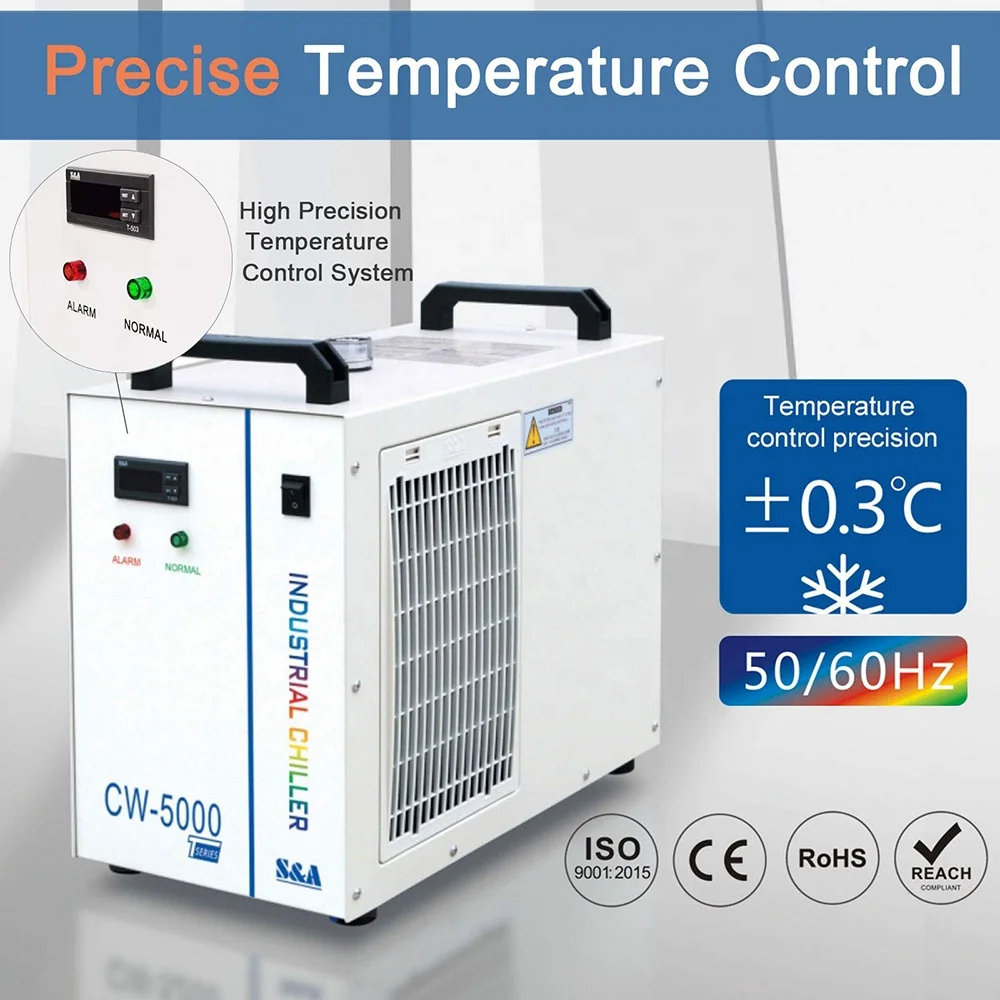

The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions
Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high & low temperature alarm;
Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high & low temperature alarm;
With S&A water chiller CW3000 CW5000 CW5200 CW6000, your CO2 laser can be properly cooled. Up to 130W DC CO2 laser or 60W RF CO2 laser, this mini water chiller unit can offer highly reliable cooling. It has temperature stability of ±0.3°C as well as cooling capacity up to 3150W. With compact design, S&A water chiller takes up less floor space for CO2 laser cutter engraver users. Multiple choices of pumps are available and the whole chiller system conforms to CE, RoHS and REACH standards. Heater is optional to help rising water temperature quickly in winter.
Model | CW3000DG | CW3000TG | CW5000DG | CW5000TG | CW5200DH | CW5200TH | CW6000AH | CW6000DH | ||||||||
Voltage | AC 1P 110V | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 220V | AC 1P 110V | ||||||||
Frequency | 50/60Hz | 50/60Hz | 60Hz | 50/60Hz | 60Hz | 50/60Hz | 50Hz | 60Hz | ||||||||
Current | 0.4~0.9A | 0.4~1A | 0.4~5.3A | 0.4~3.1A | 0.5~8.9A | 0. 5~4.6A | 0.3~6.3A | 0.45~14.7A | ||||||||
Machine power | 0.10kW | 0.43kW | 0.44/0.46kW | 0.77kW | 0.74/0.82kW | 1.2kW | 1.6kW | |||||||||
Radiating capacity | 50W/℃ | / | / | / | / | / | / | |||||||||
Compressor power | / | / | 0.38kW | 0.37/0.39kW | 0.66kW | 0.6/0.62kW | 1.06kW | 1.12kW | ||||||||
Nominal cooling capacity | / | / | 1.03 kW | 0.89/1.08 kW | 1.67kW | 1.77/2.14kW | 3.14kW | 3.15kW | ||||||||
Pump power | / | / | 0.03kW | 0.05kW | 0.05kW | |||||||||||
Max. lift | 10M | 10M | 12M | 12M | ||||||||||||
Max. flow | 10L/min | 10L/min | 13L/min | 13L/min | ||||||||||||
N.W | 8.7Kgs | 9Kgs | 21.5Kgs | 20.5Kgs | 22.7Kgs | 26.4Kgs | 60KG | |||||||||
G.W | 11 Kgs | 11.3 Kgs | 24.5Kgs | 23.5Kgs | 25.7Kgs | 29.4Kgs | 70KG | |||||||||
Precision | / | / | ±0.3℃ | ±0.3℃ | ±0.5℃ | |||||||||||
Protection | Flow alarm | Flow alarm | Flow alarm | Flow alarm | ||||||||||||
Tank capacity | 9L | 6L | 6L | 15L | ||||||||||||
Inlet and outlet | OD 10mm barbed connector | OD 10mm barbed connector | OD 10mm barbed connector | / | / | |||||||||||
Dimension | 49 X 27 X 38cm (L X W X H) | 58 X 29 X 47cm (L X W X H) | 58 X 29 X 47cm (L X W X H) | 67x47x89 cm | ||||||||||||
Package dimension | 59 X 38 X 47cm (L X W X H) | 65 X 39X 56cm (L X W X H) | 65 X 39 X 56cm (L X W X H) | 74x61x104 cm | ||||||||||||
suitable laser tube power | ≤80W | 80W-120W | 120W-130W | Above 130W | ||||||||||||
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product. | ||||||||||||||||

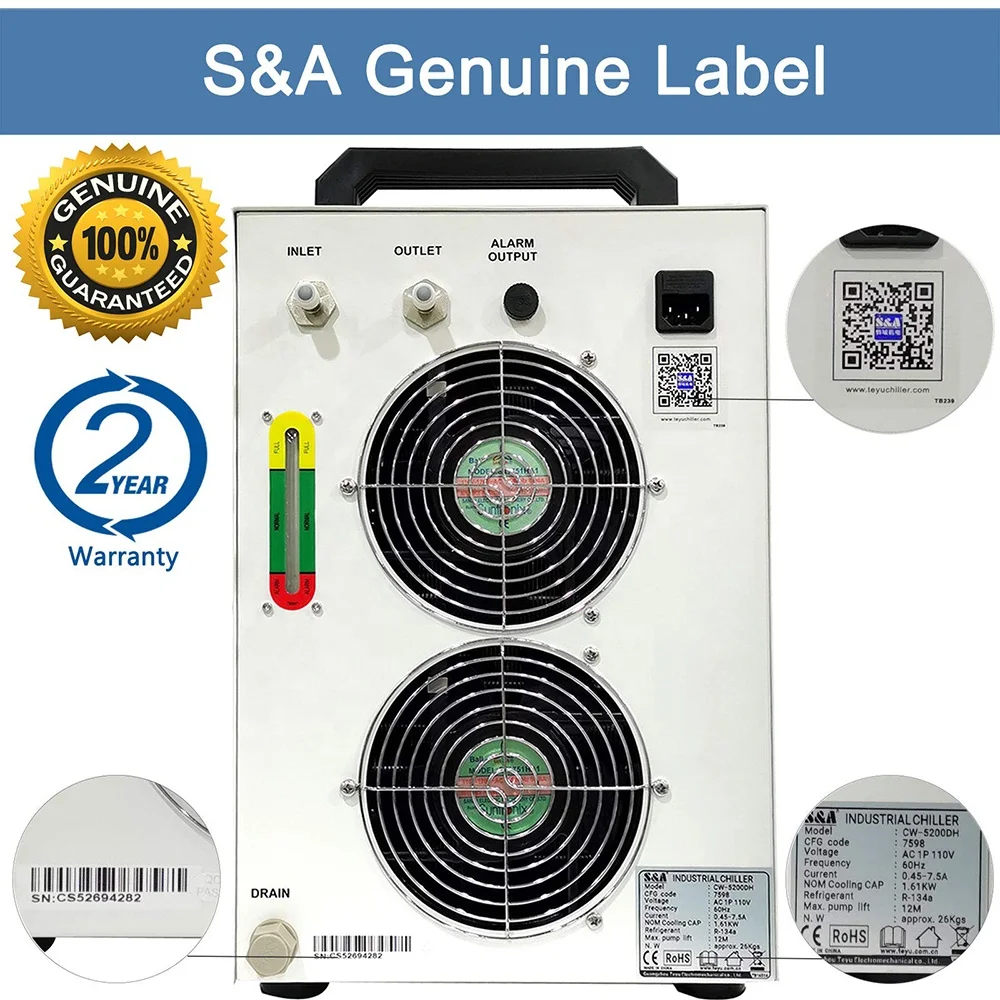

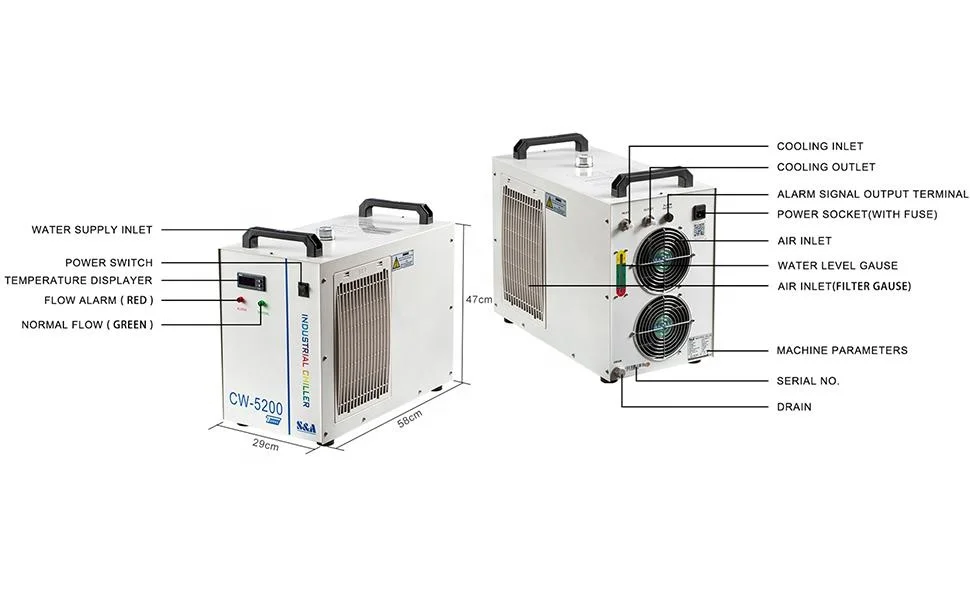

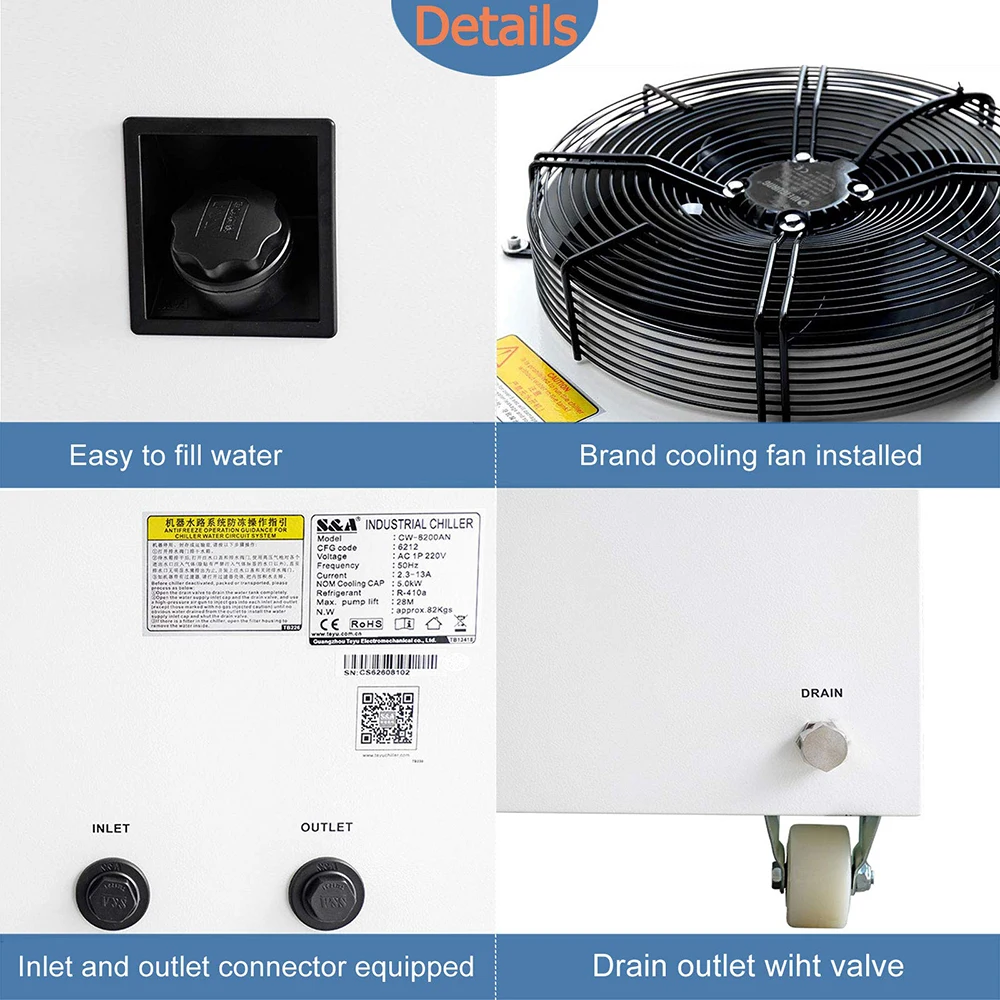

Water supply inlet
Cooling fan of famous brand installed. High quality and low failure rate
Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Application area
CW series industrial water chiller: suitable for cooling CO2 laser, YAG laser, laser diode and so on
Advertisements And Marks
3C Products
UV Print
Leather And Cloth Cutting
Precision Instrument
Medical Products
UV Print
Leather And Cloth Cutting
Precision Instrument
Medical Products
UV LED Printer
UV LED Curing
Printing Industry
Co2 Laser Engraving
UV LED Exposure Machine
Analytical Instrument
UV LED Curing
Printing Industry
Co2 Laser Engraving
UV LED Exposure Machine
Analytical Instrument
Packaging&Shipping
Company Profile
Our Brand
With over 17 years of experience, we know CO2 lasers inside and out. From troubleshooting to
innovation, we strive to bring you superior products and intelligent solutions that make working
with your laser a joy. We believe that BlueTimes laser is among the best machines we have worked with and can't wait to show you why!
innovation, we strive to bring you superior products and intelligent solutions that make working
with your laser a joy. We believe that BlueTimes laser is among the best machines we have worked with and can't wait to show you why!
Our Commitment to You
New to CO2 lasers? Or looking to upgrade your existing CO2 laser cutter? Whatever your goals, we've helped thousands of people find the right products to fit their needs. We listen to our customers and provide them with the means to succeed. Learn more about the exclusive benefits we offer our customers
We work with the BEST.
Exhibitions
BLUETIMES International Tranding Co.,Ltd had attended over Hundreds Of exhibitions & Laser Industry EXPO, As a Global Trading Company and Laser equipment industry leading company, our products has been exported to 88 countries all over the world and the trademark has been registered in 50 countries.And we have 43 distributors worldwide including Canada, USA, Korea, India, Brazil and Mexico.
Certifications
Why Choose Us
At BLUETIMES International Tranding Co.,Ltd, we live and breathe fabrication technology. That’s just one of the reasons businesses who process products with co2 laser machine and fiber laser machine turn to us when they need new equipment. Our team has decades of experience working with small job shops and international manufacturers alike, and can specify, design, procure and install the perfect machine for just about any application. Read on to learn a little more about us, and contact us today to ask a question or request a quote on machinery for your business.
TOP BRANDS
EXCEPTIONAL SERVICE
Our team is fast and responsive. Whether you’re looking for quotion, products catalog, product dimensions, or something else, we pride ourselves on providing a high level of customer service day in and day out.
GREAT PEOPLE!
We saved the best for last… we may be biased, but our team is a top-notch group of friendly pros. So whether you have a simple question or a complex manufacturing challenge, we’re here to help! Give us a call, stop by and see us, send us an email, and simply reach out and say “Hi.”
TOP BRANDS
We don’t represent every line of fabrication equipment out there, we only represent the lines we believe in. That means you can trust us to provide laser equipments that will work correctly, run consistently over the long term, and help your business increase productivity and efficiency.
EXCEPTIONAL SERVICE
Our team is fast and responsive. Whether you’re looking for quotion, products catalog, product dimensions, or something else, we pride ourselves on providing a high level of customer service day in and day out.
GREAT PEOPLE!
We saved the best for last… we may be biased, but our team is a top-notch group of friendly pros. So whether you have a simple question or a complex manufacturing challenge, we’re here to help! Give us a call, stop by and see us, send us an email, and simply reach out and say “Hi.”
We love to help our customers solve problems and implement solutions, so we look forward to hearing from you!
FAQ
Q:What is the recommended water used in the industrial water chiller?
A:The ideal water should be deionised water, distilled water or purified water.
Q:How often should I change out the water?
A:Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
Q:What is the ideal room temperature for the chiller?
A:The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
Q:How to prevent my chiller from freezing?
A:For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team first.
