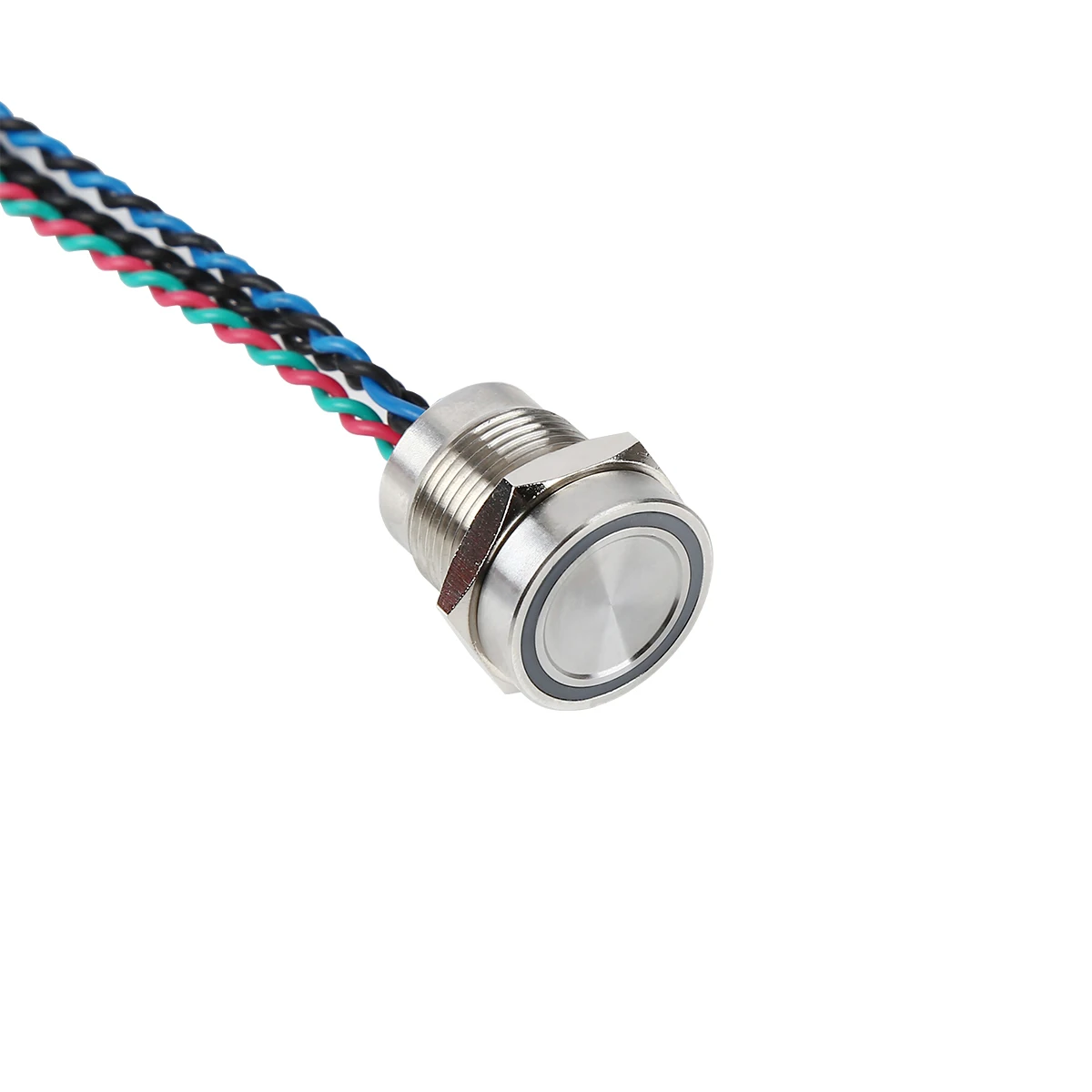

16mm RGB Ring LED Metal Piezoelectric switch, IP68, With cable, Support customization
16mm RGB Ring LED Metal Piezoelectric switch, IP68, With cable, Support customization

16mm RGB Ring LED Metal Piezoelectric switch, IP68, With cable, Support customization

Share on (1600438978622):


Price:$18.00 - $22.00

Quantity:


Product Overview

Description



Products Description


Piezo Switch
Piezoelectric switch is a kind of switch triggered by pressure.(5-10N)
It can use in a variety of harsh environments: Water proof IP68
Ultra long life : Over 50 million circles electric life

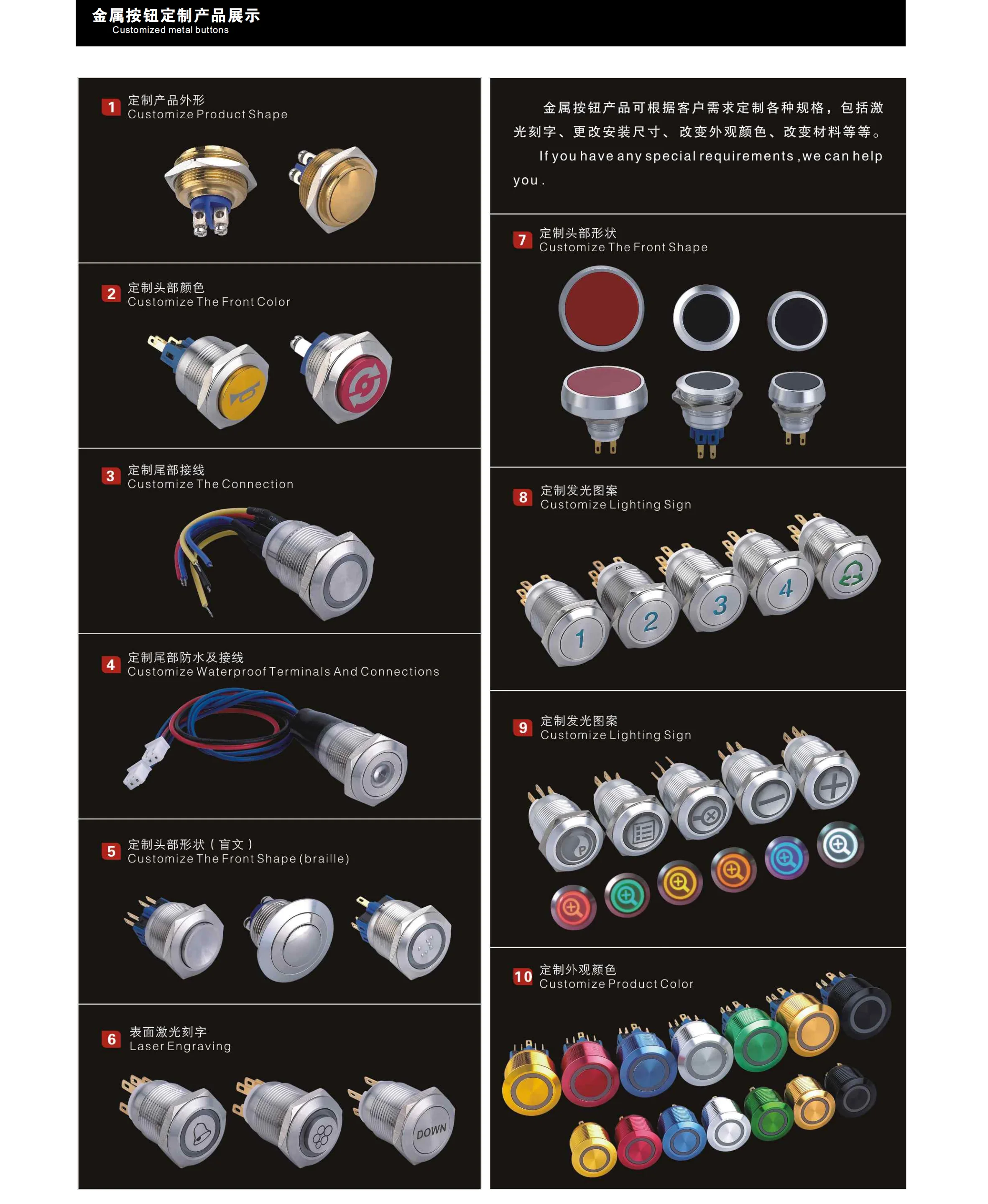

Beautiful appearance, can be customized according to needs of appearance.




Product Paramenters


Electrical and general specification
Max.current/voltage rating
 200mA 24VAC/DC
Switch resistance ON
10Ω max.
Switch resistance OFF
5MΩ max.
Operating force
5-10N
Life expectancy
50 million cycles
LED consumption
Illuminated dot:10mA - illuminated ring:20mA


Environmental specification
Sealing
 IP68/IP69K
Vibration resistance
10-500 Hz/10 g
Operating temperature
-40℃ ~ 75℃


Material
Case
Aluminium Alloy, stainless steel
Wire
section 0.22 mm²      length 300 mm
PC terminal
bronze, tin plated
