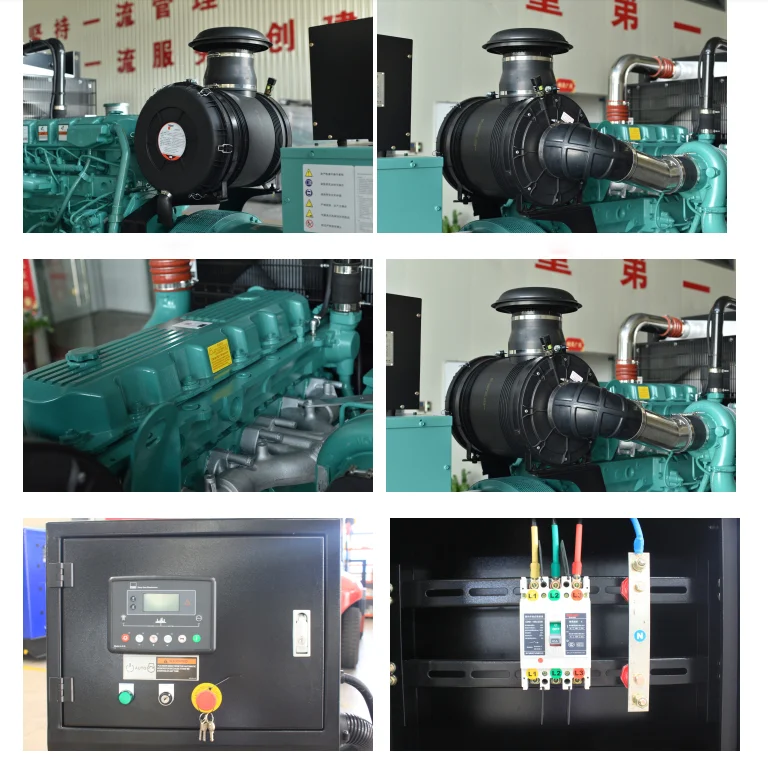

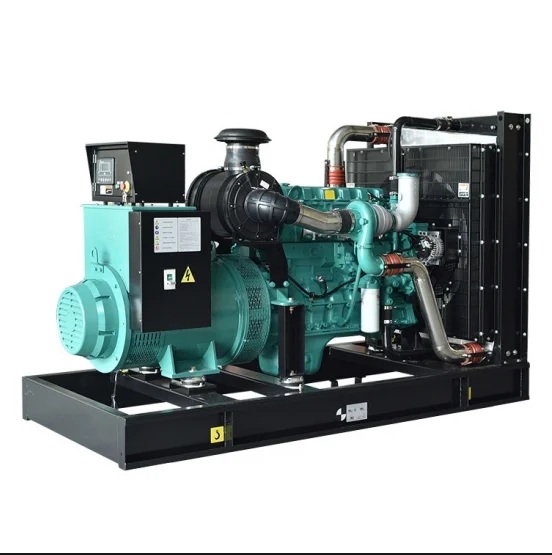

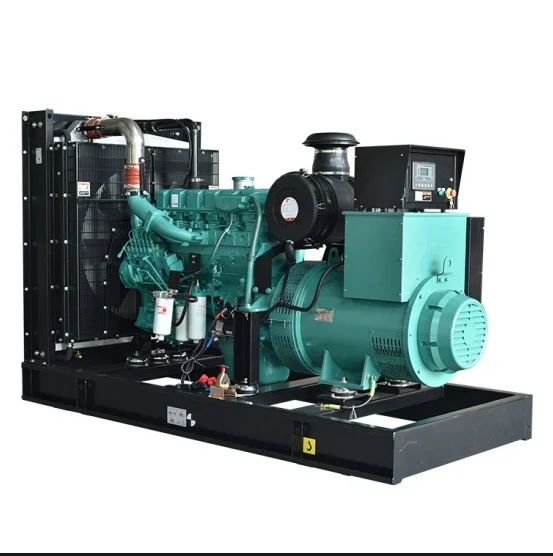

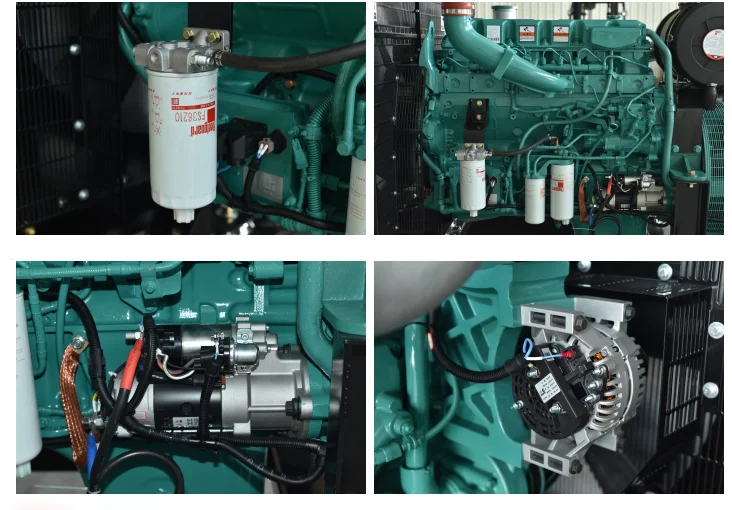

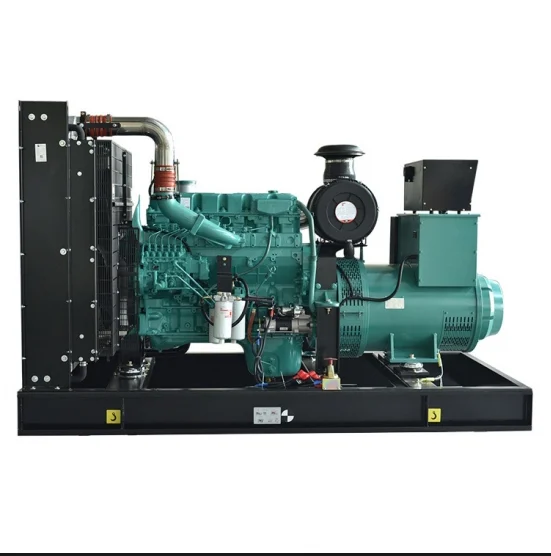

High Reliability 310kw generator genset Powered By 6 cylinders diesel engine 6ZTAA13 G3

Technical Specification and Parameters of 310KW DCEC Diesel Genset

Genset Technical Parameters :

Genset Model

JKDG-310GF

Steady-state Voltage Regulation Rate

≤±0.5%

Rated Power

310KW

Transient Voltage Regulation Rate

≤±15%

Rated Power Factor

COSΦ=0.8 (lag)

Voltage Fluctuation Rate

≤±0.5%

Rated Output Voltage

400V/230V

Voltage Waveform Distortion

≤5%

Rated Current

558A

Electricity Pressure Stabilization Time

≤1.5s

Rated Frequency/Speed

50Hz/1500r

Steady-state Frequency Adjustment Rate

≤±2%

Start-up Control Mode

Electric Start

Transient Frequency Adjustment Rate

≤±5%

Full-load Fuel Consumption

207g/kw/h

Frequency Stabilization Time

≤ 3s

Fuel Brand

0 # light diesel

Frequency Fluctuation Rate (%)

≤±0.5%

Lubricant Brand

(Standard) SAE 15W/40

Noise (LP1m)

100dB (A)

Profile Size (mm)

2900*1200*1750

Weight

3000KG
