48V 2.5 KW Solar Wind Charge Controller with Dump Load

48V 2.5 KW Solar Wind Charge Controller with Dump Load

Category: >>>
Supplier: Anhui Jnge Power Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Introduction

48V 2.5 KW Solar Wind Charge Controller with Dump Load

48V 2.5 KW Solar Wind Charge Controller with Dump Load

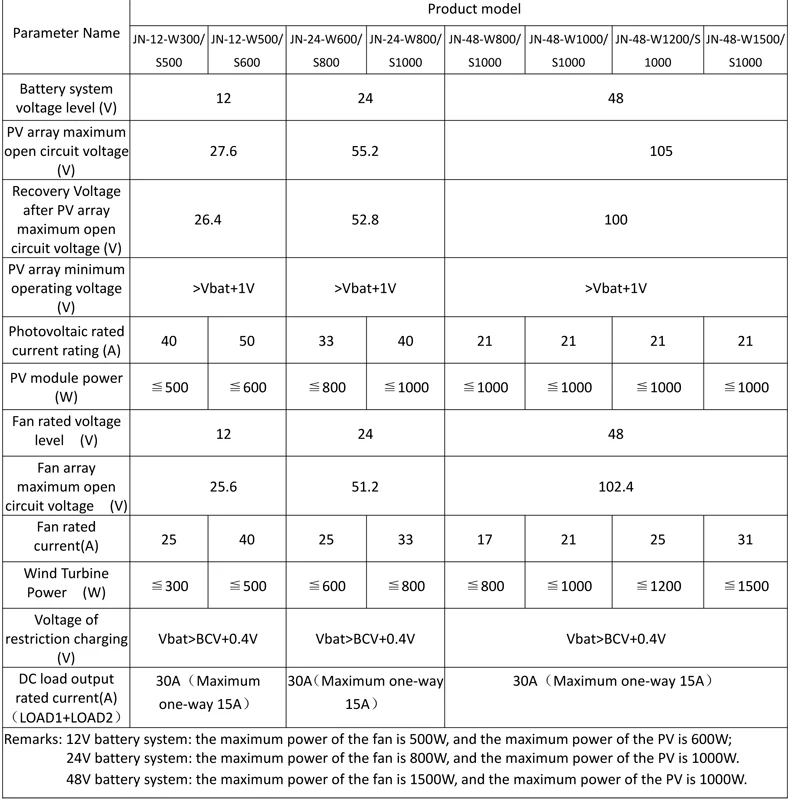

Product Parameters

48V 2.5 KW Solar Wind Charge Controller with Dump Load

Product Details

Hybrid Wind Solar Charge Controller

▷ 12/24V auto and 48V independent system

▷ Fit all kind of batteries, Lead acid, Gel, LIFEPO4, LiNiCoMn

▷ Advanced MPPT maximum power point tracking technology,tracing efficiency > 99.5%, maximum conversion efficiency > 98%; full-load efficiency can reach 97%

Hybrid Wind Solar Charge Controller

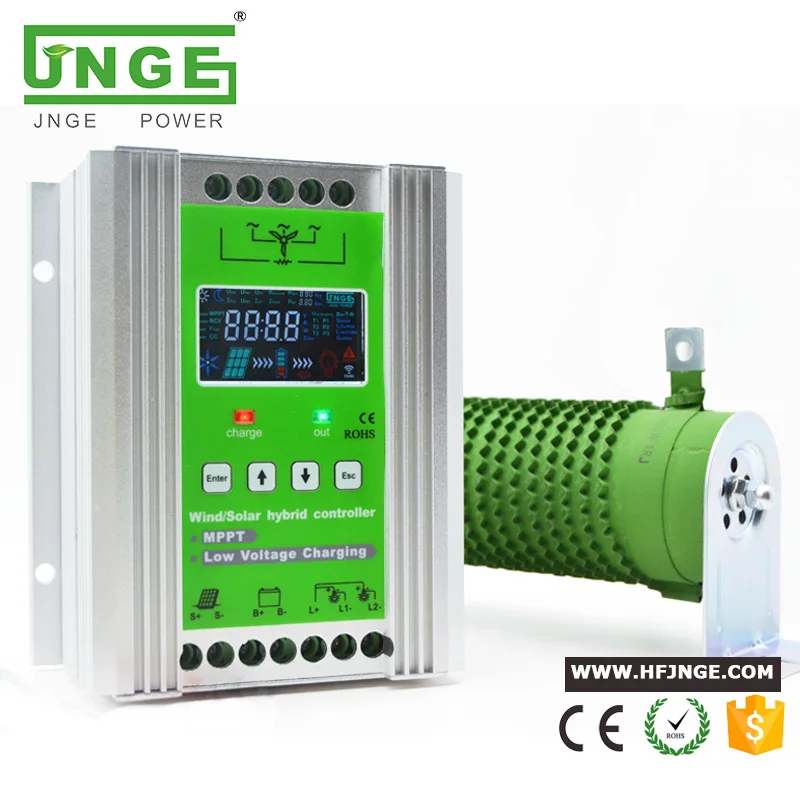

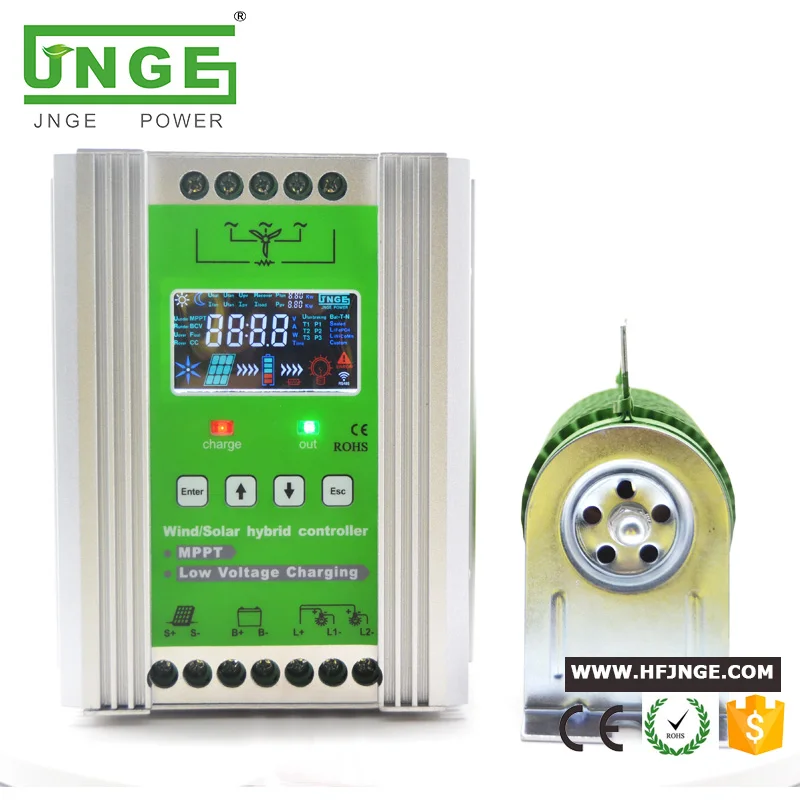

▷ Dump load resistance is default part, no need pay additional for it

▷ Comprehensive protection functions : overcharge, over discharge and overload etc

▷ In the high wind speed or fan’s power is beyond scope of battery and load absorption, controller immediately launched step-less unloading resistance protection system

▷ Remote Monitoring by three ways: computer monitoring; WIFI by mobile phone; GPRS by mobile phone

▷ Fan three-stage charging mode:
MPPT charging -
Lifting charging -
floating charging-

▷ Photovoltaic three-stage charging mode:
CC constant current-
lifting charging-
floating charging-

▷ It has various load control modes, DC load has two route outputs, output power and time can be set

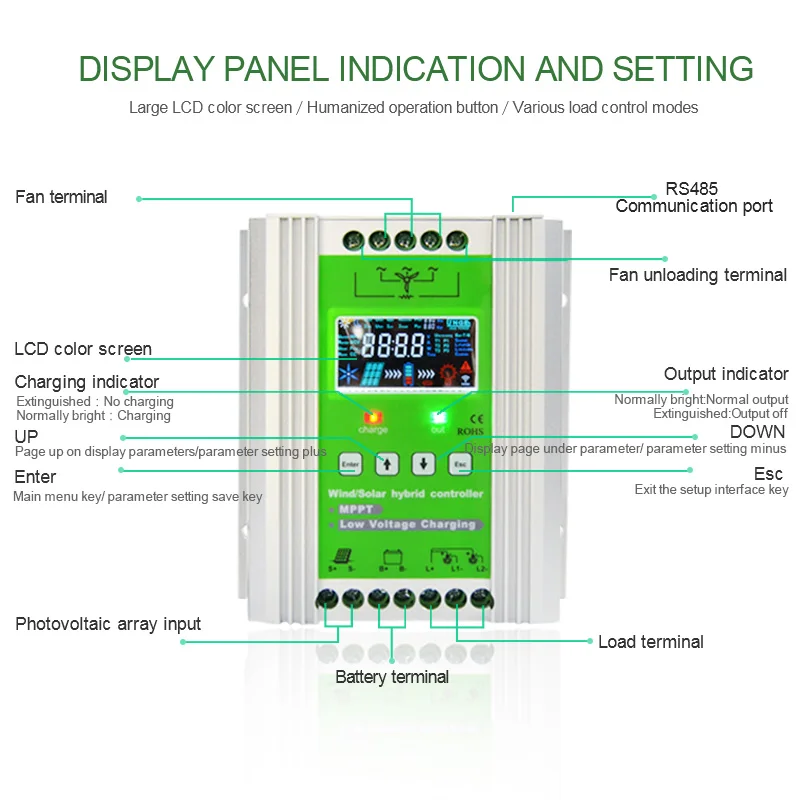

▷ Time Control: street light & household
Street light mode: time can be set by UP & DOWN keys, default Value “15H”, you can set other hours as you want, this time set is street light work time at night.

Household mode: time is “24H”, it means DC load need work at 24H
