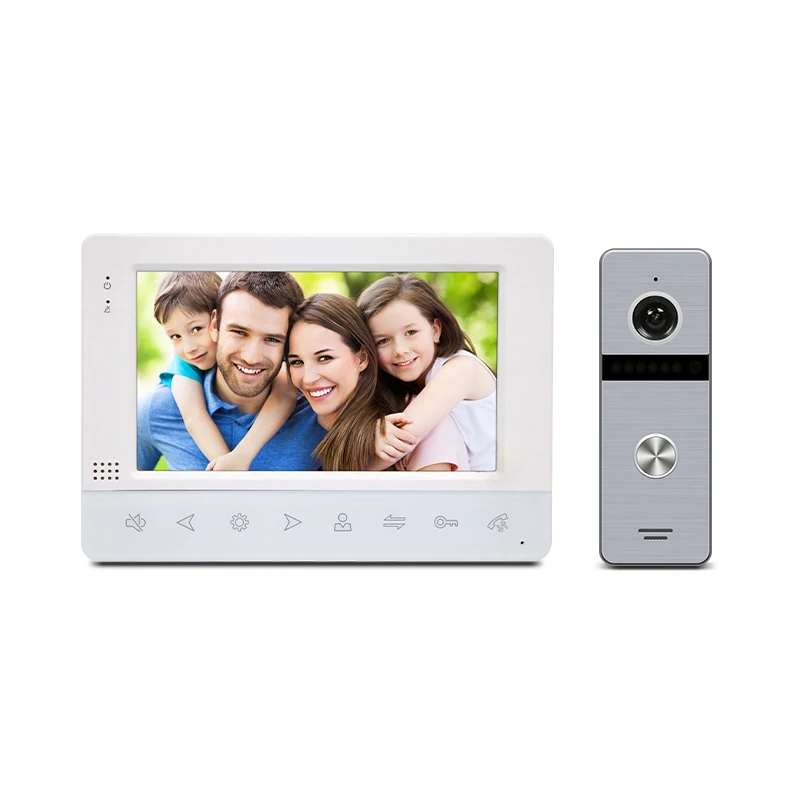

Cheap 4 wire commax video door phone intercom with peephole video doorbell camera AHD 1080P
- Category: >>>
- Supplier: Zhuhai Joytimer Electronics Co. Ltd.
Share on (1600439019573):
Product Overview
Description

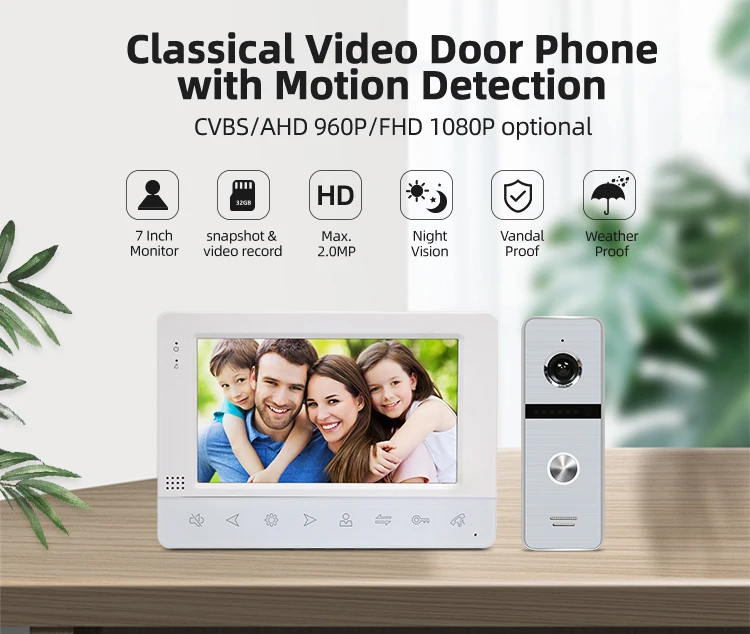

Cheap 4 wire commax video door phone intercom with peehole video doorbell camera AHD 1080P
door station:fisheye wide angle camera 170°, HD camera 800TVL/1.0MP/1.3MP/2.0MP. With 1/2/3/4 buttons. Fingperint unlock for option.
indoor monitor: high resolution 1024*600/800*480, ensures high quality image.
4 wire villa system, easy to install, suitable for DIY, FHD/AHD/CVBS for option.
Joytimer 4 wire villa video door phone system:
1.Hands-free video intercom
2.Internal call between indoor units

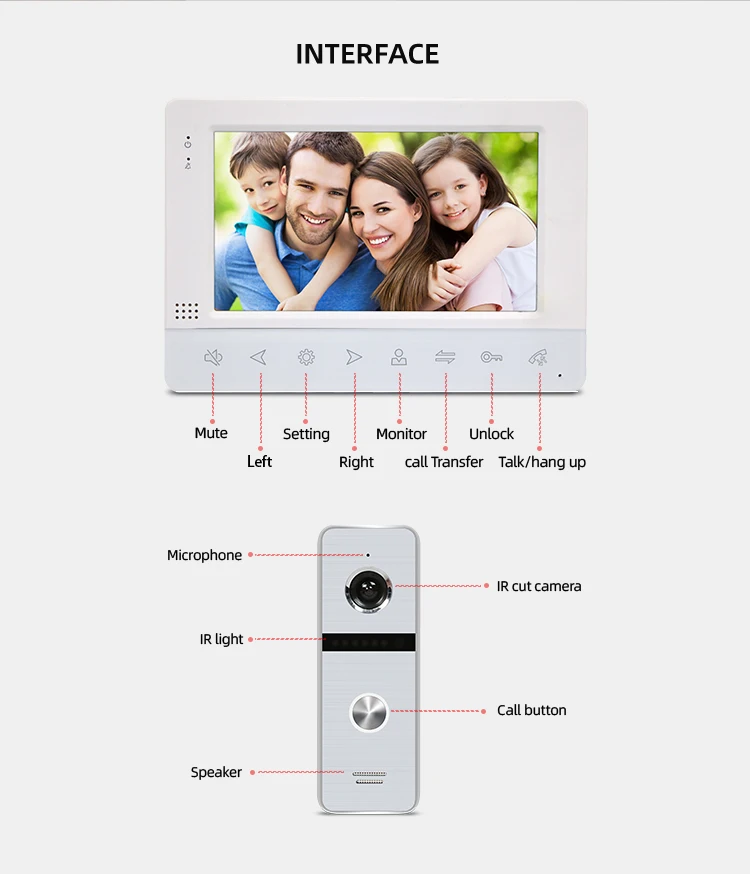

3.Support key-unclock,call transfer,and monitoring function

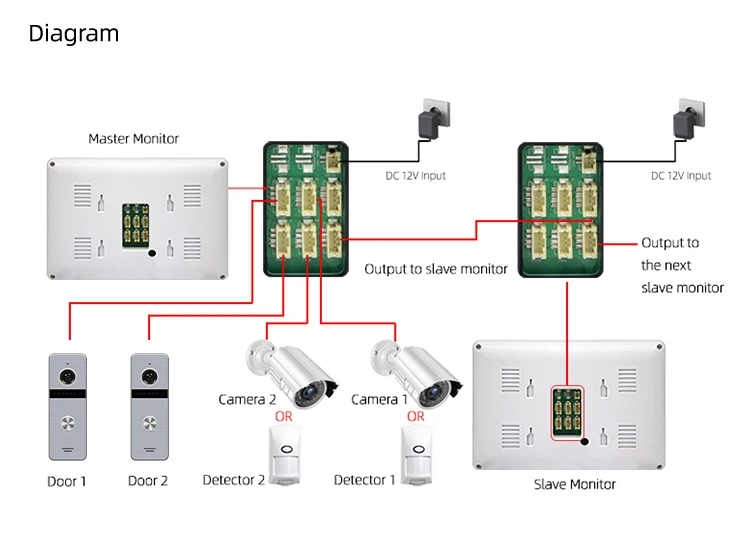

4.Up to 2 doorbells can be connected with 6 indoor monitors.
5.Support two channel camera surveillance
6.Adjustable brightness,contrast,ring volume and microphone volume
7.Choose 12 polyphonic melodies
8.Support photo capture and video record
9.Support additional TF card (Max. 32G)
10.video record,select MP3 ringtone
OEM ODM customized service to make your own style.
1.Print your logo on product.
2.Make welcome screen with your logo.
3.Print your gift box.
4.Print your user manual.
5.GUI menu, OSD menu with your design.
6.Multi languages, we already have English, Chinese, Russian, Polish, Czech, Spanish, French, Arabic, we can add any language.

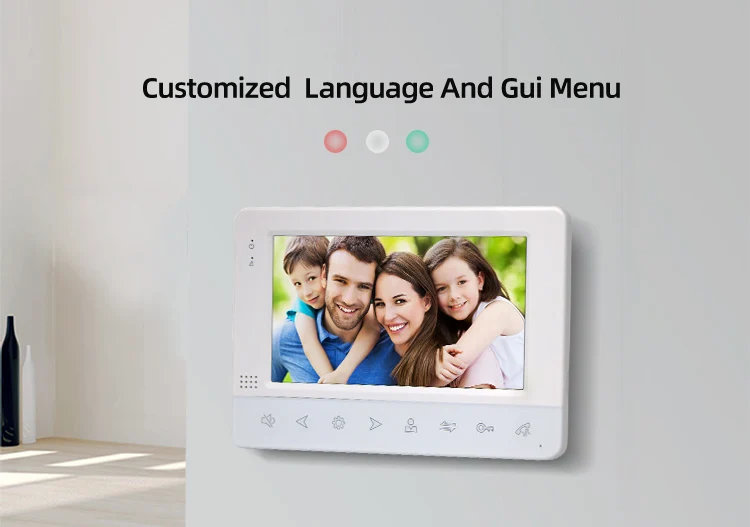

GUI menu user friendly
With GUI menu, it’s very easy to use and set on indoor monitor, as easy as mobile phone.
Support adjustment of ring tone, ring volume, brightness; record mode setting; checking record files and pictures.
Specification

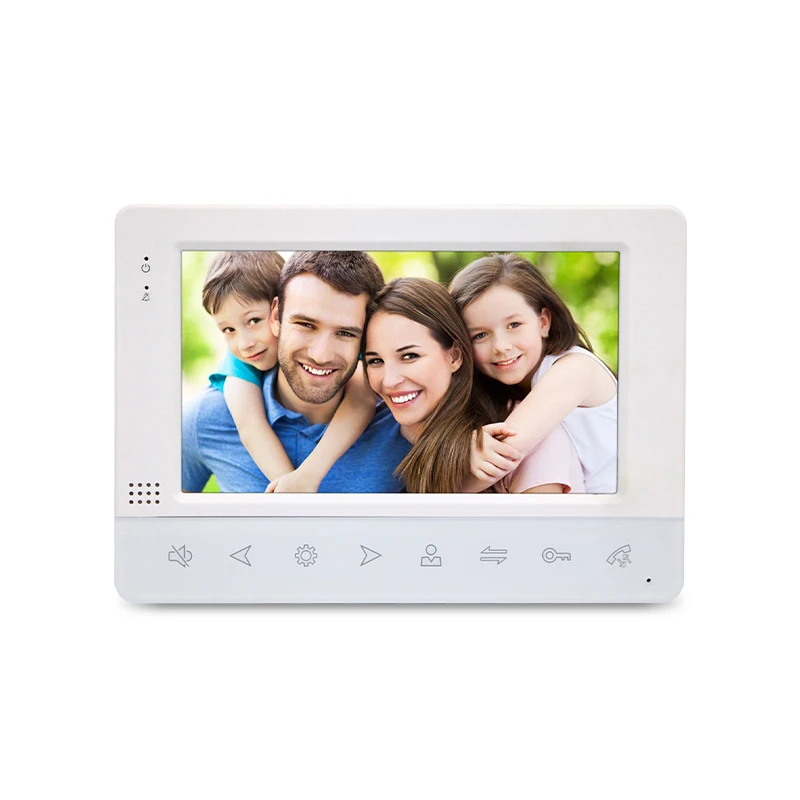

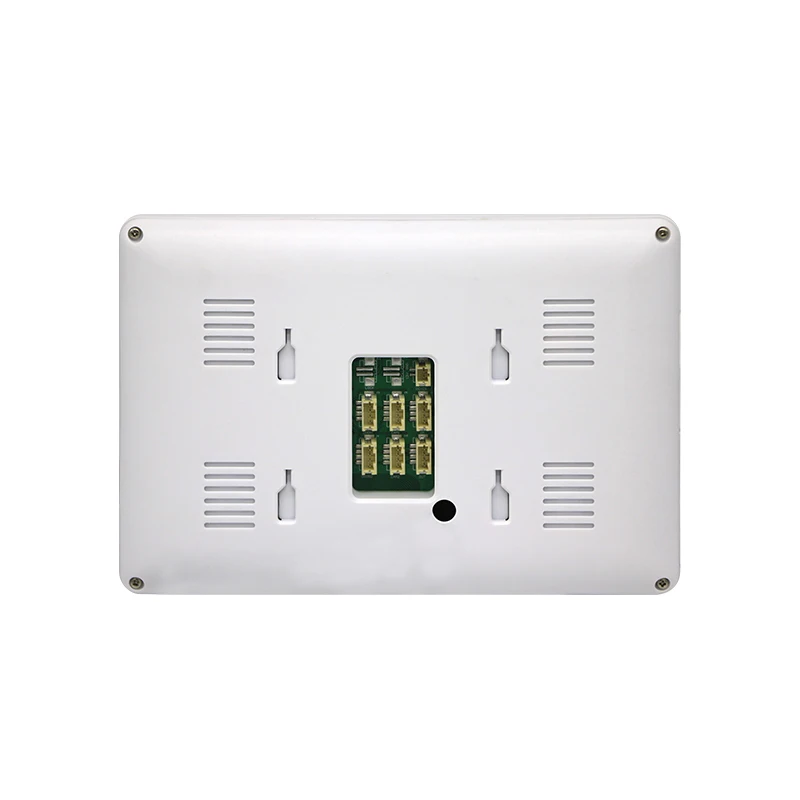

Indoor Monitor
| Model | 64727 |
| Monitor | 7 inch TFT LCD |
| Resolution | 1024*600/800*480 |
| Memory | Built-in memory and support max. 32G SD card |
| Intercom Mode | Hands-free dual communication |
| Motion Detection | Yes |
| Conversation | 120S |
| Button | Touch button |
| Working Current | 500mA max. |
| Power Supply | external power supply DC 12V 1A or built-in power supply AC100-240V |
| Working Temp | -10℃~+50℃ |
| Installation | Surface mount |

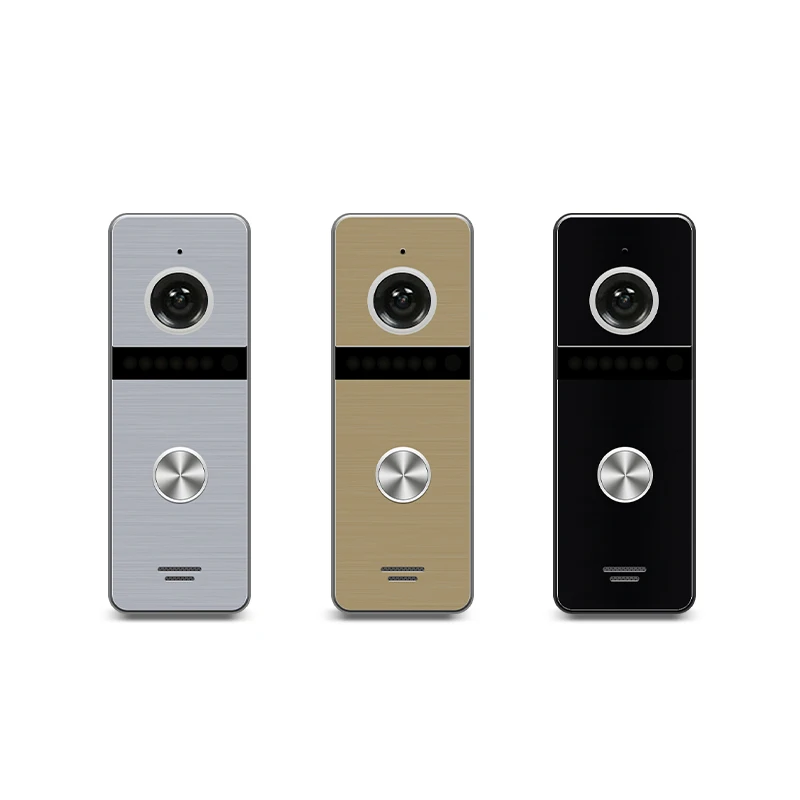

Outdoor Station
| Model | 64207A |

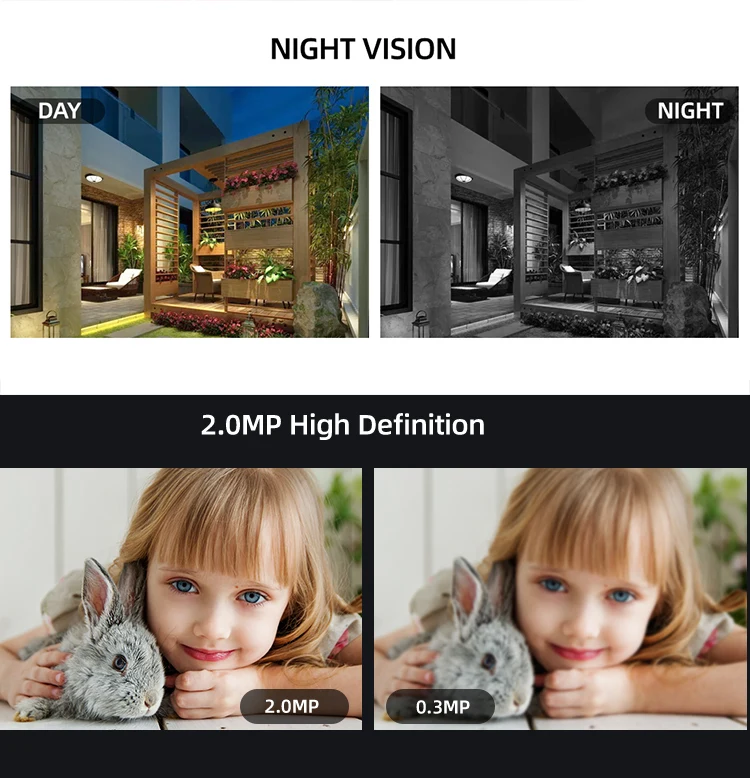

| Night Vision | IR Night Vision/IR CUT |
| Material | Aluminium |
| Weather Proof | IP54 |
| Resolution | 1080P/960P/720P/800TVL/600TVL |

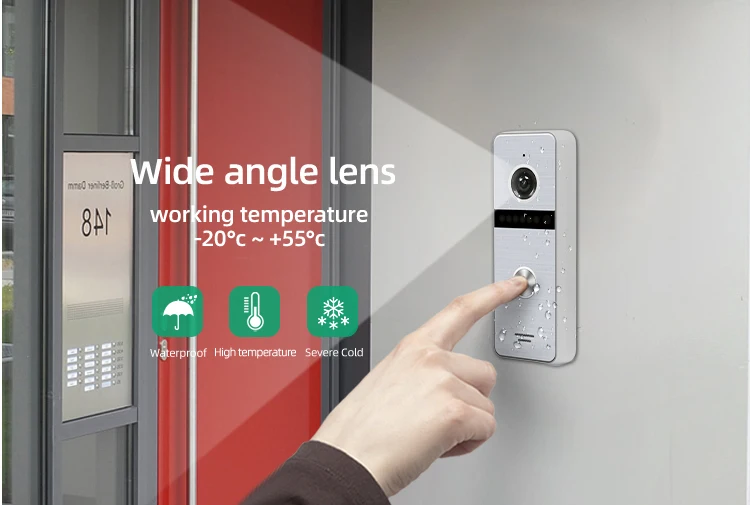

| Camera | 110° wide angle |
| Working Current | 200mA max. |
| Power Supply | Supplied from indoor monitor |
Working Temp | -25°C ~ 65°C |
| Installation | Surface mount/flush mounted |
FAQ
1. What kind of OEM/ODM service do you provide?
A: 1) Silk print logo
2) Welcome screen logo
3) Customized gift box
4) Customized UI
5) Customized tooling
6) Other idea about product
2. What's your lead time?
A: sample order: 1-3 days
bulk order: 7-25 days
3. How about your after sale service?
A: 2 years warranty.
Spare parts for repair.
We have 5 engineers with 5 years experience in line of video door phone; will provide technical support within 24 hours.
4. How about your quality control?
A: PCB board 90% made by SMT, to low down defective rate.
Aging at least 24hours to ensure the stability.
Test 100% products piece by piece before delivery.
5. What certificate do you have?
A: CE, FCC, ROHS.
6. What's your payment term?
A: T/T, Paypal, Western Union.
