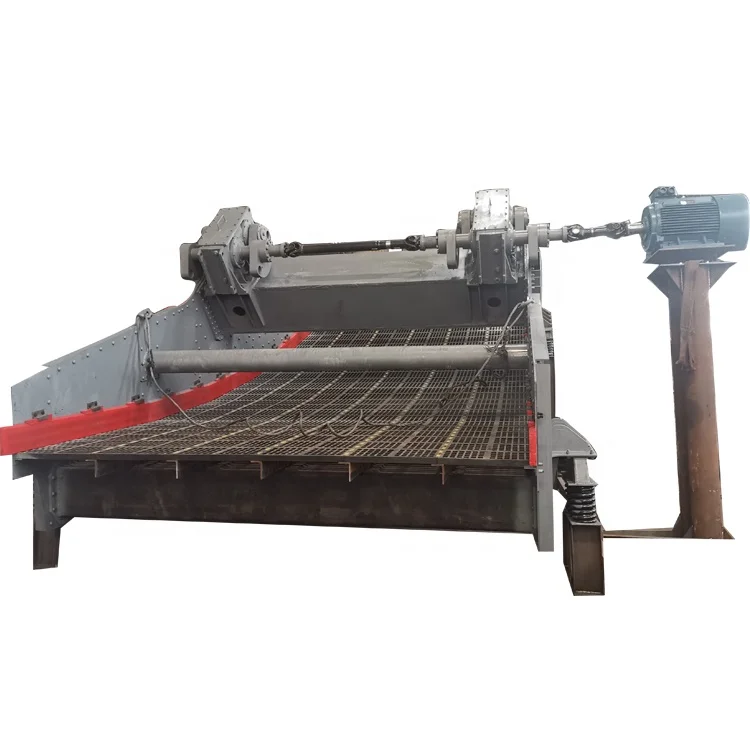

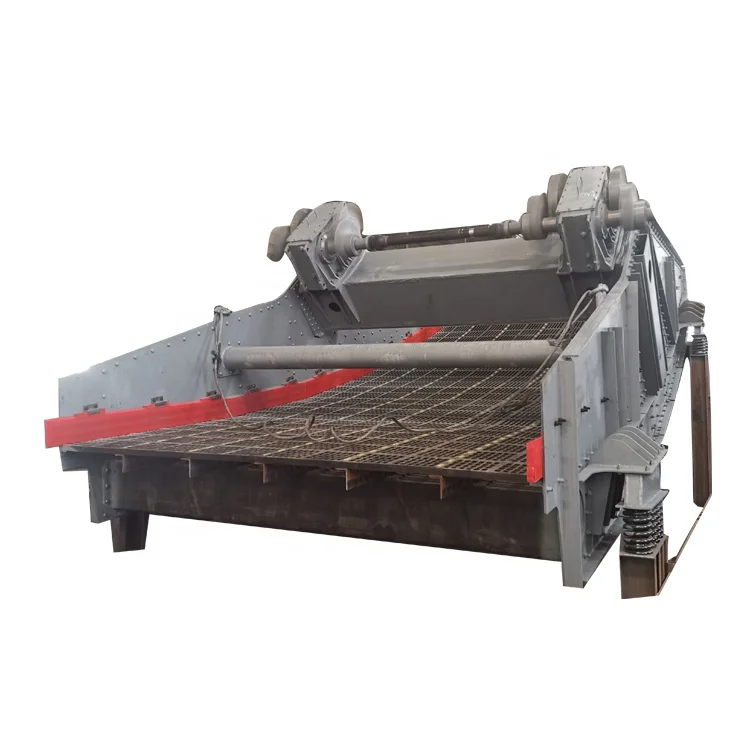

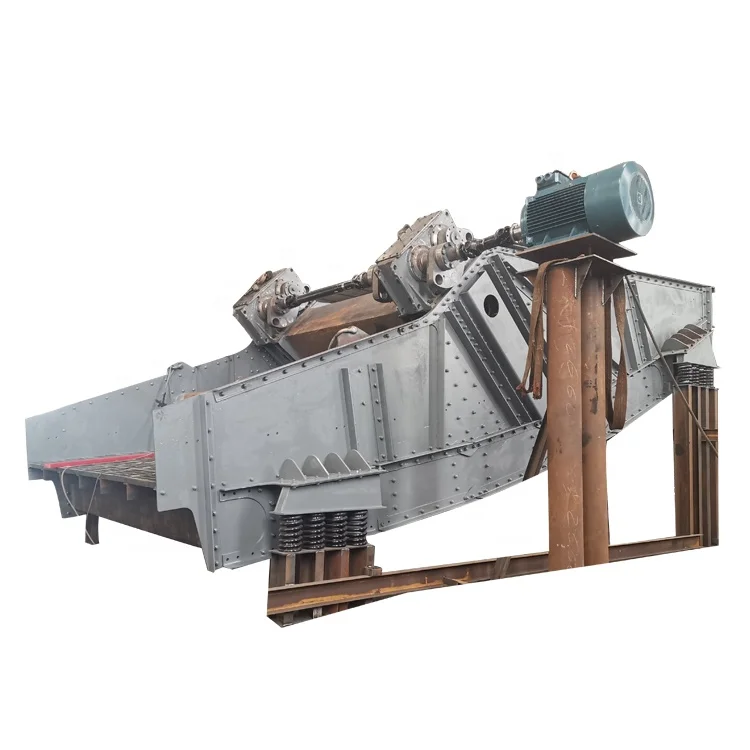

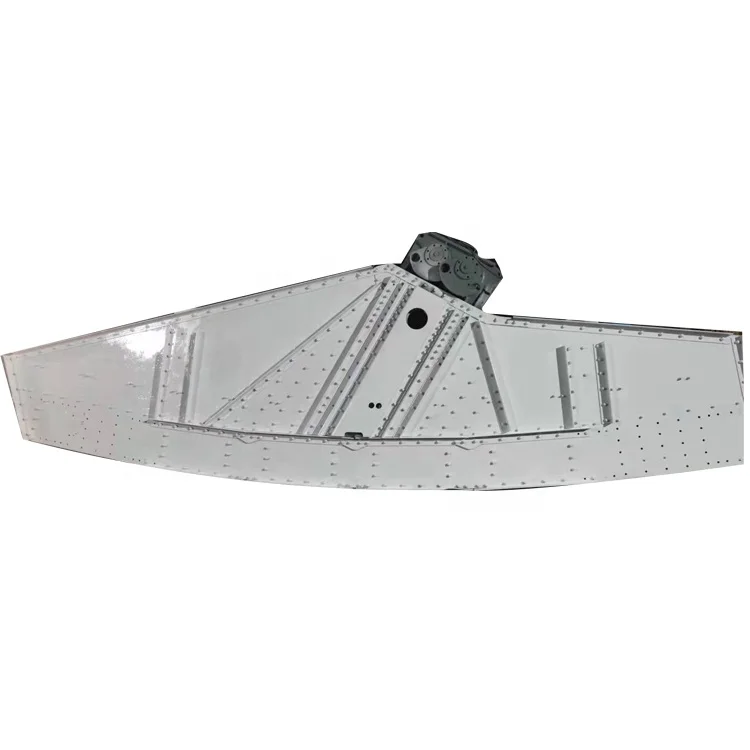

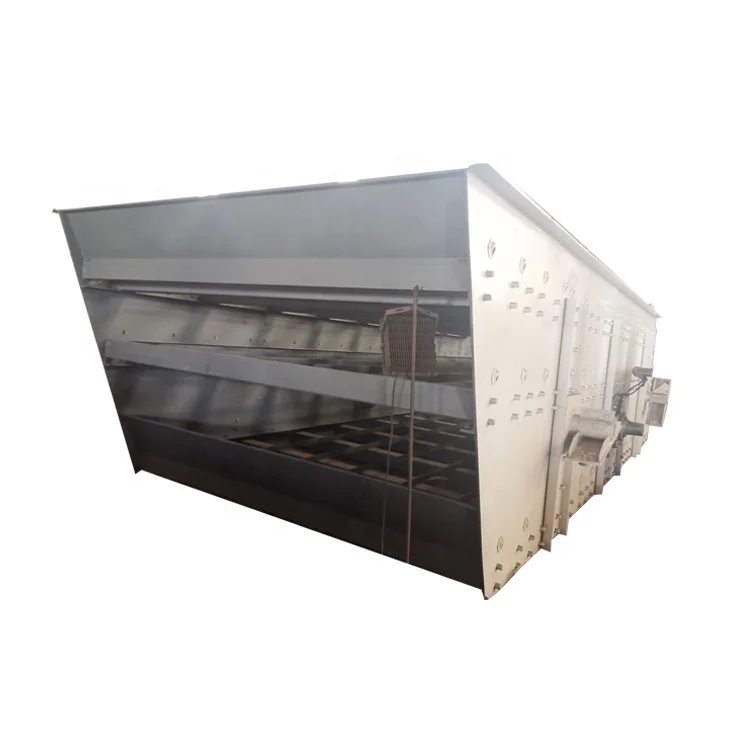

Circular Mobile Sand Round Vibrating Screen
Circular Mobile Sand Round Vibrating Screen
Circular Mobile Sand Round Vibrating Screen
Circular Mobile Sand Round Vibrating Screen
Circular Mobile Sand Round Vibrating Screen
Circular Mobile Sand Round Vibrating Screen
Circular Mobile Sand Round Vibrating Screen

Circular Mobile Sand Round Vibrating Screen

Share on (1600439032931):


Price:$14,650.00

Quantity:


Product Overview

Description



Products Description


Dahan Practical Ya Series Mine Heavy Vibrating Screen for Metallurgical Food Industry
Minerals Ya Vibrating Screen Sand Washing Machine characterizes simple structure, high efficiency, reliable use and convenient installation, and can perform multi-special segmentation screening of loose materials. which is main equipment to separate soild materials, it is widely used in mineral, building material, coal dressing,energy, chemical industry,etc.


Model
Effective screen surface(m2)
capacity(t/h)
motor
weight
(kg)
Model
power(kw)
YA1236
1.2×3.6
70-420
Y160M-4
11
5405
2YA1236
1.2×3.6
70-420
Y160M-4
11
5810
YA1530
1.5×3.0
80-260
Y160M-4
11
5180
YA1536
1.5×3.6
90-320
Y160M-4
11
5637
2YA1536
1.5×3.6
90-320
Y160L-4
15
6124
YAH1536
1.5×3.6
200-660
Y160M-4
11
6120
2YAH1536
1.5×3.6
200-660
Y160L-4
15
6545
YA1542
1.5×4.2
100-360
Y160M-4
11
6015
2YA1542
1.5×4.2
100-360
Y160L-4
15
6598
YA1548
1.5×4.8
120-400
Y160L-4
15
6418
2YA1548
1.5×4.8
120-400
Y160L-4
15
6820
YAH1548
1.5×4.8
320-780
Y160L-4
15
7342
2YAH1548
1.5×4.8
320-780
Y160L-4
15
7900
YA1836
1.8×3.6
100-370
Y160L-4
11
5680
2YA1836
1.8×3.6
100-370
Y160L-4
15
6446
YAH1836
1.8×3.6
290-800
Y160L-4
11
6400
2YAH1836
1.8×3.6
290-800
Y160L-4
15
6853
YA1842
1.8×4.2
130-430
Y160L-4
15
6330
2YA1842
1.8×4.2
130-430
Y160L-4
15
6937

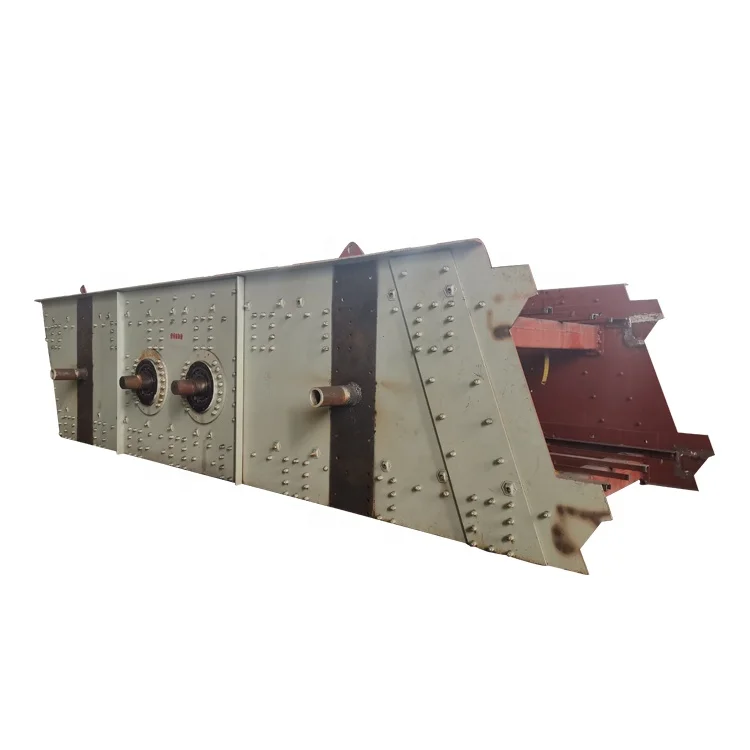

Circular Vibrating Screen Features
1.Minerals Ya Vibrating Screen Sand Washing Machine uses eccentric block to produce strong exciting force.
2. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance.
3. It adopts tire coupling with capability of flexible connection and stable operation.
4. It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption and little noise.




Application


Product Application
--Chemical industry: resin pigment, calcium carbonate, decorative coatings, medicine, grease, paint, palette, etc.
--Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory material, slurry, etc.
-Food industry: sugar, salt, alkali, flour powder, nut powder, farina, gourmet powder, starch, milk powder, yeast powder, pollen,
food additive, bean milk, juice, etc.
--Paper-making industry:coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
-Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
