OBMS mining conveyor belt permanent overband magnetic separator
- Category: >>>
- Supplier: Shandong Jndo Hoisting Equipment Co. Ltd.
Share on (1600439048528):
Product Overview
Description
Product Description

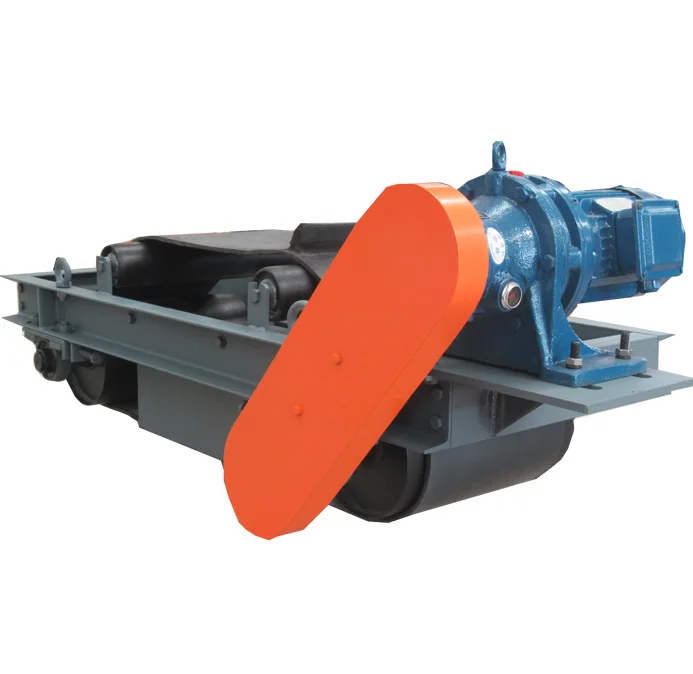

OBMS mining conveyor belt permanent overband magnetic separator
Over band magnetic separators that are designed to eliminate tramp metal from the product carried by a belt,vibratory feeders or by inclined planes .Overbands are mainly used to protect machines such as crushers,shredders and others
to remove ferrous particles and purify products (industries like foundries,coal mines,stone,cement works,food,sponge iron,
charcoal,glass,domestic waste recyclingplants)
Permanent magnetic over band separators are used when an automatic removal of ferrous contamination is necessary.
If not then fixed permanent suspension magnets are more preferable.
Magnetic separation process:the suspended permanent magnet is placed over the conveying belts carrying the material.
This suspended magnet system arrests ferromagnetic materials from distance of 300mm from feed material which is transported through the production process.
The magnet is made of high-intensity strontium ferrite/rare earth magnet and is guaranteed for magnetic power throughout the life of the installation.

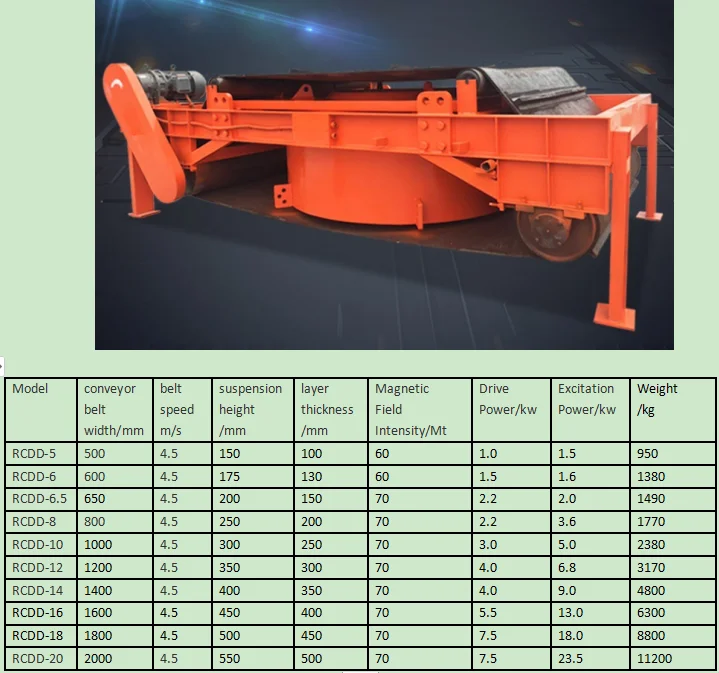

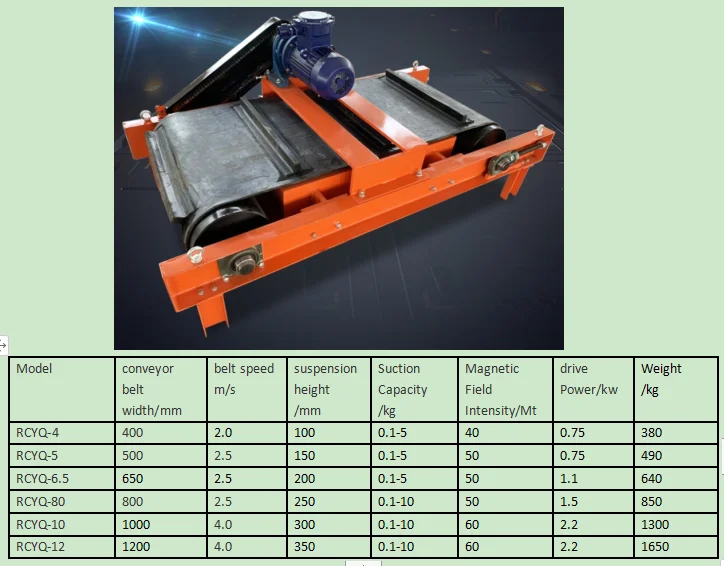

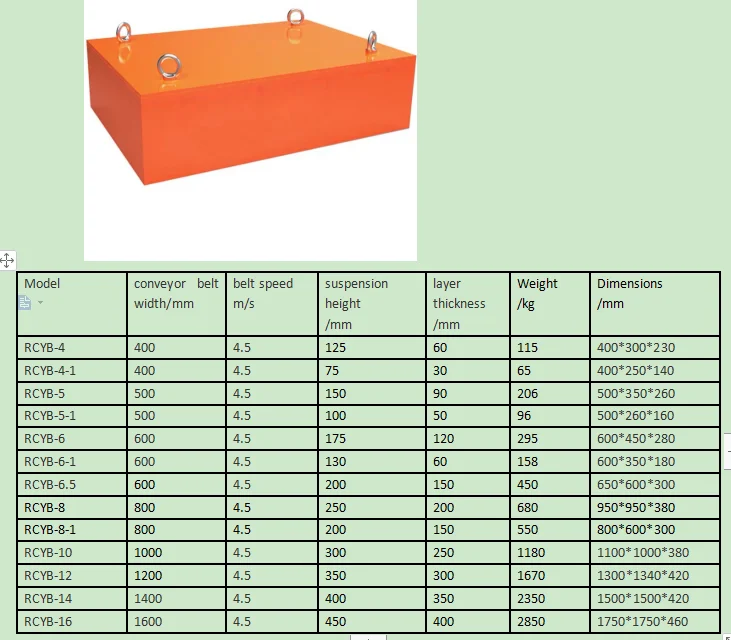

Parameters of overband magnetic separator

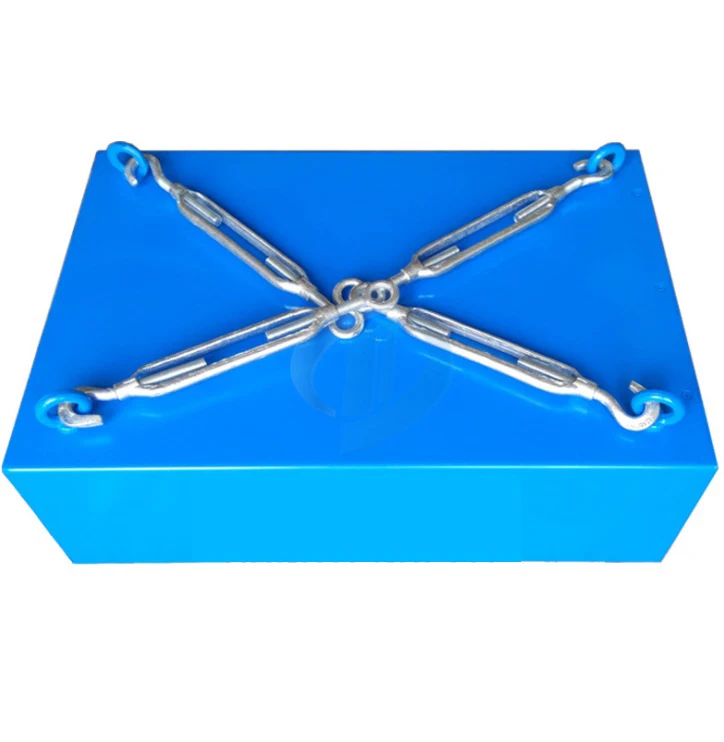

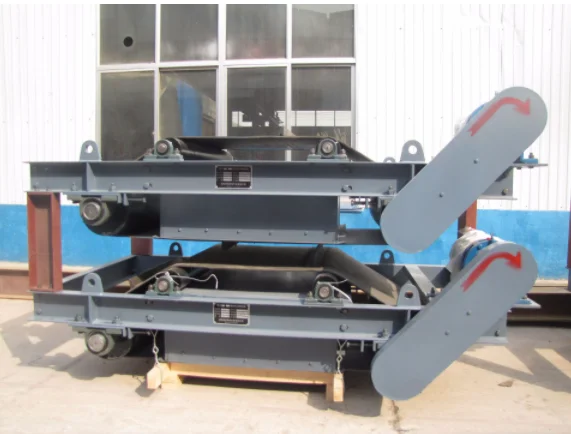

Permanent overband magnetic separator

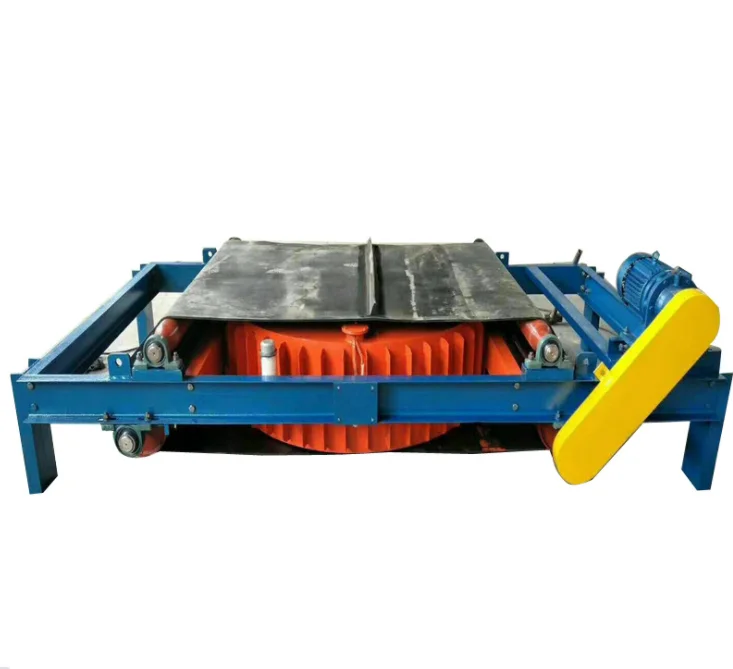

Permanent overband magnetic separator with self cleaning rubber belt

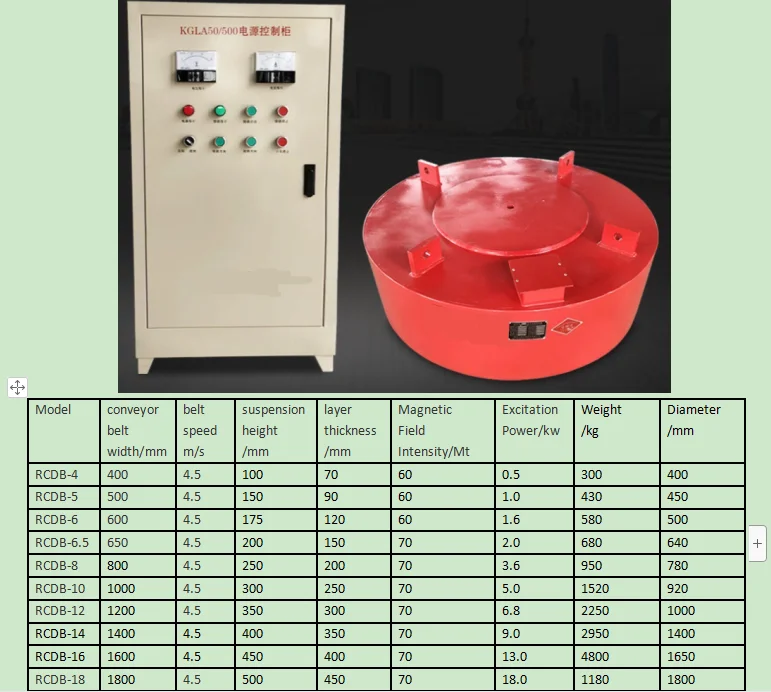

eletromagnetic separator
electromagnetic separator with self cleaning rubber belt
