Fog screen projection 3D machine holographic water fog machine screen water Screen holographic projection system

Product Overview

Description

Product Introduction

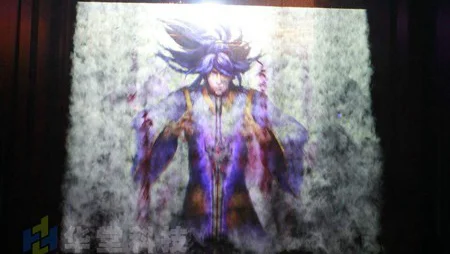

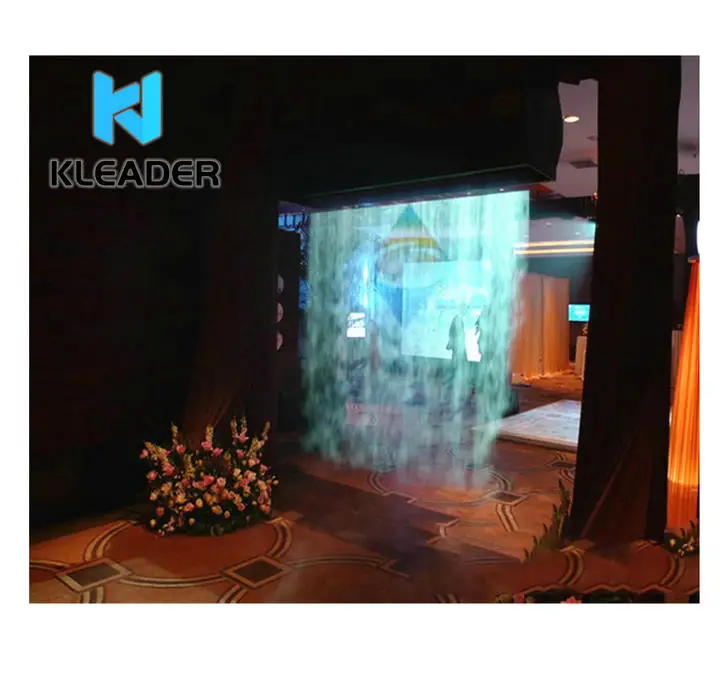

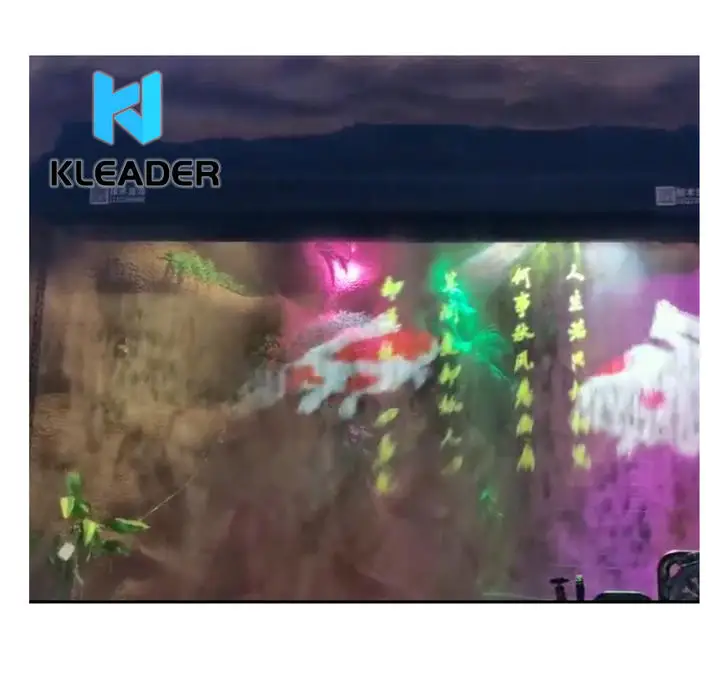

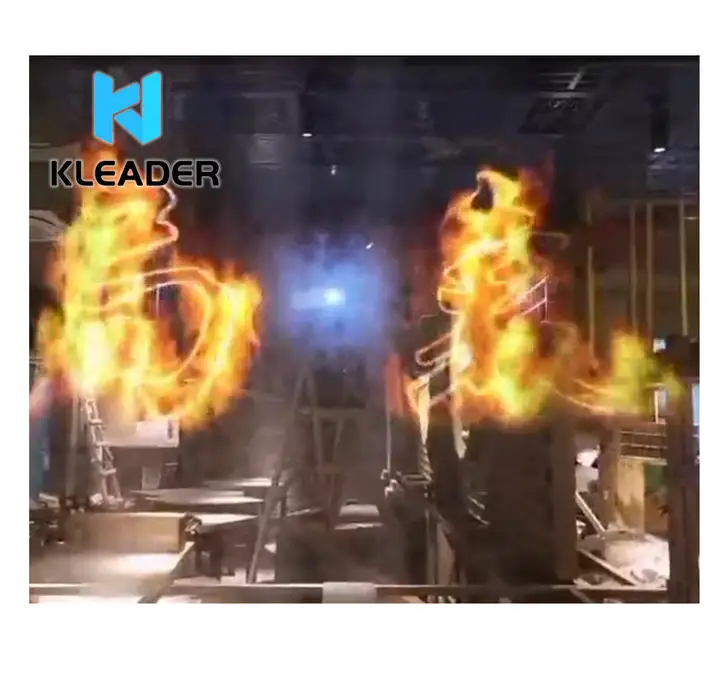

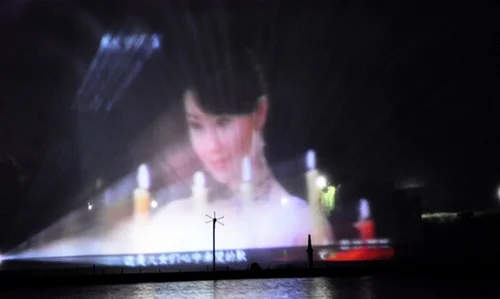

Fog screen projection can also be called stereo imaging. Its projection method does not require any projection screen. A large amount of artificial fog is generated by using atomization equipment to form a thin water fog wall to replace the traditional projection screen.The equipment is projected on the fog wall, and then an unreal three-dimensional image can be formed on the fog wall.Different from ordinary projection methods, fog screen projection can present a three-dimensional effect. The technical principle is similar to that of holographic projection. Because a water fog wall is used as the carrier of the projected image, visitors can freely shuttle through the image to achieve a real person passing through the video screen.The illusory effect can give people an illusory and ethereal visual enjoyment.

Charges per meter. Starting from 2 meters, the regular version is 2 meters or 3 meters, and other sizes are also supported.

5D: It is a normal version, with 3D projection function, dehumidification and heat insulation function.

6D: It is the air purification version, which can purify the air, with ultraviolet sterilization, and hot water.









Application field



Stages, theaters, media exhibition institutions, large shopping malls, discos, KTV, tourist attractions, theme parks, entertainment venues, science and technology museums, museums, planning halls, new product launches, performing arts venues, theme education halls, children's science parks, etc. Can be used as a new display medium.



Advantag



1. Highlight the three-dimensional effect of the space, make the picture realistic and shocking, and make the visit immersive, thereby increasing the entertainment and interactive interest.

2. The equipment is not restricted by space and location, and the size of the displayed screen can be freely expanded as needed.

3. The projection content can be customized.

4. The fog screen is maintenance-free and the equipment has a longer service life.



System composition



The fog screen projection system is mainly composed of a projector, a fog screen generator, a water tank, a computer, a controller, holographic presentation content, and some auxiliary equipment, such as wires.





Material specification configuration



Shell (appearance patent): food grade stainless steel, black frosted paint

DESPRO own brand atomizer: 7 pieces of high power 350W/piece

Silent fan: 2 meters 13 pcs/group total 26 pcs

Built-in fan: 7 IP67 waterproof grades

Intelligent control motherboard (independent core technology): Chinese and English color screen display, with background operating system, with DMX and remote control, with three insurance water level control.

Fog output: 9-speed cycle adjustable

Water source: tap water (no impurities required)

Installation accessories: 4 expansion screws, 6 safety ropes, high-pressure air pipe 1-3 meters, one water purifier, packaging: shockproof wooden box

Screen: Conventional size 2/3 meters long ---- 2-3 meters high (width 1-6 meters can be customized according to requirements)

Power source: AC 220V Power: 2KW/4KW/6KW

Water consumption: 8-15L/H (a tap water pipe must be provided at the installation site)

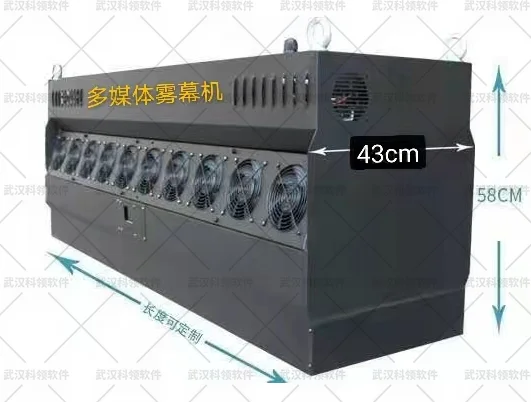

Fog screen generator size: 2 meters x 0.45 meters x 0.6 meters

Gross weight: 120KG
