plastic pe pp recycling extruder granulating pelletizing machine
This plastic pe pp recycling extruder granulating pelletizing machine is designed and manufactured by MOOGE TECH, which is widely used for waste plastic LLDPE film, LDPE film, HDPE film, PE bags, PLA film, etc.
The material go through transmission system, extrusion system, cutting system, cooling system and collect system will turn to be clean perfect pellets for reuse.
You can choose double stage or single stage extruder according to the cleanliness of your material.
This plastic pelletizing machine can be displayed "L" or "U" shape according to clients' workshop.
Product Specification
RDS Series Single Stage Compacting Die-Face Cutting Pelletizing Line (For PE Film, PE Bags, PLA Film)
If raw material is not very dirty, we suggest this model with relative low cost
Model | Screw Diameter | Screw L/D | Main Motor Power | Capacity |
RDS-SJ85 | 85mm | 28-33:1 | 55KW | 150-200kg/hr |
RDS-SJ100 | 100mm | 28-33:1 | 75KW | 200-300kg/hr |
RDS-SJ130 | 130mm | 28-33:1 | 90KW | 300-400kg/hr |
RDS-SJ150 | 150mm | 28-33:1 | 110KW | 400-500kg/hr |
RDS-SJ160 | 160mm | 28-33:1 | 132KW | 500-600kg/hr |
RDS-SJ180 | 180mm | 28-33:1 | 160KW | 600-800kg/hr |
RDS-SJ200 | 200mm | 28-33:1 | 200KW | 800-1000kg/hr |
RSS Series Double Stage Compacting Die-Face Cutting Pelletizing Line (For PE Film, PE Bags, PLA Film)
If raw material is a little dirty, we suggest this model with better filter and pelletizing effect
Model | Screw Dia. | Main Screw L/D | Main Motor Power | Second Screw L/D | Capacity |
RSS-SJ85 | 85mm | 28-33:1 | 55KW | 10-12:1 | 150-200kg/hr |
RSS-SJ100 | 100mm | 28-33:1 | 75KW | 10-12:1 | 200-300kg/hr |
RSS-SJ130 | 130mm | 28-33:1 | 90KW | 10-12:1 | 300-400kg/hr |
RSS-SJ150 | 150mm | 28-33:1 | 110KW | 10-12:1 | 400-500kg/hr |
RSS-SJ160 | 160mm | 28-33:1 | 132KW | 10-12:1 | 500-600kg/hr |
RSS-SJ180 | 180mm | 28-33:1 | 160KW | 10-12:1 | 600-800kg/hr |
RSS-SJ200 | 200mm | 28-33:1 | 200KW | 10-12:1 | 800-1000kg/hr |
Detailed Images

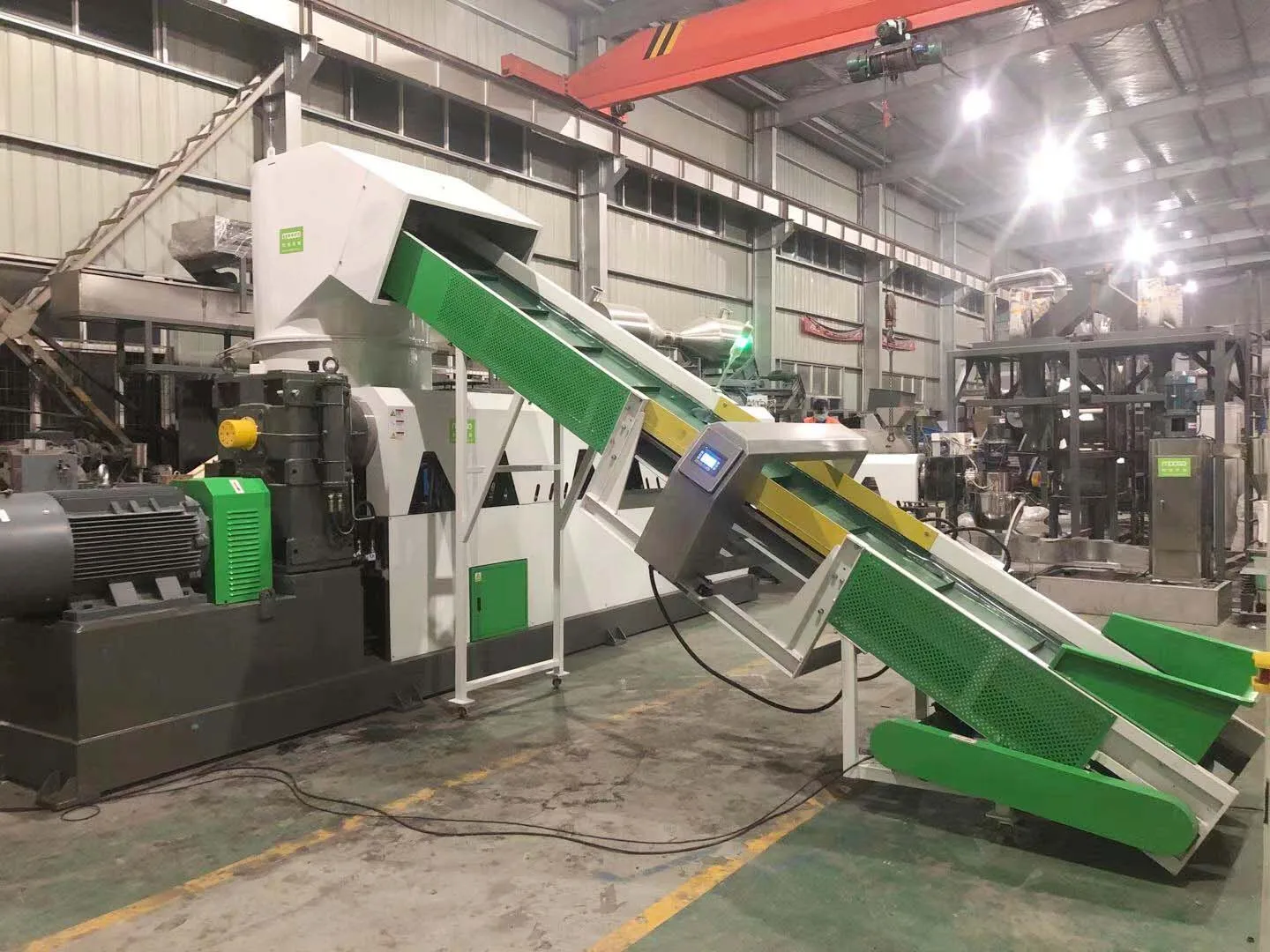

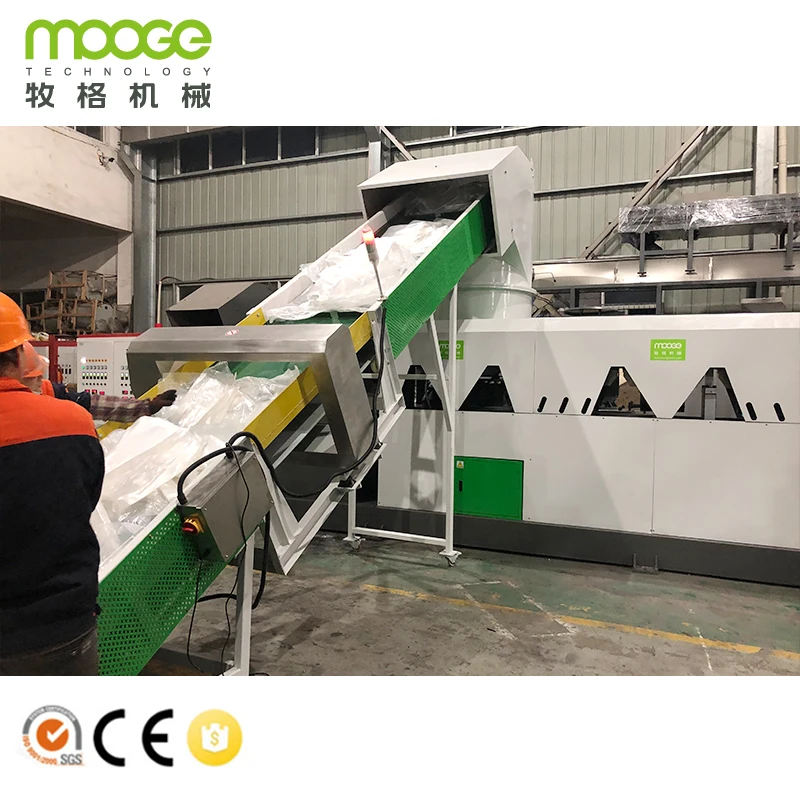

Compacting force feeder
Function: With multi blades crushing and forcedly compressing the material into the extruderSingle Screw Extruder (first stage):
Function: Plasticizing material with high temperature and exhausting hot gas and moisture

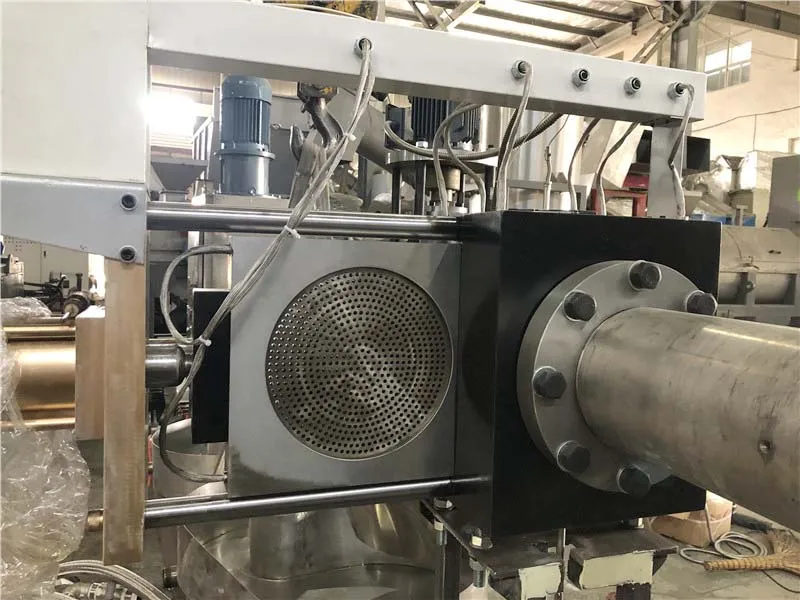

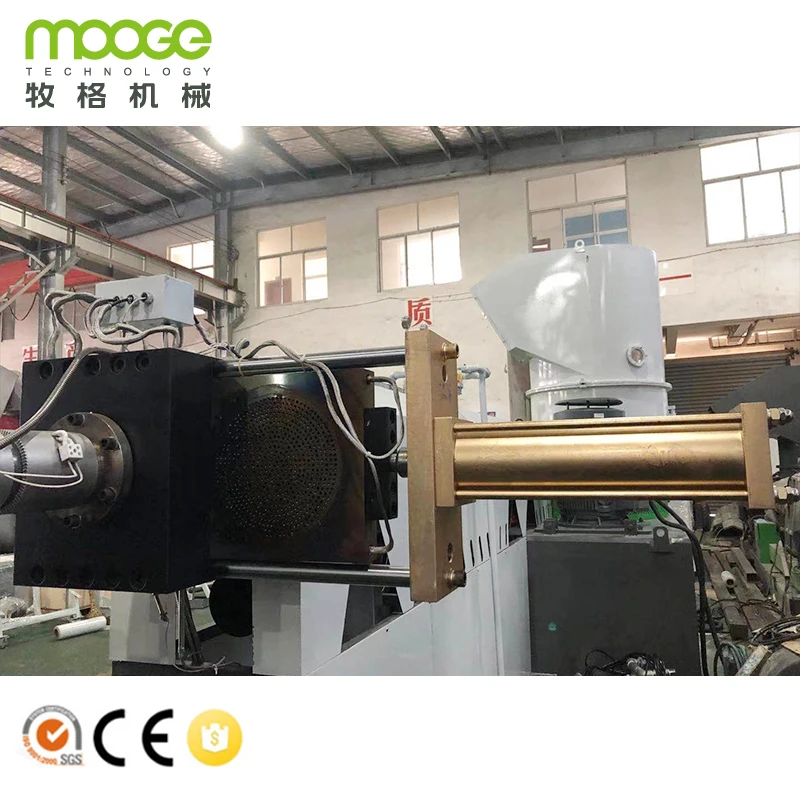

Hydraulic Screen Exchanger
Function: Filter out material dirty to ensure the purity of pellet

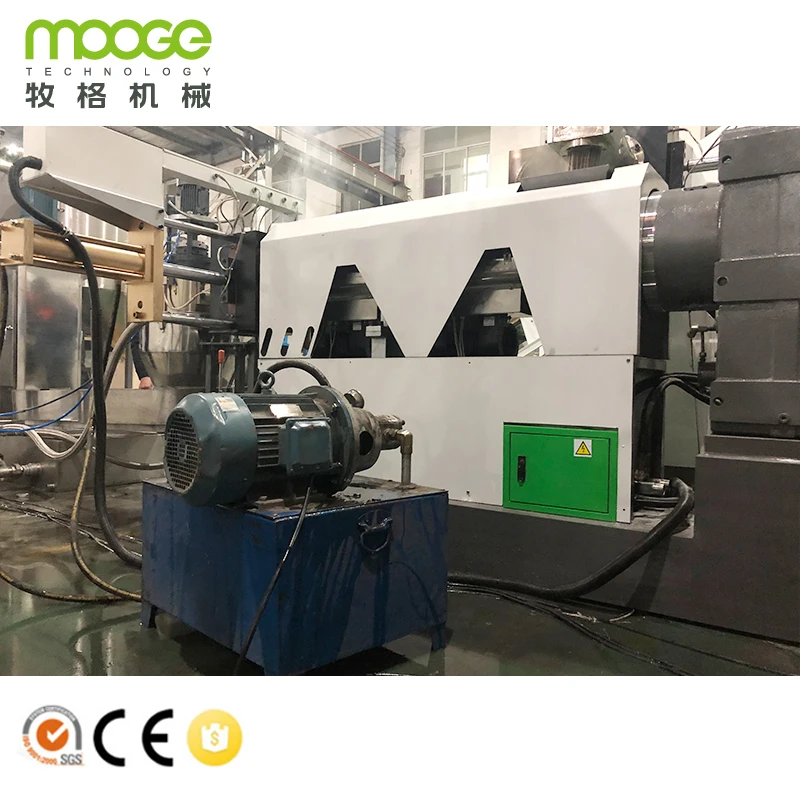

Single Screw Extruder (second stage)
Function: Further plasticizing and filtering material with high temperature.

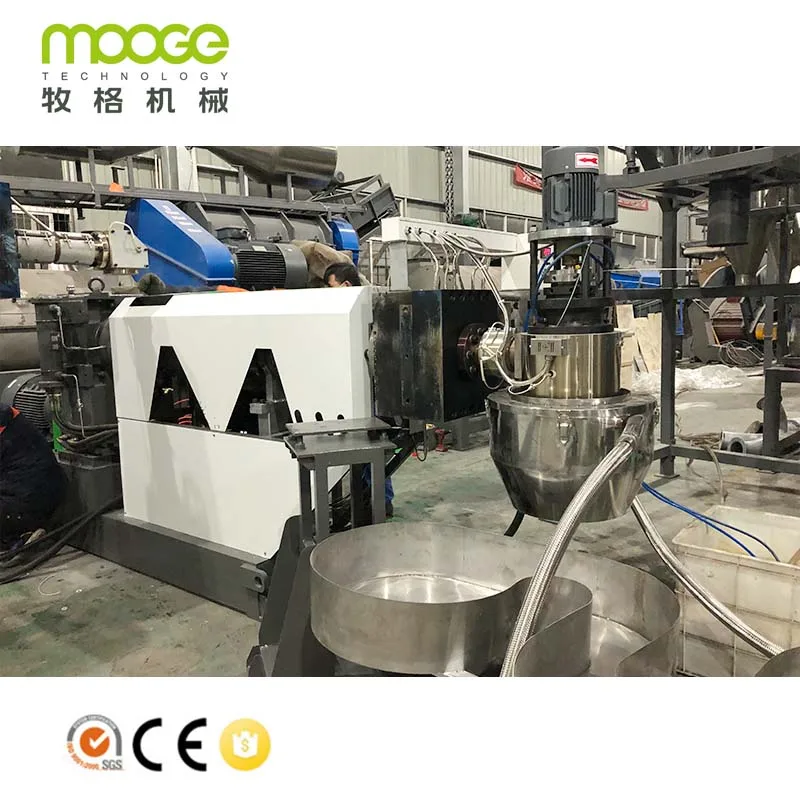

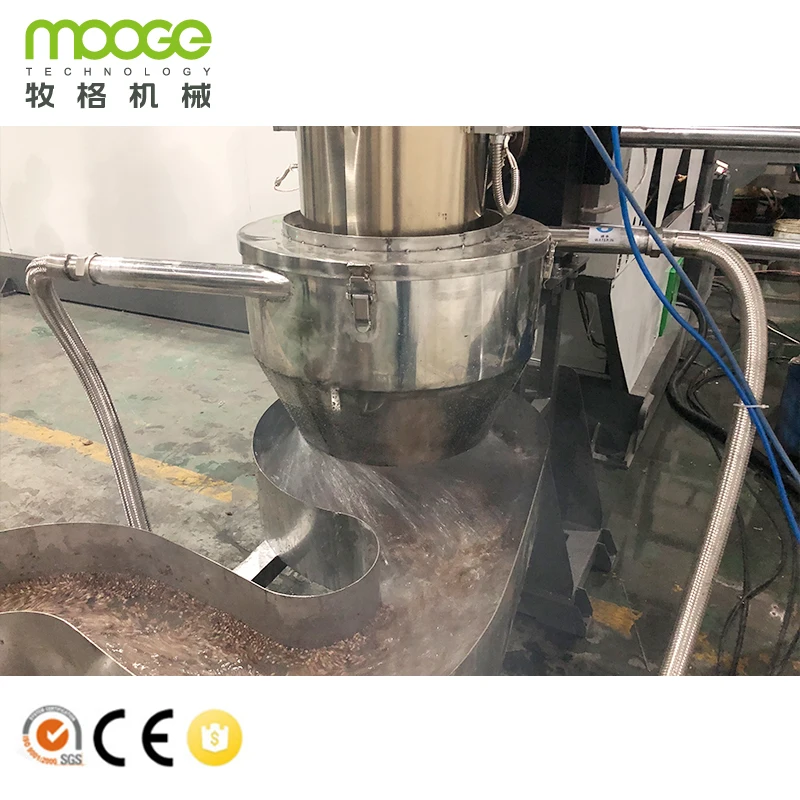

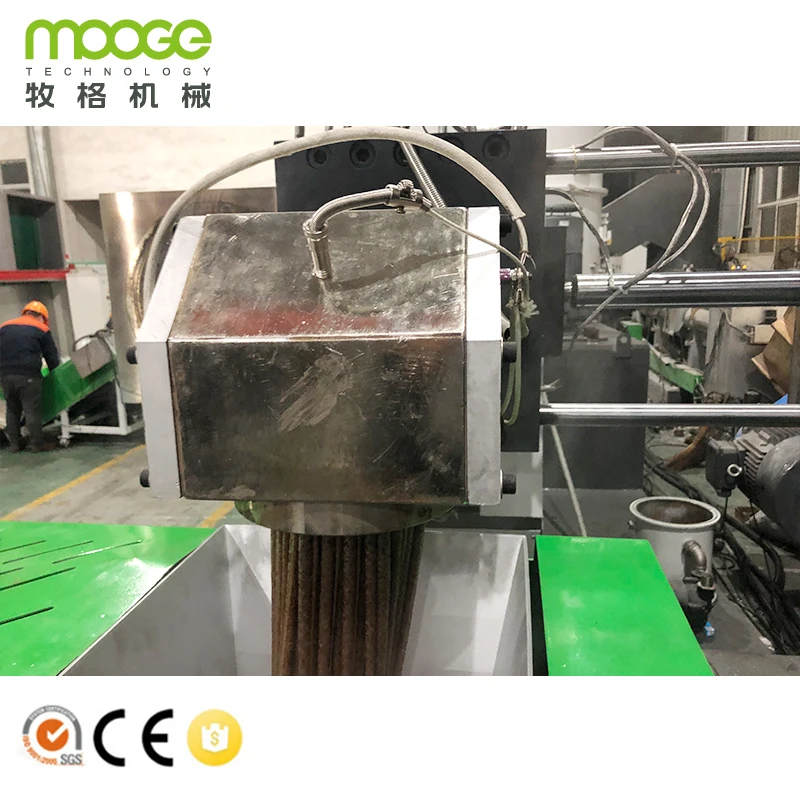

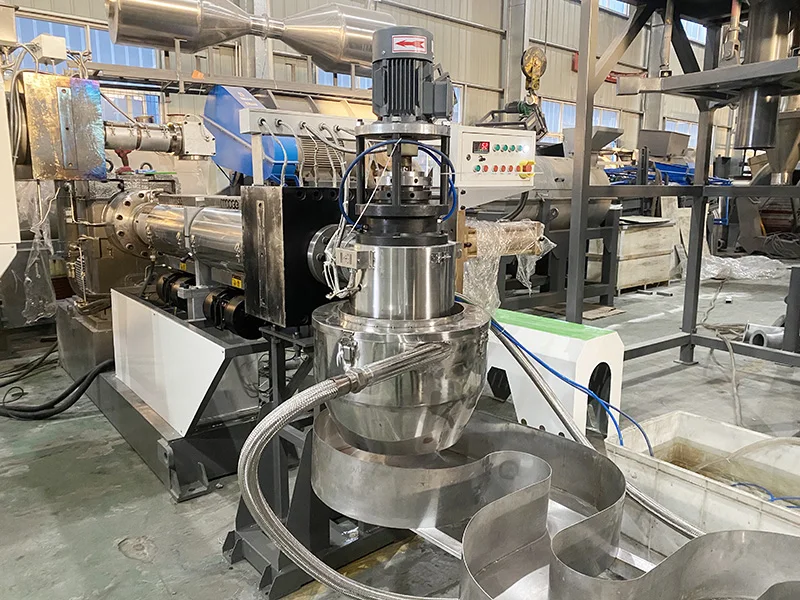

Die-Face Cutting Machine
Function: Cutting the material into pellets

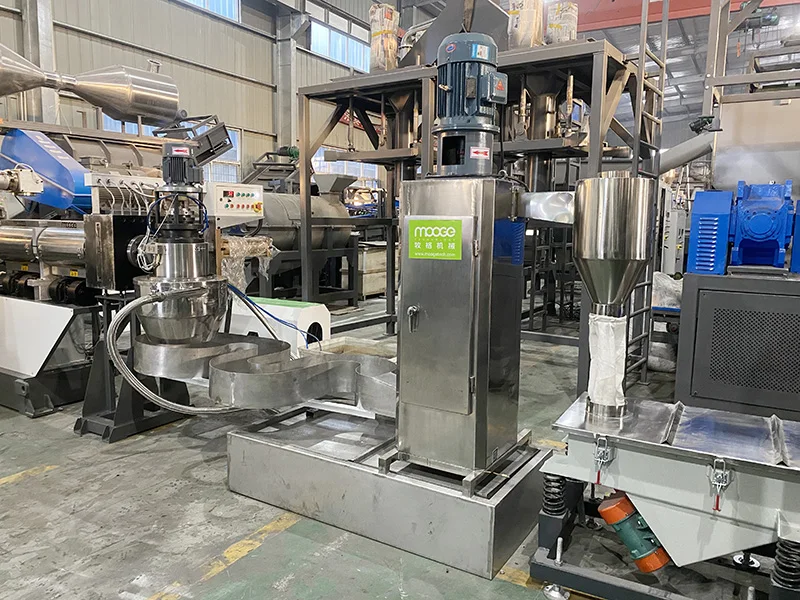

Dewatering Machine
Function: Remove out water to dry the pellets
PE Film Scraps
PE Pellet (dia: 3mm)
Customer Onsite
RSS-SJ160 PE Plastic Pelletizing Line sold to Netherlands
RSS-SJ85 PE Film Pelletizing Line sold to Lebanon
Related Products

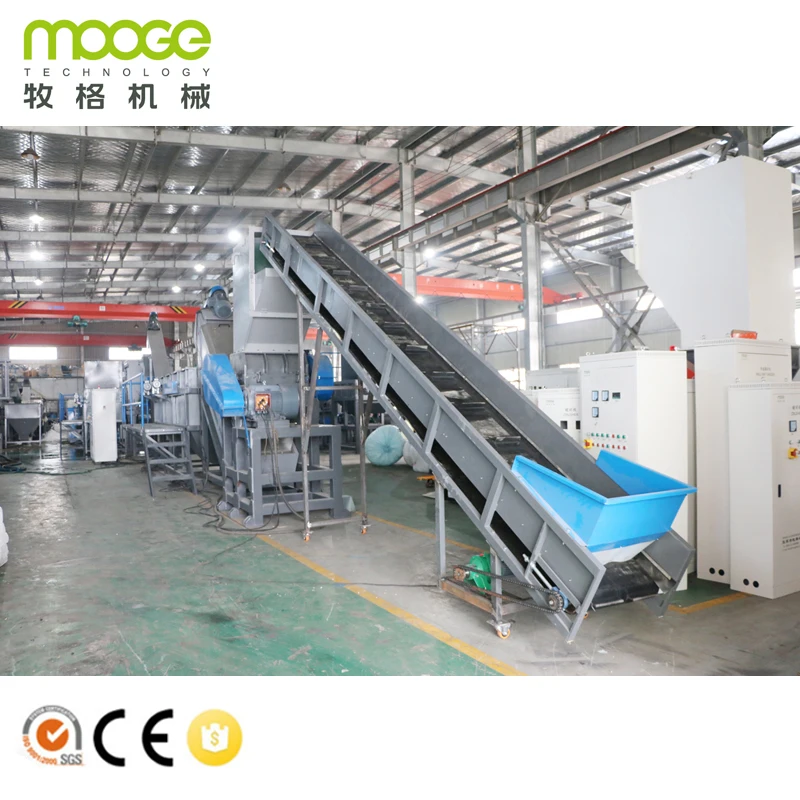

We also supply soft plastic washing line used for waste plastic PE/LDPE/LLDPE film, PP woven bag, PP Jumbo bag,etc.
The waste dirty material go through crushing, washing, drying, collecting process will turn to be clean flakes for pelletizing.
In this way, we achieve the reuse of waste plastic recycling and the purpose of protecting our environment.

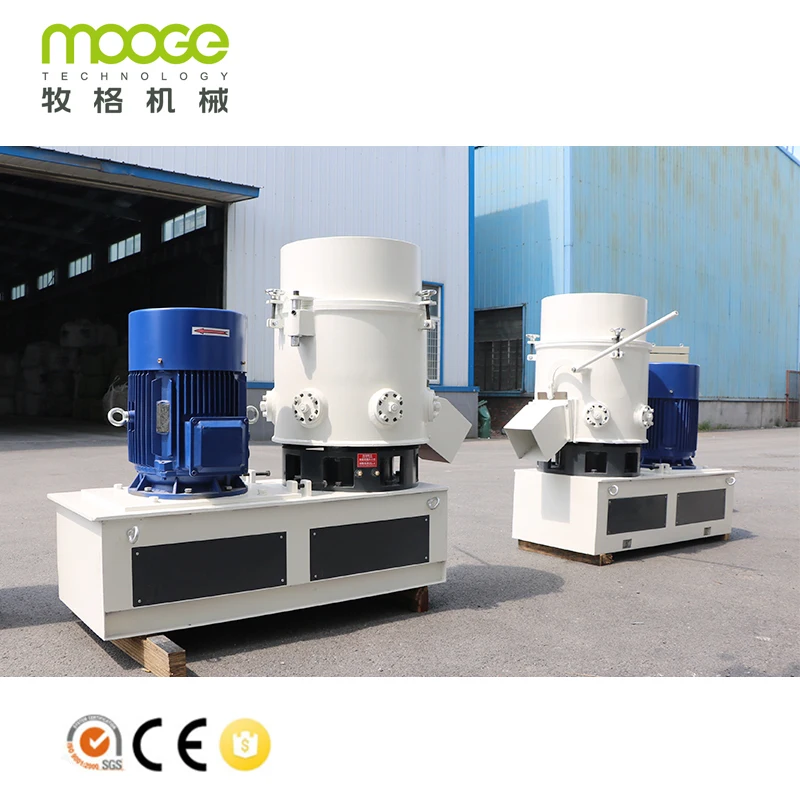

We also supply plastic agglomerator machine which is mainly used for waste thermoplastic thin films, soft PVC, LDPE, HDPE, PS, PP and other plastic material within 2mm thickness.
The particles can be used for extrusion or injection mould machine directly. It can also be further pelletizied for some special requirements.
The particles can be used for extrusion or injection mould machine directly. It can also be further pelletizied for some special requirements.
Our Company
We attend the Chinaplas Exhibition every year (In Shanghai and Guangzhou) and take with our machine for test run at the booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc. Please kindly contact with us in advance if you also have time to attend, Sincerely welcome to our booth for visit and discuss about detailed issues.

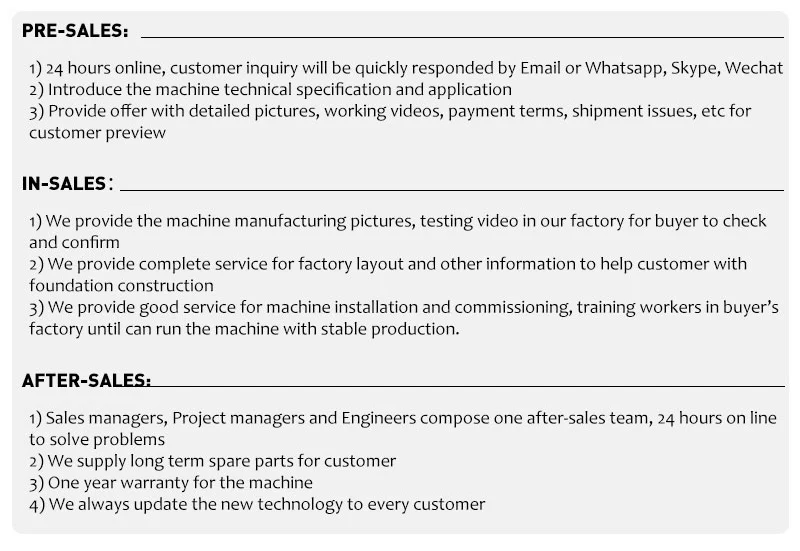

Our Service
