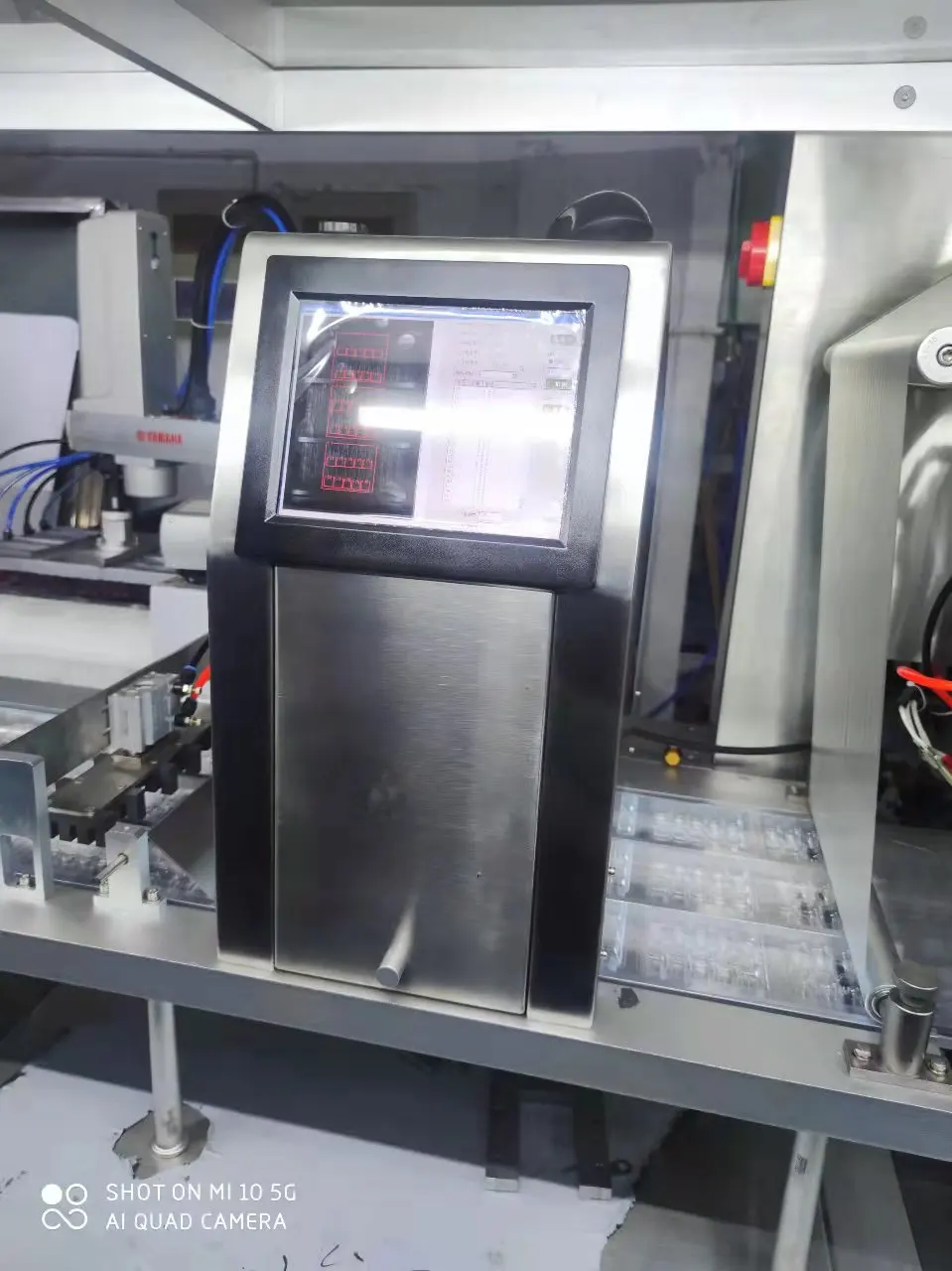

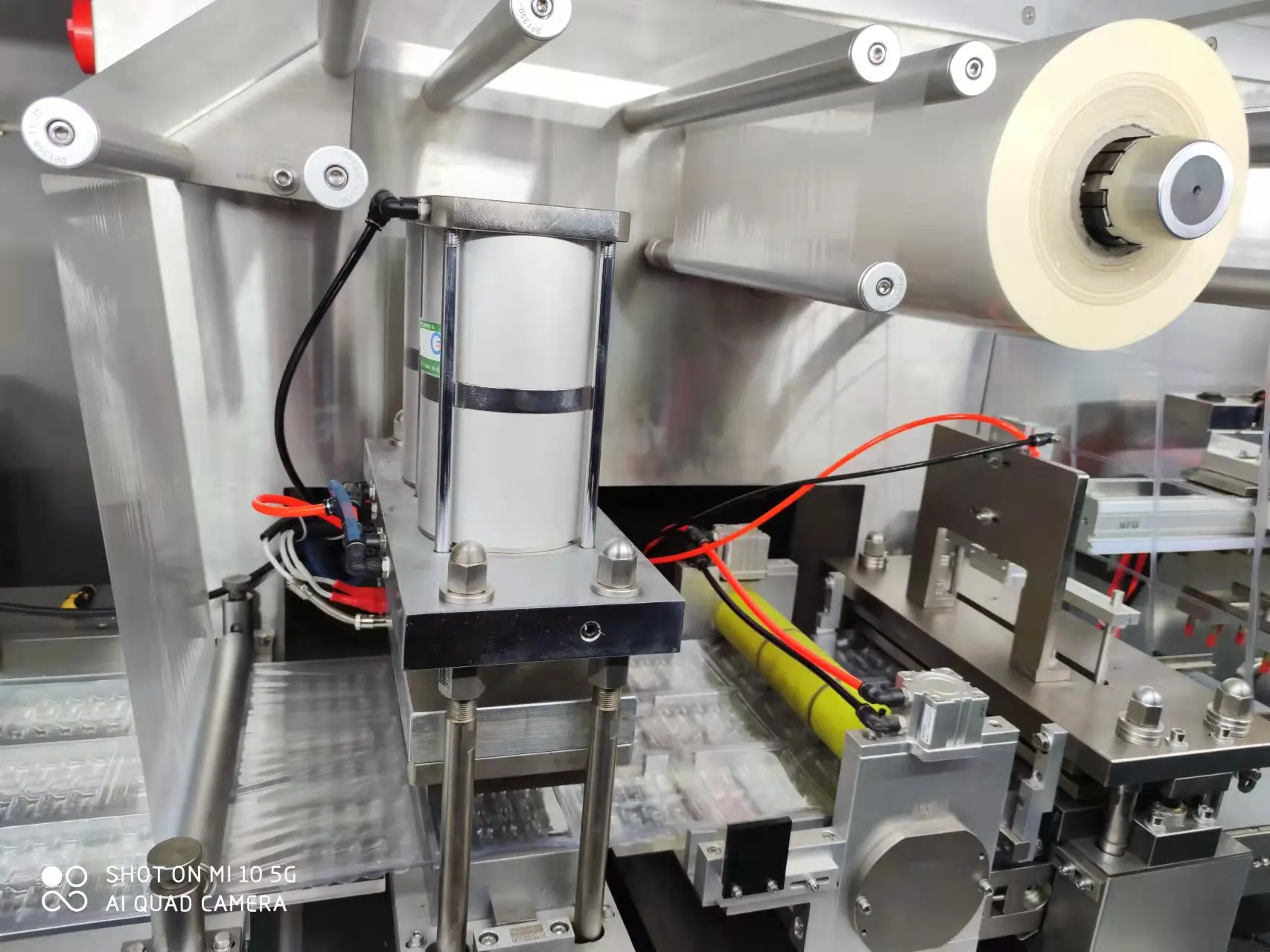

Best Automatic Blister Cartoning Chinese Manufacturers Packaging Machinery And Equipment
- Category: >>>
- Supplier: Zhejiang Haichen Machinery Co. Ltd.
Share on (1600439136672):
Product Overview
Description
Products Description
Blister making machine | Cutting frequency | 16～30 times/min | |||
Maximum forming area | 220×350 mm | ||||
Travel distance | 50 ～220 mm(Servo motor controlled by client) | ||||
Tablet plate specification | At clients' request | ||||
Packing material | Non-toxic hard PVC film(conform to GB5663) | ||||
0.15～0.5×350mm， | |||||
Winding axle diameter is 75mm | |||||
Electric heating power | PVC preheating plate 2×4.5 KW | ||||
Mould tool cooling | 13-15° recycling water≥ 60 L/h | ||||
Main motor power | 3KW | ||||

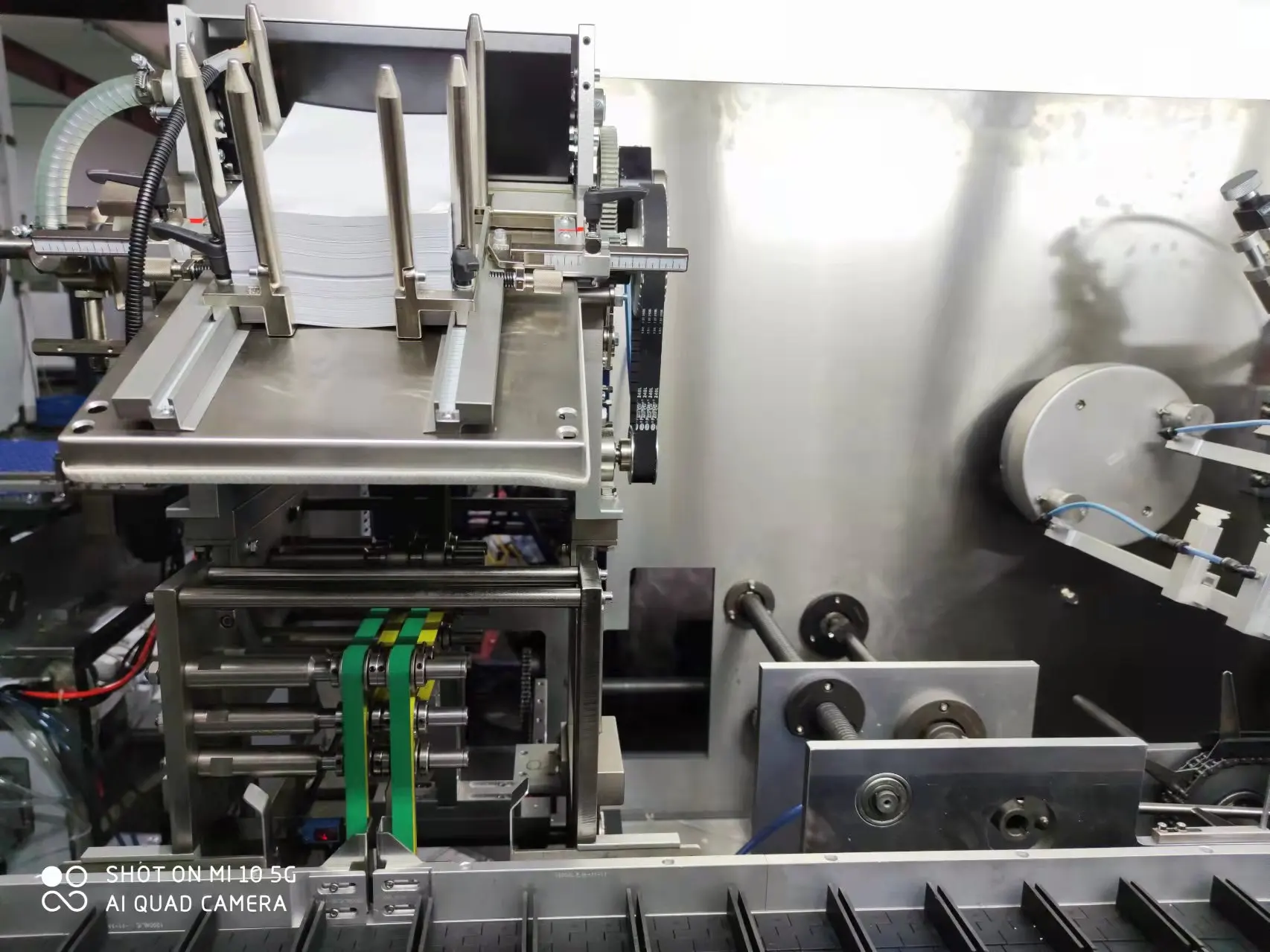

Cartoning packaging machine | Box specification (length*width*height) | （65～210）×（35～90）×（16～70）mm | |||
Box paper specification | white cardboard 300~350g/m2 | ||||
Tablet instruction sheet size(Length*width) | （90～260）×(100～190）mm | ||||
Tablet instruction sheet specificatioin | 60-75g/m2（printing papaer） | ||||
Cartoning capacity | 240boxes/min(according tablet plate shape and size) | ||||
Main motor power | 3.7KW | ||||
Power supply | 380V Three phase four line 50Hz | ||||
Air pump | Volume | ＞0.2 m3 | |||
Air pressure | 0.6~0.8MPa | ||||
The whole production line (length*width*height) | 10700×2400×1750mm | ||||
Total weight | 7500 kg | ||||
Total power | 24KW | ||||
Total Air consumption (Max) | 480 L/min | ||||
Company Profile
About Us
Zhejiang Haichen Machinery Co.,Ltd. established in 2019 , is a professional engaged in the research, development, sale and service of Automatic packaging production line of blister making and packing, cartoning packing process ,Automatic blister packing machine, Automatic cartoning packing machine, Automatic and semi-automatic capsule filling machine.Our machines are applied for many products such as Prefill needles, Ampoule, vial,Oral liquid, Cassette bottle,capsule, We are located in RuiAn city with convenient transportation access.We have a general investment of 1. 5 million and a plant area of more than 8 thousand m².Dedicated to strict quality control and thoughtful customer service, our 20 years experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Besides, we are making great efforts to develop new products to meet different requirements. There are 10 items of inventing design patents with our machines. In addition, we have obtained C E , I S O 9 0 0 1 , certificates. Selling well in all cities and provinces around China,we cooperate with many famous domestic pharmaceutical manufacturers especially for Automatic packaging production lines, our products are also exported to clients in such countries and regions as other Asia countries, America, Europe, Africa . We also welcome O E M or O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Why Choose Us
(1)Our factory was established 2005,with more than 15 years experience;
(2)We cooperate with most famous domestic pharmaceutical factories;

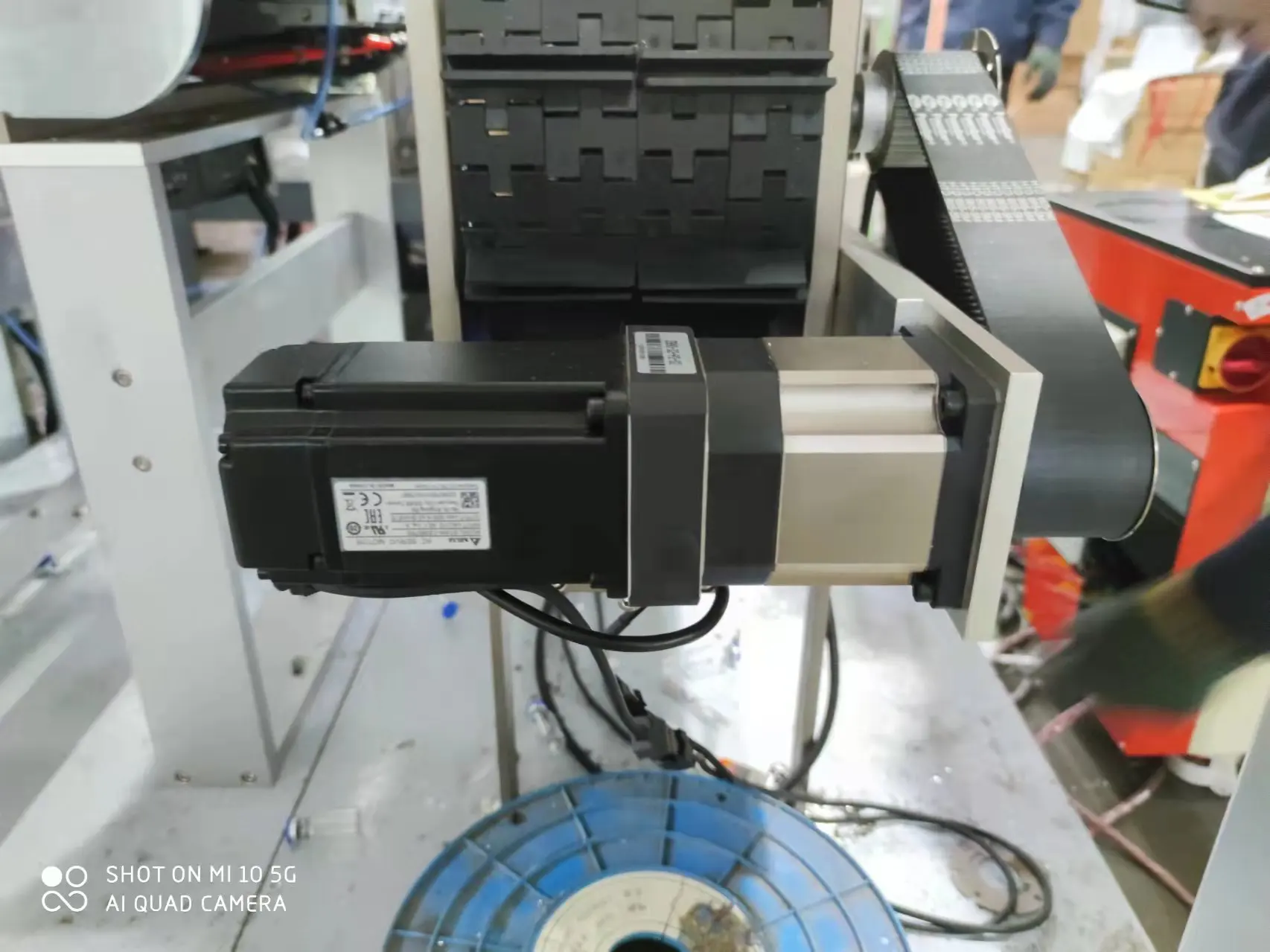

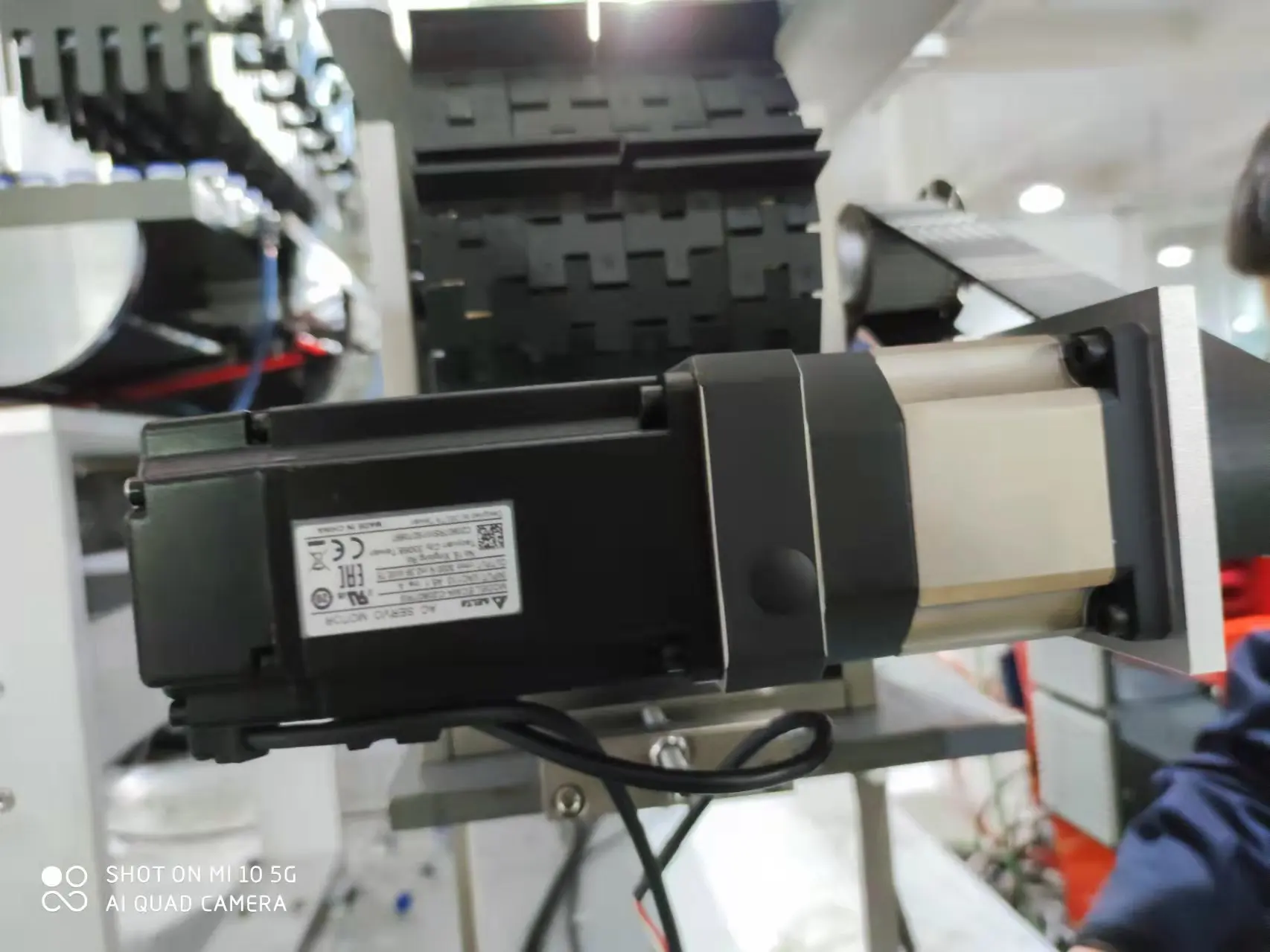

(3)Most of our machines are assembled with Servo system, more accurate and high speed.
Exhibition
Our Partners

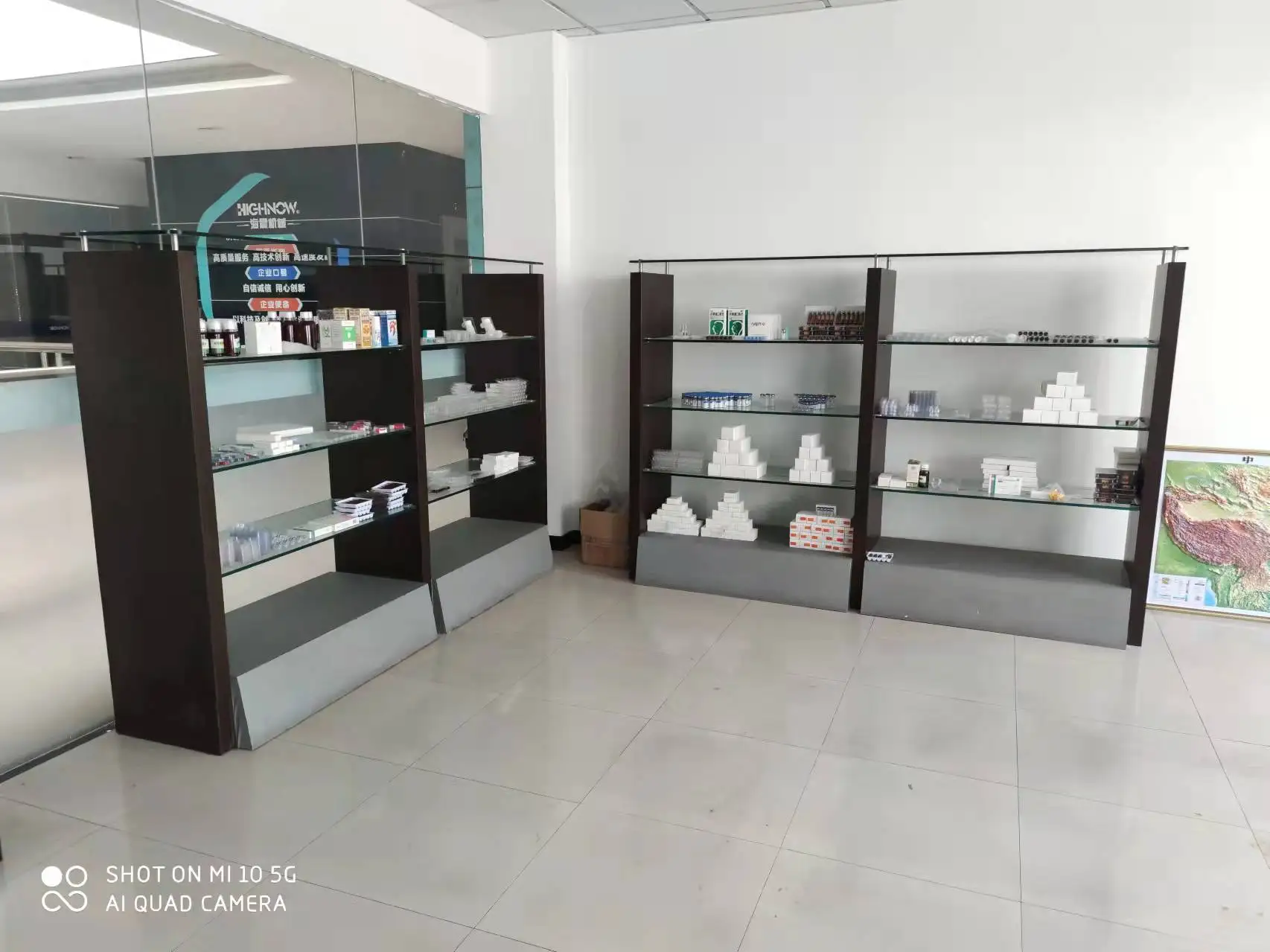

Sample Room

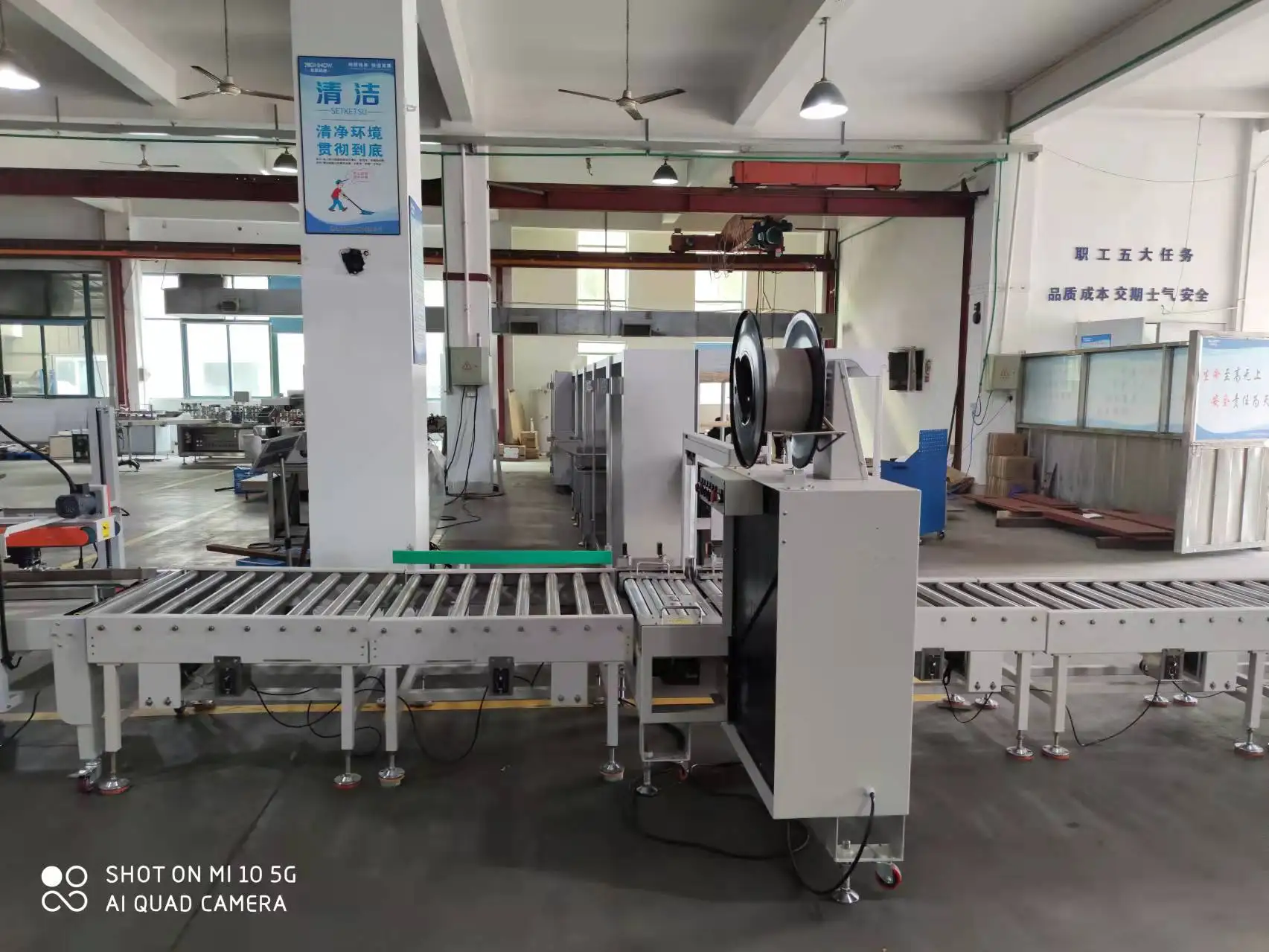

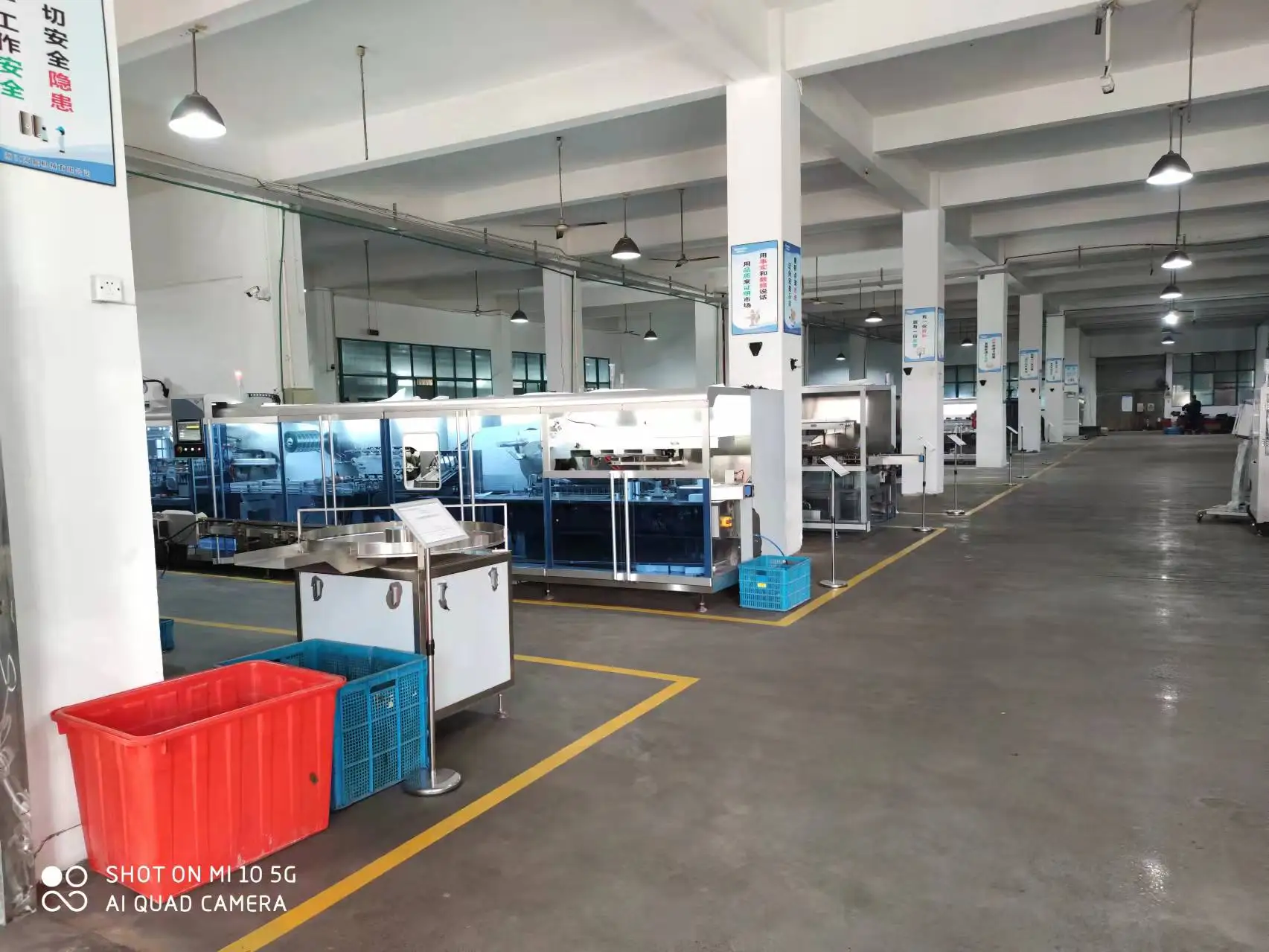

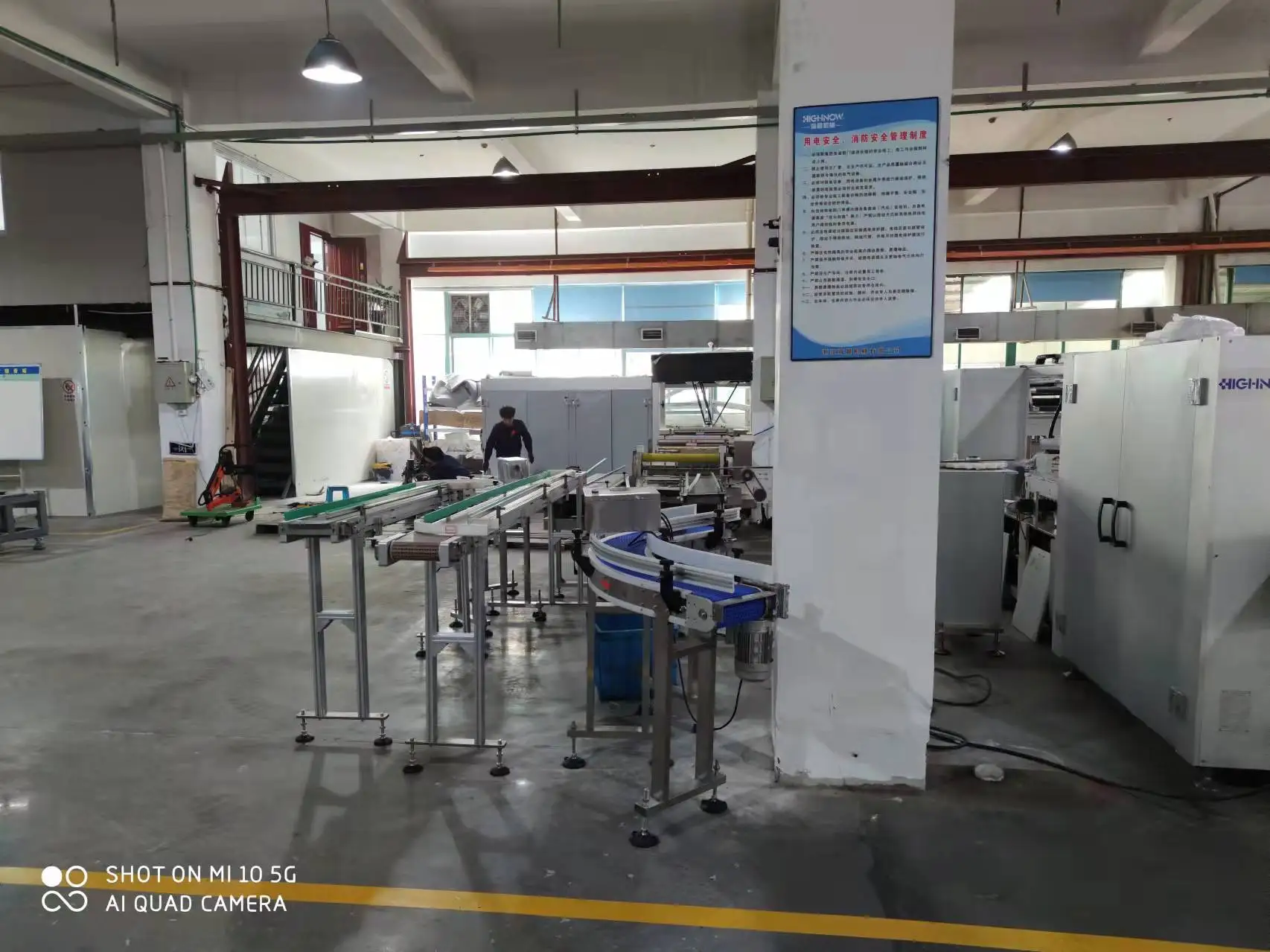

Production Process

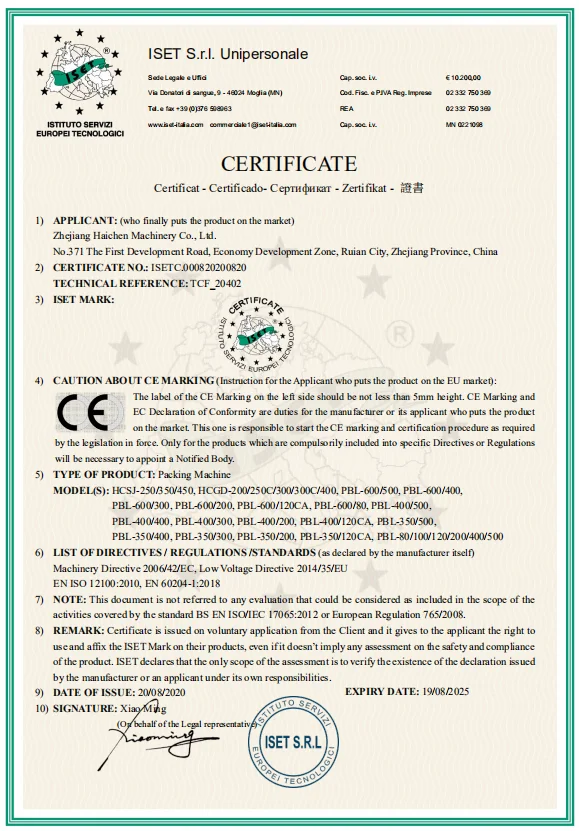

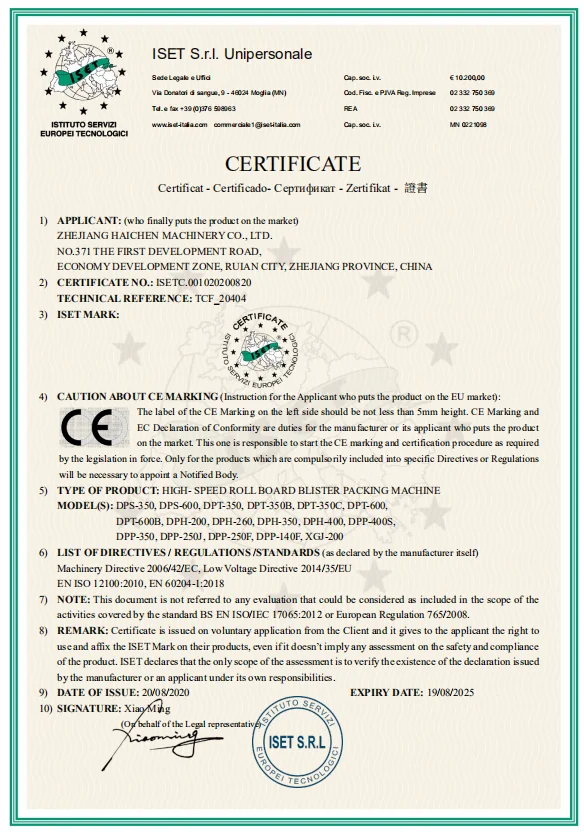

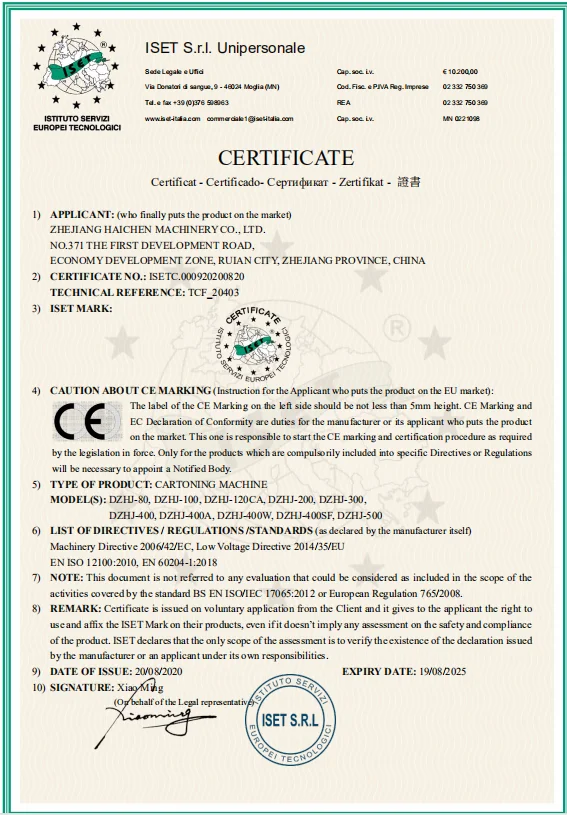

Certifications

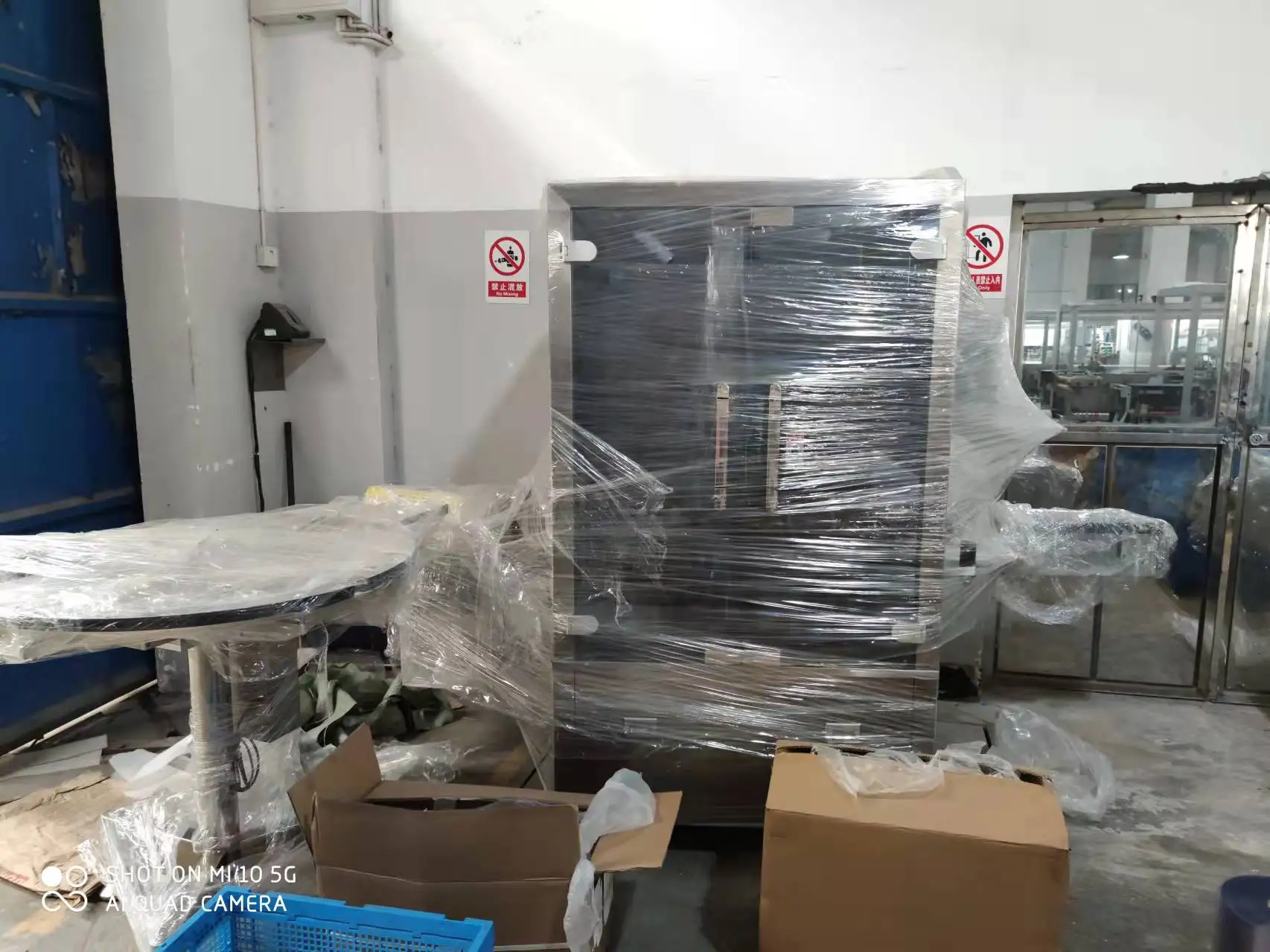

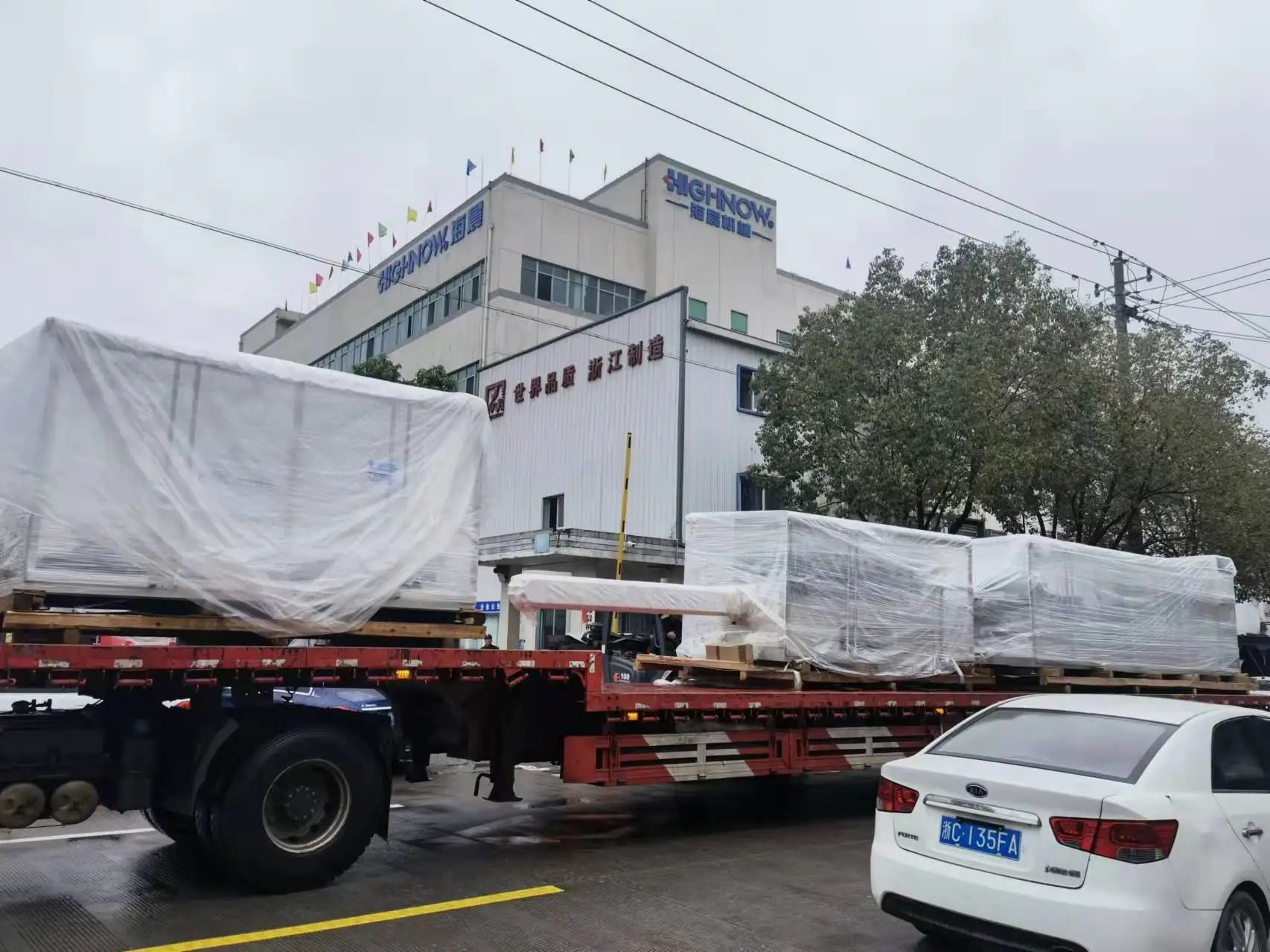

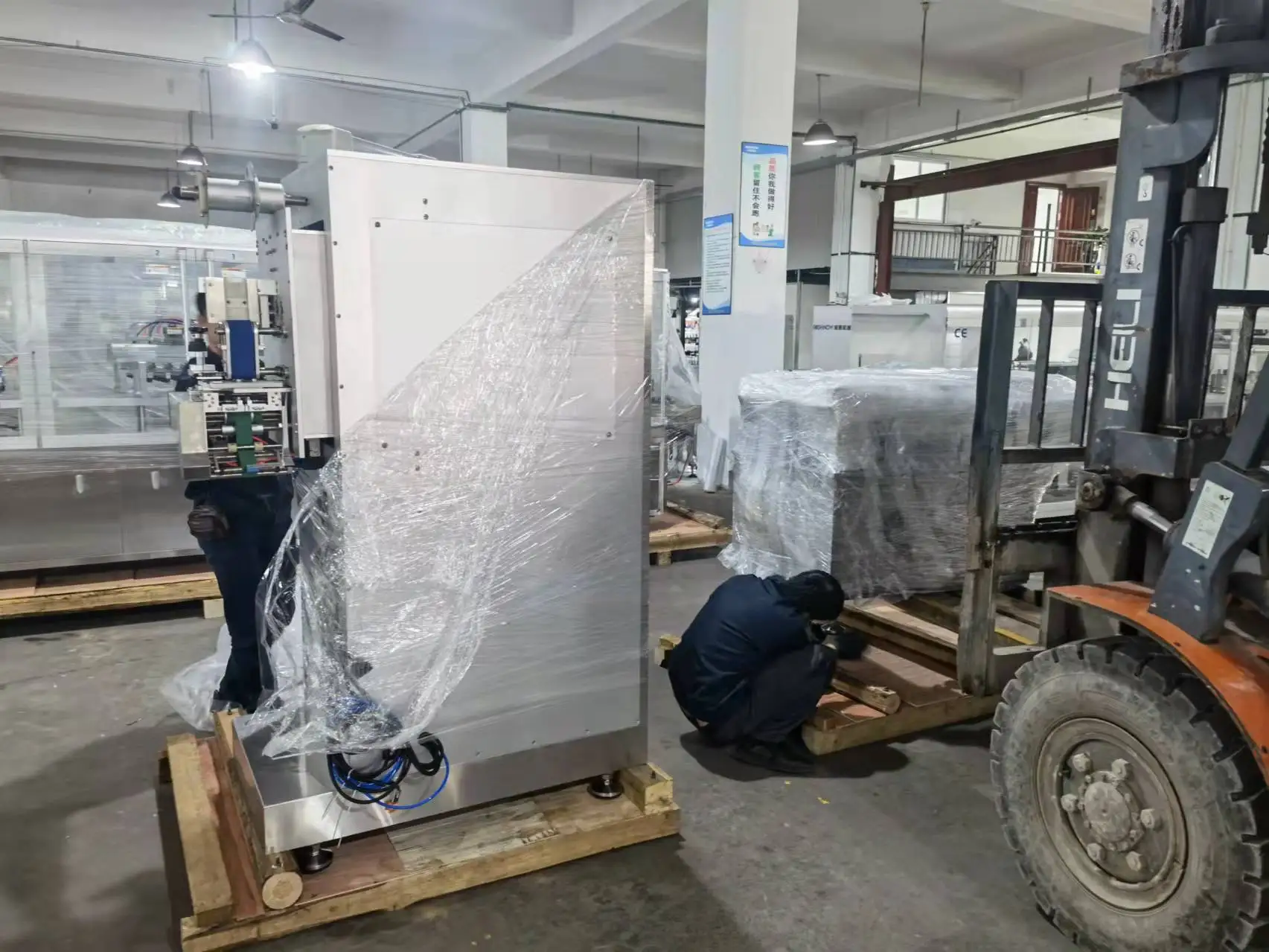

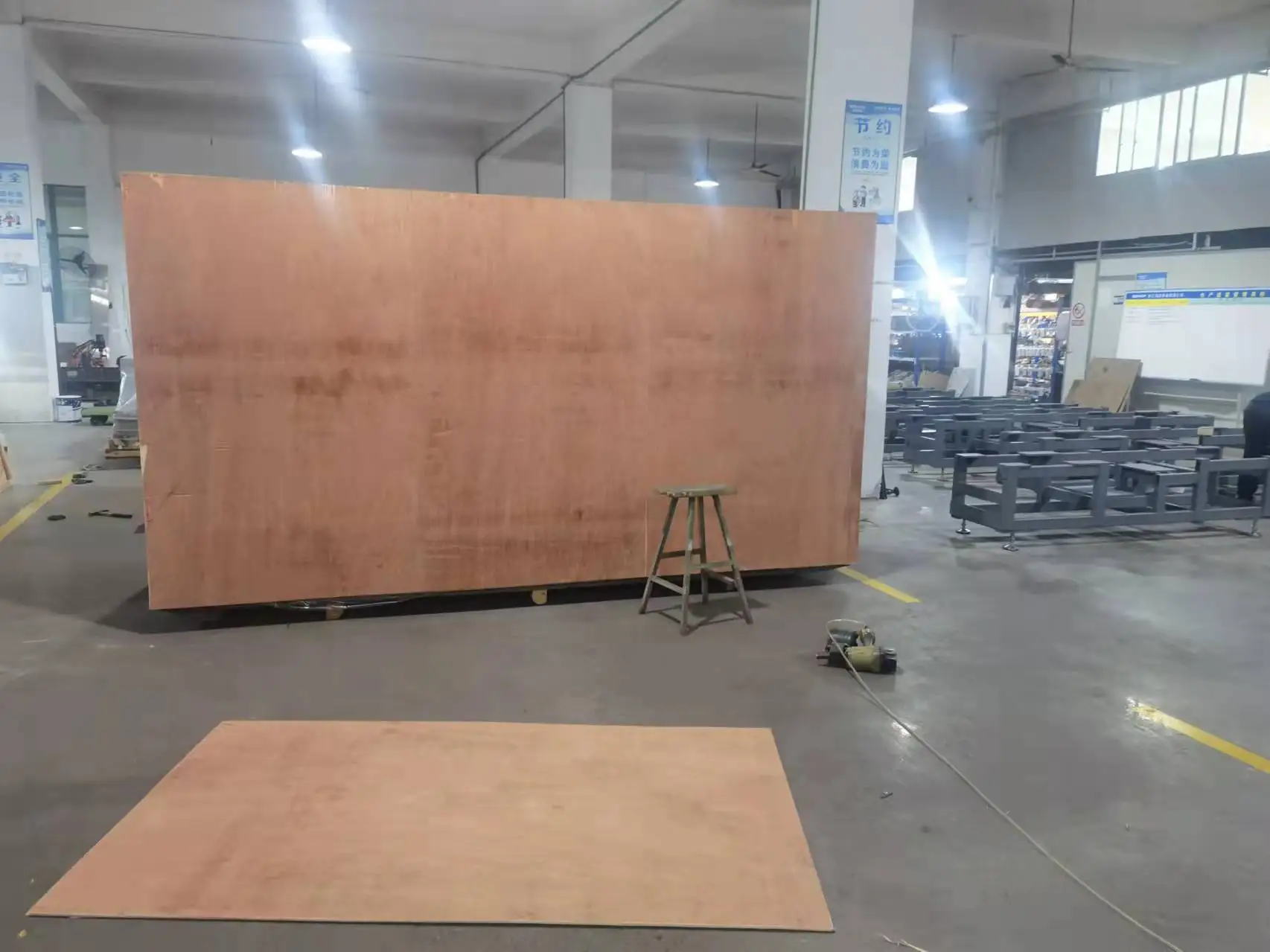

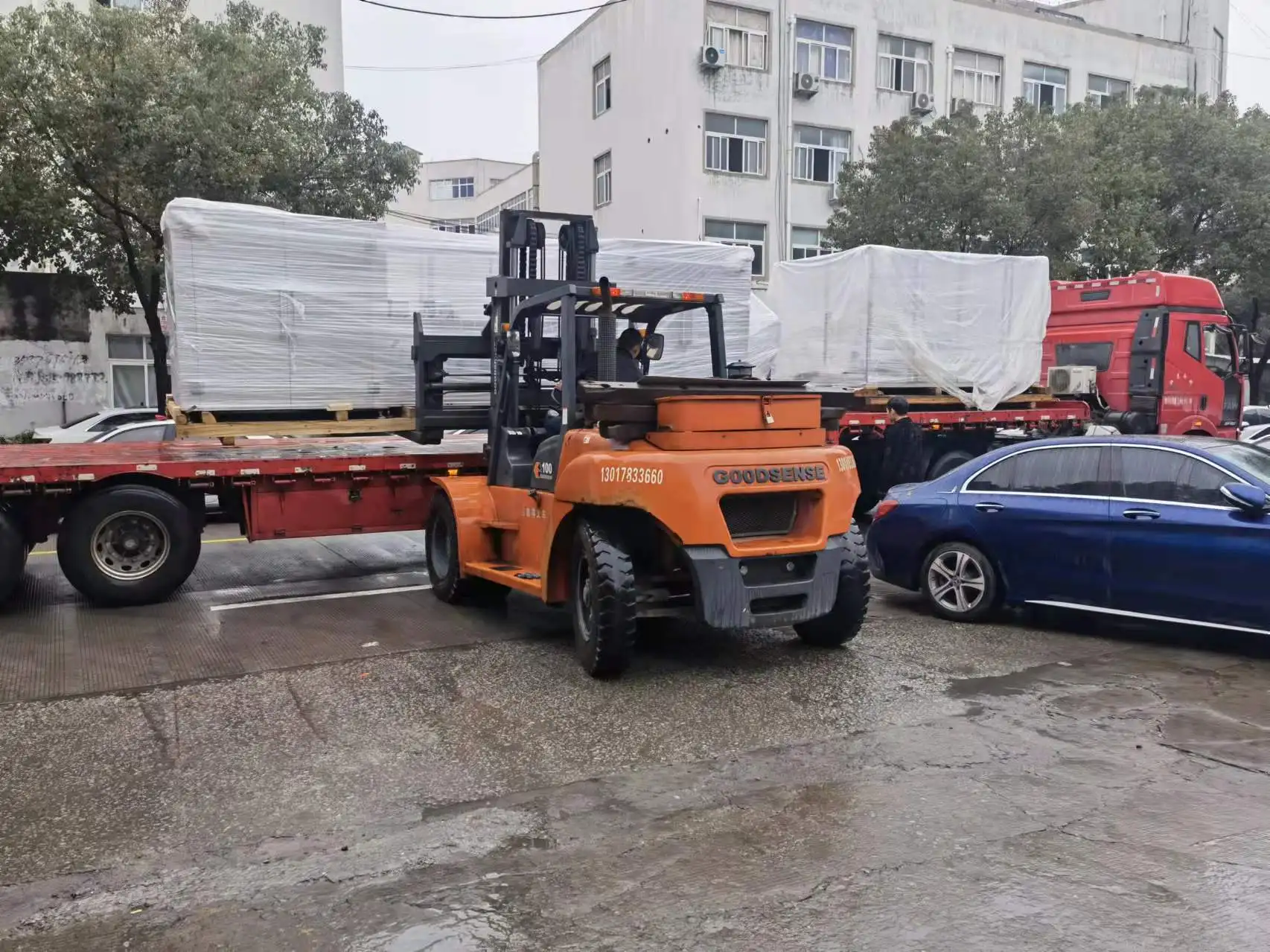

Packaging & Shipping
SALES AND SERVICE NETWORK
FAQ
Q: Are you factory or trading company?
We are the manufacturer/factory for Automatic pharmaceutical packaging production line, blister making machine, cartoning packing machine, capsule filling machine etc.
Q: How does your factory do quality control?
We have profession engineers' team to prove and ensure machine quality.
Q: Machine warranty?
One year since machines arrived your port.
Q: What's your delivery time?
Normally, it need 30 to 60 working days since get the deposit.
Q: How do you keep the after-sales service?
We do business based on faith, we insist on " quality is the first and most important" . We will carefully check the material, produce, test and adjust machines again and again. If have any doubts, please contact us online or by calling, we will reply ASAP.
Q: Where's your company located? how can we visit?
Our company located in Ruian Economic Development Zone. You can by air to Wenzhou airport or by bullet train to Ruian Station. We welcome all friends from the world for future cooperation.
We are the manufacturer/factory for Automatic pharmaceutical packaging production line, blister making machine, cartoning packing machine, capsule filling machine etc.
Q: How does your factory do quality control?
We have profession engineers' team to prove and ensure machine quality.
Q: Machine warranty?
One year since machines arrived your port.
Q: What's your delivery time?
Normally, it need 30 to 60 working days since get the deposit.
Q: How do you keep the after-sales service?
We do business based on faith, we insist on " quality is the first and most important" . We will carefully check the material, produce, test and adjust machines again and again. If have any doubts, please contact us online or by calling, we will reply ASAP.
Q: Where's your company located? how can we visit?
Our company located in Ruian Economic Development Zone. You can by air to Wenzhou airport or by bullet train to Ruian Station. We welcome all friends from the world for future cooperation.
