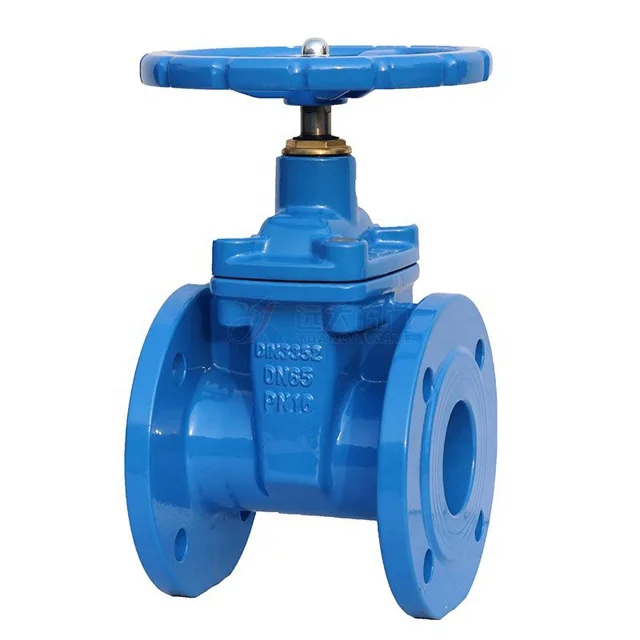

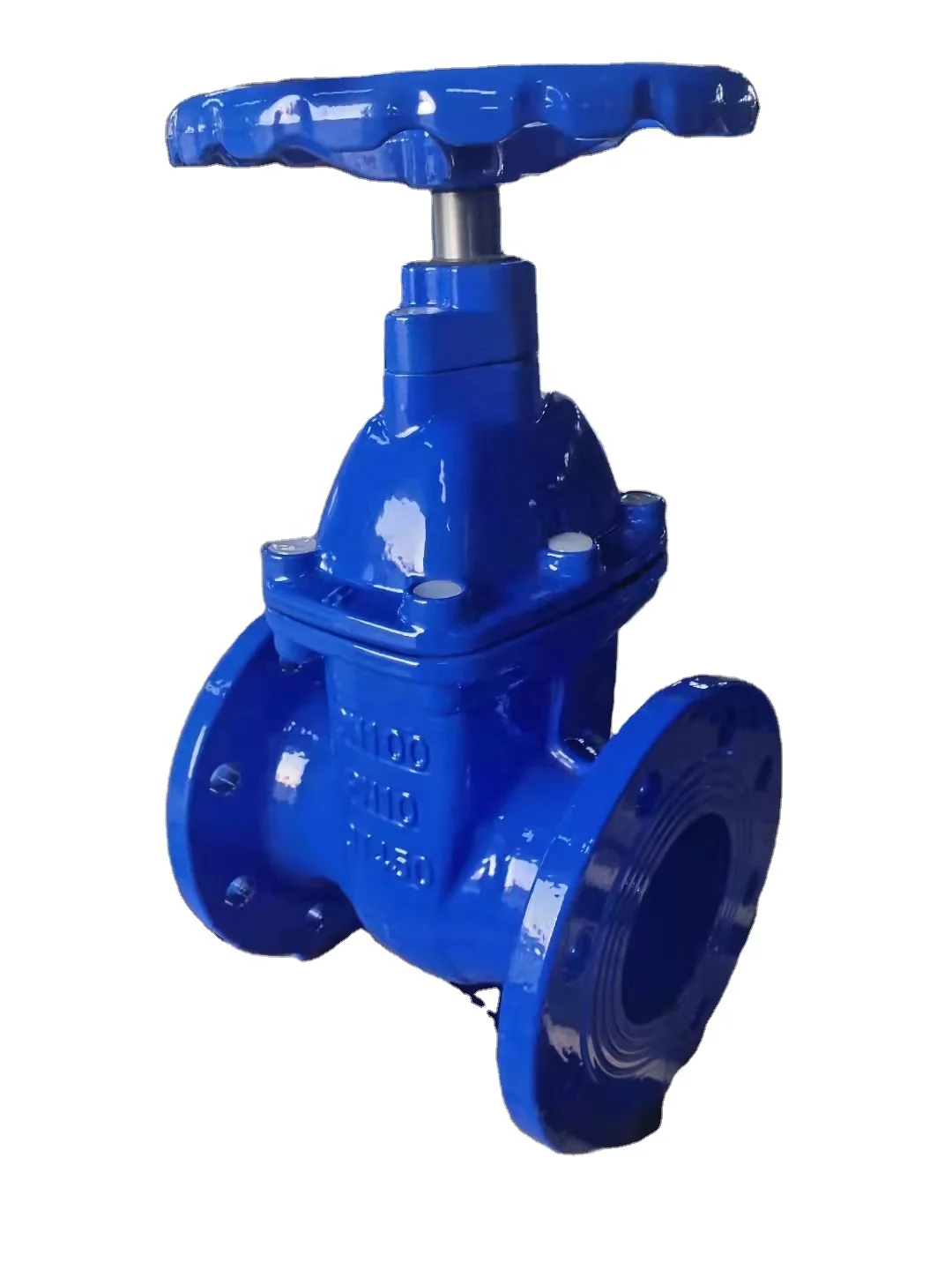

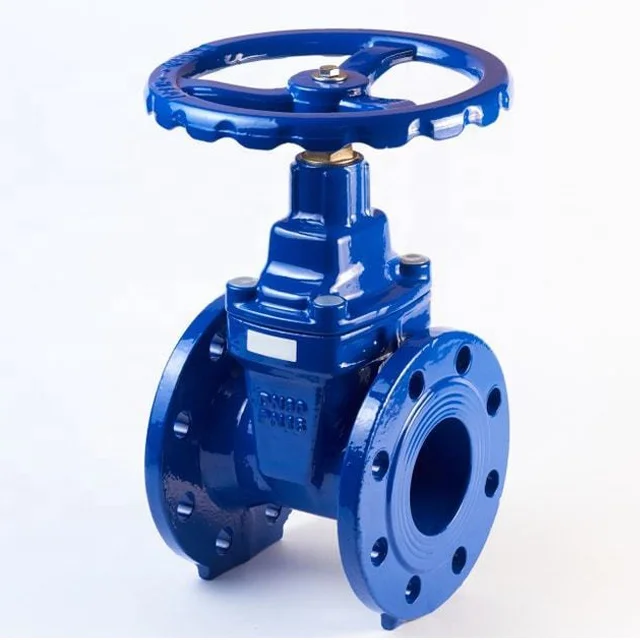

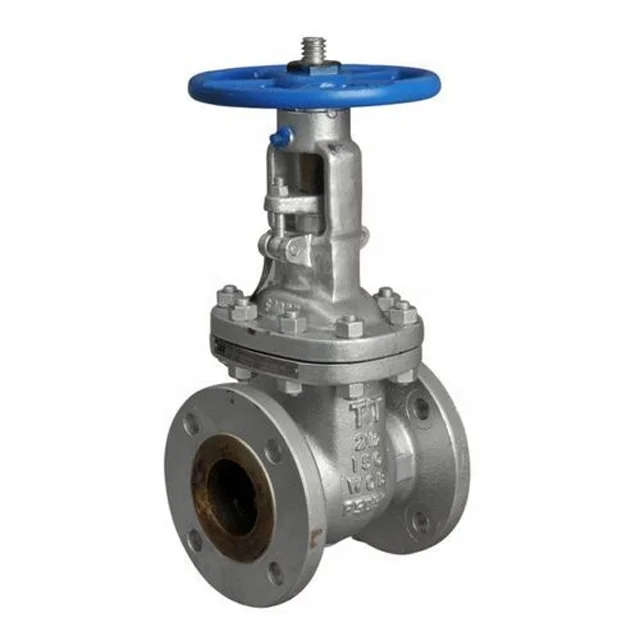

Flange Type Di Non Rising Stem Resilient Stem Soft Soft Seat Ductile Iron Gate Valves
- Category: >>>
- Supplier: Henan Changhong Mechanical & Electrical Equipment Co. Ltd.
Share on (1600439165214):
Product Overview
Description
Why Choose Us
Product Description
FEATURES
Non-rising Stem with Resilient seated gate valve is designed for drinking water supply, the gate made by EPDM coated and the epoxy
in and out of body will not pollute the water, and the rubber can meet the require of WRAS.
Design:AWWA C509\\DIN3352\\BS5163
Face to Face:ASME B16.10\\ DIN3202 F4\\ F5\\BS5163\\ISO5752
Flange End:ASME B16.1 CLASS 125\\ASME B16.5 CLASS 150\\ASME B16.47
BS EN 1092 PN6/PN10/PN16\\JIS B 2220 5K/10K/16K\\BS 10 Table D/Table E
Inspection:API598\\EN12266-1\\ISO5208
Size Range:DN50-DN800/2”-32”
Temperature:-40°C to +135°C (Depending on pressure, medium and material)
Medium:freshwater\\sewage\\seawater\\air\\food…
BODY:CI, DI, GG25, GGG40, FC, FCD
GATE:GGG40 with BUNA-N, NBR, EPDM, HYPALON, NEOPRENE, VITON, FKM
STEM:F410, F420, F430, F431, F304, F316, MONEL 400, MONEL K500
Non-rising Stem with Resilient seated gate valve is designed for drinking water supply, the gate made by EPDM coated and the epoxy
in and out of body will not pollute the water, and the rubber can meet the require of WRAS.
Design:AWWA C509\\DIN3352\\BS5163
Face to Face:ASME B16.10\\ DIN3202 F4\\ F5\\BS5163\\ISO5752
Flange End:ASME B16.1 CLASS 125\\ASME B16.5 CLASS 150\\ASME B16.47
BS EN 1092 PN6/PN10/PN16\\JIS B 2220 5K/10K/16K\\BS 10 Table D/Table E
Inspection:API598\\EN12266-1\\ISO5208
Size Range:DN50-DN800/2”-32”
Temperature:-40°C to +135°C (Depending on pressure, medium and material)
Medium:freshwater\\sewage\\seawater\\air\\food…
BODY:CI, DI, GG25, GGG40, FC, FCD
GATE:GGG40 with BUNA-N, NBR, EPDM, HYPALON, NEOPRENE, VITON, FKM
STEM:F410, F420, F430, F431, F304, F316, MONEL 400, MONEL K500
PART NAME MATERIAL
Body Cast Iron
Seat EPDM, NBR,PTFE
Disc Cast iron Stainless steel
Handle Stamping aluminum alloy
DN | NPS | L | D1 | D2 | L4 |
50 | 2'' | 43 | 86 | 92.3 | 240 |
65 | 2 1/2'' | 46 | 101 | 107 | 240 |
80 | 3'' | 46 | 116 | 122 | 240 |
100 | 4'' | 52 | 148 | 153 | 270 |
125 | 5'' | 56 | 174 | 179 | 320 |
150 | 6'' | 56 | 204 | 208.4 | 320 |
200 | 8'' | 60 | 252 | 262.3 | 380 |
Seal
The center line gate valve has convenient operation and reliable sealing performance
Not easy to rust,Not easy to block The screw made of aluminum bronze material,so the switch is more smooth,not easy to rust,difficult blockage.
Bidrectional sealing design
The valve adopts bidirectional sealing design,and the installation direction and medium flow direction are not limited
Recommend Products

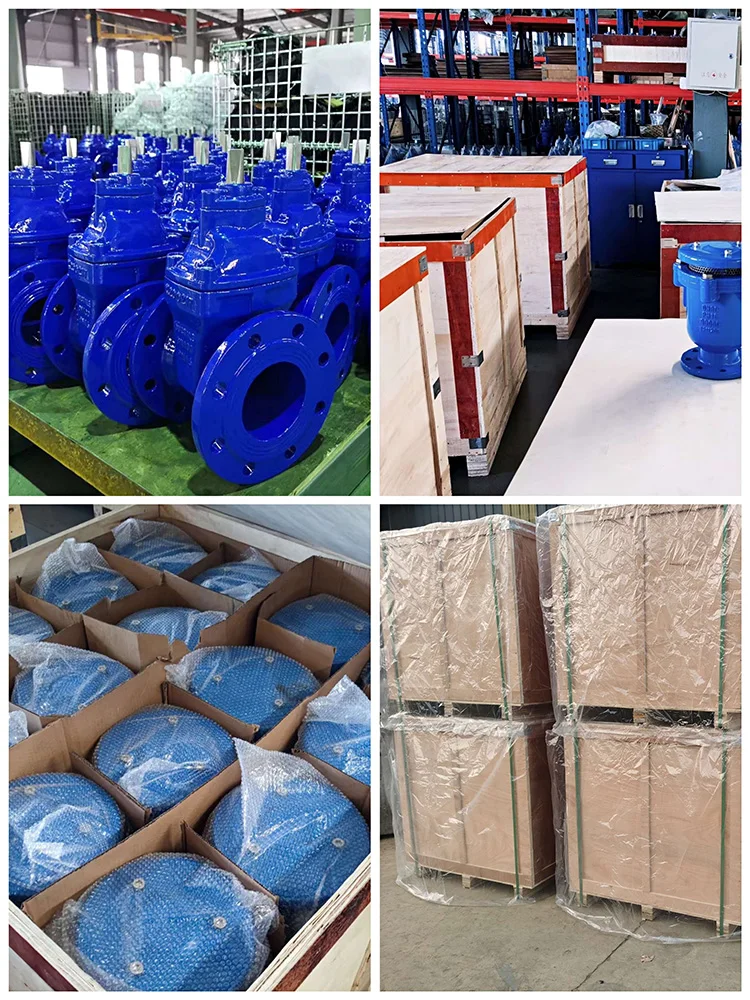

Packing & Delivery
Packing Details : Standard export packing, plastic bag, woven bag, wooden case, or as required.
Delivery Details : 3-30 days after receipt the payment.
Delivery Details : 3-30 days after receipt the payment.

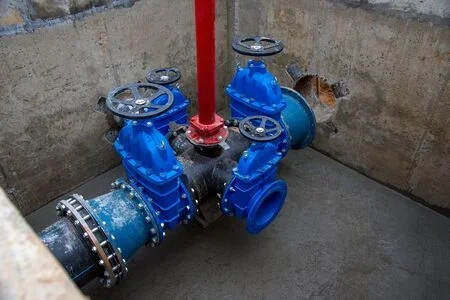

Installation Site

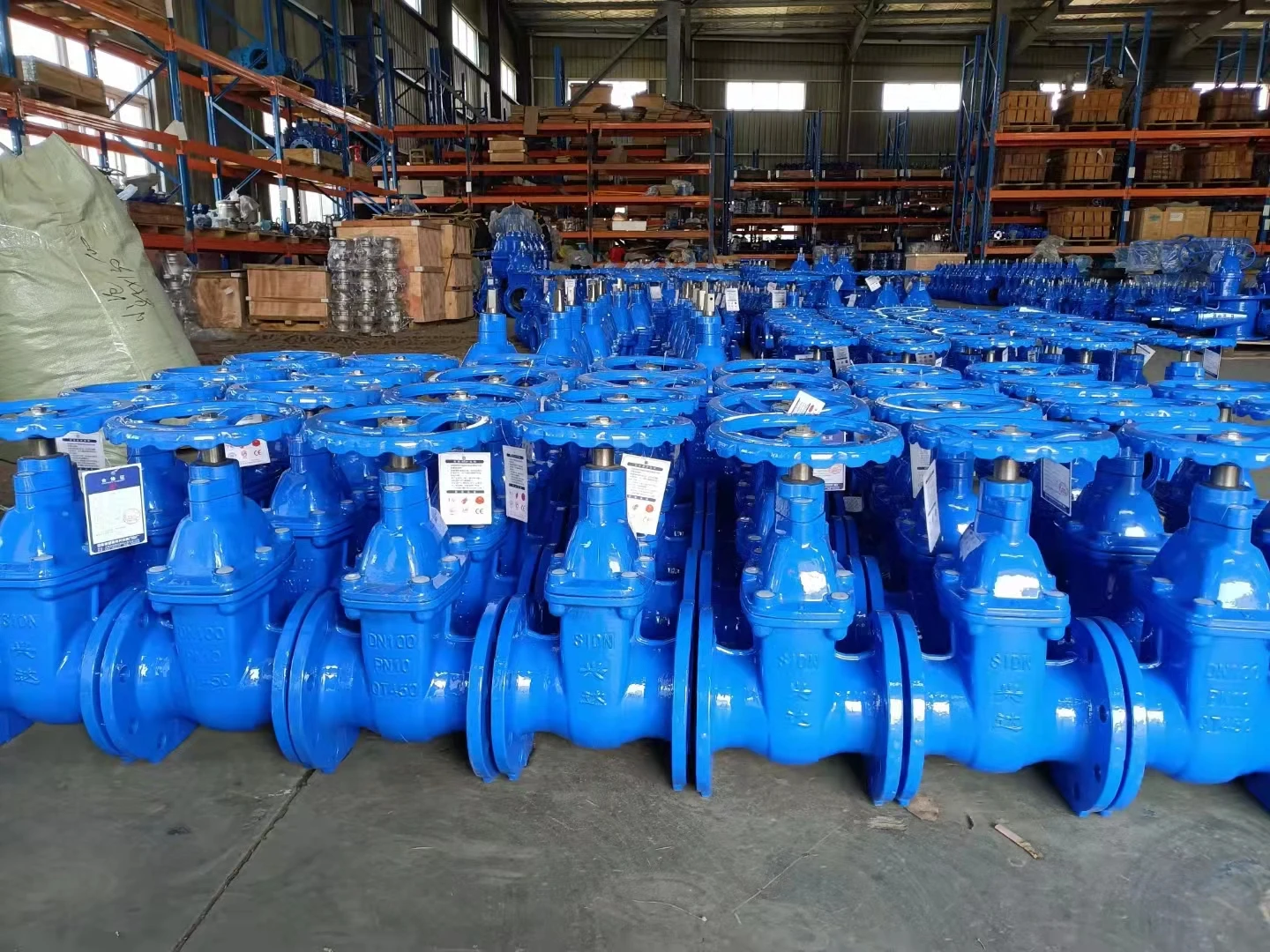

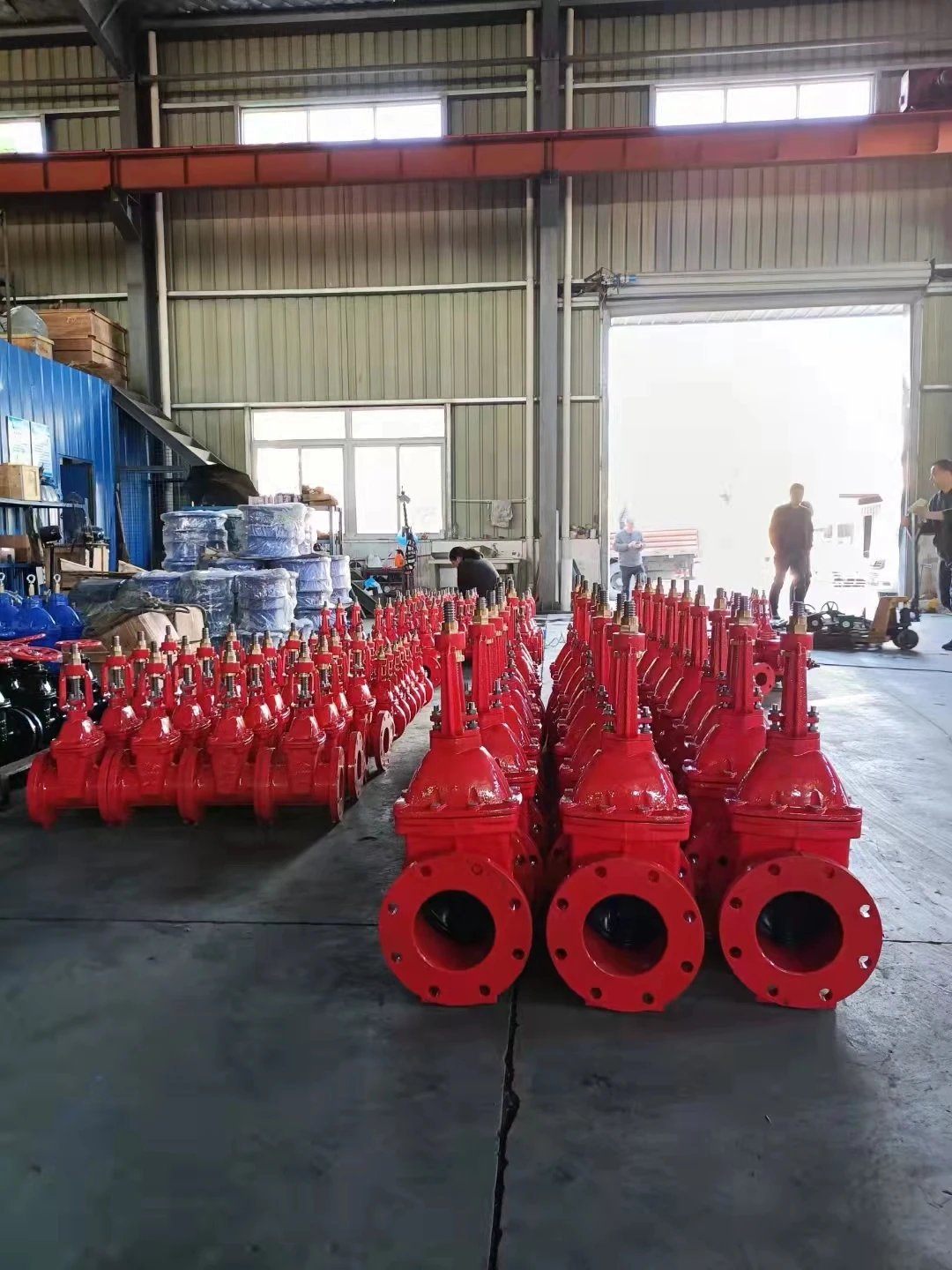

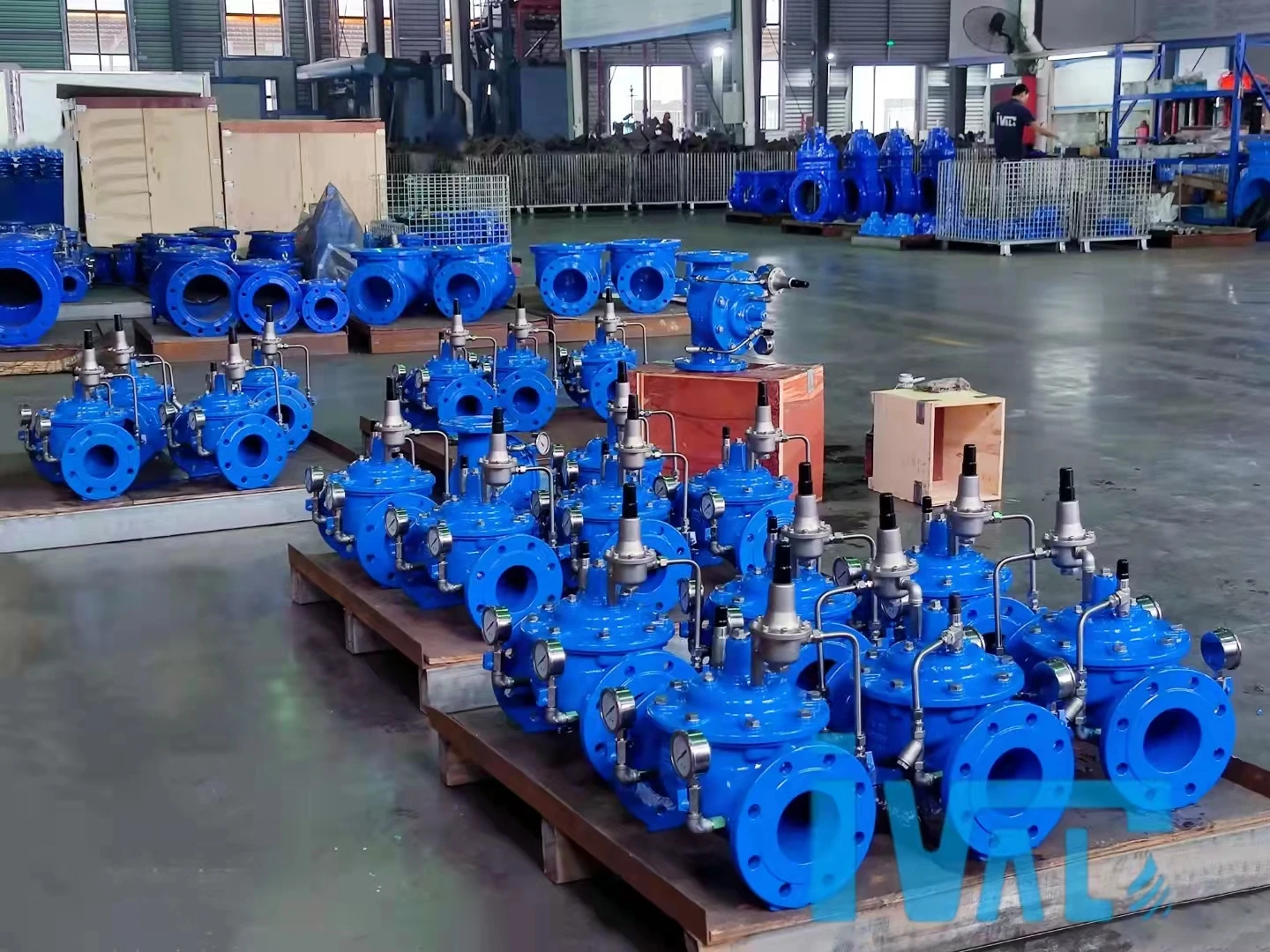

Company Profile
The brand is "CHANGHONGSHENG",Its products sell well in domestic and overseas with licensed with independent export
entitlement.Now its products are mainly for oversea markets,exported far to South Korea,Russia,countries and regions in Middle East,Southeast Asia,South America and Europe.
entitlement.Now its products are mainly for oversea markets,exported far to South Korea,Russia,countries and regions in Middle East,Southeast Asia,South America and Europe.
You can get from cooperate with CHANGHONG:1.Unique valves with customized service.2.Timily production and delivery,time is money.3.Market protection service,long term business strategy.
FAQ
Q: When will make delivery ?
A: We have stock for standard products.
As usual, after payment, within 7 working days.
Q: After-sales Service
A: 1 year warranty for all kinds of products;
As an experienced manufacturer, you can rest assured of the quality and after-sales service.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample. But it is not free.
A: We have stock for standard products.
As usual, after payment, within 7 working days.
Q: After-sales Service
A: 1 year warranty for all kinds of products;
As an experienced manufacturer, you can rest assured of the quality and after-sales service.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample. But it is not free.
Q. How to deal with after sales ?
A: warranty time :12 months from the shipment ; and we will be responsible for all the quality problems. Longer warranty period Would be provided with detailed request and discussion.
(1) we have received your deposit, and (2) we have your final approval for production drawings.If our lead times do not work with your deadline, please send your requirements with your sale. In all cases we will try to accommodate our production plan to your needs.
Q. Why choose us?
A:1. Genuine products with excellent quality and competitive price.
2.Cooperating with customers all over the world from more than 60 countries and regions, knowing the markets very well.
3.We have been specializing in flow control area for more than 15 years. Everyone can be rest assured working with us.
4.After-sale services will be highly-satisfying. Any problem and feed backs will be answered in short time.
Q: How can I trust your company?
A: We are focusing on the long term relationship with customers, we have worked with thousands of customers since company built 15 years ago, Including Fortune 500 companies. Customers always make highly complementary remarks.
A: warranty time :12 months from the shipment ; and we will be responsible for all the quality problems. Longer warranty period Would be provided with detailed request and discussion.
(1) we have received your deposit, and (2) we have your final approval for production drawings.If our lead times do not work with your deadline, please send your requirements with your sale. In all cases we will try to accommodate our production plan to your needs.
Q. Why choose us?
A:1. Genuine products with excellent quality and competitive price.
2.Cooperating with customers all over the world from more than 60 countries and regions, knowing the markets very well.
3.We have been specializing in flow control area for more than 15 years. Everyone can be rest assured working with us.
4.After-sale services will be highly-satisfying. Any problem and feed backs will be answered in short time.
Q: How can I trust your company?
A: We are focusing on the long term relationship with customers, we have worked with thousands of customers since company built 15 years ago, Including Fortune 500 companies. Customers always make highly complementary remarks.
