Wholesale price High Quality 1.6m 64 inch Cutting Plotter with camera contour cutting for sticker

Wholesale price High Quality 1.6m 64 inch Cutting Plotter with camera contour cutting for sticker

Category: >>>
Supplier: Zhengzhou Entu Industrial Co. Ltd.

Price:$600.00 - $870.00

Quantity:

Product Overview

Description

Product Description

1 Teneth cutting plotter has quality alloy structure and fashionable appearance shown as below;

2 Work independently without your computer: Support large capacity storage of the SD card for cutting documet;

3 adopt 3.0inch large touch screen display in worldwide, can operate by touching the panel directly;

4 Support CDR, AI, CAD ,Flexi professional design software, etc to do output directly;

5 Use New ARM control system and support MAC operation system.

Technical Specifications

Model	T-24CCD	T-48CCD	T-59CCD
Media way	with floor stand
Mainboard	32-bit ARM7 CPU,128MB, High-speed CACHA memory
Control panel	4.3 inch full touch screen
Contour cutting way	full automatic, CCD camera automatic contour cutting, with signmaster software
Driver	Stepper motor
Max paper feed width	790mm	1360mm	1660mm
Max cutting width	680mm	1250mm	1550mm
Max cutting speed	800mm/s
Cutting force	10-1000g(digital adjustment)
Mechanical precision	0.025mm
Type of plotter pen	All types diameter 11.4mm plotter pen
Interface	USB/U disk/Serial port/WIFI
Power supply	AC220V/110V,50HZ
Knife	Teneth imported blade (45 degree knife, 30 degree sharp knife, 60 degree dull knife)
Package size	1060340400mm	1590330400mm	1900340400mm
Gross weight	22kg	35kg	40kg

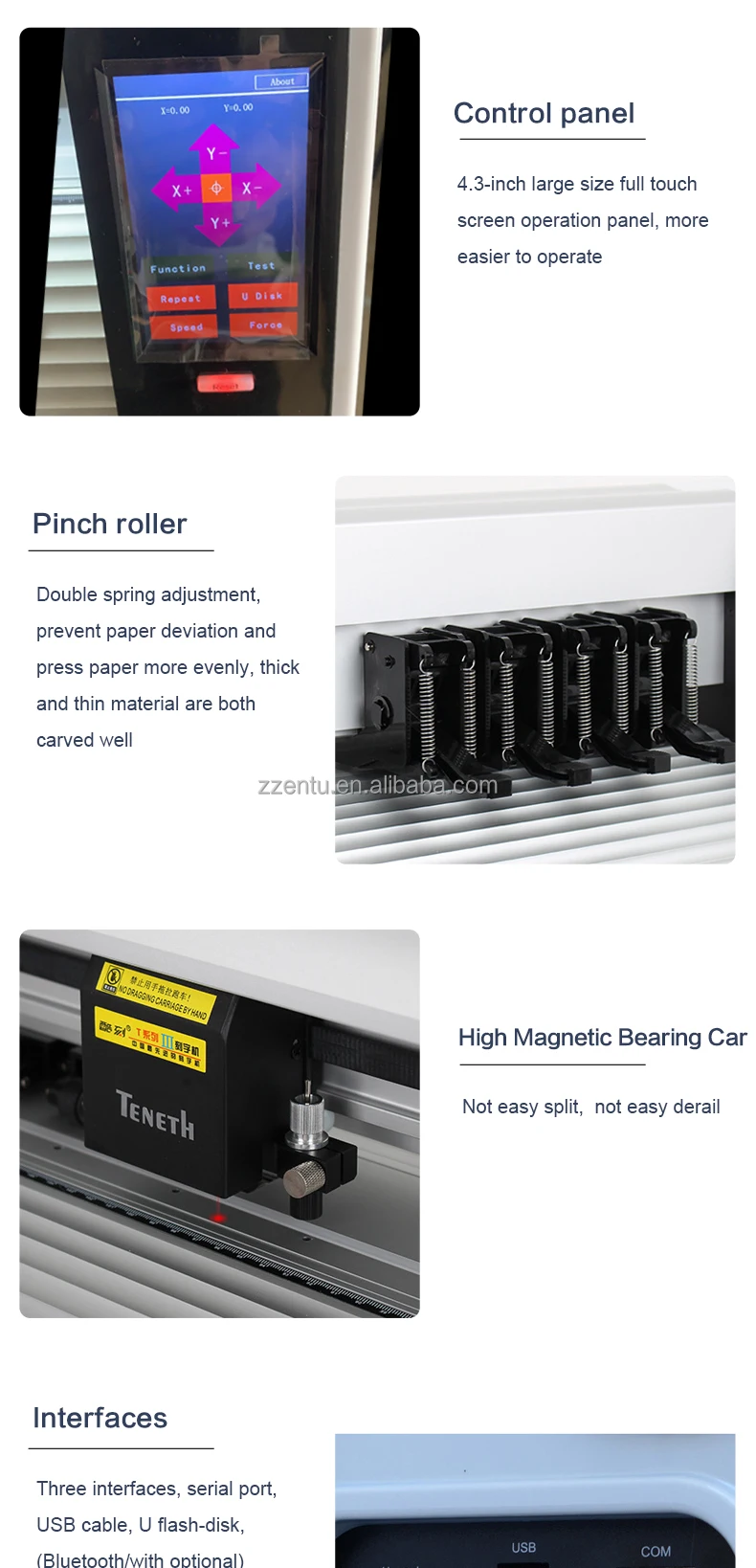

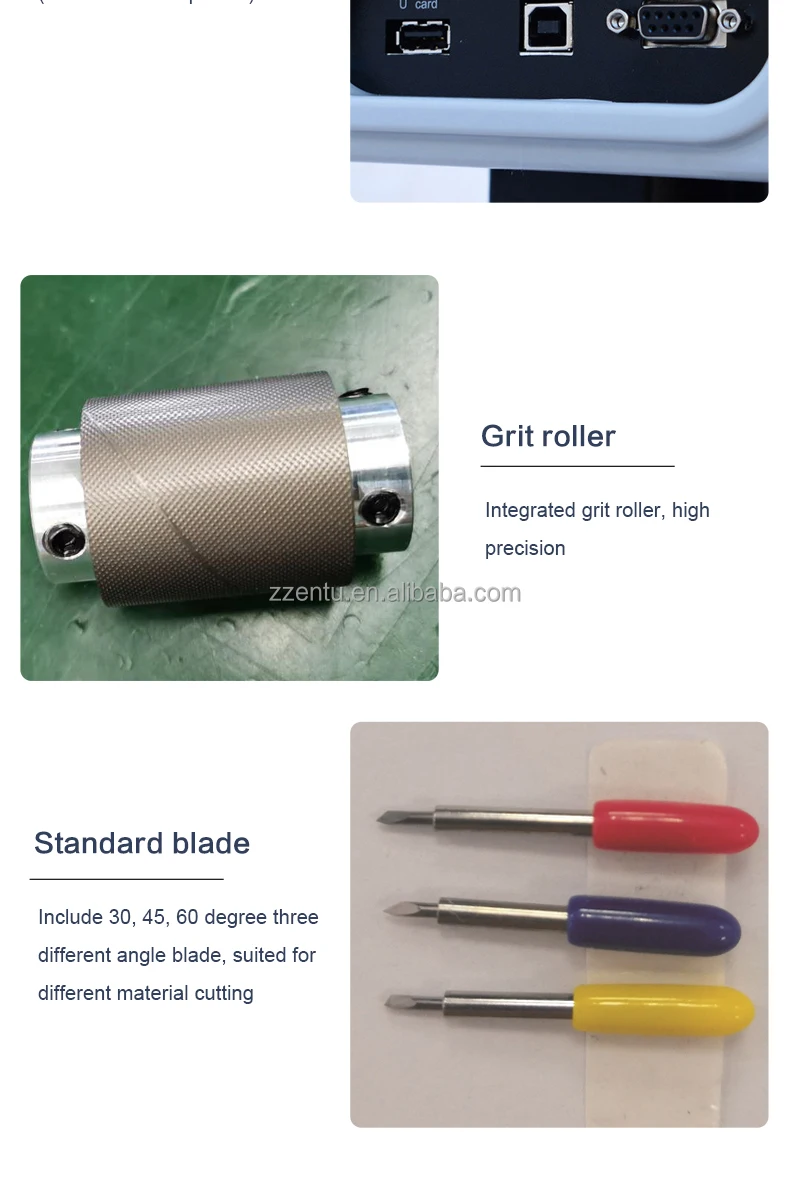

Detailed Images
