Product Overview
Description
Products Description

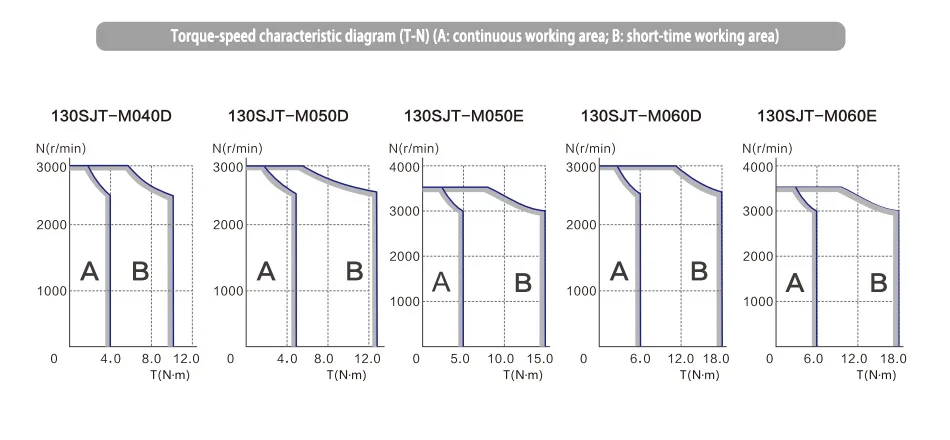

130SJT, 130SJTE, 130SJTB series motor technical parameters 1 | ||||||||||||
Model | 130SJT-M040D | 130SJT-M050D | 130SJT-M050E | 130SJT-M060D | 130SJT-M060E | |||||||
Rated power(kw) | 1.0 | 1.3 | 1.57 | 1.5 | 1.88 | |||||||
Number of pole pairs | 4 | |||||||||||
Drive unit input voltage(V) | AC220Three-phase | |||||||||||
Rated current | (A) | 4 | 5 | 7.2 | 6 | 7.8 | ||||||
Zero speed torque | (N·m) | 4 | 5 | 5 | 6 | 6 | ||||||
Rated torque | (N·m) | 4 | 5 | 5 | 6 | 6 | ||||||
Max torque | (N·m) | 10 | 12.5 | 15 | 18 | 18 | ||||||
Rated speed | (r/min) | 2500 | 2500 | 3000 | 2500 | 3000 | ||||||
Max speed | (r/min) | 3000 | 3000 | 3500 | 3000 | 3500 | ||||||
Moment of inertia | (kg·m²) | 0.93x10-3 | 0.93×10-3 | 0.93×10-3 | 1.11×10-3 | 1.11×10-3 | ||||||
Weight | (kg) | 6.5 | 6.5 | 6.6 | 7.2 | 7.3 | ||||||
Insulation class | B(GB/T755-2008/IEC60034-1:2004) | |||||||||||
Vibration class | A(GB/T10068一2008/IEC60034-14:2007) | |||||||||||
Protection class | IP65(GB/T4208-2017/IEC60529:2013,GB/T4942.1-2006/IEC60034-5:2000) | |||||||||||
Installation type | IMB 5(flange mount) (GB/T 997-2008/IEC60034-7:2001) | |||||||||||
work schedule | S1(continuous work)(GB/T755-2008/IEC60034-1:2004) | |||||||||||
Number of encoder lines(p/r) | Incremental 5000 (standard configuration) | |||||||||||
Brake | DC24V,12N·m,28W,weigh+2.9kg | |||||||||||

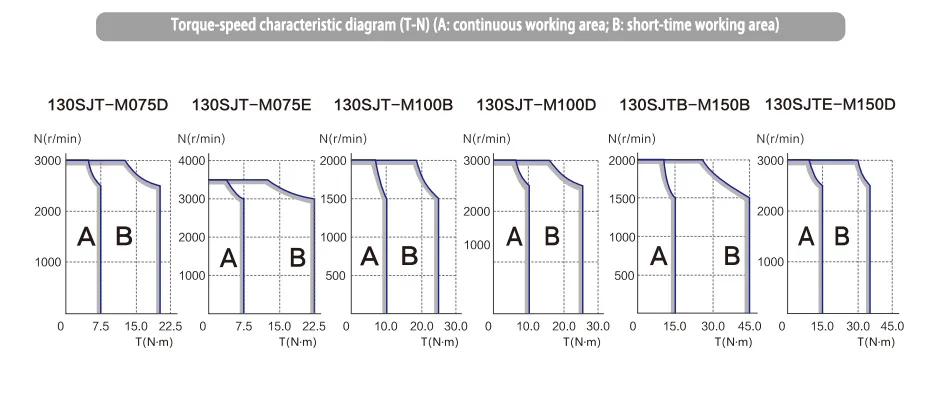

130SJT, 130SJTE, 130SJTB series motor technical parameters 2 | ||||||||||||||
Model | 130SJT-M075D | 130SJT-M075E | 130SJT-M100B | 130SJT-M100D | 130SJTB-M150B | 130SJTE-M150D | ||||||||
Rated power(kw) | 1.88 | 2.36 | 1.5 | 2.5 | 2.4 | 3.9 | ||||||||
Number of pole pairs | 4 | |||||||||||||
Drive unit input voltage(V) | AC220Three-phase | |||||||||||||
Rated current | (A) | 7.5 | 9.9 | 6 | 10 | 10 | 19.5 | |||||||
Zero speed torque | (N·m) | 7.5 | 7.5 | 10 | 10 | 15 | 15 | |||||||
Rated torque | (N·m) | 7.5 | 7.5 | 10 | 10 | 15 | 15 | |||||||
Max torque | (N·m) | 20 | 22.5 | 25 | 25 | 45 | 35 | |||||||
Rated speed | (r/min) | 2500 | 3000 | 1500 | 2500 | 1500 | 2500 | |||||||
Max speed | (r/min) | 3000 | 3500 | 2000 | 3000 | 2000 | 3000 | |||||||
Moment of inertia | (kg·m²) | 1.37×10-3 | 1.37×10-3 | 1.82×10-3 | 1.82×10-3 | 2.7×10-3 | 2.89×10-3 | |||||||
Weight | (kg) | 8.1 | 8.2 | 9.6 | 9.7 | 12.8 | 13.7 | |||||||
Insulation class | B(GB/T755-2008/IEC60034-1:2004) | |||||||||||||
Vibration class | A(GB/T10068一2008/IEC60034-14:2007) | |||||||||||||
Protection class | IP65(GB/T4208-2017/IEC60529:2013,GB/T4942.1-2006/IEC60034-5:2000) | |||||||||||||
Installation type | IMB 5(flange mount) (GB/T 997-2008/IEC60034-7:2001) | |||||||||||||
work schedule | S1(continuous work)(GB/T755-2008/IEC60034-1:2004) | |||||||||||||
Number of encoder lines(p/r) | Incremental 5000 (standard configuration) | |||||||||||||
Brake | DC24V,15N-m,28W,weigh+2.9kg | |||||||||||||

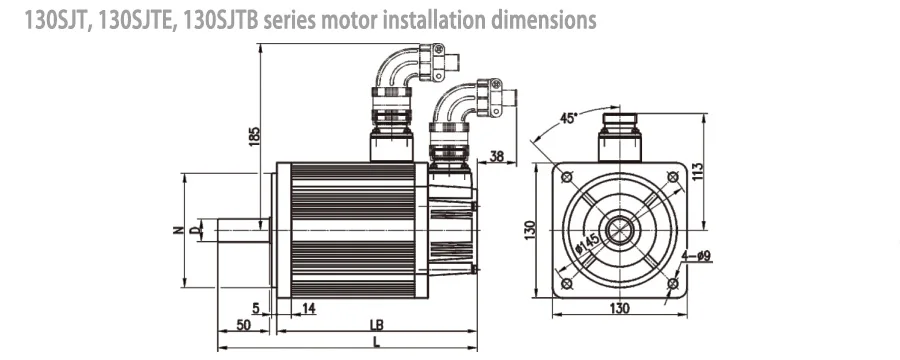

Model | D(mm) | N(mm) | LB(mm) | L(mm) |
130SJT-M040D | φ22 +0 -0.013 | φ110 +0 -0.035 | 168(227) | 225(284) |
130SJT-M050D | φ22 +0 -0.013 | φ110 +0 -0.035 | 168(227) | 225(284) |
130SJT-M050E | φ22 +0 -0.013 | φ110 +0 -0.035 | 168(227) | 225(284) |
130SJT-M060D | φ22 +0 -0.013 | φ110 +0 -0.035 | 176(235) | 233(292) |
130SJT-M060E | φ22 +0 -0.013 | φ110 +0 -0.035 | 176(235) | 233(292) |
130SJT-M075D | φ22 +0 -0.013 | φ110 +0 -0.035 | 188(247) | 245(304) |
130SJT-M075E | φ22 +0 -0.013 | φ110 +0 -0.035 | 188(247) | 245(304) |
130SJT-M100B | φ22 +0 -0.013 | φ110 +0 -0.035 | 208(267) | 265(324) |
130SJT-M100D | φ22 +0 -0.013 | φ110 +0 -0.035 | 208(267) | 265(324) |
130SJTB-M150B | φ22 +0 -0.013 | φ110 +0 -0.035 | 248(307) | 305(364) |
130SJTE-M150D | φ22 +0 -0.013 | φ110 +0 -0.035 | 264(323) | 321(380) |
SJT series AC servo motor
1. It adopts fully enclosed structure, beautiful appearance and compact structure.
2. Adopt optimized electromagnetic design, low electromagnetic noise, stable operation and high efficiency
3. Using high-performance rare earth permanent magnet material, it has good low-speed characteristics and strong overload capacity.
4. Adopt high-speed, high-precision photoelectric encoder, which can be used for high-precision speed and position control with high-performance drive unit.
5. Adopt high protection level such as IP65 to ensure the reliable use of the motor in the environment of -15℃~40℃ ambient temperature and dust and oil mist environment.
6. Adopt high-precision bearing and rotor high-precision dynamic balancing process to ensure that the motor runs stably and reliably within the maximum speed range of 7.7, with low vibration and low noise.
8. With high torque inertia ratio, fast response ability.
9. Some motors adopt F-class insulation structure, which has long service life and high cost performance.
2. Adopt optimized electromagnetic design, low electromagnetic noise, stable operation and high efficiency
3. Using high-performance rare earth permanent magnet material, it has good low-speed characteristics and strong overload capacity.
4. Adopt high-speed, high-precision photoelectric encoder, which can be used for high-precision speed and position control with high-performance drive unit.
5. Adopt high protection level such as IP65 to ensure the reliable use of the motor in the environment of -15℃~40℃ ambient temperature and dust and oil mist environment.
6. Adopt high-precision bearing and rotor high-precision dynamic balancing process to ensure that the motor runs stably and reliably within the maximum speed range of 7.7, with low vibration and low noise.
8. With high torque inertia ratio, fast response ability.
9. Some motors adopt F-class insulation structure, which has long service life and high cost performance.
