Vertical Ring Type Wet Pulsating High Intensity Magnetic Separator for Silica sand
Vertical Ring Type Wet Pulsating High Intensity Magnetic Separator for Silica sand
Vertical Ring Type Wet Pulsating High Intensity Magnetic Separator for Silica sand
Vertical Ring Type Wet Pulsating High Intensity Magnetic Separator for Silica sand
Vertical Ring Type Wet Pulsating High Intensity Magnetic Separator for Silica sand
Vertical Ring Type Wet Pulsating High Intensity Magnetic Separator for Silica sand
Vertical Ring Type Wet Pulsating High Intensity Magnetic Separator for Silica sand

Vertical Ring Type Wet Pulsating High Intensity Magnetic Separator for Silica sand

Share on (1600439304926):


Price:$30,000.00

Quantity:


Product Overview

Description



Product Description


Vertical Ring Type Wet Pulsating High Intensity Magnetic Separator for Silica sand


Application
The vertical ring high gradient magnetic separator can be applied in many fields. It's suitable to wet separate -1.2mm weak magnetic metallic minerals, like iron oxide ores (hematite, limonite etc.), manganese ore, ilmenite and black wolframite, and to purify and remove iron impurities from the non-metallic minerals, like quartz and feldspar.


Features:
1.High gradient,reliable performance,               eliminate the waste iron effectively.    2.Simple structure,easy to maintain      3.NdFeB magnets are used to provide high       magnetic force                                      4.Low energy consumption,long-term               trouble-free operation

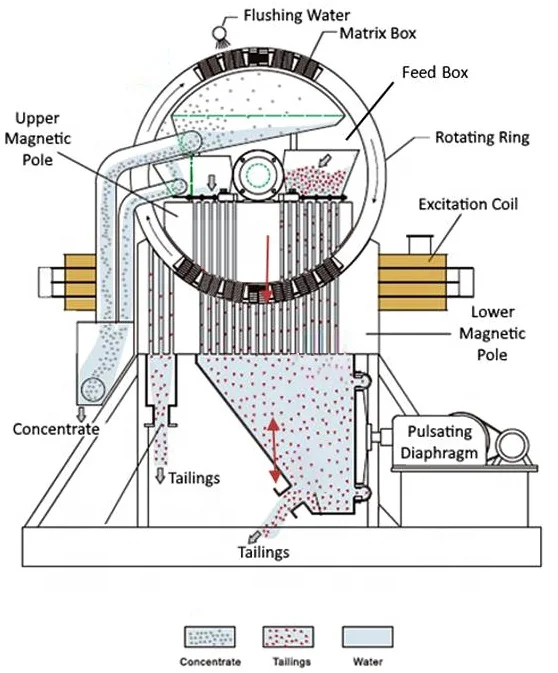

Detailed Images


1
Discharging Water
2
Matrix
3
Ring
4
Excitation Coils
5
Down Magnetic Pole
6
Pulsation Box
7
Rubber Membrane
8
Non-magnetic Minerals' Outlet
9
Magnetic Minerals' Outlet
10
Forced Oil Cooling System
11
Upper Magnetic Pole


Advantages：

1.Low temperature rise of the coils (<25℃), ensures less than 3% magnetic field decrement after longtime work in hot state.
2. No cooling water consumption.



Major Technical Parameters:




Company Introduction




Company Profile
Huate Magnet Group was founded in 1993, has been engaged in R & D, manufacturing, and providing technical services of magnetic separation equipment for more than 30 years, providing customers with packaged solutions. The company specializes in the design, manufacture and supply of superconducting magnetic separator, high gradient magnetic separator, drum magnetic separator, iron separator, mineral processing line, magnetic stirrer, non-ferrous metal separation equipment, non-metallic mineral processing equipment, ocean & lake ecological equipment and so on more than 9 categories, 80 series and more than 700 models. Our service scope involves coal, mine, electricity, building material, metallurgy port, environmental protection and so on more than 10 fields. With more than 15,000 customers, our equipment are exported to the USA, Germany, Japan, ltaly, Norway,South Africa, Brazil, India, Pakistan and many other countries.






FAQ


Q:Factory or Trading company?
A:Shandong Huate Magnet is a factory was established in1993.
Q:Factory Address?
A: Our factory is located in Huate Road, Linqu County, Shandong Province, China. Welcome to visit us!
Q: About Quotation?
A: Before quotation, we need confirm the Belt width, Magnetic field intensity, Material size and Quantity, all of these factors will affect the price.
Q:Quality control?
A: Our factory have passed ISO9001 and CE certifications.


If you have any question please promptly chat with me or leave me a message, I will contact you within one business day.
If you like to be contacted please leave your email address or cell phone number to me.
Looking forward to your inquiry.
