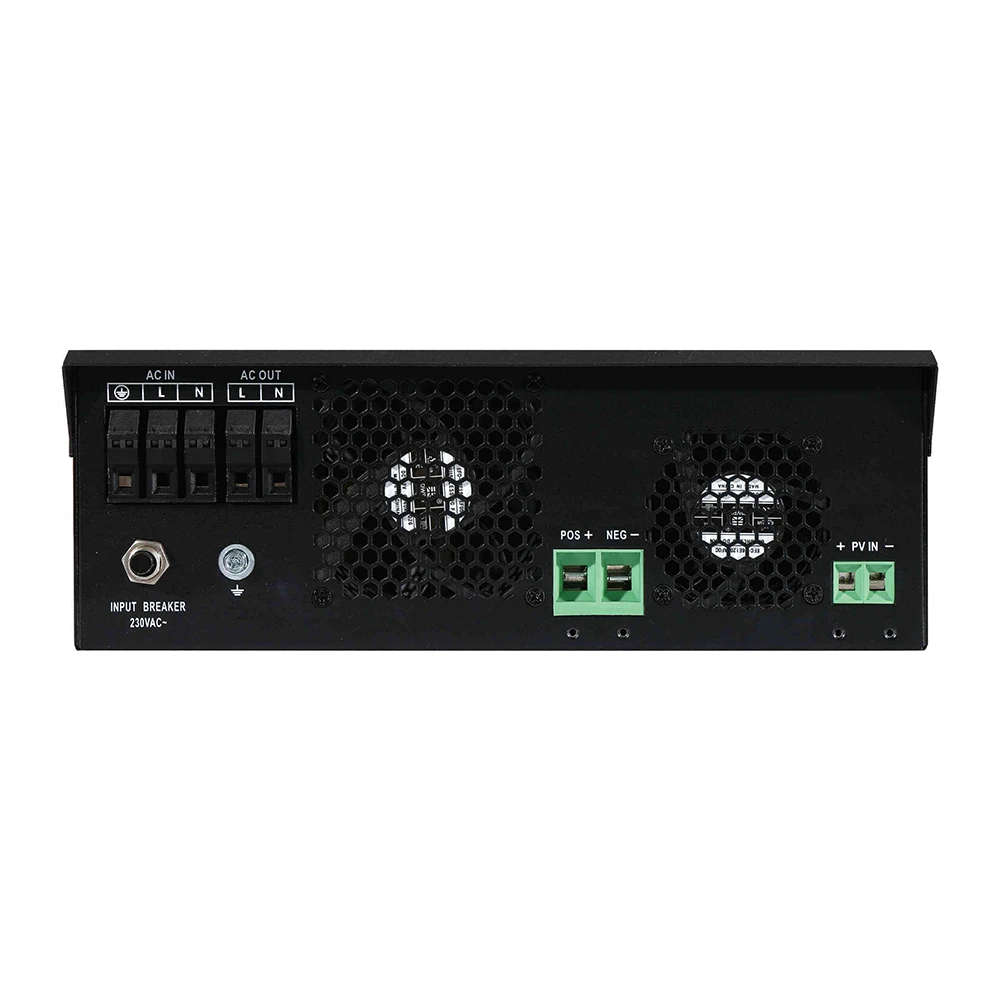

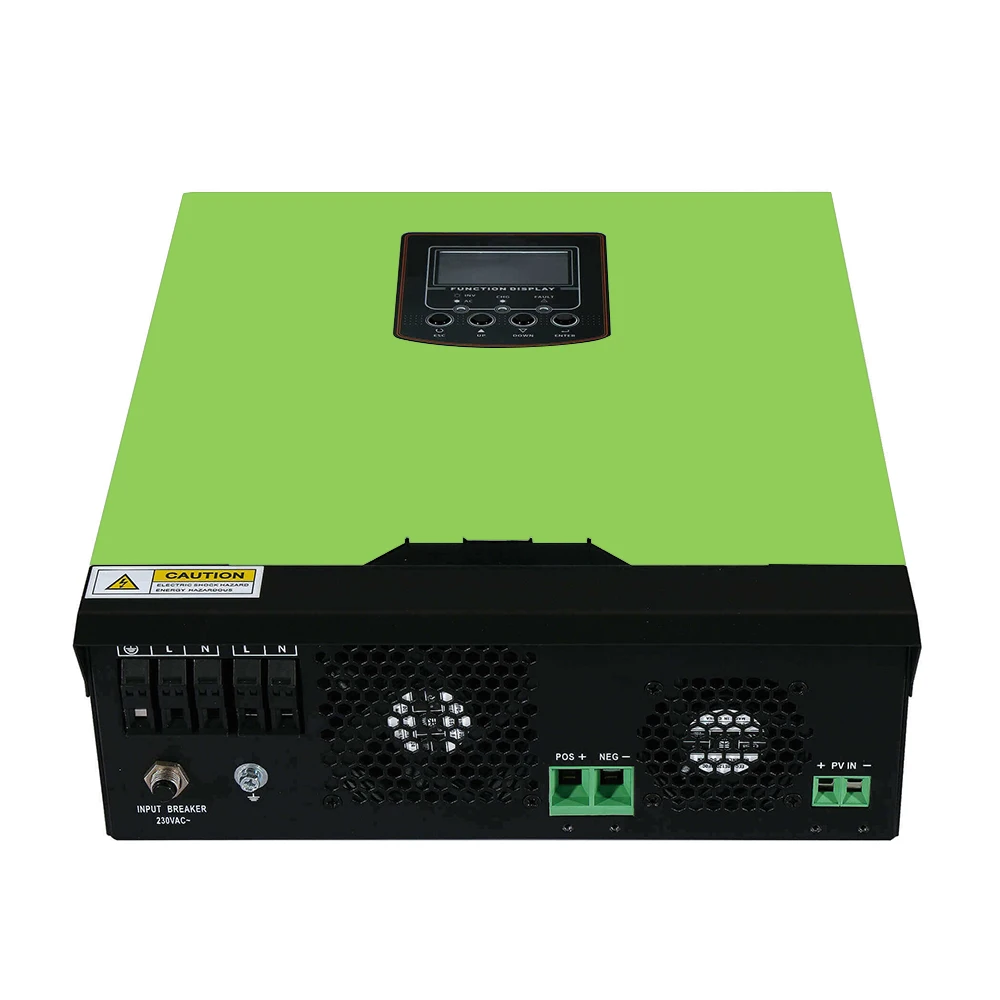

Factory Direct Sales 3kva 2400w 230vac Solar Inverter with PWN Solar charge Controller
Factory Direct Sales 3kva 2400w 230vac Solar Inverter with PWN Solar charge Controller
Factory Direct Sales 3kva 2400w 230vac Solar Inverter with PWN Solar charge Controller
Factory Direct Sales 3kva 2400w 230vac Solar Inverter with PWN Solar charge Controller
Factory Direct Sales 3kva 2400w 230vac Solar Inverter with PWN Solar charge Controller
Factory Direct Sales 3kva 2400w 230vac Solar Inverter with PWN Solar charge Controller

Factory Direct Sales 3kva 2400w 230vac Solar Inverter with PWN Solar charge Controller

Share on (1600439330648):


Price:$159.48 - $168.02

Quantity:


Product Overview

Description



Products Description


HY PWM Series
Equipped with PWM solar charge controller to maximize and regulate DC power from the solar array for the charging the battery bank. Transformer-less design provides reliable power conversion in compact size and with high efficiency.With aluminum housing ,integrated interface system.It’s light and handy ,making installation easier.It’s the ideal inverters for small PV plants ,or individually for small houses both indoors and outdoors.


Feature
1. Pure sine wave inverter
2. Built-in PWM solar charge controller
3. Selectable input voltage range for home appliances and personal computers
4. Selectable charging current based on applications
5. Configurable AC/Solar input priority via LCD setting
6. Compatible to mains voltage or generator power
7. Auto restart while AC is recovering
8. Overload and short circuit protection
9. Smart battery charger design for optimized battery performance
10. Cold start function




Model
JH-OY-001
JH-OY-002
JH-OY-003
JH-OY-004
JH-OY-005
JH-OY-006
Rate Power
1000VA/800W
 3000VA/2400W
    3000VA/3000W
5000VA/4000W
5000VA/5000W
5000VA/4000W
Input




Voltage
230VAC



Selectable Voltafe range
170-280VAC (for personal computers)
90-280VAC (for home appliances)



Frequency Range
50Hz/60Hz (auto sensing)



OutPut




AC Voltage Regulation
230VAC±5%



Surge Power
2000VA
6000VA
10000VA

Efficiency
90-93%
93%
Transfer Time
10ms(for personal computers); 20ms (for home appliances)



Waveform
Pure Sine Wave



Battery




Battery Voltage
12VDC
24VDC
48VDC

Floating Charge Voltage
13.5VDC
27VDC
54VDC

Overcharge Protection
15VDC
31VDC/33VDC
63VDC
60VDC
Solar Charge&AC Charge
20A
25A
60A

Max.PV Array Powrer
600W
1200W
2400W

Max. Solarcharge Current
50A



Max. Total Charge Current
50A
70A
110A

Operating Environment
Humidity
5%-95% relative humidity ( non-condensing)



Operating Temperature
0℃ -55℃



Storage Temperature
-15℃ -60℃





Certifications




Company Information




FAQ


1. What is your packing terms?
Generally, our goods will be packed in cardboard boxes with WMM logo.

2. What is your payment terms?
T/T 30% as deposit, and 70% before delivery, We'll show you the photos of the products and packages before you clear the blance.

3.What is your delivery terms?
EXW, FOB, CFR, CIF.

4. How about your delivery time?
Generally, we keep most of our products in stock for all seasons. Delivery takes about 7 to 10 days for order processing after receiving your advance payment. If the items are out of stock, the delivery time will depends on the item catagory and the quanlity of your order.
Normaly it takes 30 to 60 days.

5. What is your sample policy?
We can supply the sample if we have the product in stock, be advised that customers have to pay for the sample and the delivery.

6.Do you inspect all your goods before delivery?
Yes, we inspect all of our product before delivery.

7.How do you make our business long-term and good relationship?
a: Meet small quanlity orders and seasonal orders by out sufficient safety stocl;
b: Assure best quality with our complete inspection system before shipment;
c: Ensure timely delivery to customer's designated site by our professional management of warehouse and van fleet;
d: Provide in time feedback tracking and after-sales services to maximize the customer's satisfactory.
