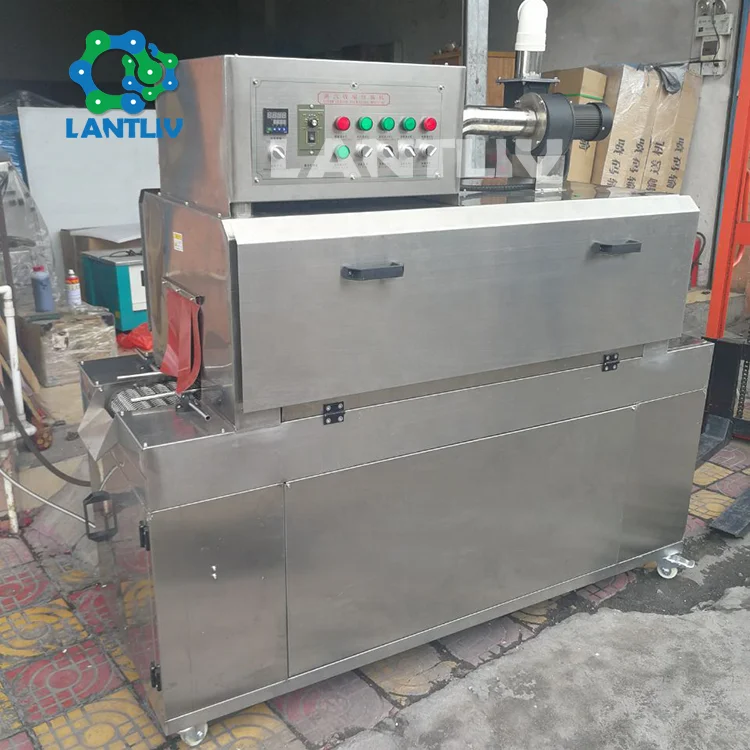

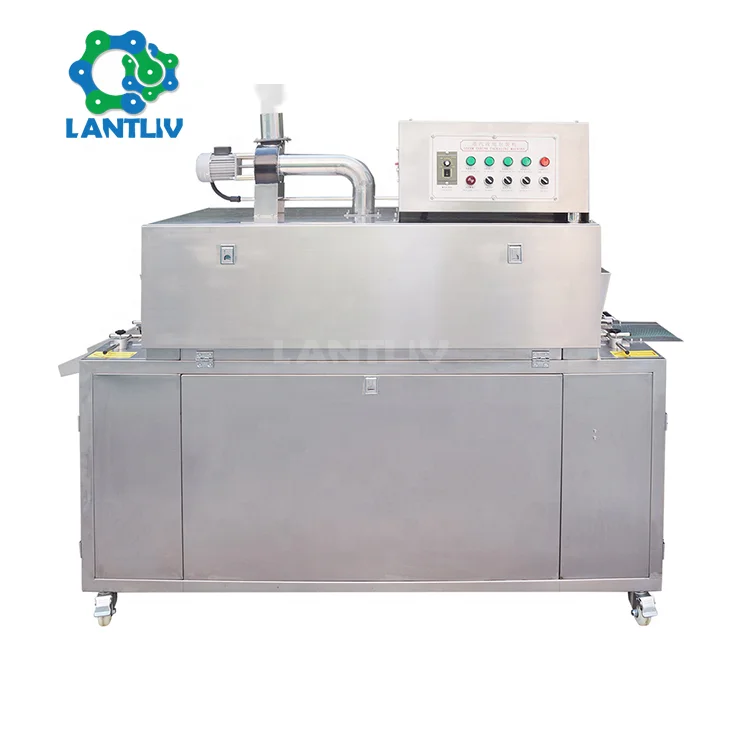

Cosmetic Food Daily Chemical Plastic Bottle Jar Sleeve Film Label Heat Steam Shrink Tunnel Wrapping Machine with Steam Generator
- Category: >>>
- Supplier: Guangzhou Lantliv Machinery Co. Ltd.
Share on (1600439334907):
Product Overview
Description
Product Description

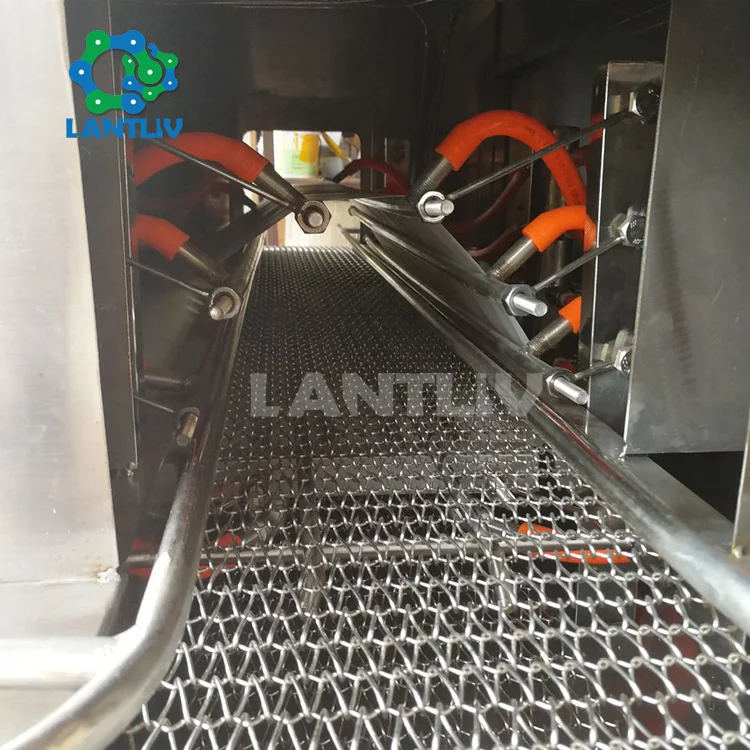

The automatic steam shrinking machine is a film shrinking machine with steam as the heat source. Compared with the electric heat shrinking machine, the shrinking effect is good, the plastic bottle body is not easily deformed, and it is convenient, smooth shrinking, and high efficiency. It is an ideal equipment for wineries, beverage factories and pharmaceutical factories and cosmetic factories. The machine enters the heat shrinking machine through the pipeline steam, and the heat shrinking machine sprays the steam evenly on the passing bottle to achieve the purpose of shrinking the film.
Specification
Name | Fully automatic steam shrinking machine |
Voltage | 380V, 50HZ, 3phase |
Load capacity | 25kg |
Temperature | 0-100℃ |
Power | Max 24kw |
Conveyor speed | 0-12m/min (40-60pcs/min) |
Tunnel size | L1300*W200*H200 (can be customized) |
Applicable packaging materials | PVC, PET, PP, PA |

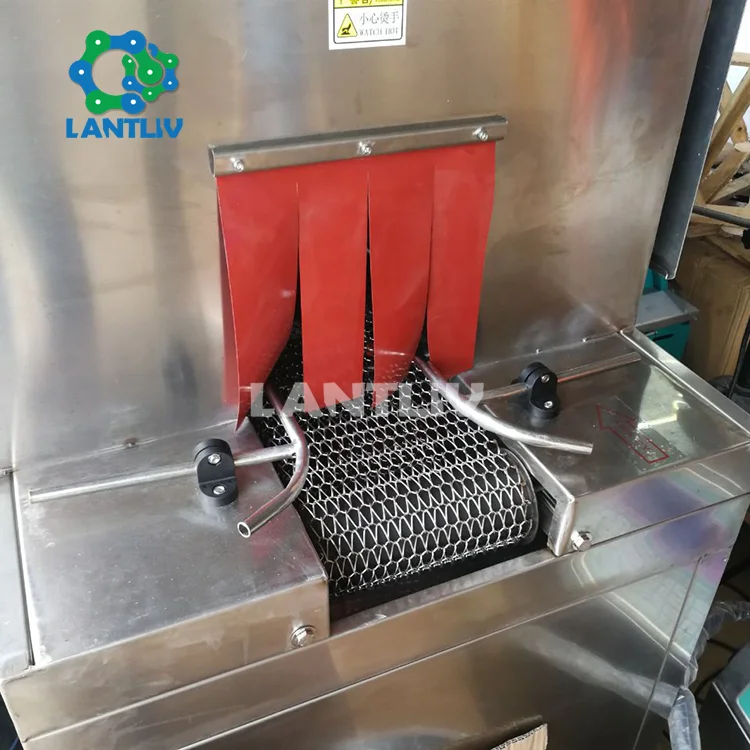

Conveyor belt | stainless steel 304 mesh belt |
Steam emissions | stainless steel round pipe to drill and exhaust, the orientation can be adjusted |
Heating tube | stainless steel heating tube, long service life |
Machine size | L1720*W720*H1600mm |
Machine weight | about 260kg |

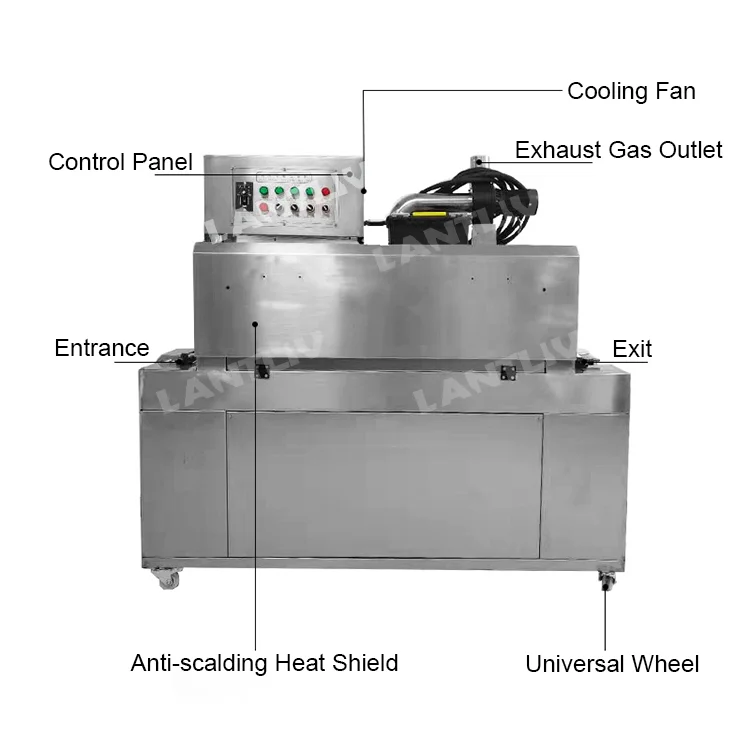

Product Details
Product Characteristic
This machine is mainly for the label shrinkage of bottle-shaped, can-shaped, barrel-shaped and cup-shaped products, and can shrink the bottle mouth, bottle body, bottle bottom and the whole. It is suitable for the label shrinkage of glass bottles, plastic bottles, paper cups and other containers in the food, medicine, cosmetics, pesticide and other industries. Barrels or small bottles of mineral water, purified water; soda and tea beverages and other food and beverage industries, as well as cosmetics, shampoos, hardware etc. require shrink film packaging.

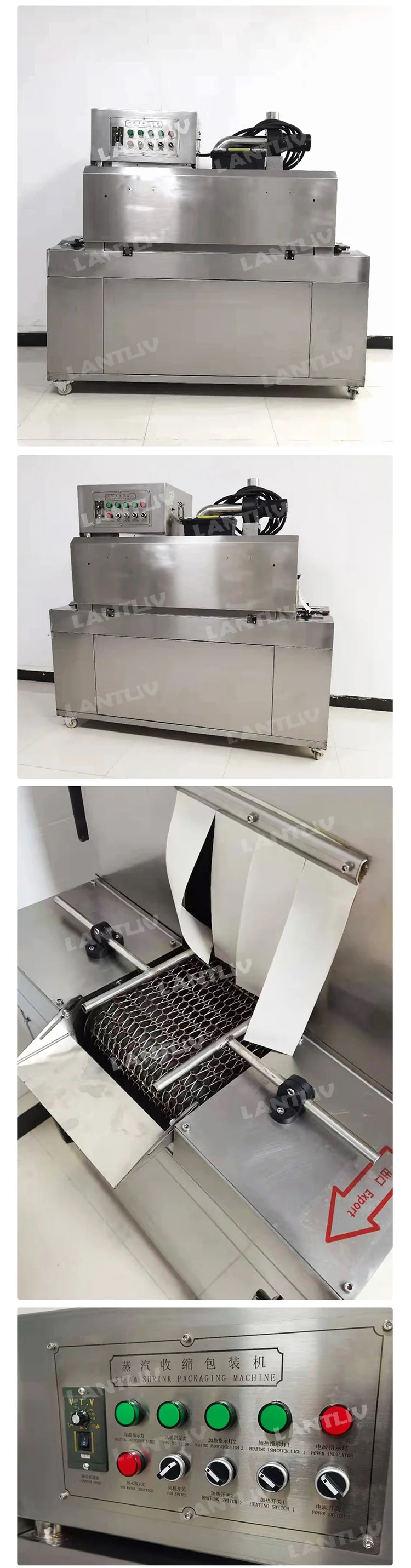

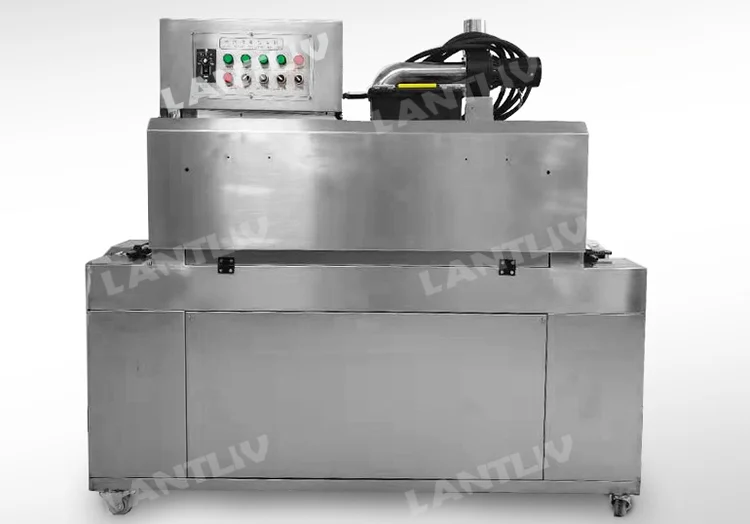

Details Images
Packing & Delivery

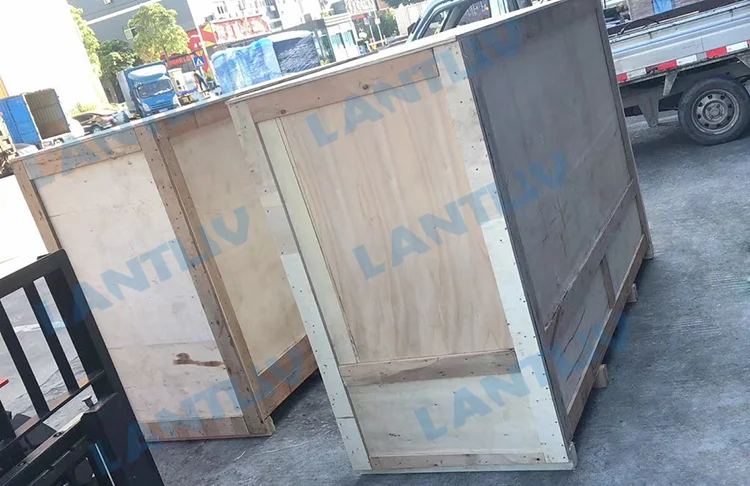

1. Wrapped with plastic film inside and strong carton case or non-fumigated plywood box outside, it is moisture-proof and suitable for long-distance sea, land and air transportation.
2. Delivery time: 7-10 days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
solution:
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.
2. Delivery time: 7-10 days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
solution:
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.
Certifications
FAQ
The one-year warranty period of the whole machine (excluding pipes and human factors, etc.) and 12-month after-sales service from the date of receipt of the machine or 12-month after-sales service after installation.
1. Can your machine meet our needs well?
We will provide you with suggestions according to your specific requirements, and each machine is customized to meet customer needs.
2. Are you a factory or a trading company?
We are a manufacturer and have been in the industry for more than ten years.
3. How to ensure the quality of the machine after placing an order?
Before delivery, we will send you pictures and videos of the machine, or you can personally or contact a third-party inspection organization near you for quality inspection.
1. Can your machine meet our needs well?
We will provide you with suggestions according to your specific requirements, and each machine is customized to meet customer needs.
2. Are you a factory or a trading company?
We are a manufacturer and have been in the industry for more than ten years.
3. How to ensure the quality of the machine after placing an order?
Before delivery, we will send you pictures and videos of the machine, or you can personally or contact a third-party inspection organization near you for quality inspection.
