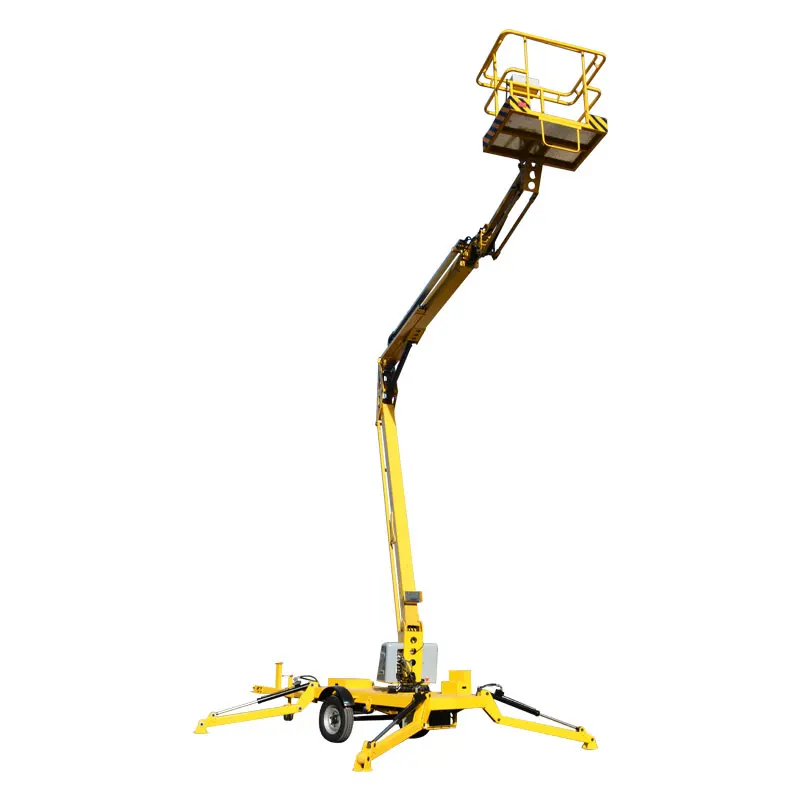

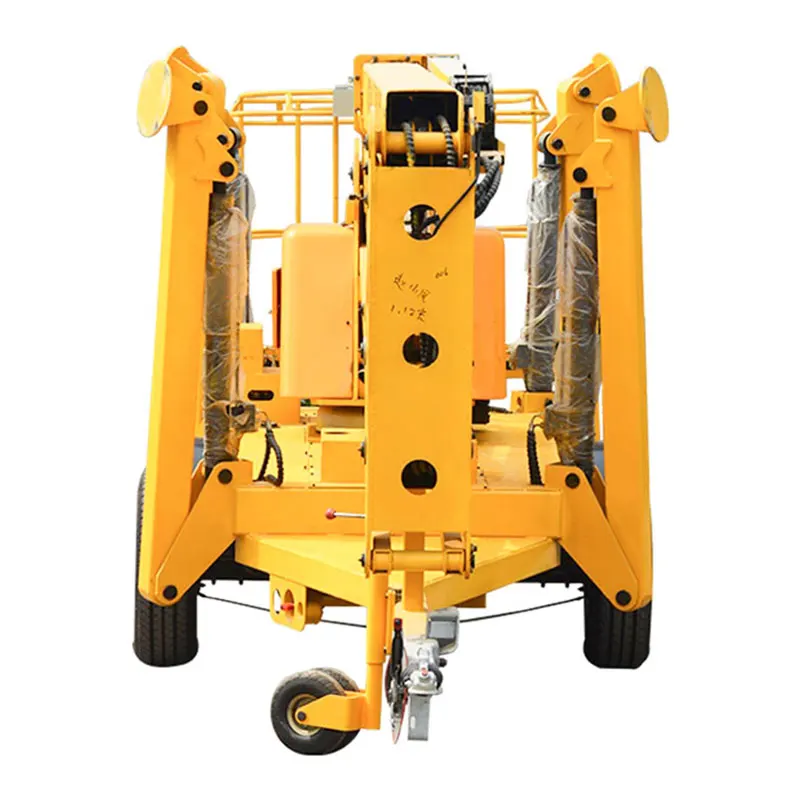

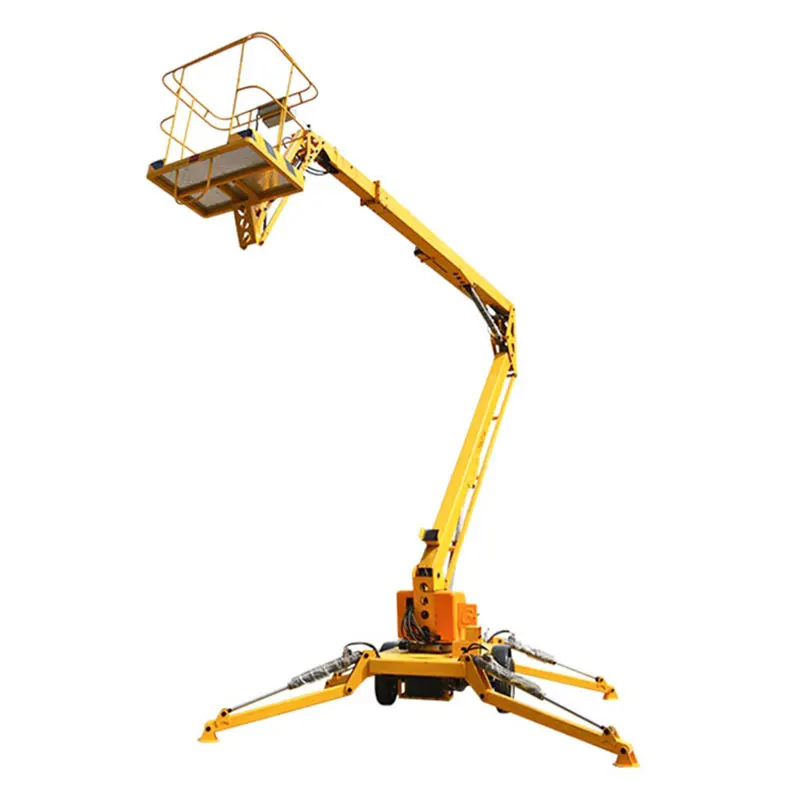

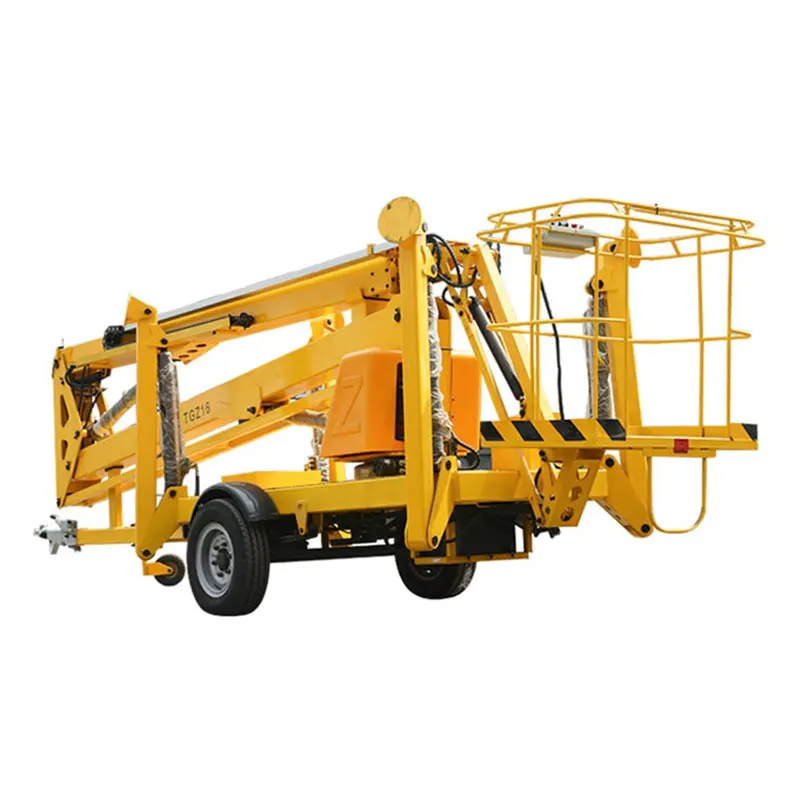

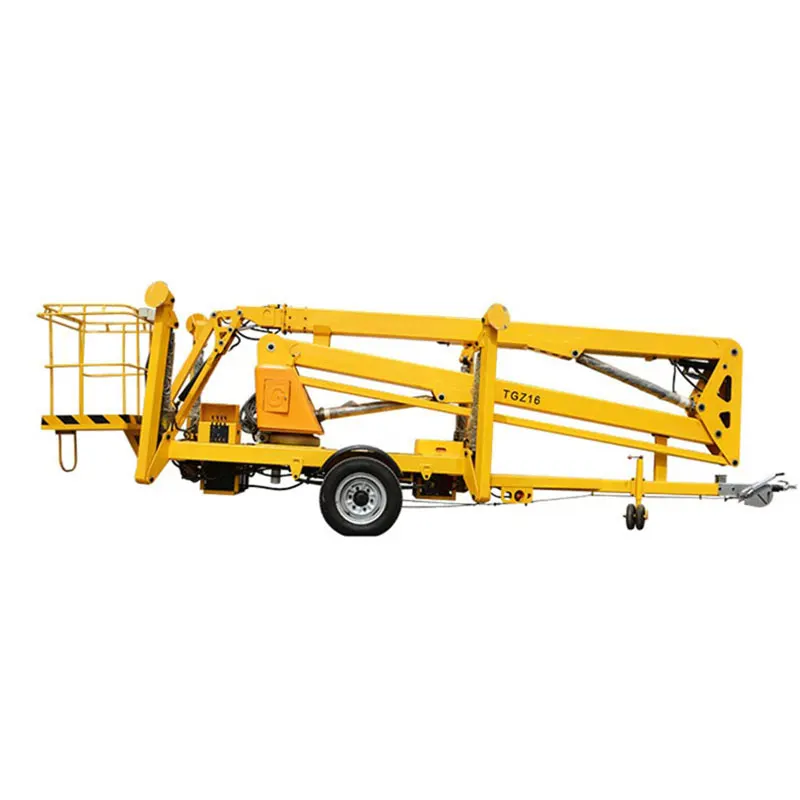

Qiyun Kinglift Lifting 6m 20m aArticulated Towable Boom lift Trailer Mounted Cherry Picker Man Lift

Product Overview

Description

COMPANY INFORMATION

Shandong Qiyun Group Co., Ltd. was established in 2014. The company is located in Jiyang, Shandong, which is known as "the hometown of China's hydraulic lifting platform". Initially formed by seven companies specializing in the production and sales of elevator products, it has now developed into a professional group company integrating R&D, production, sales, and export. We not only have all kinds of advanced conventional hydraulic lifts but also customize products according to customer needs.

Shandong Qiyun Group Co., Ltd. has various certification systems such as ISO, CE, SGS, etc. It can undertake OEM and ODM mass production. Now the company is vigorously developing export and recruiting agents and distributors for the world.

Now our products have been sold all over the world and are widely used in various industries and places such as plant maintenance, equipment maintenance, warehousing and logistics, airports and ports, villa exhibition halls, aerial work, etc., and are recognized by our customers.



PRODUCT INTRODUCTION

The trailer boom lift height is 8-20m . The working platform size is 1.2*0.8m, height is 1.1m and the loading capacity is 200kg. Power is AC, DC, diesel, or both.

The lift arm uses a new type of high-quality steel, high strength, lightweight, direct access to AC power to start, it can quickly set up safe and simple operation. The working table has a large working radius and it can be 360 degrees rotated.



PARAMETERS TABLE

This size is just for your reference, we can also customize it for you.



Model	Platform size	Overall dimensions (mm)	Lifting height(m)	Load capacity (kg)	Maximum operating radius (m)	Machine weight (kg)
	(mm)
QYTGZ-8	1200*800	5200*1585*1900	8	200	4.5	1500
QYTGZ-10	1200*800	5400*1665*1900	10	200	5	1700
QYTGZ-12	1200*800	6400*1665*1900	12	200	6	2000
QYTGZ-14	1200*800	6200*1730*2100	14	200	8.5	2350
QYTGZ-16	1200*800	7000*1730*2200	16	200	9	2600
QYTGZ-18	1200*800	7100*1850*2260	18	200	10	4300
QYTGZ-20	1200*800	7700*1850*2260	19.8	200	12	4450



Safely Device: Reliable

1. Overload protection: Hydraulic unit with overload protection device. If overload, the hydraulic station automatically relief pressure and stop running.

2. Emergency Stop: The lift can be stopped immediately in case of any emergency.

3. Emergency Lowering: The platform can be lowered down manually in case of power failure.

4. Explosion-proof valve: The hydraulic system is equipped with explosion-proof valves, which can prevent the sudden drop of the platform if the oil pipe breaks.

5. Safe sensor: When the platform declines, if it touches anything, it will be stopped, so it can protect goods or operators. (Optional)

FAQ

Q1. What about the delivery time?

Answer: It usually takes about 10 working days after we receive the deposit.

Q2. What kind of payment do you support?

Answer: T/T, L/C, West Union, Alibaba Trade Assurance. T/T is usually.

Q3. How to proceed with an order for the lift?

Answer: Firstly, tell us your requirements, if you can send a photo of where you will use the lift, it will be better.

Secondly, we send you our suggestions and quote according to the practical.

Q4. How to transfer the lift machine?

Answer: It is usually shipped by sea. Plywood package and LCL in a 20' container.

Q5. Is it OK to print my LOGO on the lift?

Answer: Yes. Please inform us formally before our production and send us your high pixel LOGO.

Q6. How can I get the after-sales service?

Answer: Contact us if you have any questions or need professional support. We will try to solve your problem in 24 hours and arrange the delivery of spare parts in 48 hours.

(Please make sure to communicate with me before paying directly, because the price in the title is just a deposit, not the full amount! !)
