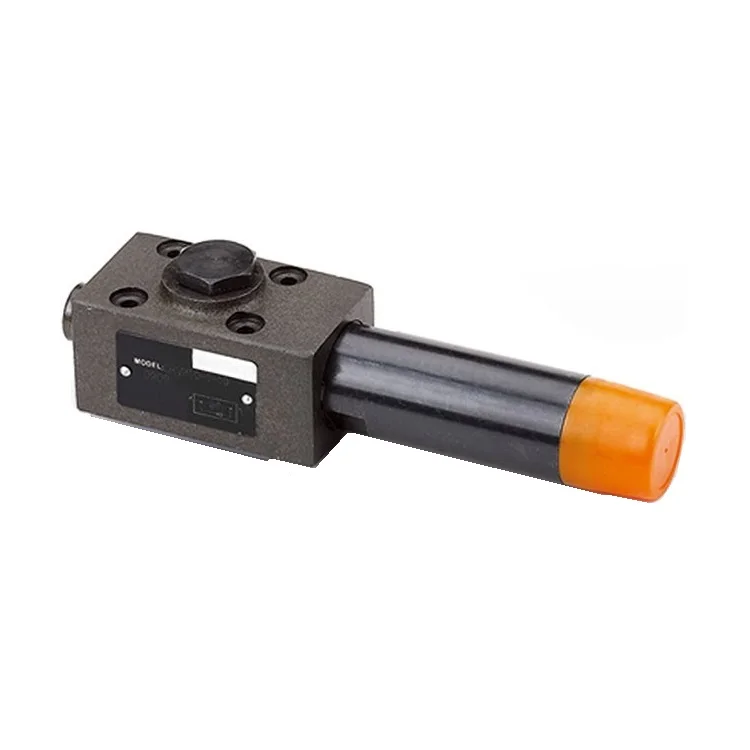

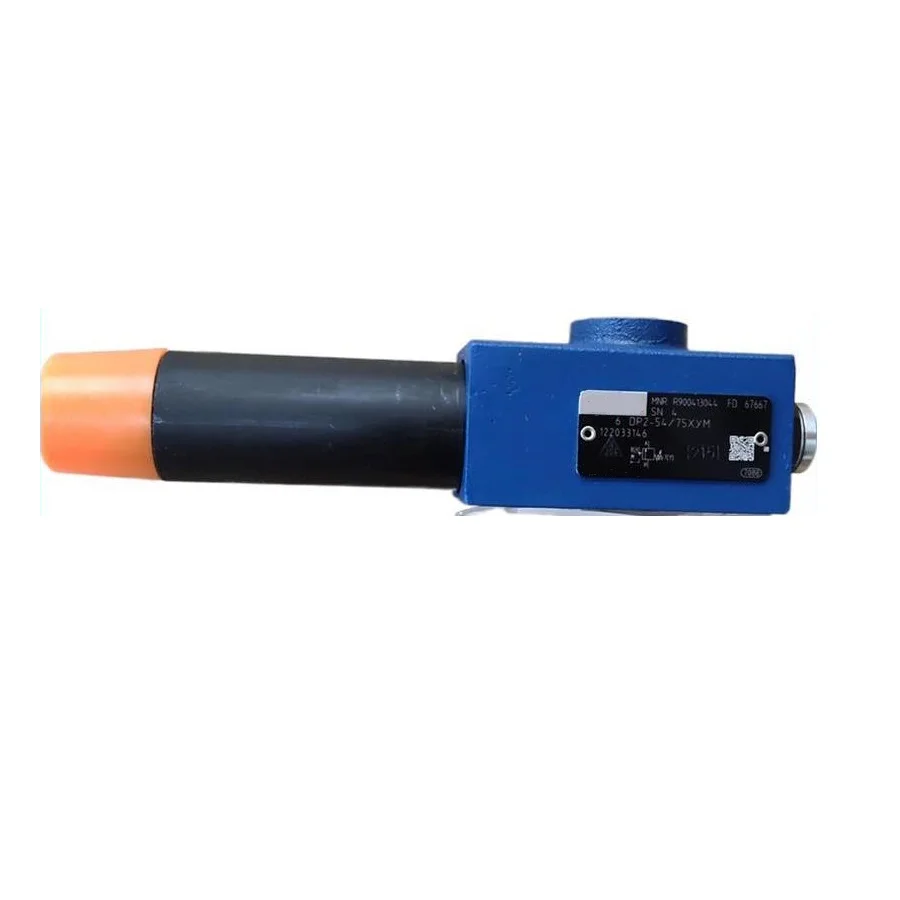

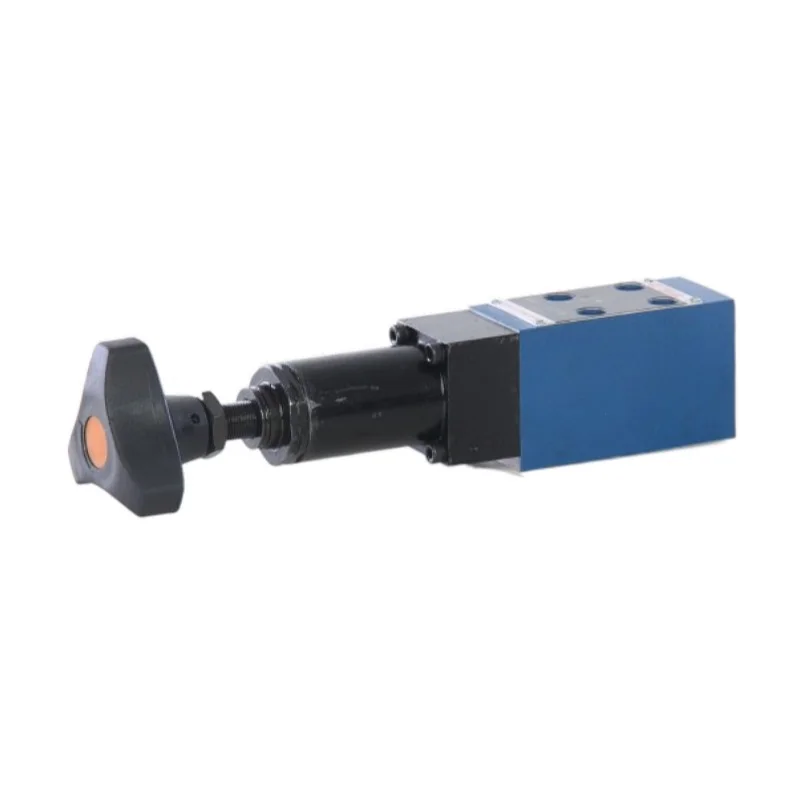

Hot sales Kawasaki SD series of SD6P,SD10P hydraulic direct operated sequence valve

Product Overview

Description

Hot sales Kawasaki SD series of SD6P,SD10P hydraulic direct operated sequence valve

1. Totally interchangeable with original

2. This direct operated type sequence valve is used when sequence action or unloading action of the hydraulic circuit is performed

3. As this is a direct operated type sequence valve, the structure is simple and compact.

4. The interface dimension of the valve is identical with that of the solenoid operated directional valve. (6 size)

5. It performs various functions by the connection method with the pilot and drain

6. Porting pattern

• Size 6 to DIN 24340 form A and ISO 4401

• Size 10 to DIN 24340 form D and ISO 5781

7. Check valve, optional

8. Very competitive price

9. 1 year of warranty

10. Short delivery time



Some models for your reference:

SD6P-10-3/25	SD6P-10-1/25C	SD10P-10-3/25	SD10P-10-1/25C
SD6P10-2/25C	S-2TC6-20-E1	S-2CH6-11	S-2CH10-11
S-CH10-10-A	S-CH10-10-B	S-CH6-10-B	S-2TC22-10-E4
S-CH16-10-A	S-CH16-10-B	S-2CH22-10	S-2CH16-11
S-TC16-10-A4	S-TC16-10-B4	S-TC22-10-A4	S-TC22-10-B4
S-TC16-10-C4	S-TC22-10-D4	S-TC16-10-C4	S-TC22-10-D4
S-2TC10-20-F1	S-2TC10-20-E1	S-2TC6-20-F1	S-2TC22-10-F4
S-2TC16-20-F1	S-CH6-10-A	S-2CH16-10

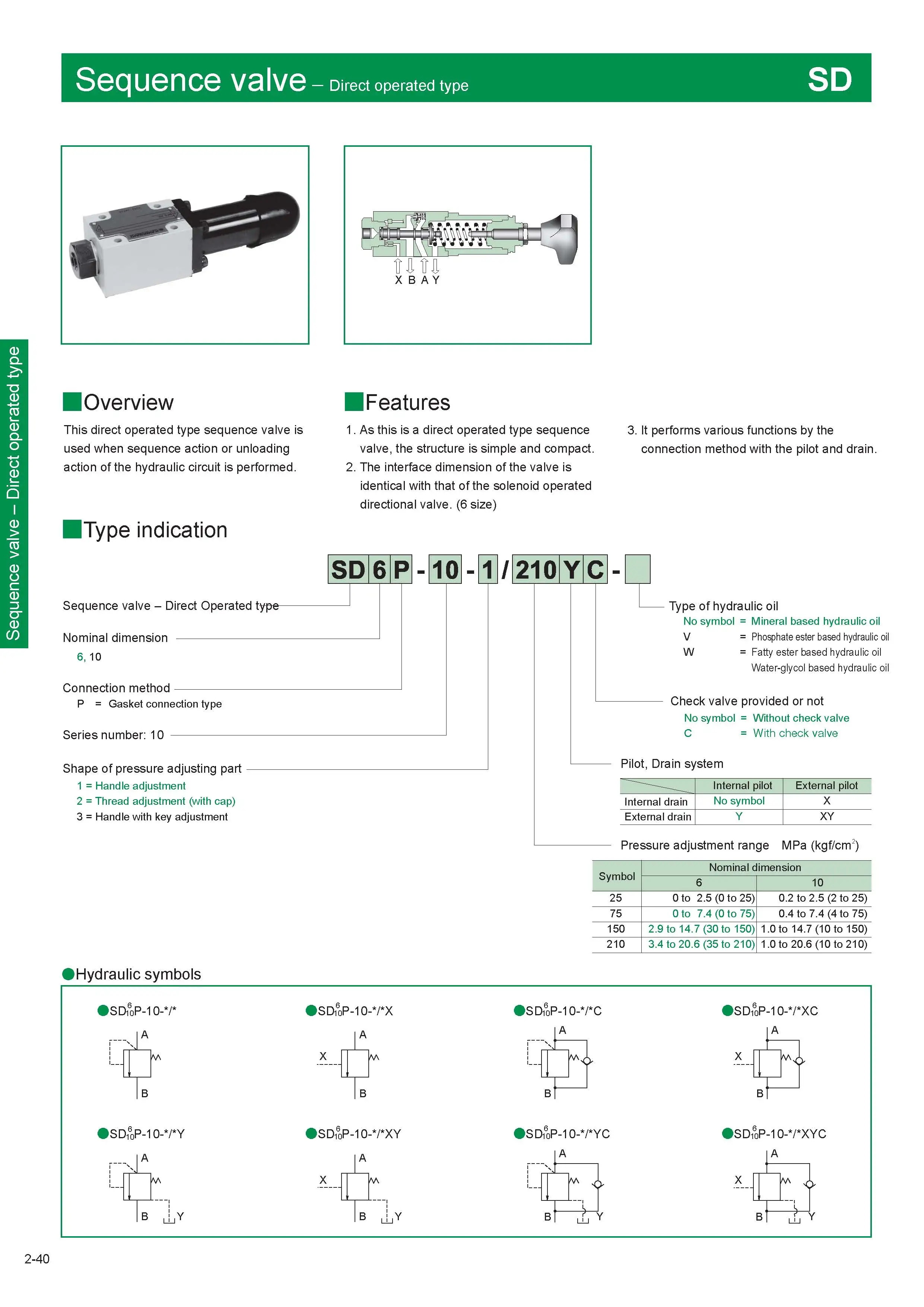

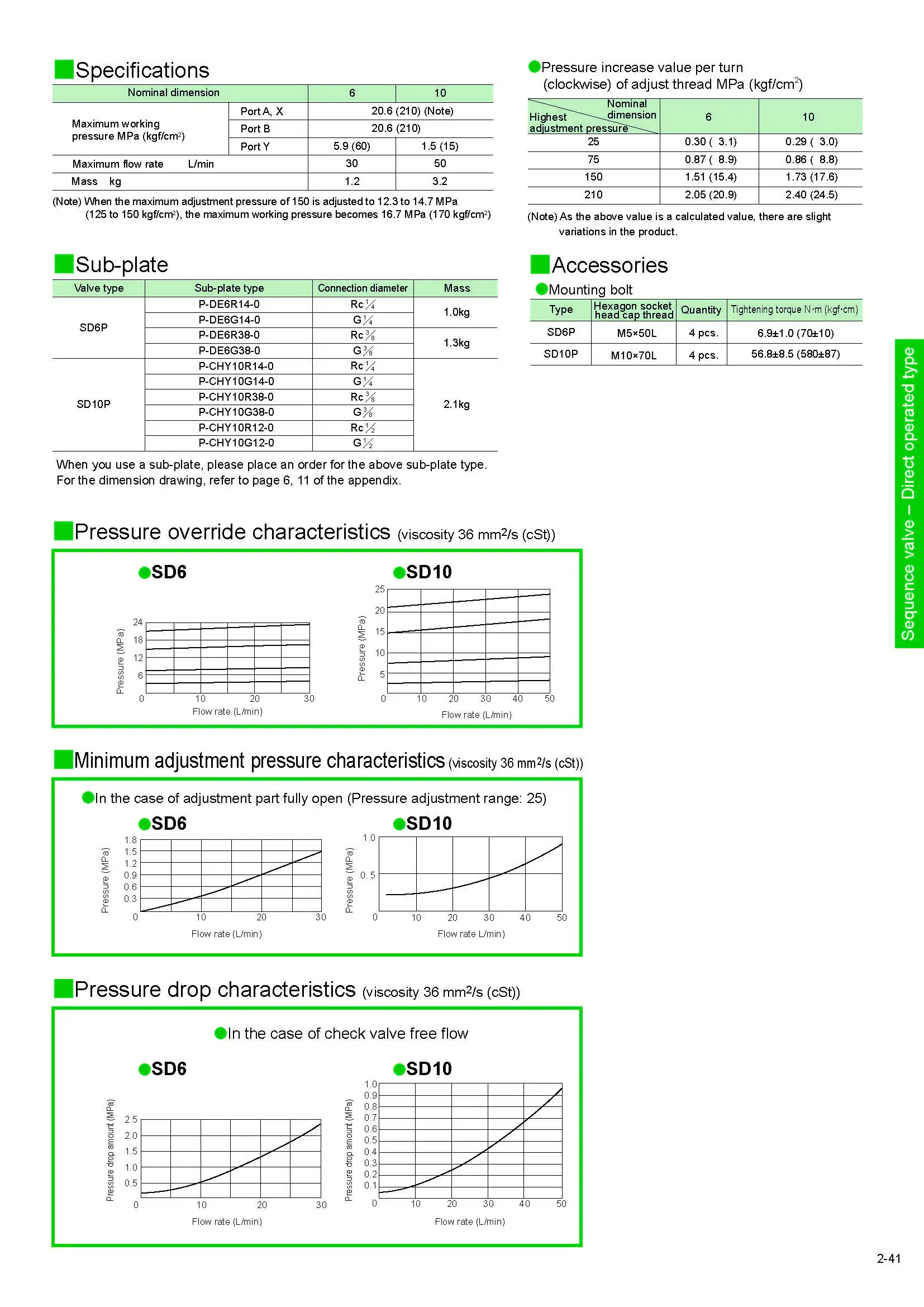

Technical Specifications:
