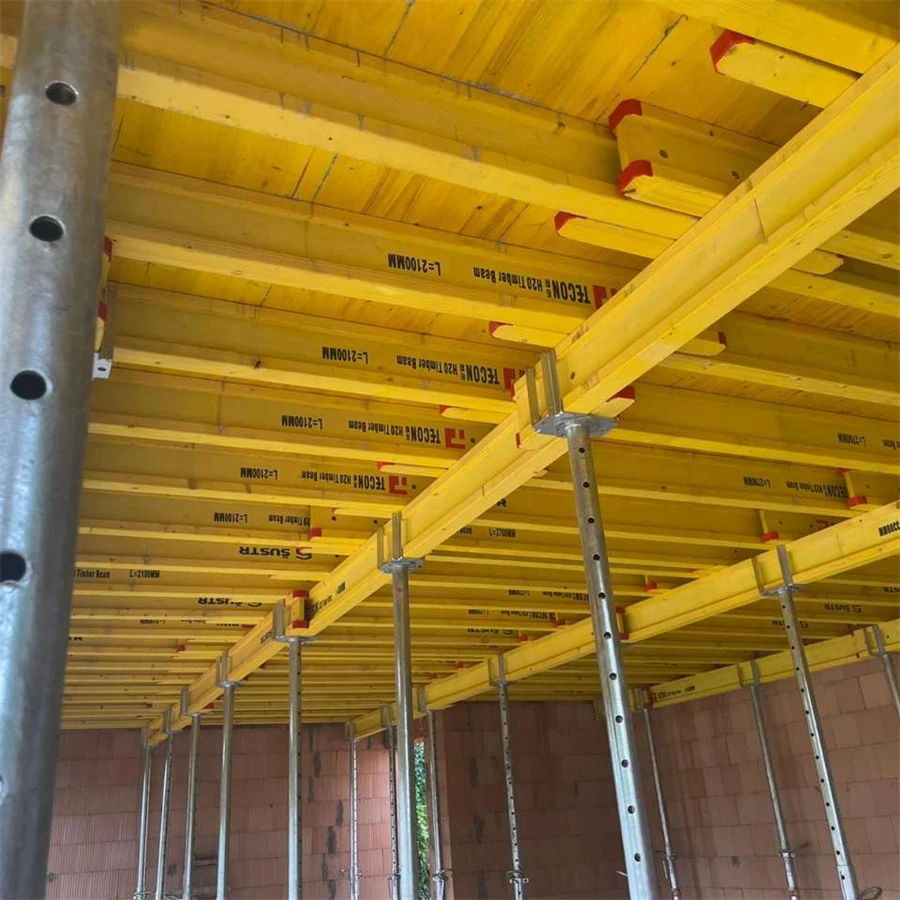

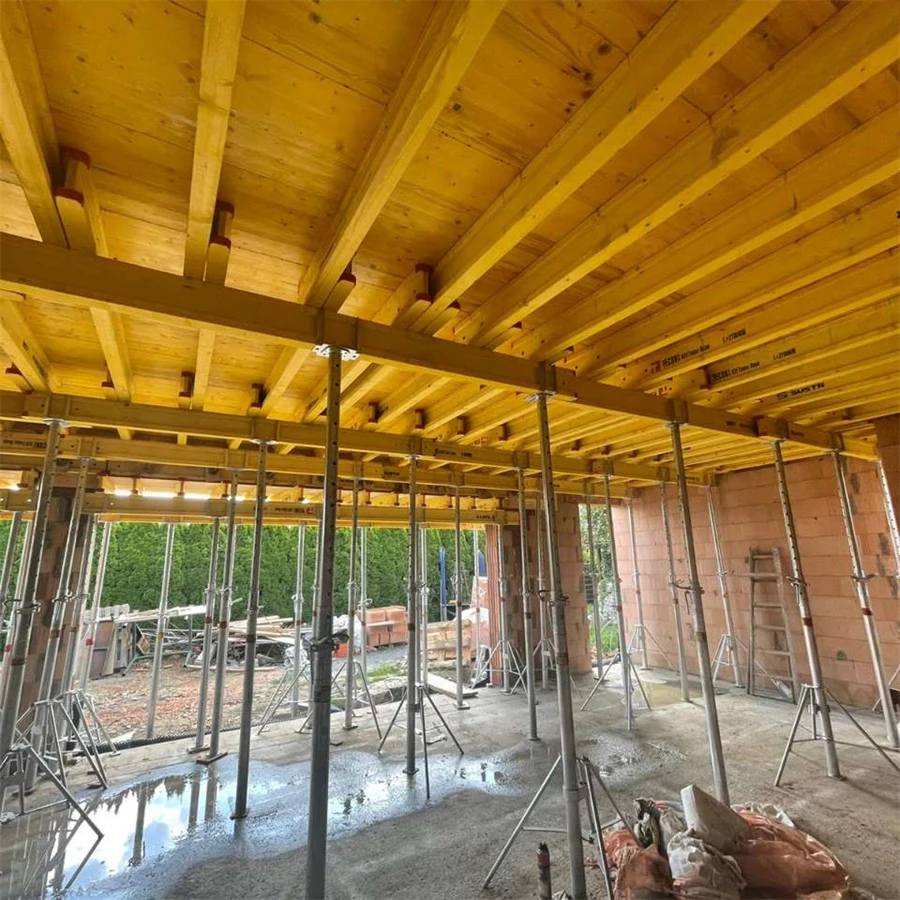

TECON H20 beam / Doka H20 beam / Peri H20 beam Formwork for Concrete Formwork
- Category: >>>
- Supplier: Suzhou TECON Construction Technology Co. Ltd.
Share on (1600439392403):
Product Overview
Description
TECON Flexible Reuable H20 timber Concrete Slab Formwork
Specification
NO. | Items | Data | ||||||
1 | Material | Wood and Steel | ||||||
2 | Type | Slab Formwork | ||||||
3 | Size | Client Requirements | ||||||
4 | Usage | Slab Concrete Pouring | ||||||
5 | Permitted fresh concrete pressure | Customized | ||||||

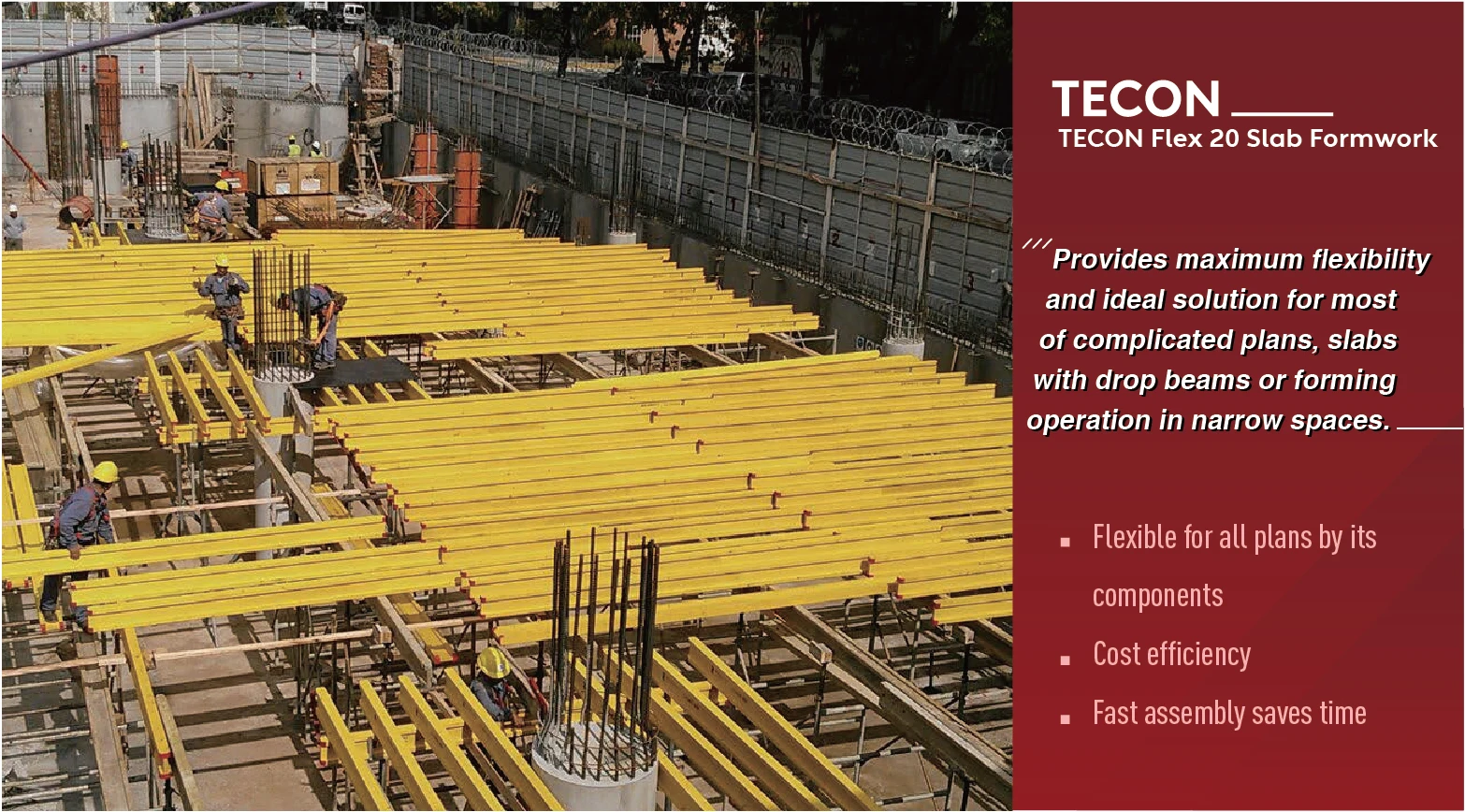

6 | Feature | Flexible for all plans by its components | ||||||
For any slab thinkness & floor height
For any layout even irregular plan
For high density drop beams
For any layout even irregular plan
For high density drop beams
Long service life of system components
Most economic planning for specific project engineered by
TECON specialist
Easy transportation & storage from different job sites
Without crane lift during erection
Most economic planning for specific project engineered by
TECON specialist
Easy transportation & storage from different job sites
Without crane lift during erection
Fast assembly saves time
Free choice of several simple components include H20 girders
and steel props
and steel props

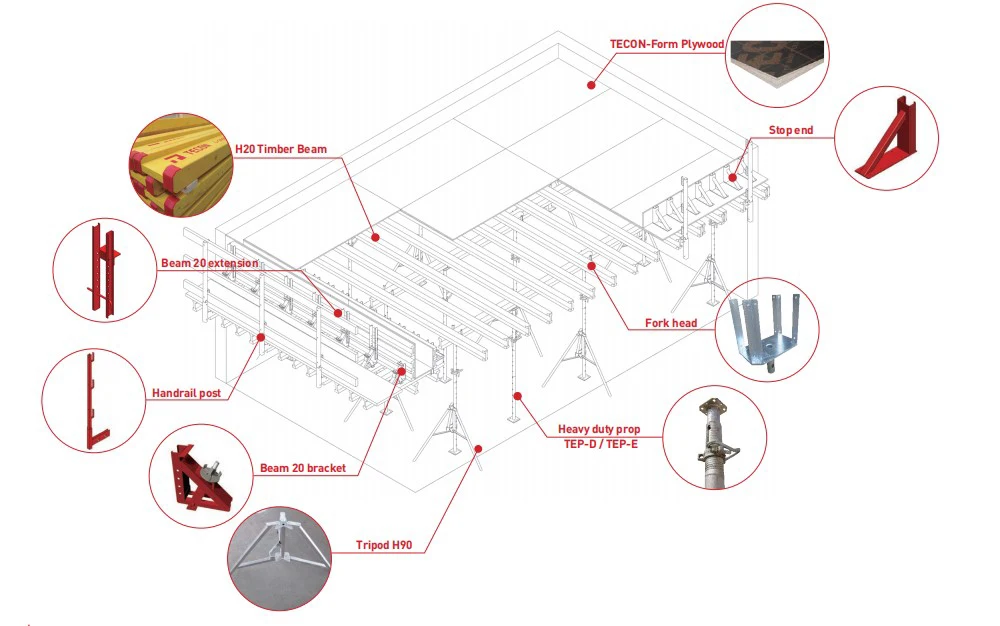

Details
TECON-Form Plywood
--High recycle usage times
--With 18mm & 21mm as option
--With TECON-Form Poplar, Hardwood and Birch as option
--With 18mm & 21mm as option
--With TECON-Form Poplar, Hardwood and Birch as option
Beam 20 bracket
--Practical beam formwork support with effffective height
300mm seated on H20 beam
--With easy tighten system by D15 rod & nut
--An extension height upto 900mm with assistance of
H20 timber beam and wall tie system
300mm seated on H20 beam
--With easy tighten system by D15 rod & nut
--An extension height upto 900mm with assistance of
H20 timber beam and wall tie system
H20 timber beam
--En 13377 standard
--High dimensional stabilty
--Imported North-Europe spruce as flflange or complete
import quality made in Europe
--Yellow water proof painting
--Marked beam length on web for easy recognition
--Plastic or steel end protection caps
--High dimensional stabilty
--Imported North-Europe spruce as flflange or complete
import quality made in Europe
--Yellow water proof painting
--Marked beam length on web for easy recognition
--Plastic or steel end protection caps
Heavy duty prop TEP-D, TEP-E
--High work load-bearing capacity at 20kN & 30kN
--Typical dimension: 76/63.5mm and 88.9/76mm
10cm safe zone design prevent hand harzard
--High tensile steel Q345 inner tube
--Cast steel nut
--Carved fabrication date or batch no. for easy tracking
EN1065 standard; SGS tested
--Long service life guarantee
--Typical dimension: 76/63.5mm and 88.9/76mm
10cm safe zone design prevent hand harzard
--High tensile steel Q345 inner tube
--Cast steel nut
--Carved fabrication date or batch no. for easy tracking
EN1065 standard; SGS tested
--Long service life guarantee

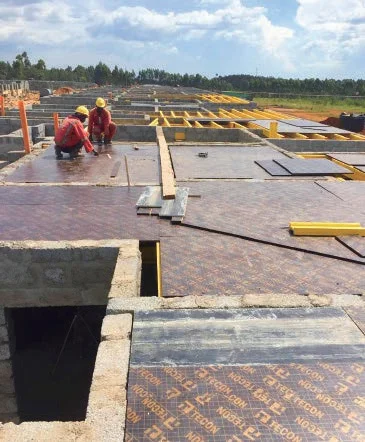

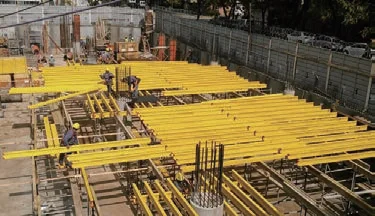

Application
Assembly Process
Insert the fork head into the
prop
Set up tripods and place the
props inside
Make main beams seated
on fork heads
Place secondary beams on
the main beams
Fix the plywood on the second-
ary beams with some nails or
screws
Apply realease agent on
plywood

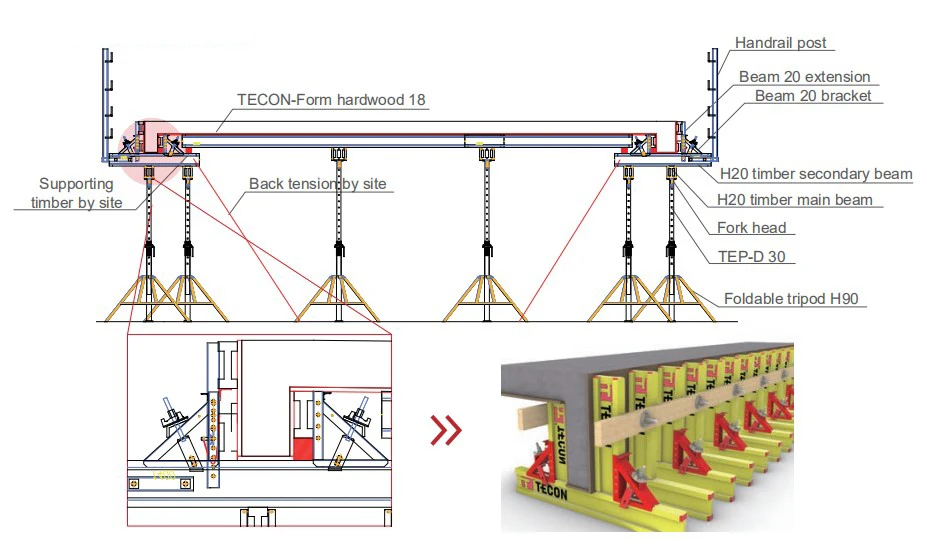

Beam Solution

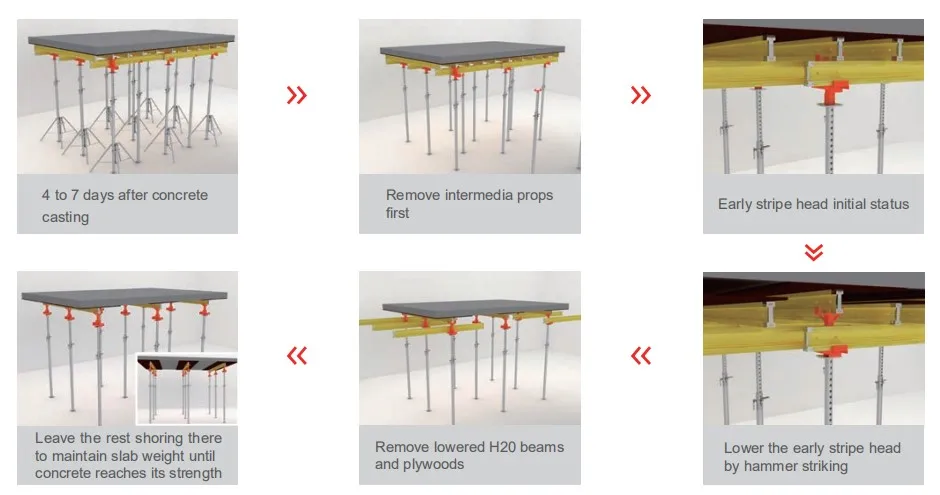

Early Stripe System
Our Service Process
Similar Products
Self-climbing Formwork
Protection Screen
Shoring Tower ST60

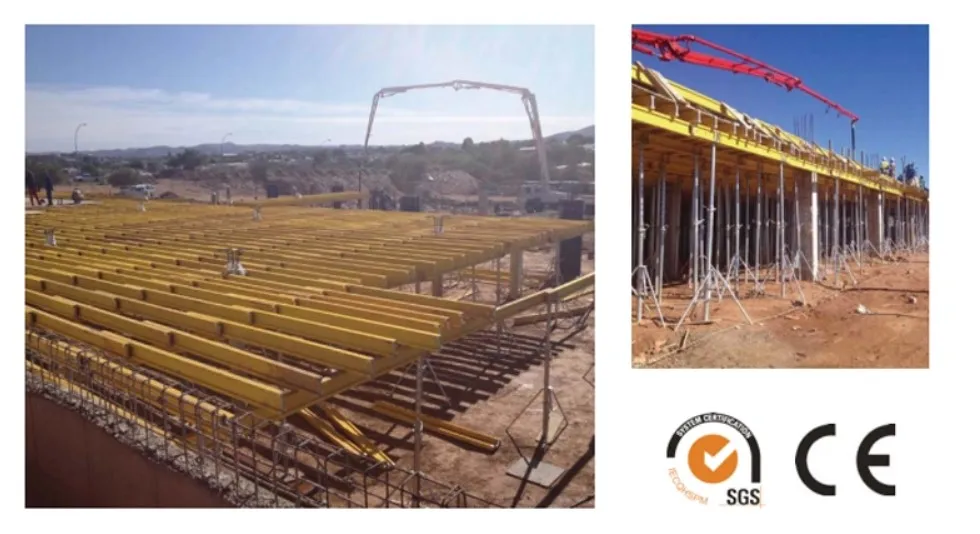

Successful Projects
About Us
The leading formwork brand in China
TECON Formwork & Scaffolding Engineering.As the specialist in formwork & scaffolding engineering area, we provide reliable products & in-time services for our customers in construction industry all over the world.We have a wide range of products line which covers climbing formwork, wall formwork, slab formwork, column formwork, beam formwork, shoring towers and all kinds of scaffoldings.
Packing Method
FAQ
1. How to get a quotation?
You can send us your material list to request for a quotation, or you can also simply send us the structural drawing and project information for complete formwork & scaffolding proposal via below contacts.
Phone: +86-512-65650586
Mobile: +86-13507532707
2. What is the payment term?
By T/T or L/C.
3. What is the lead time?
For climbing formwork, self-climbing platform, plastic formwork we have stock in our warehouse. The preparation of loading will be within 10 to 15 days.
For H20 timber beam, TECON-Form Shuttering, the lead time is from 15 to 25 days.
For other system, the lead time is from 30 to 45 days.
For more accurate lead time, please contact us for specific product based on your quantity.
4. What is the package method?
We have standard steel pallet, wooden pallet etc. which suits to container transportation.
5. Do you have any guarantee on the quality?
We have guarantees on the quality on different product basis.
6. Do you offer buy back system or rental business?
We offer buy back system on some of medium and big scale projects, but we do not have any rental business yet.
7. Do you have on-site supervision service?
Yes, we have on-site supervision service for most of our projects across the world except for a few restriction regions.
8. What benefit we can get from TECON?
From TECON, you can get full range of advanced system with excellent quality, our know-how and in-time service. They will lead to increased productivity, labor saving and great cost down on your site as a result.
9. Are you looking for agent or distributor in our country?
Yes, we are looking for agent or distributor worldwide based on win-win relationship. If you have such experience, capability of investment, as well as business plan & goal, we’d be glad to discuss with you in details. TECON has its special agent and distributor policy waiting to support your success in formwork & scaffolding industry.
10. How to purchase your formwork and scaffolding?
For any order you proceed with TECON will basically follow below steps.
Step 01. Confirm the PI based on our proposal after technical & commercial communication – by Customer, TECON Overseas Sales team and Technical team
Step 02. Make the deposit – by Customer
Step 03. Report on production schedule weekly until completion – by TECON Customer Care team
Step 04. Execute pre-shipment inspection – by Customer or Third Party Inspection company
Step 05. Effect the balance payment – by Customer
Step 06. Arrange the loading and shipment after balance payment – by TECON Customer Care team
Step 07. Submit the full set of shipping documents via courier after departure – by TECON Customer Care team
Step 08. Submit the full set of user manual, calculation, shop drawing and assembly drawings – by TECON Overseas Sales team
Step 09. Site supervision – By TECON Site Supervision team
You can send us your material list to request for a quotation, or you can also simply send us the structural drawing and project information for complete formwork & scaffolding proposal via below contacts.
Phone: +86-512-65650586
Mobile: +86-13507532707
2. What is the payment term?
By T/T or L/C.
3. What is the lead time?
For climbing formwork, self-climbing platform, plastic formwork we have stock in our warehouse. The preparation of loading will be within 10 to 15 days.
For H20 timber beam, TECON-Form Shuttering, the lead time is from 15 to 25 days.
For other system, the lead time is from 30 to 45 days.
For more accurate lead time, please contact us for specific product based on your quantity.
4. What is the package method?
We have standard steel pallet, wooden pallet etc. which suits to container transportation.
5. Do you have any guarantee on the quality?
We have guarantees on the quality on different product basis.
6. Do you offer buy back system or rental business?
We offer buy back system on some of medium and big scale projects, but we do not have any rental business yet.
7. Do you have on-site supervision service?
Yes, we have on-site supervision service for most of our projects across the world except for a few restriction regions.
8. What benefit we can get from TECON?
From TECON, you can get full range of advanced system with excellent quality, our know-how and in-time service. They will lead to increased productivity, labor saving and great cost down on your site as a result.
9. Are you looking for agent or distributor in our country?
Yes, we are looking for agent or distributor worldwide based on win-win relationship. If you have such experience, capability of investment, as well as business plan & goal, we’d be glad to discuss with you in details. TECON has its special agent and distributor policy waiting to support your success in formwork & scaffolding industry.
10. How to purchase your formwork and scaffolding?
For any order you proceed with TECON will basically follow below steps.
Step 01. Confirm the PI based on our proposal after technical & commercial communication – by Customer, TECON Overseas Sales team and Technical team
Step 02. Make the deposit – by Customer
Step 03. Report on production schedule weekly until completion – by TECON Customer Care team
Step 04. Execute pre-shipment inspection – by Customer or Third Party Inspection company
Step 05. Effect the balance payment – by Customer
Step 06. Arrange the loading and shipment after balance payment – by TECON Customer Care team
Step 07. Submit the full set of shipping documents via courier after departure – by TECON Customer Care team
Step 08. Submit the full set of user manual, calculation, shop drawing and assembly drawings – by TECON Overseas Sales team
Step 09. Site supervision – By TECON Site Supervision team
