150W cheap DC Power supply UTP3315TFL II linear DC Power Supply 30V 5A DC Regulated Power Supply with LED Display
- Category: Other Electronic Measuring Instruments >>>
- Supplier: Shenzhen,Yuntong,Communication,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

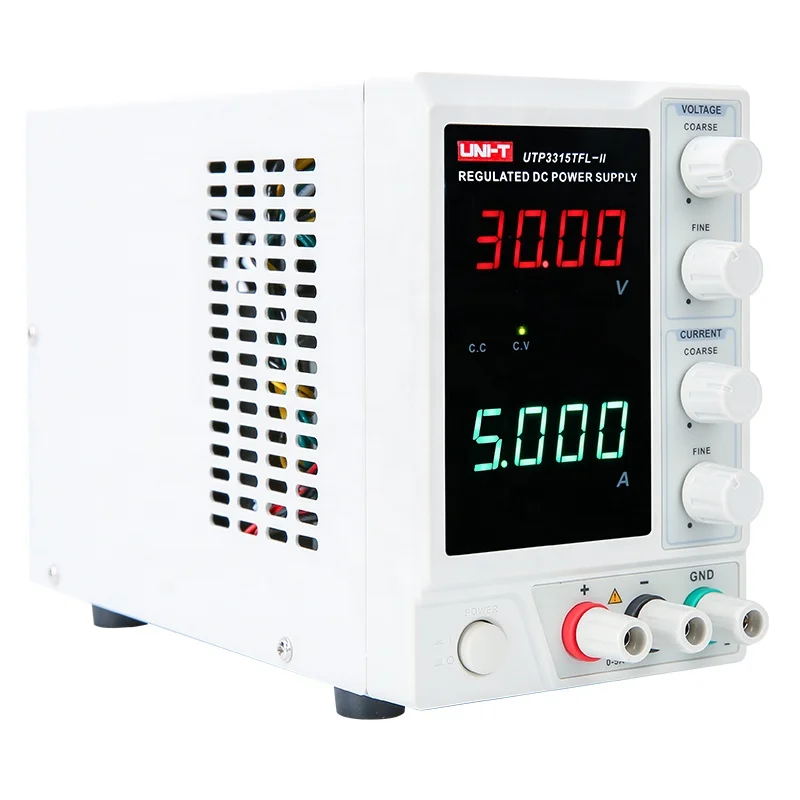

UTP3315TFL-II 30V 5A 150W low cost Linear DC Power supply 10mV/1mA ---UTP3300TFL-II SERIES
The UTP3000TFL-II Series is an economical linear DC power supply with excellent quality and excellent indicators, with intuitive four-bit LED voltage, current display, short circuit overload, reverse polarity protection
and other functions. High stability and high reliability.
and other functions. High stability and high reliability.
Product Description
Model | Parameter | UTP3313TFL-II | UTP3315TFL-II | ||
Channel | Channel | 1 | 1 | ||
Output Rating | Voltage | 0~30V | 0~60V | ||
Output Rating | Current | 0~3A | 0~5A | ||
Package | Power | 90W | 150W | ||
Resolution | 10mV/1mA | ||||
Load Regulation | CV | ≤0.01%+3mV | ≤0.01%+5mV | ||
CC | ≤0.1%+5mA | ≤0.1%+10mA | |||
Setting Accuracy | Voltage | ＜0.5%+20mV | |||
Current | ＜0.5%+10mA | ＜0.5%+10mA | |||
Ripple and Noise | ≤1mVrms | ≤2mVrms | |||
Tracking bias | CV | ±(0.1% of Reading +30mV) | |||
CC | ±(0.3% of Reading +5mA) | ±(0.3% of Reading +10mV) | |||
Reliability | MTBF(e): ≥2000hrs | ||||
Display Mode | 4-bit LED voltage and current dual display | ||||
Power | 110V/220V±5% AC; frequency: 50Hz/60Hz | ||||
Features | Auto conversion of constant voltage and current with current limit protection | ||||
Standard Accessories | International Standard power cord, output cables | ||||
Packing&Shipping
Product net weight | 3kg | 4kg | |||||
product size | 105mm x 165mm x 249mm | ||||||
Standard quantity per carton | 4 pcs | ||||||
Standard carton gross weight | 14kg | 17 kg | |||||
Standard carton measurement | 330mm x 285mm x 460mm | ||||||
Delivery time | Generally 3-5 days from in stock | ||||||
Company Introduction
Certifications
FAQ
1.Q: Are you trading company or manufacturer?
A: We are UNI-T Original factory. We are the top 5 largest shareholders of UNI-T.
We can sell from factory directly.
2. Q: What is your terms of payment?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance, balance before shipment.
3. Q: How long is your delivery time?
A: Generally, it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
4. Q: Are sample free?
A: Yes, but the shipping cost will be charged. The fee of it will be rebound when we have formal order..
