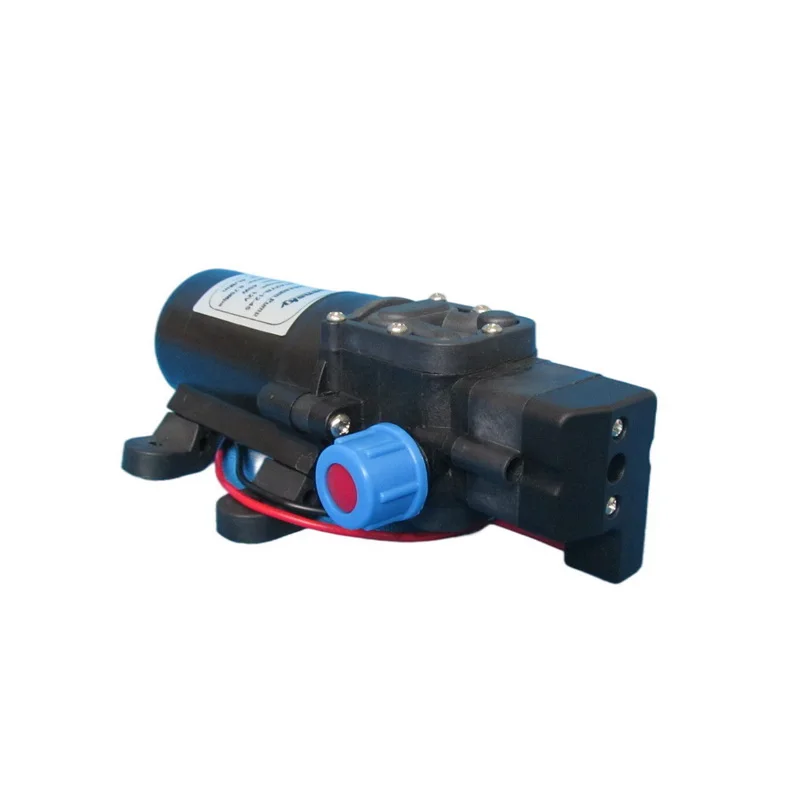

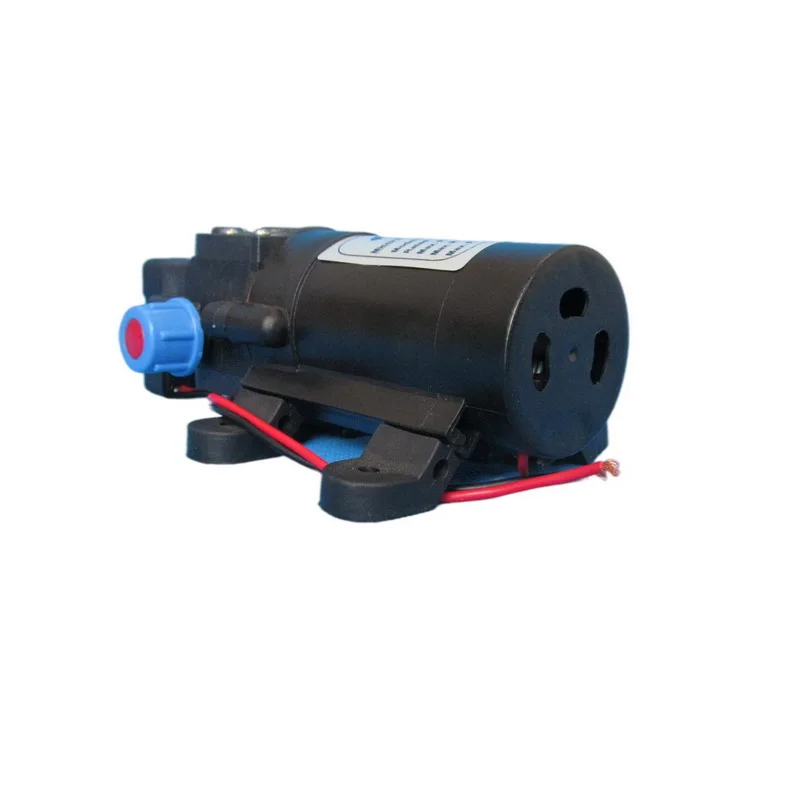

Grimmsky Factory Directly Sale Pressure Switch Type 5.5L/Min 12V DC 80W High Pressure Water Pump 8 Bar
- Category: >>>
- Supplier: Henan Grimmsky Machinery And Electric Equipment Co. Ltd.
Share on (1600439435228):
Product Overview
Description
DC12V 80W Pressure Switch Type Self-priming Micro Diaphragm Pump
Product Overview
Product Description
Model | 0142YA-12-80 | 0142YB-12-80 | 0142YA-24-80 | 0142YB-24-80 |
Voltage | 12V | 12V | 24V | 24V |
Power | 80W | 80W | 80W | 80W |
Working Pressure | 0.55Mpa=5.5BAR=79.78PSI | 0.55Mpa=5.5BAR=79.78PSI | 0.55Mpa=5.5BAR=79.78PSI | 0.55Mpa=5.5BAR=79.78PSI |
Rated Pressure(Max.) | 0.9Mpa=9BAR=130.53PSI | 0.9Mpa=9BAR=130.53PSI | 0.9Mpa=9BAR=130.53PSI | 0.9Mpa=9BAR=130.53PSI |
Inlet/Outer Diameter | 10mm | 10mm; Thread size: M18=18mm. | 10mm | 10mm; Thread size: M18=18mm. |
Fitting Connect Hose Size | 12*8mm | 12*8mm | 12*8mm | 12*8mm |
Max. Flow | 5.5L/Min. | 5.5L/Min. | 5.5L/Min. | 5.5L/Min. |
Suction Head | 1.5m | 1.5m | 1.5m | 1.5m |
Noise Level | 50-55dB | 50-55dB | 50-55dB | 50-55dB |
Maximum Operating Temperature | <=100 Degrees Celsius | <=100 Degrees Celsius | <=100 Degrees Celsius | <=100 Degrees Celsius |
Diaphragms Material | TPV | TPV | TPV | TPV |
Net Weight | 0.66Kg | 0.66Kg | 0.66Kg | 0.66Kg |
Size | 168*77*65mm | 168*77*65mm | 168*77*65mm | 168*77*65mm |

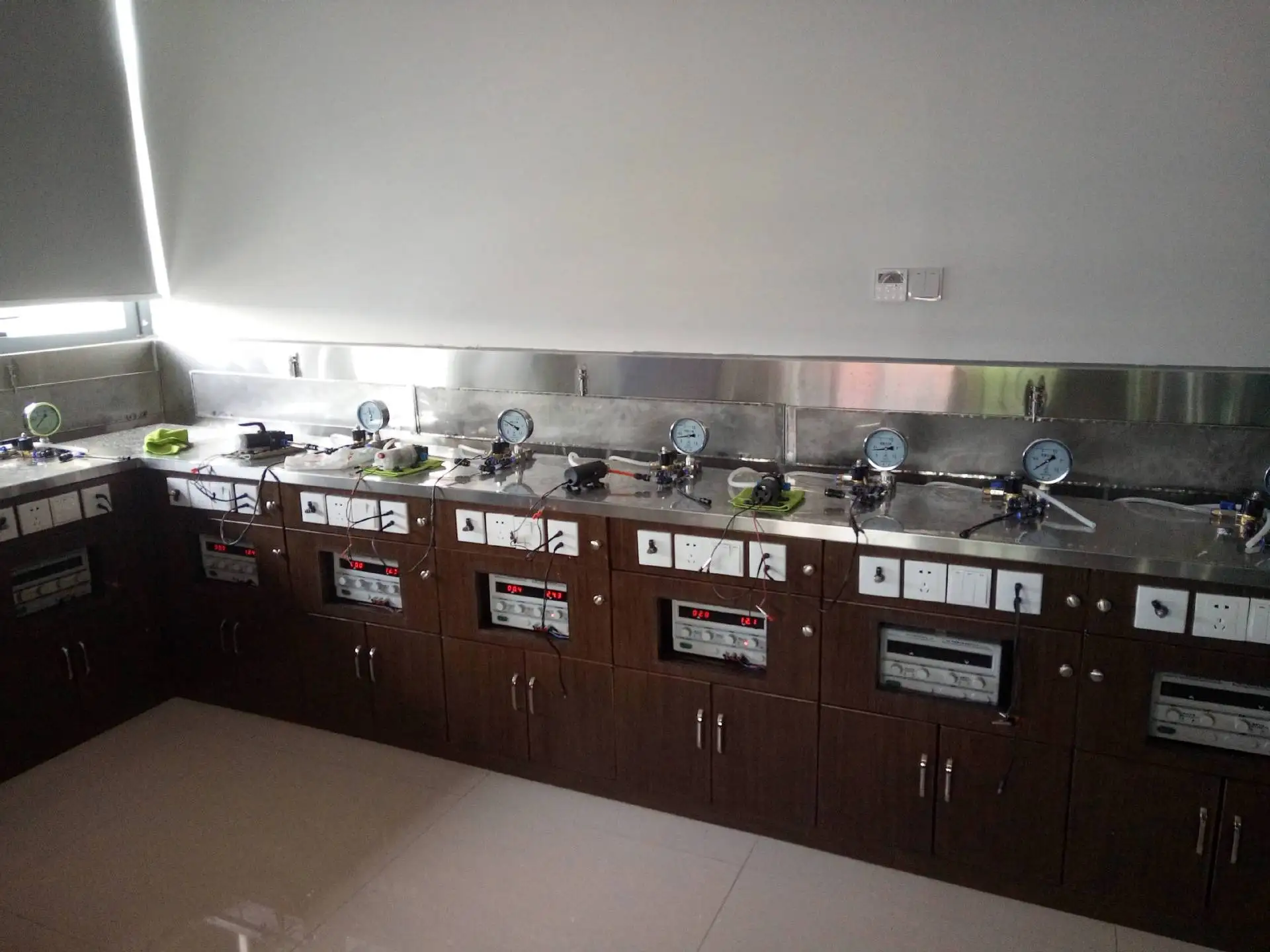

Test Showing

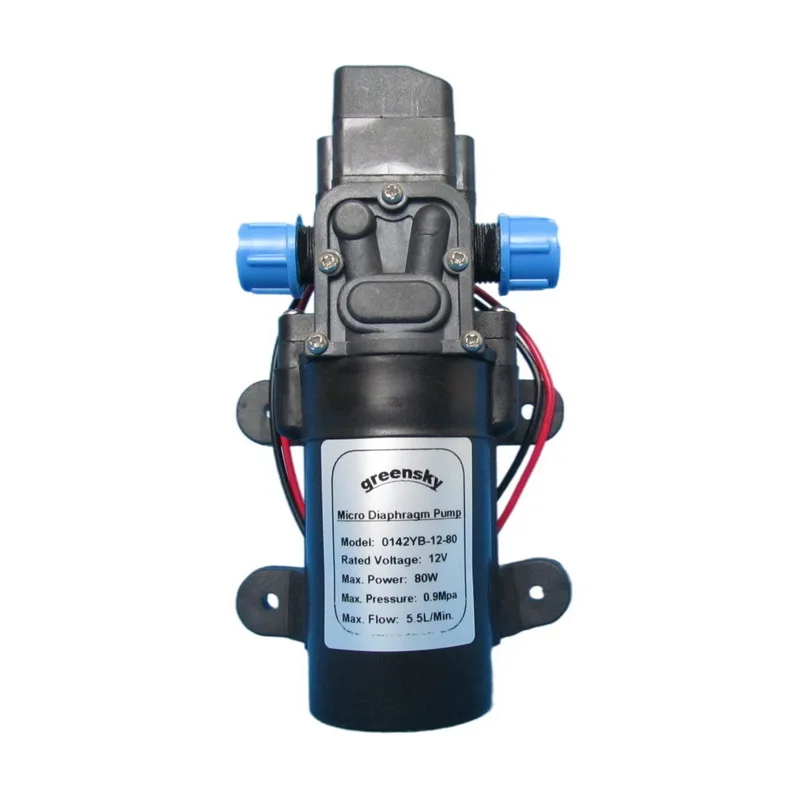

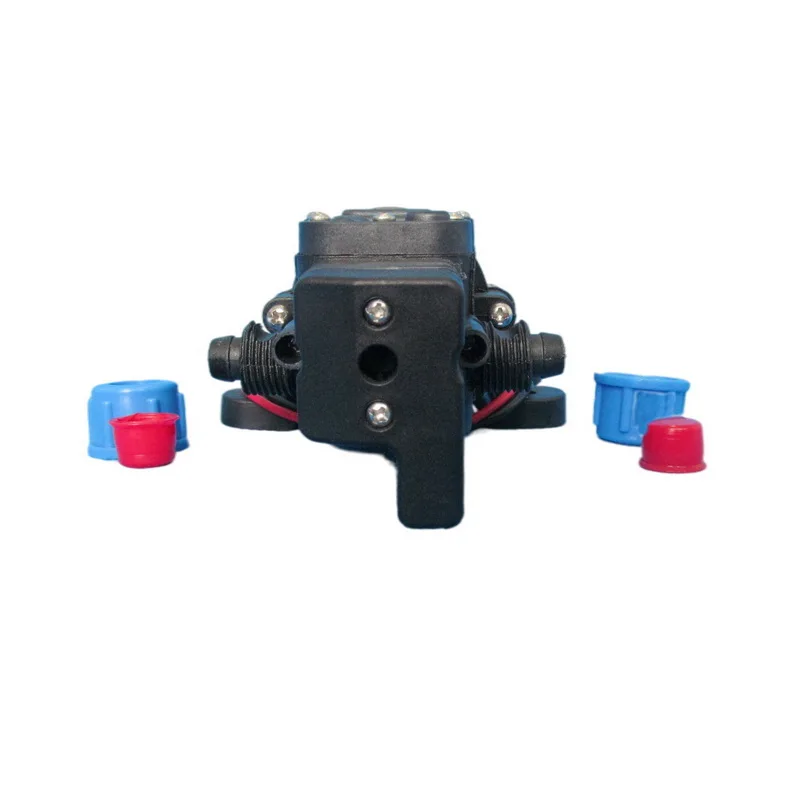

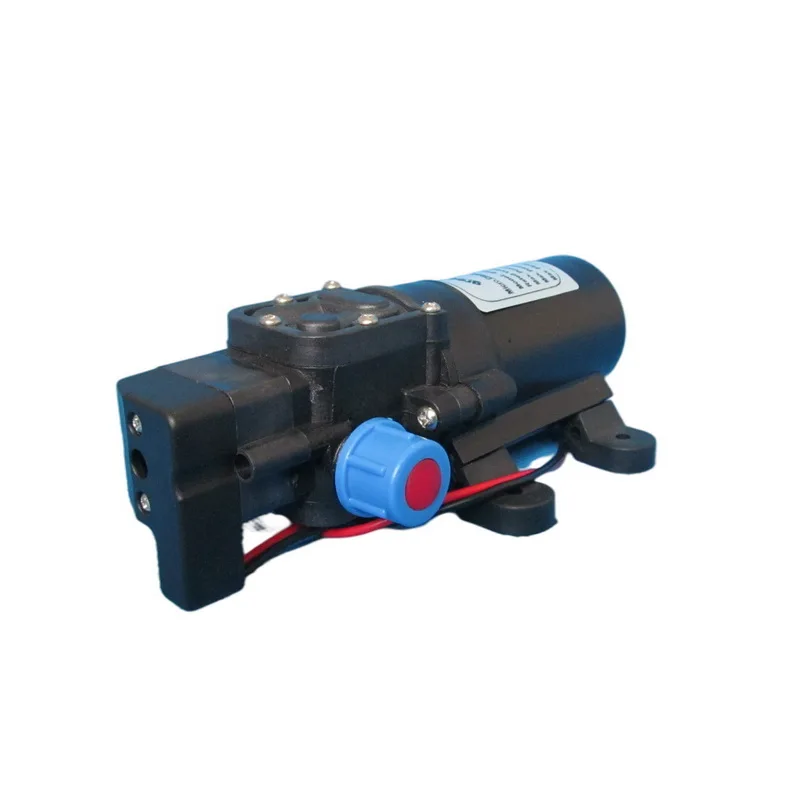

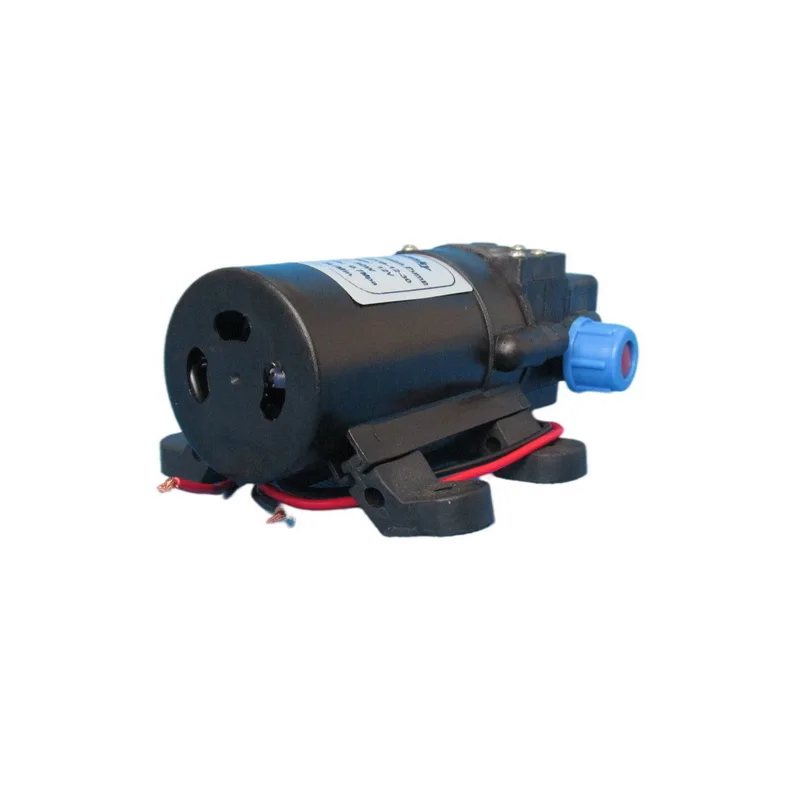

Details Images

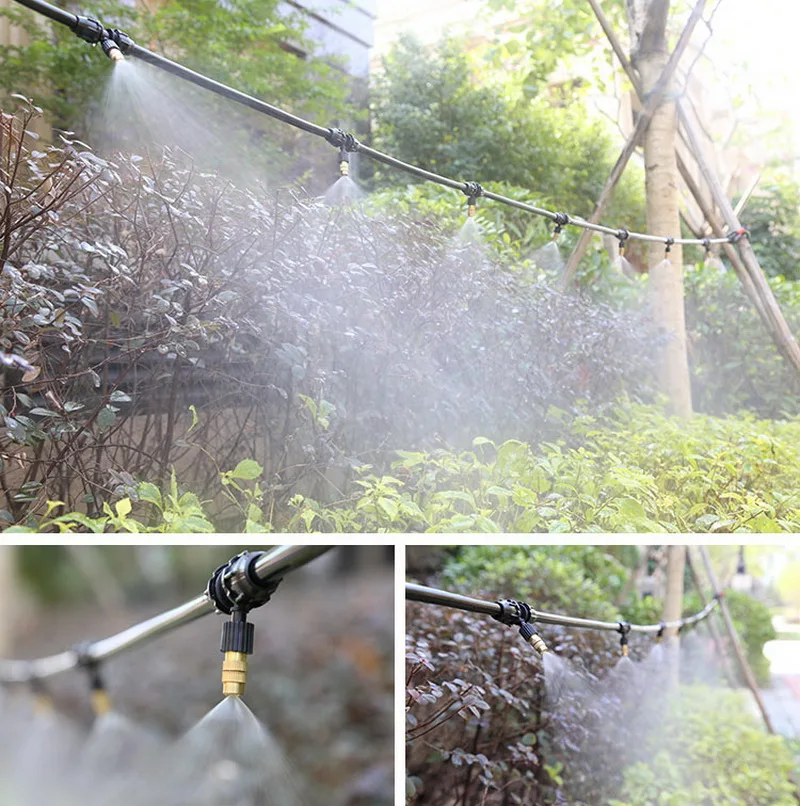

Main Application
Registered Trademark “GRIMMSKY”

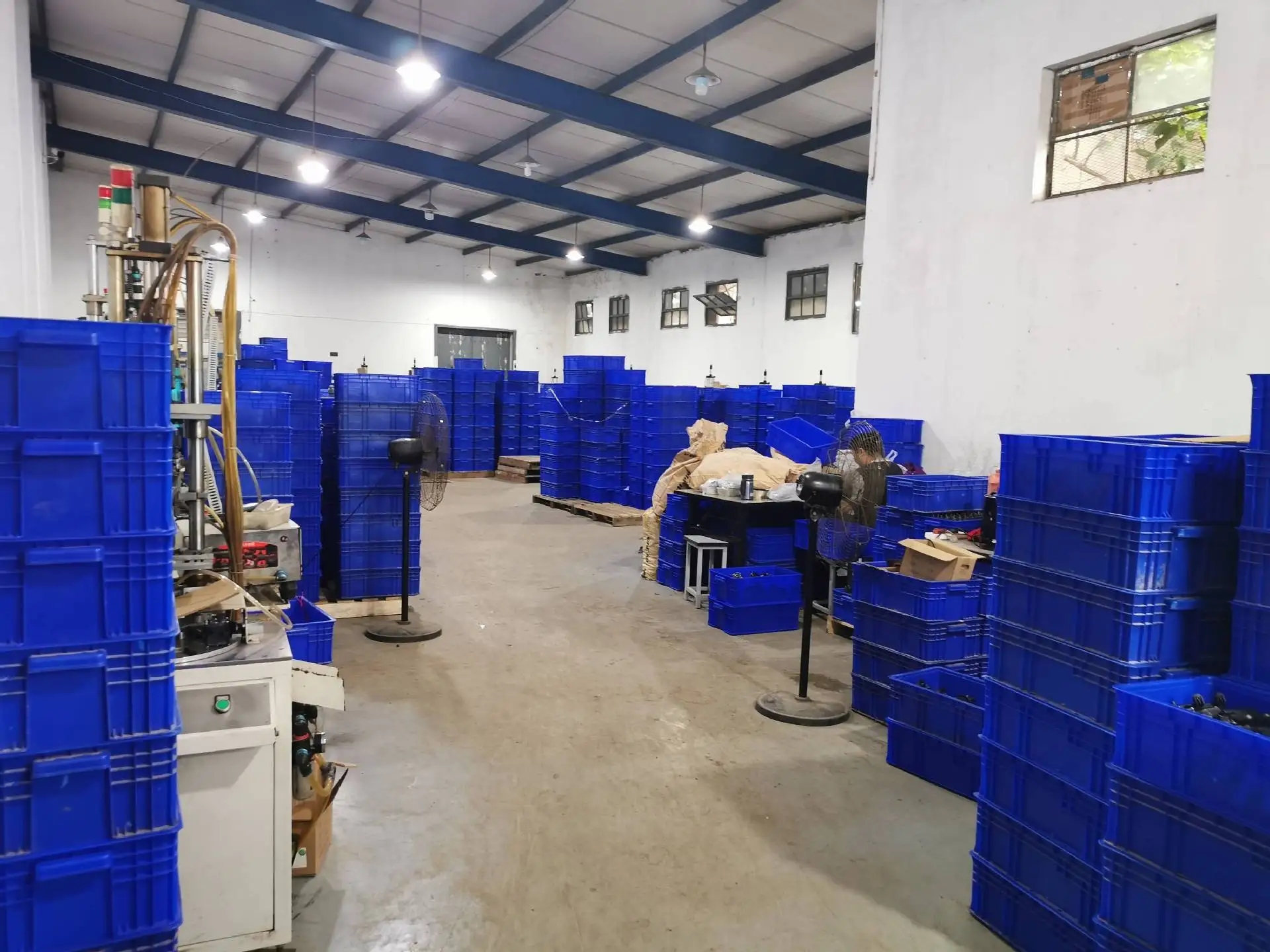

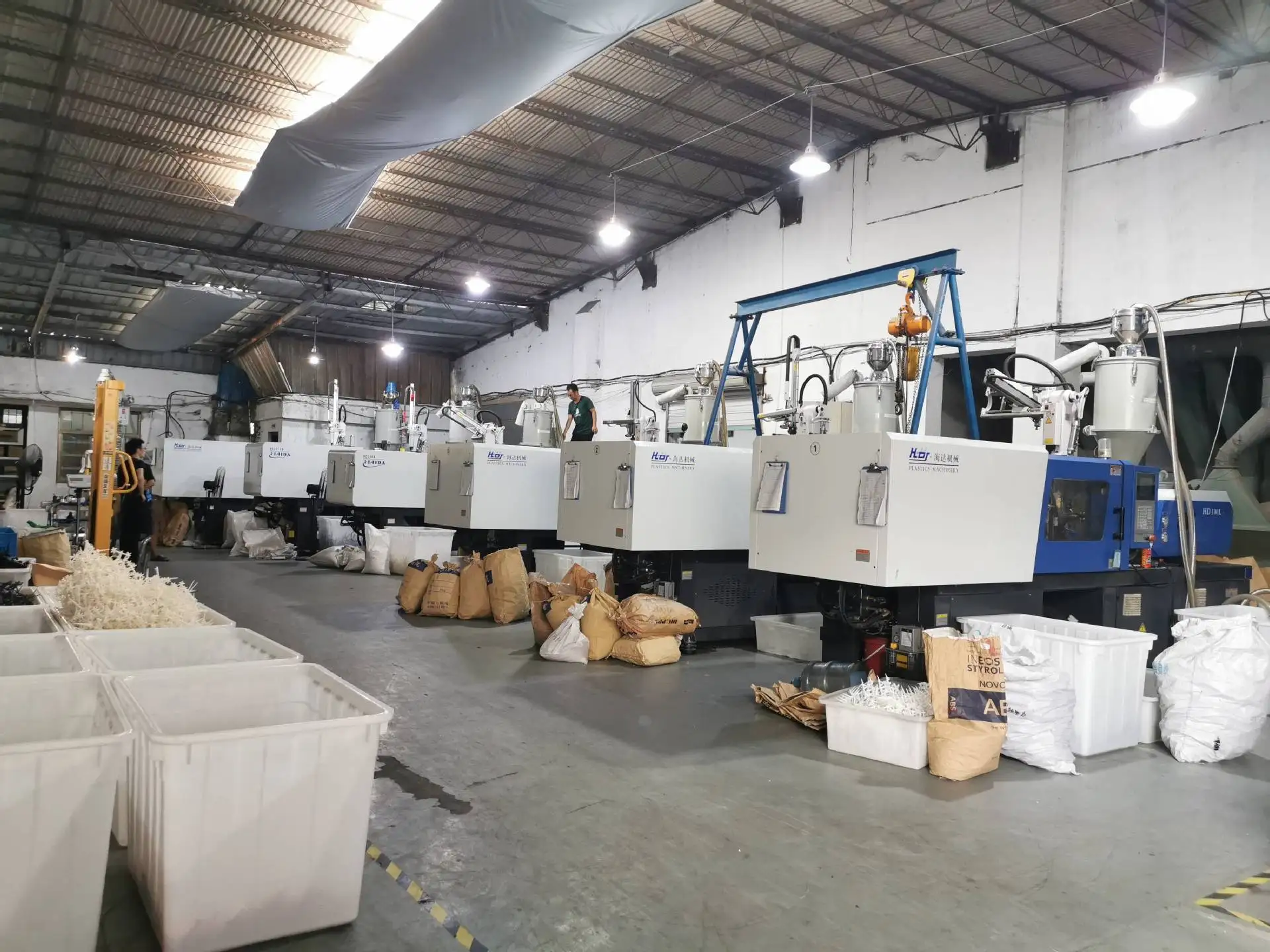

Factory Workshop Showing

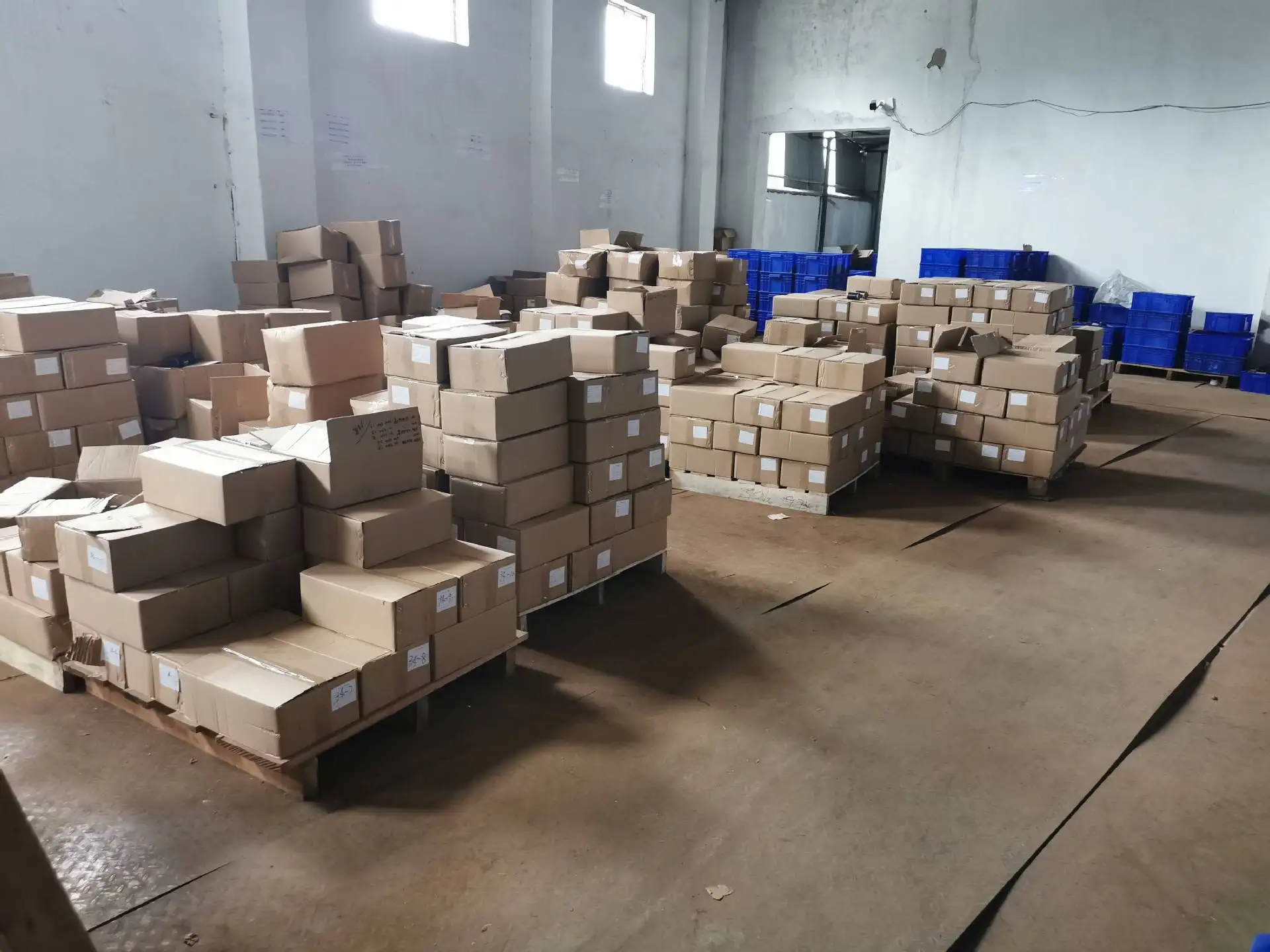

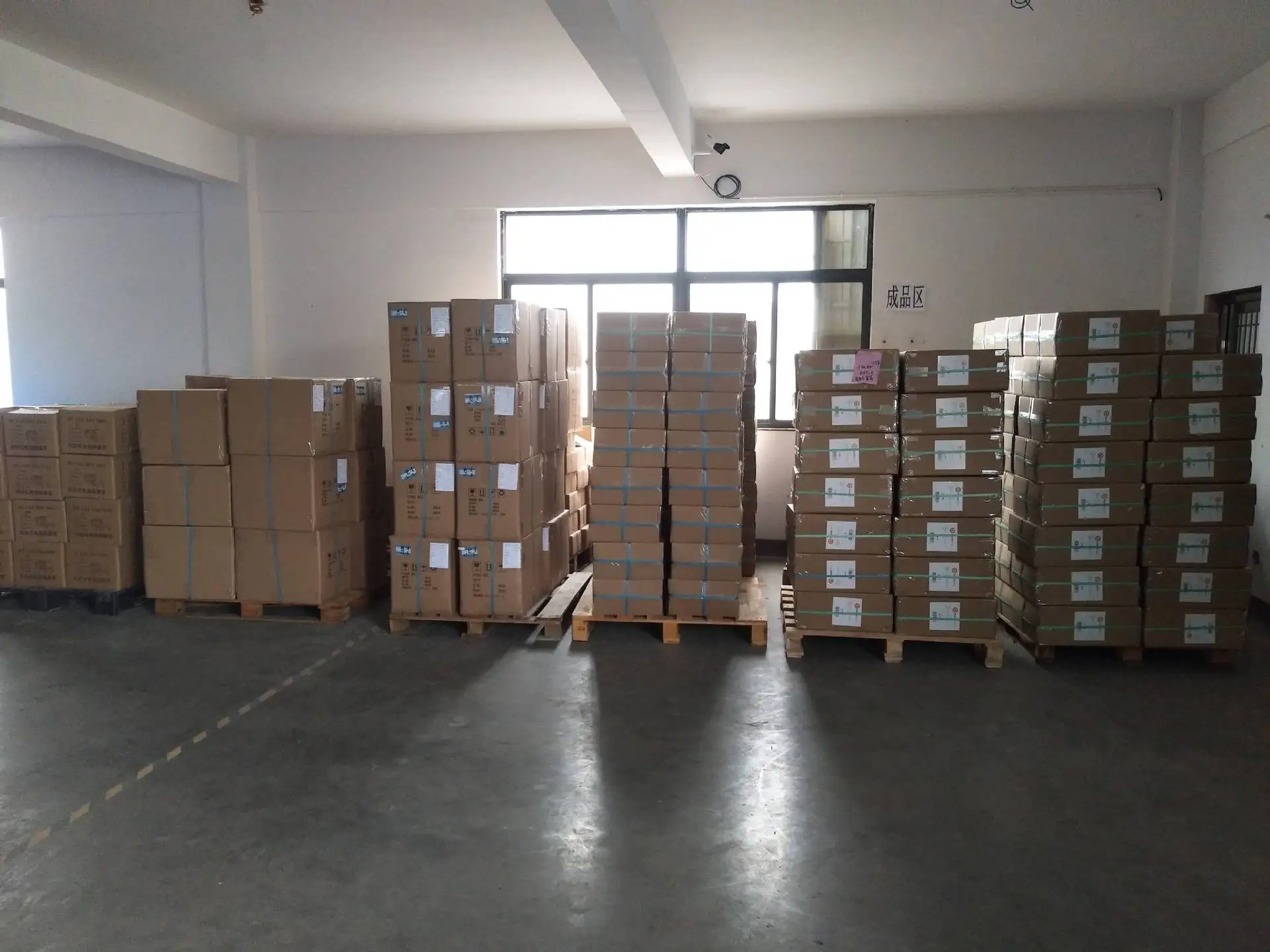

Packing Showing
