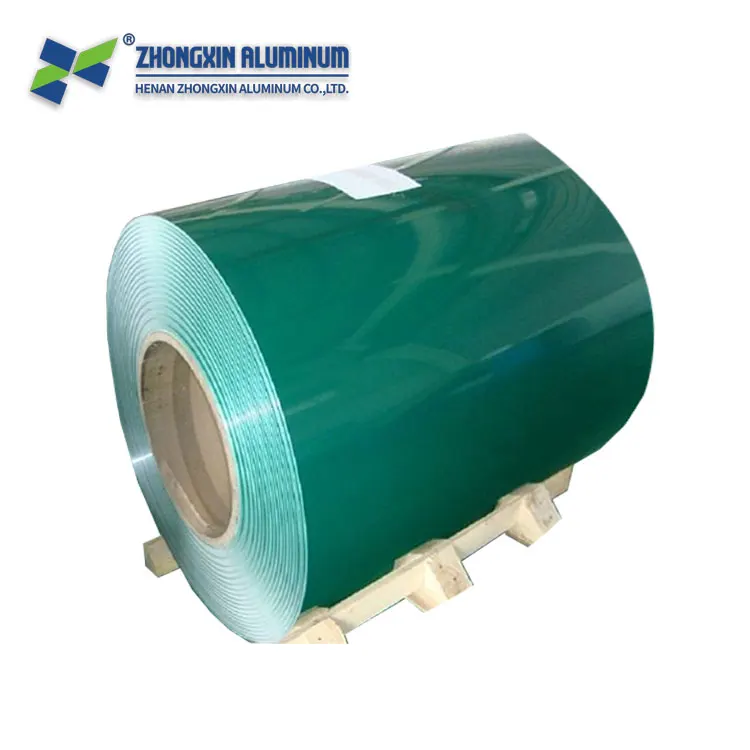

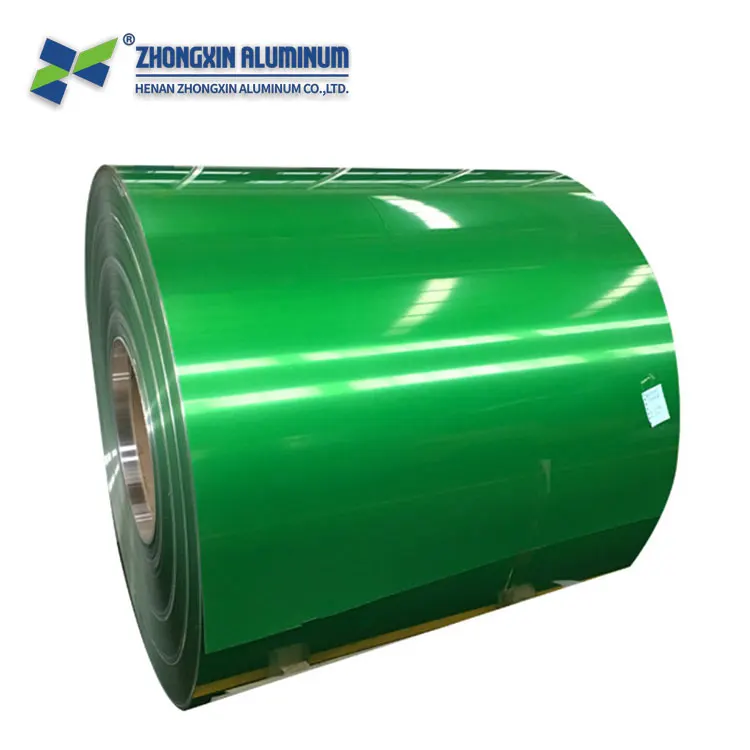

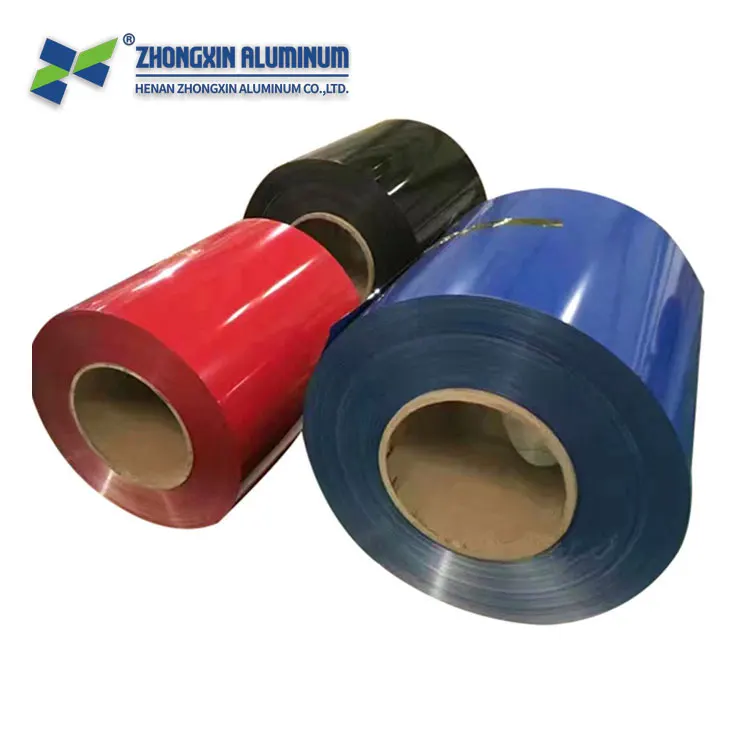

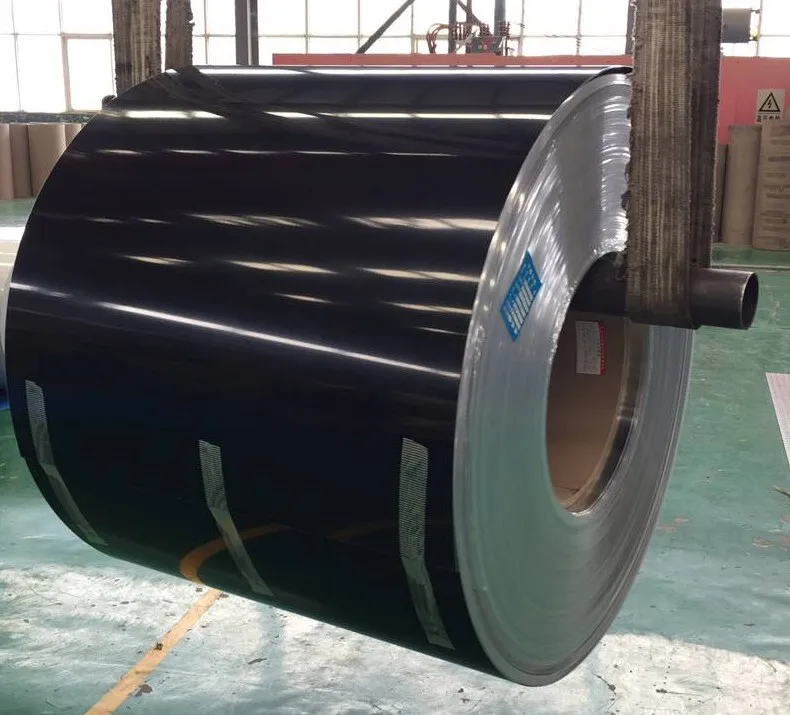

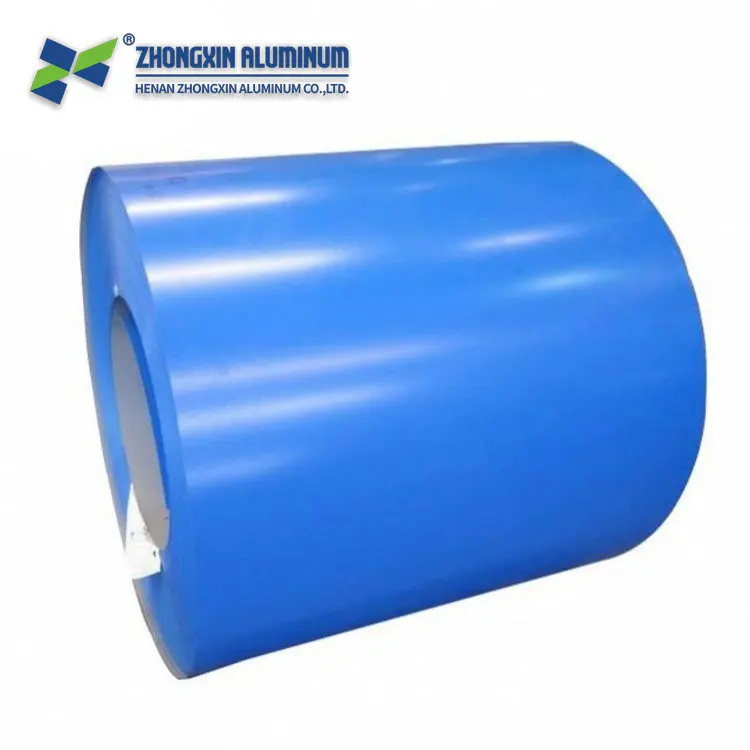

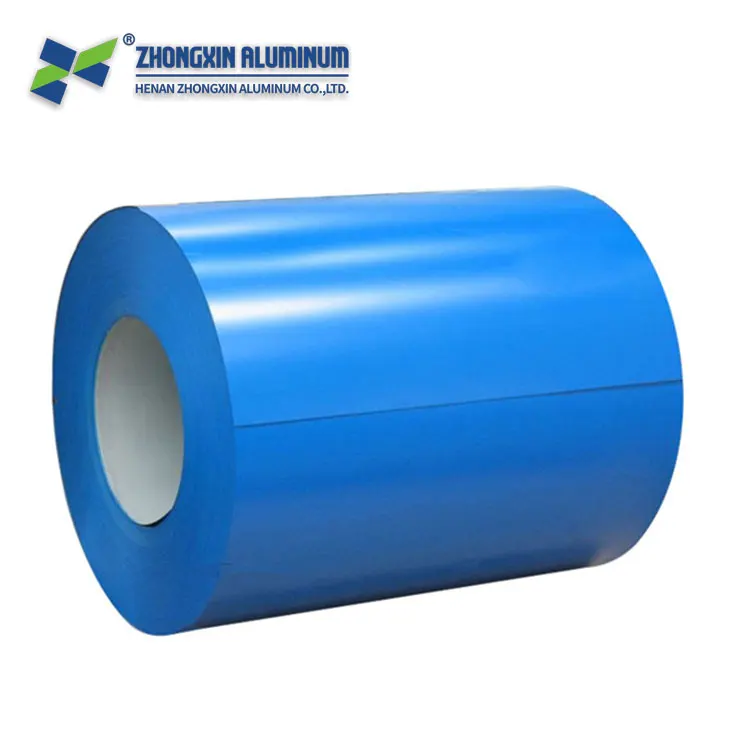

High quality 1050 painted aluminum coil for acp sheet price

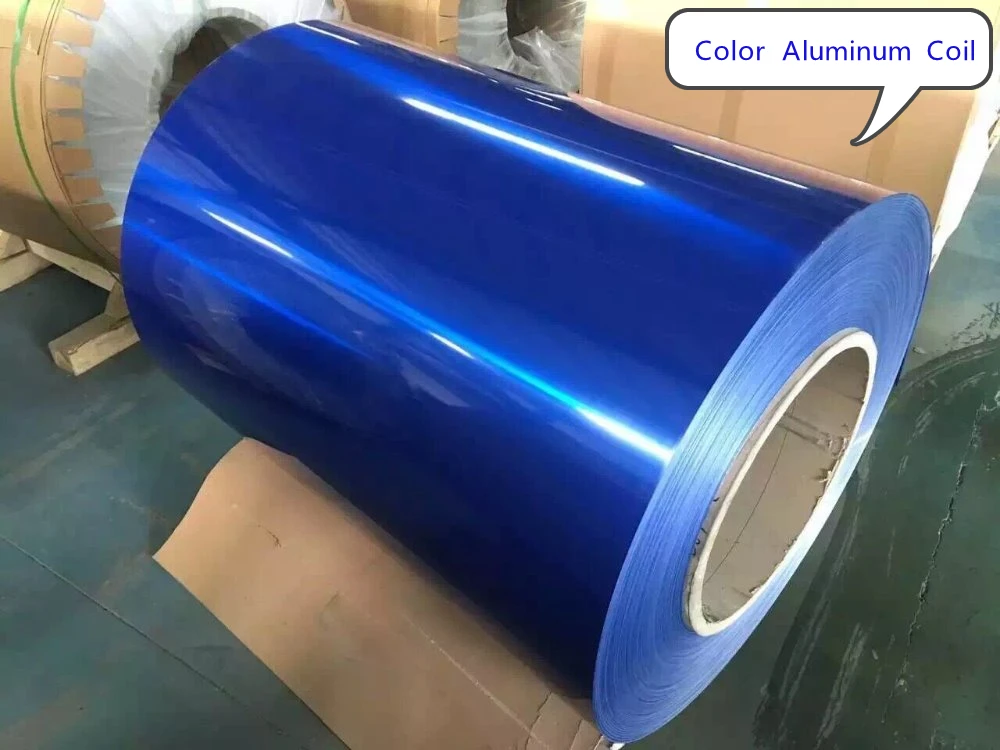

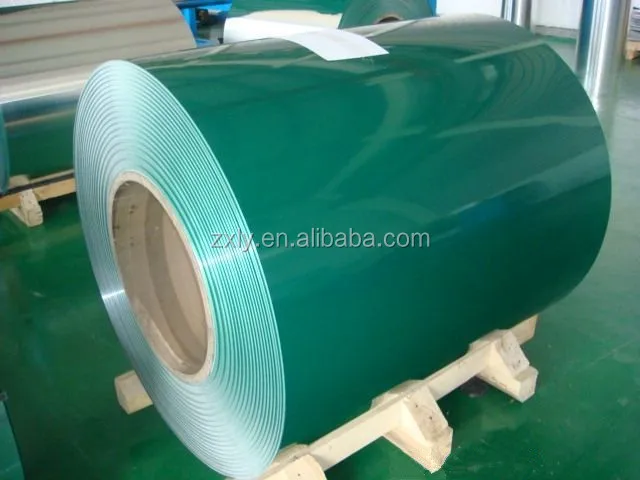

Color Coated Aluminum Coil/Plate
Material: A1100, A3003, A3004,A3105,A5052,A8011...... .
Coating: fluorocarbon, Polyester, Epoxy
Thickness: 0.2mm-4.00mm
Width: coated aluminum coil material 20mm-1580mm;
Core diameter: 150mm,405mm, 505mm, 508mm, 510mm
Coating thickness: PVDF (fluorocarbon) >=25micron POLYESTER >=18micron
Gloss: 10-90%;

Coating hardness: over 2H;

Adhesion: no lower than grade 1
Impact resistance: 50kg/cm paint no crack, polyester color used for 20 years, fluorocarbon used for 30 years without decolorization, paint.

Color: Pls provide RAL or Pantone Color No.

Color Coated Coil Information:

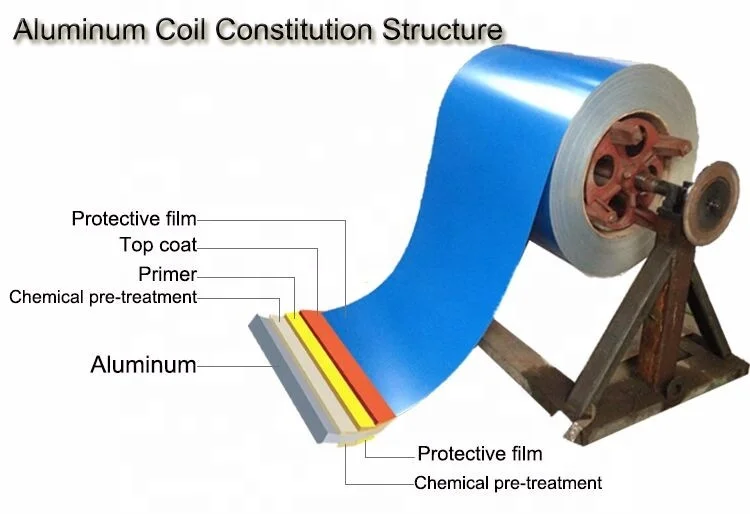

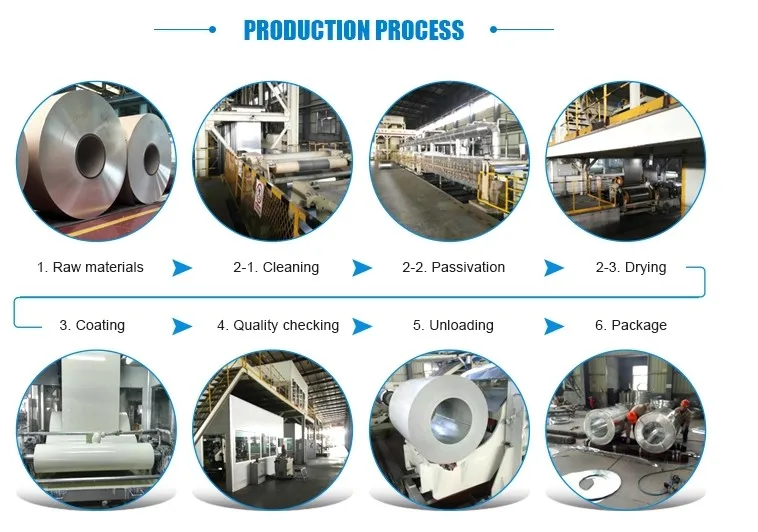

By processed with cleaning, chromification, roll coating, baking and etc, the surface of aluminum coil got a variety of colors of paint coating.

Because of its light texture, bright color, easy to process and shape, not rust and other advantages, color coated aluminum coil is widely used in aluminum composite panel, honeycomb board, insulation board, aluminum curtain wall, blinds, shutter window, aluminum magnesium manganese roofing system, aluminum ceiling, household appliances, downpipes, aluminum cans and many other fields.

Note: For outdoor applications, we suggest PVDF coatings.

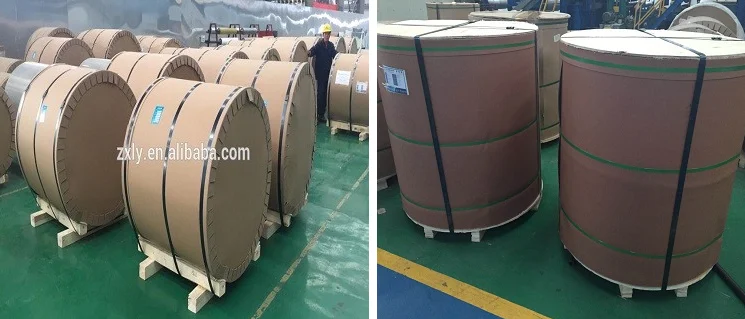

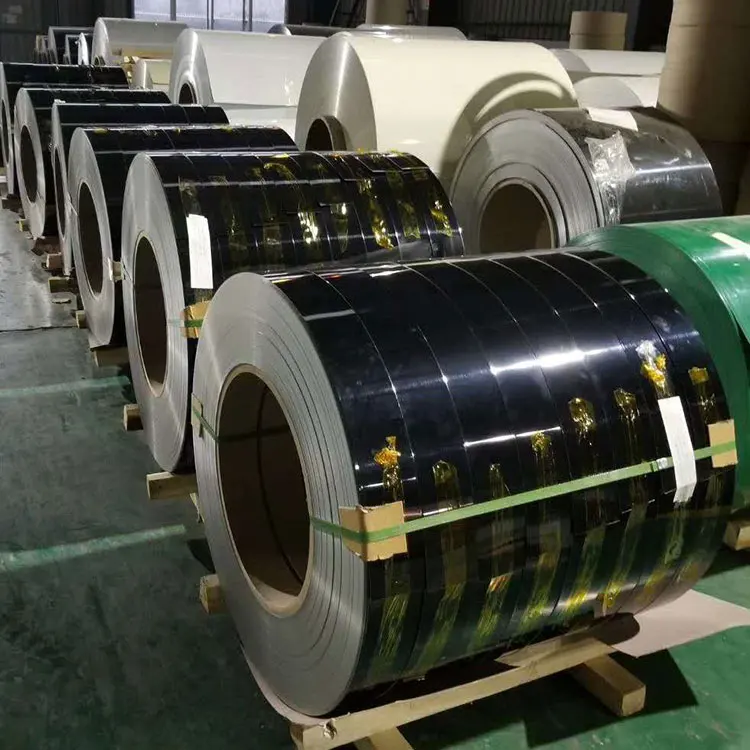

Packing Details of Pe Aluminum Coil

Eye to wall/ Eye to Sky

The aluminum coil are covered with plastic film/kraft paper, put into drier, fastened with plastic/steel belts, then packed on seaworhty export wooden pallets;

Henan Zhongxin Aluminum Co., Ltd, founded in 2002, a large manufactuer inGongyi Henan China, is very specialized in producing aluminum sheet/coil/foil, mirror finish aluminum sheet, color coarted aluminum coil, aluminum checker plate, embossed aluminum sheet, anodized aluminum sheet, etc.

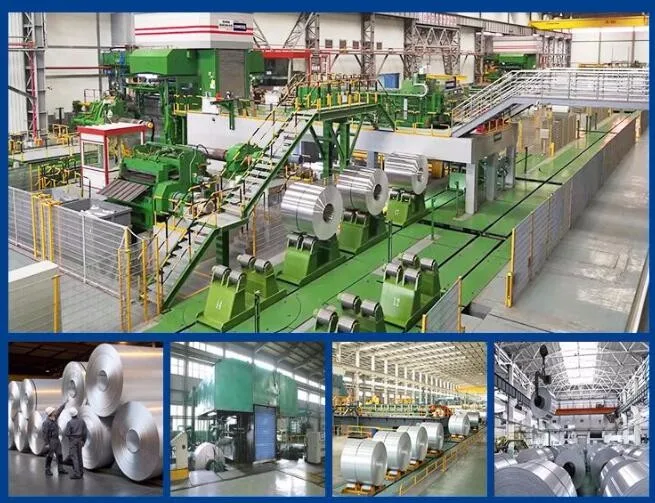

Main Equipment: 23 casting & rolling production lines, one (1+4) hot-rolling production line, 9 cold-rolling mills, 4 foil-rolling mills,

tension levelers, flying shears, annealing furnaces, 3 Germany auotmatic roller coating production lines, 3 embossing machines, slitting machines, mirror polishing machines, etc.

Thanks for your time and interest. Please tell the thickness, size, alloy, temper and quantity you need. I'll give you a timely reply within 24 hours.
