Brass Wire EDM Wire Intermediate Wire Drawing Machine
- Category: >>>
- Supplier: Jiangsu Brainpower Intelligent Technology Co. Ltd.
Share on (1600439539600):
Product Overview
Description
PRODUCT OVERVIEW
Brass Wire EDM Wire Intermediate Wire Drawing Machine
Brass Wire EDM Wire Intermediate Wire Drawing Machine is used for drawing brass wire.
Outlet wire can be collected by single spool take up or coiler.
FEATURE
1). Ironed cast
2). Inlet wire: 2.6-3.0mm, outlet wire: 1.13-2.6 mm
3). Brass wire type: H63, H65, H68, H60 etc
2). Inlet wire: 2.6-3.0mm, outlet wire: 1.13-2.6 mm
3). Brass wire type: H63, H65, H68, H60 etc
MAIN SPECIFICATION
Machine type | BRN-9DH |
Inverter control | Dual inverter control |
Drawing dies No./max. | 9 |
Inlet diameter | Ø 2.6- 3.0mm |
Out diameter | Ø1.13- 2.8mm |
Drawing line speed /max | 1200m/min |
Slip ratio of m/c | 15% |
Frame | Ironed cast |
Main motor | 45kw |
Spooler motor | 11kw |
Fix speed capstan dia. | Ø 250mm |
Spool bobbin size | Ø 500mm or according to customers |
Optional function | Coiler Annealing |

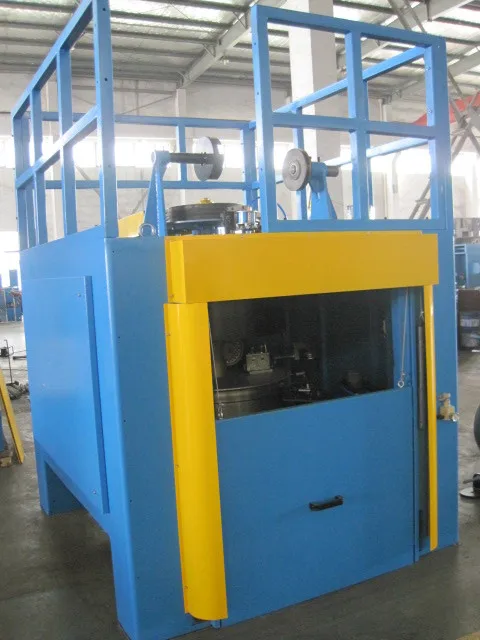

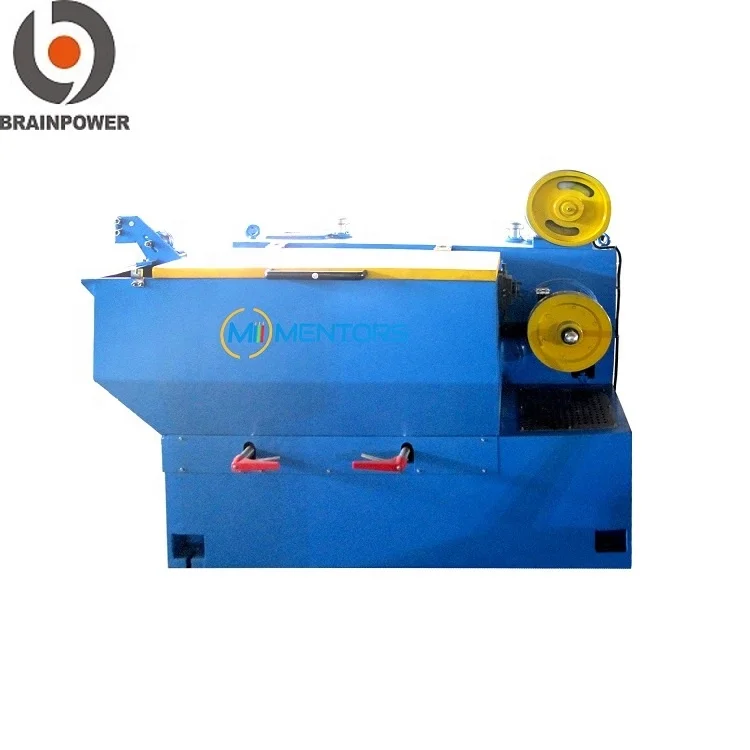

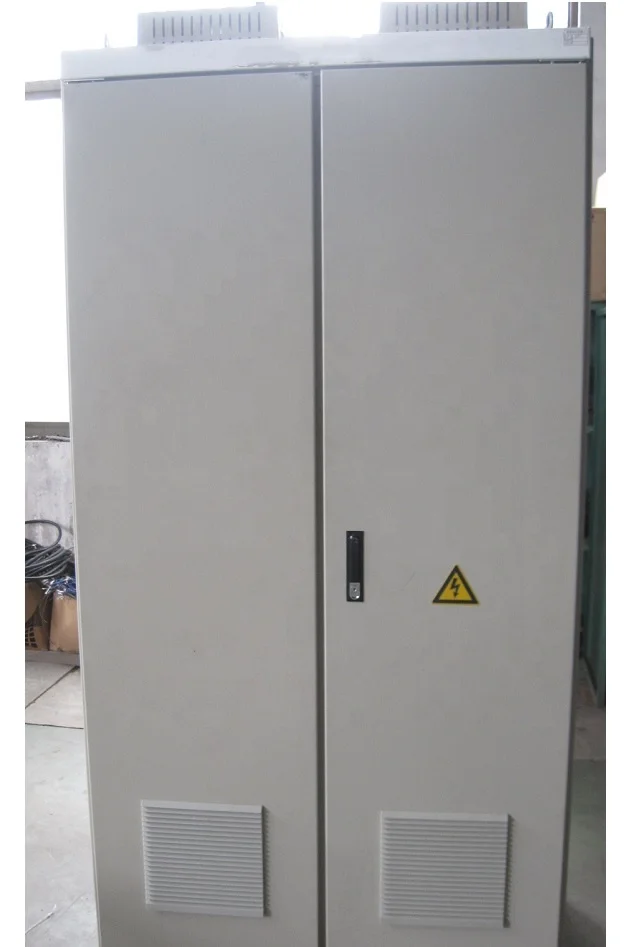

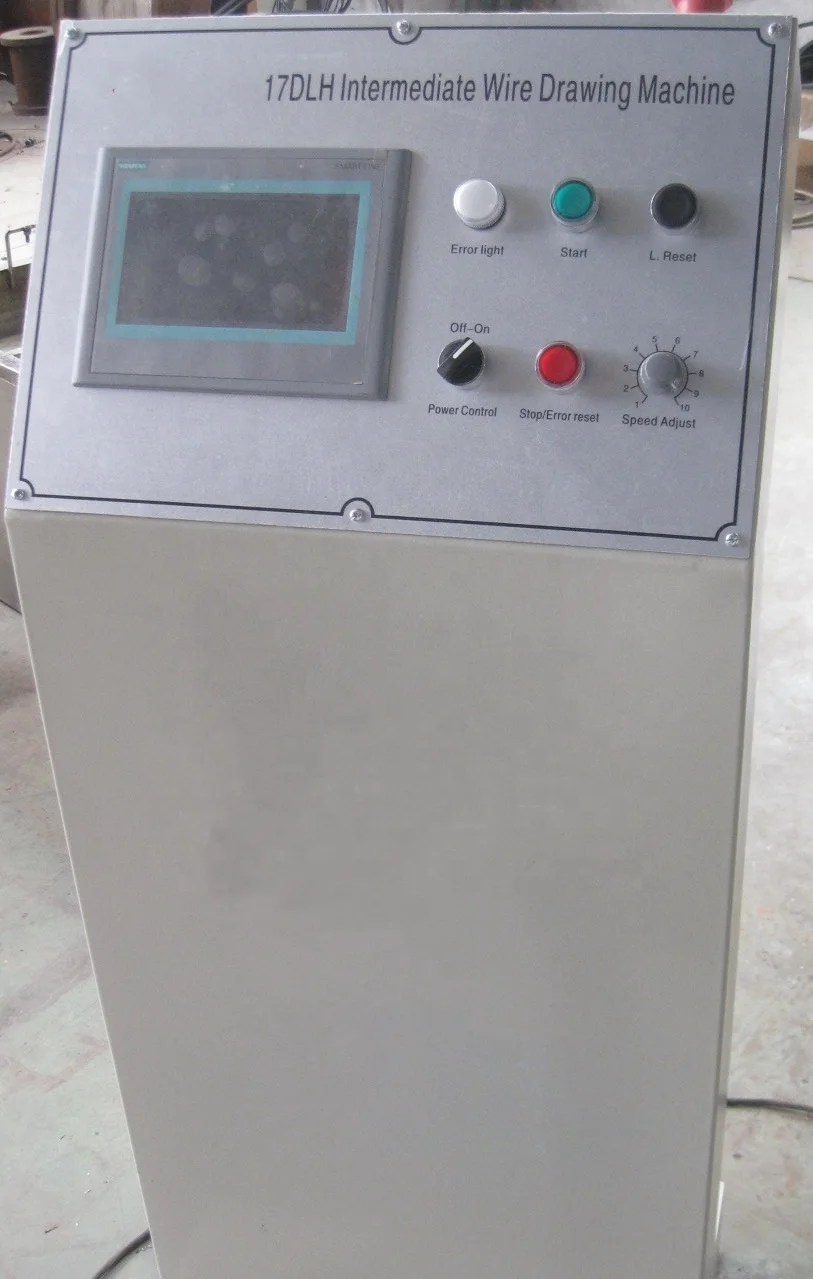

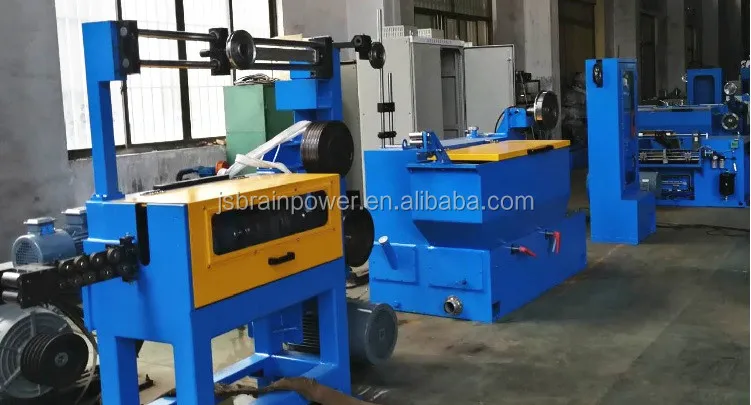

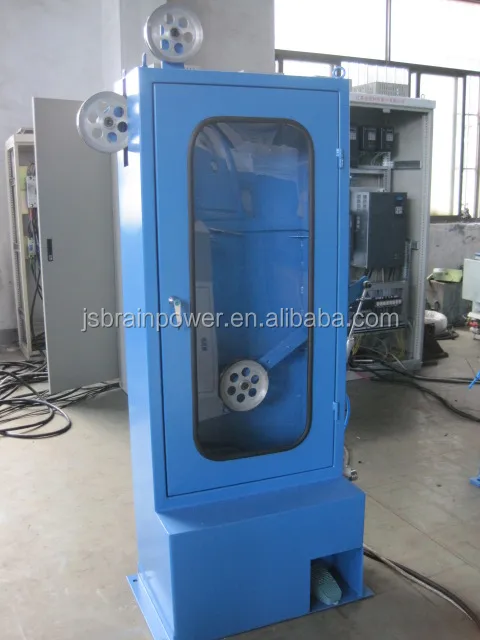

PHOTO SHOW
ADVANTAGES
1). Special seal system between the gear box and drawing section to prevent oil leakage and mixed.
2). Ironed cast and Wear-resistant capstan can keep long life.
3).For Second-section-annealing system, outside electrically neutral (no current flow to other unit)
4).Special gear ratio and mechanical reduction ratio which is suitable for brass wire.5).Shaving device can be equipped before wire drawing machine for better surface of finished wire.
2). Ironed cast and Wear-resistant capstan can keep long life.
3).For Second-section-annealing system, outside electrically neutral (no current flow to other unit)
4).Special gear ratio and mechanical reduction ratio which is suitable for brass wire.5).Shaving device can be equipped before wire drawing machine for better surface of finished wire.

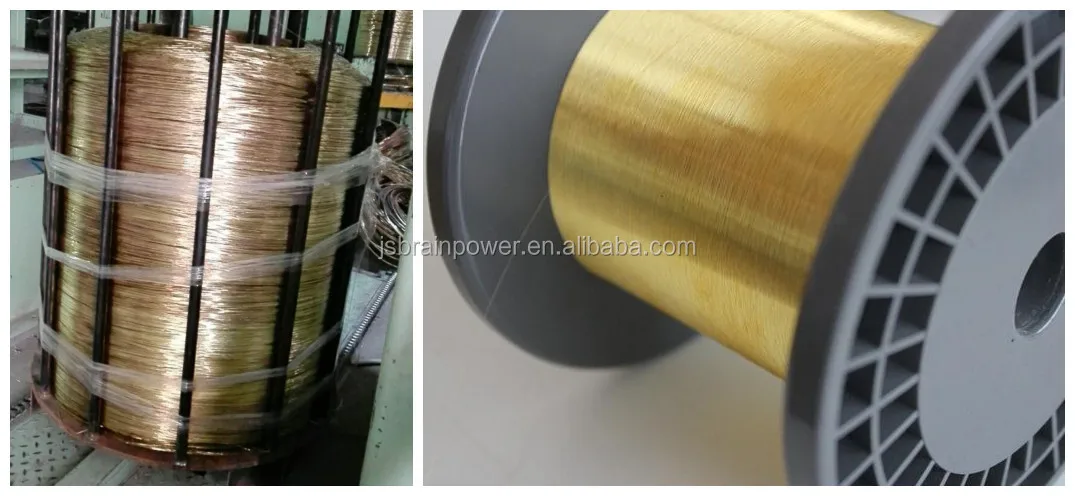

FINISHED PRODUCT SHOW
TRADE SHOWS
FAQ
Q1: What’s the payment terms?
A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.
Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.
Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.
Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
