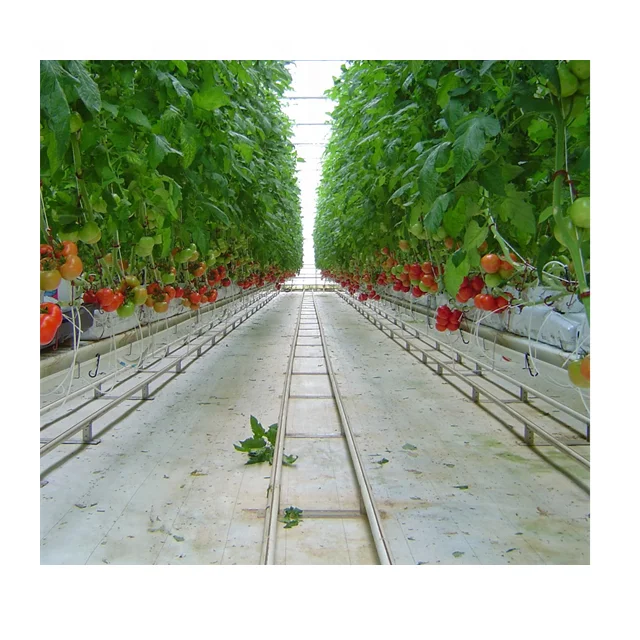

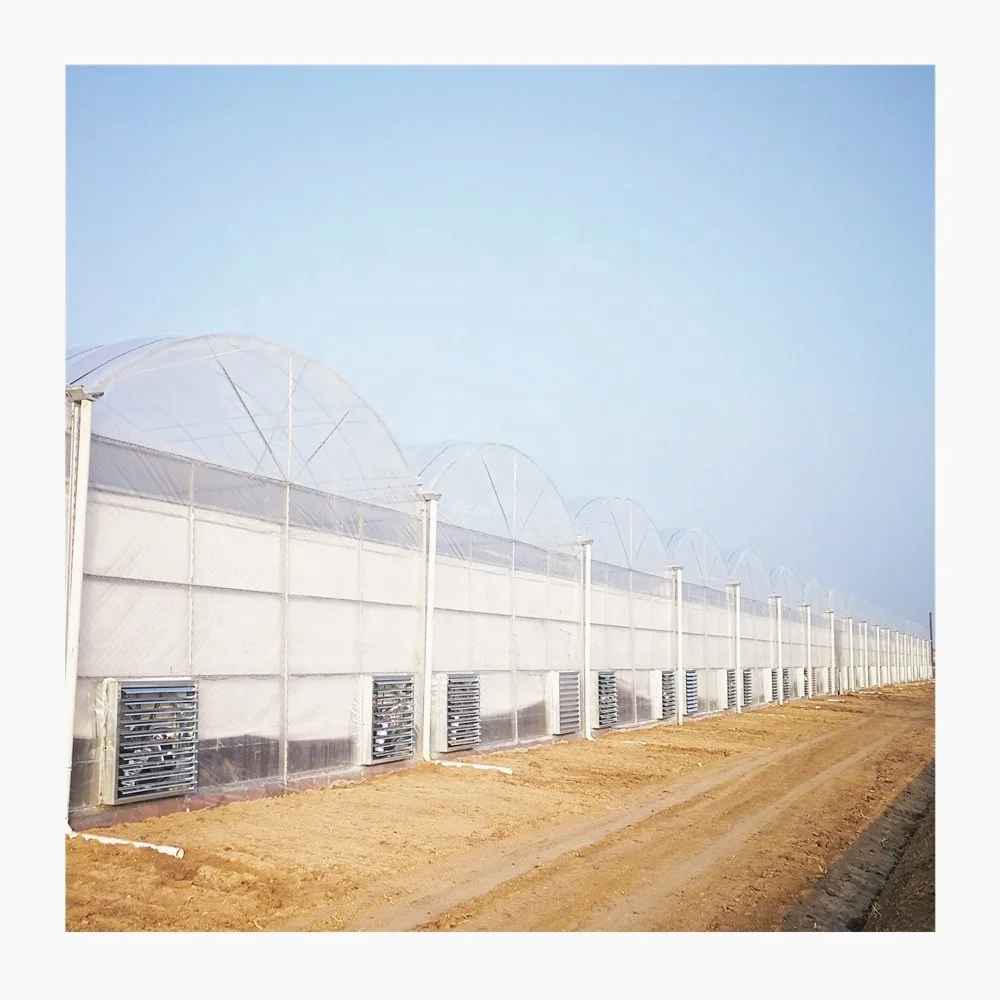

Agricultural Tomato Greenhouse Film Green Houses Tomato Hydroponic System for Tomato
- Category: >>>
- Supplier: Qingzhou Rainbow Modern Agriculture Development Co. Ltd.
Share on (1600439551612):
Product Overview
Description
Greenhouse Specification
Gutter height | 5m is recommended according to the characteristic of tomatoes, and the height can also be customized according to customer requirements |
Span width | 8m |
Column space | 4m |
Greenhouse size | Customizable, depending on land size |
Tomato Growth Characteristics
(1) Tomato is a kind of temperature-loving vegetable. Under normal conditions, the optimum temperature is 20-25℃, and the optimum soil temperature for root growth is 20-22℃;
(2) Tomatoes like light, the light saturation point is 70,000 lx, and the suitable light intensity is 30,000 ~ 50,000 lx;
(3) Tomatoes like water, generally 60%～80% soil humidity and 45%～50% air humidity are appropriate;
(4) Tomatoes are not very demanding on soil conditions. They grow well in deep soil, well-drained, and rich in organic matter-rich loam soil;
(5) The PH of the soil is preferably 6～7.
(2) Tomatoes like light, the light saturation point is 70,000 lx, and the suitable light intensity is 30,000 ~ 50,000 lx;
(3) Tomatoes like water, generally 60%～80% soil humidity and 45%～50% air humidity are appropriate;
(4) Tomatoes are not very demanding on soil conditions. They grow well in deep soil, well-drained, and rich in organic matter-rich loam soil;
(5) The PH of the soil is preferably 6～7.

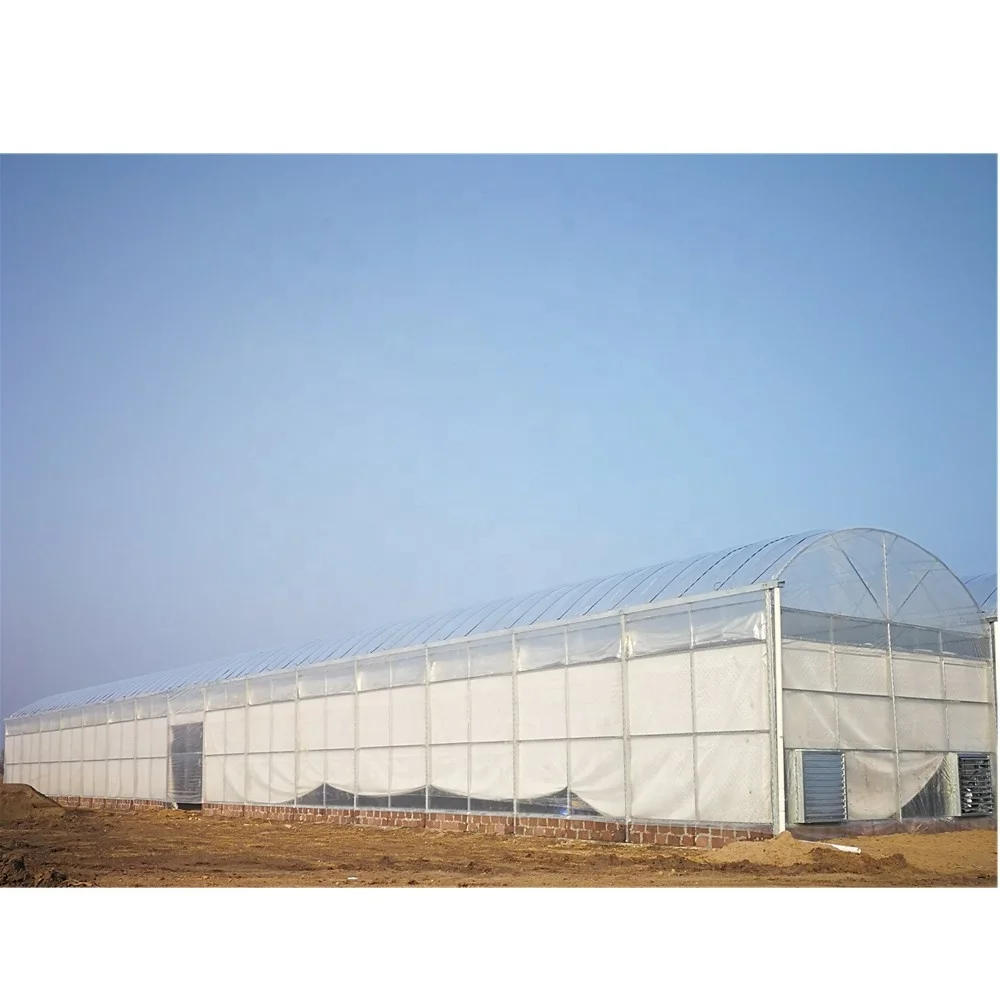

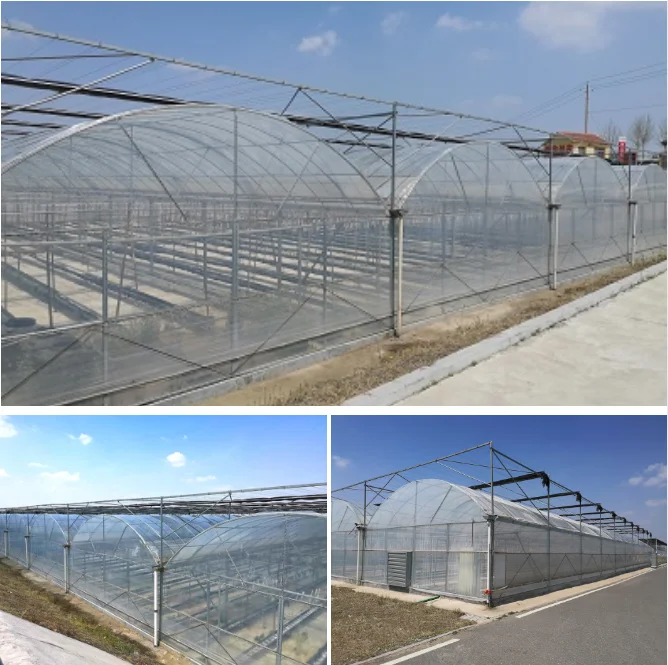

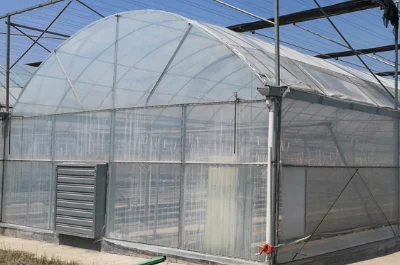

Greenhouse Structure

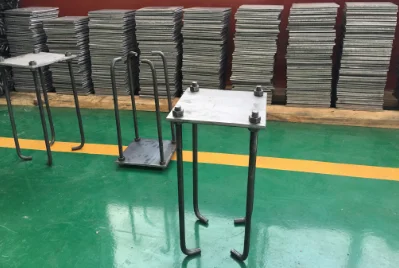

Connect the foundation and the greenhouse column

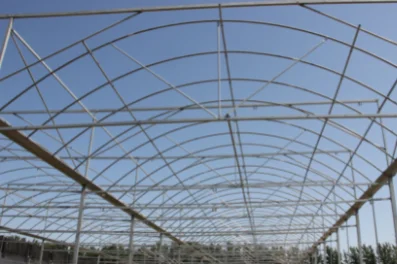

All columns, purlins, gutters are hot dip galvanized steel pipes, no welding, no corrosion, service life up to 30 years
1) PO film has anti-aging, anti-ultraviolet, anti-drip, anti-fog functions;
2) 150micron is recommended, customers can also choose different thicknesses according to the local climate.
2) 150micron is recommended, customers can also choose different thicknesses according to the local climate.

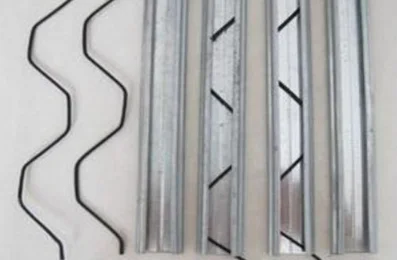

Spring slot & spring clamp
Used for fixing film

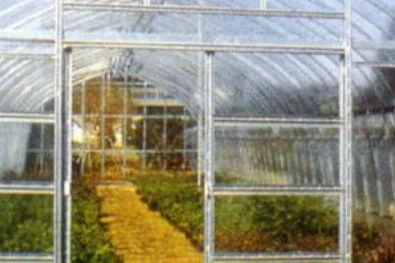

Film sliding door
Greenhouse System(depend on customers' requirement)

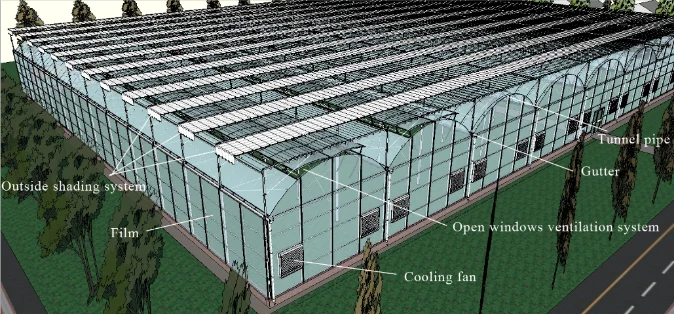

Greenhouse system
The greenhouse system is designed according to the local climate and the climate required by the crops.
For example, if the local summer temperature is 40°C and the temperature required for tomatoes is 25°C, it is necessary to design shading system and cooling system.
For example, if the local summer temperature is 40°C and the temperature required for tomatoes is 25°C, it is necessary to design shading system and cooling system.

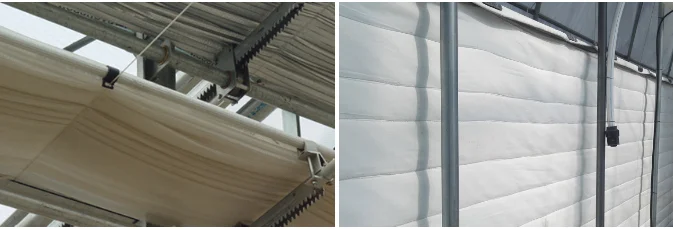

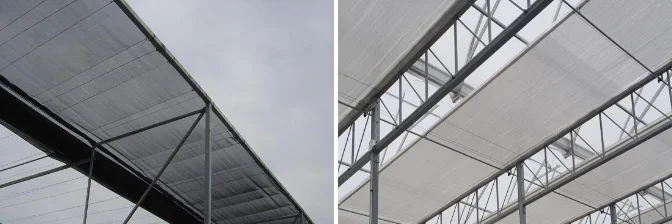

Shading System
The shading system is mainly used in summer, and plays a role of blocking light, raining, moisturizing and cooling.

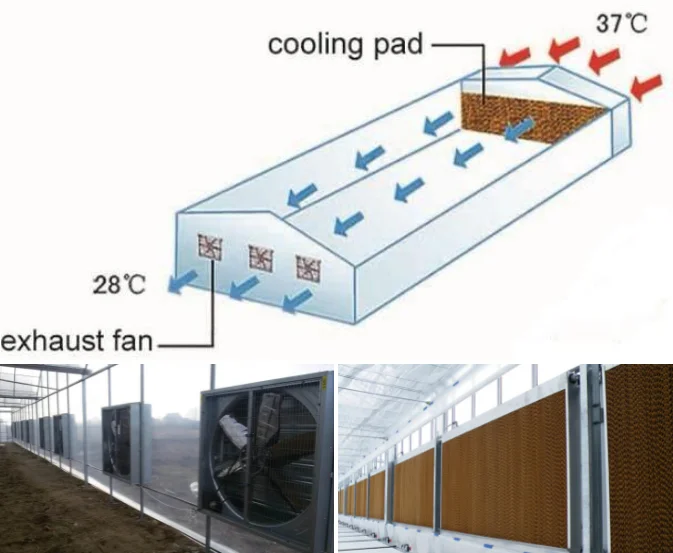

Cooling System
The fan and pad cooling system achieves the purpose of cooling down by absorbing heat into water vapor to evaporate.
Warming System
When the weather starts to cool down, the warming system can lock the heat in the greenhouse and protect the crops from freezing damage.
Planting Mode

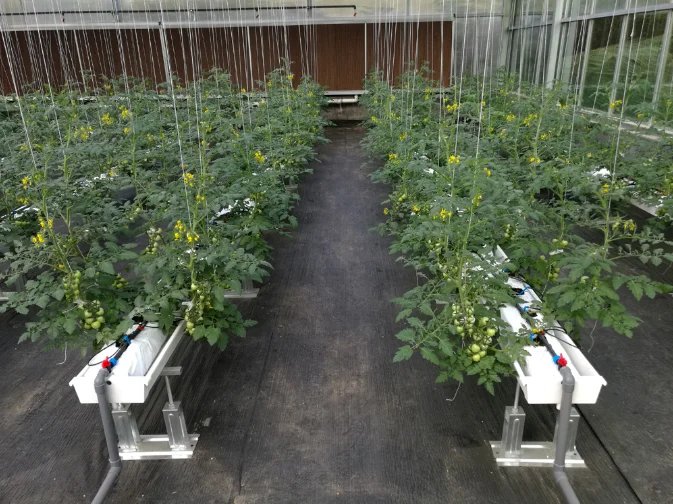

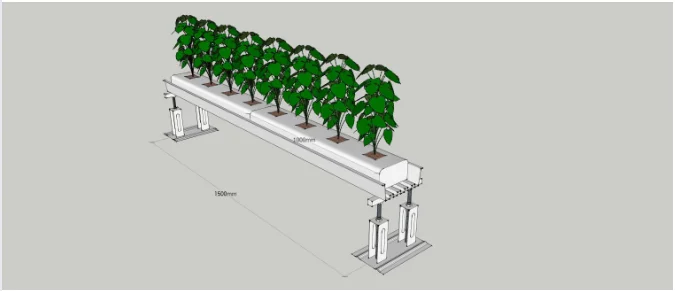

Cocopeat planting system
1. there are 5 rows per span (8m) and the row spacing is 1.6 meters.
2. Install drip arrows to achieve precise irrigation: one tomato, one drip arrow.
Company Profile
FAQ
* Q: Do you offer customized greenhouse?
A: Yes. We will offer design program and quotation to you as long as you offer details of local climate and requirements of the greenhouse you want.
* Q: How long is your delivery time?
A: Generally it is 20-30 days after order.
* Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample when we are doing activities but do not pay the cost of freight.
* Q: How to install the greenhouse? Do you provide installation service?
A: We will provide a full set of free construction drawings and installation instructions, or if needed we will send engineer to do installation guidance.
A: Yes. We will offer design program and quotation to you as long as you offer details of local climate and requirements of the greenhouse you want.
* Q: How long is your delivery time?
A: Generally it is 20-30 days after order.
* Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample when we are doing activities but do not pay the cost of freight.
* Q: How to install the greenhouse? Do you provide installation service?
A: We will provide a full set of free construction drawings and installation instructions, or if needed we will send engineer to do installation guidance.
