Оборудование для лабораторных испытаний Kecheng, настольная высокоскоростная Центробежная Центрифуга

Product Overview

Description

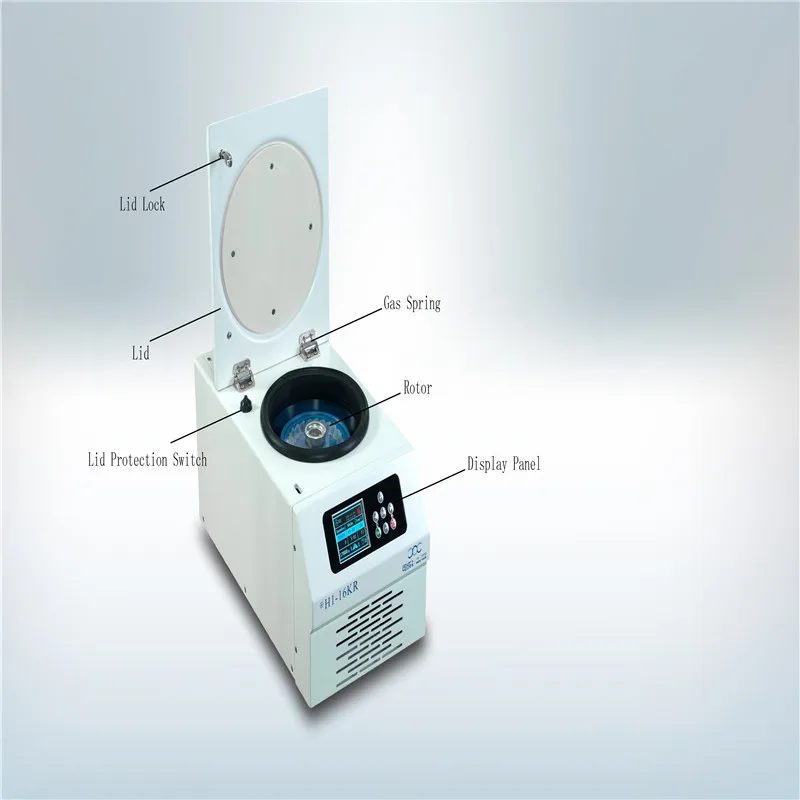

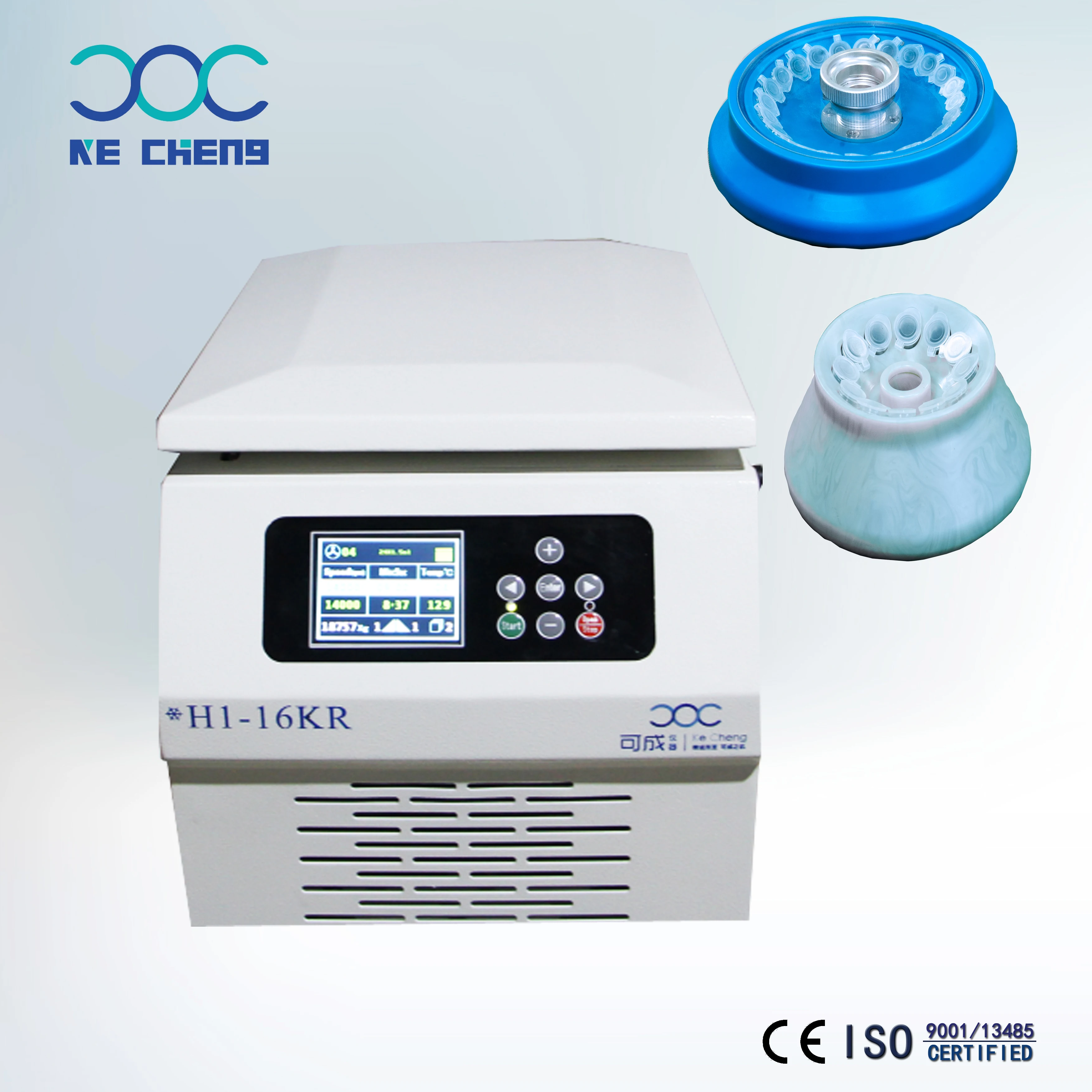

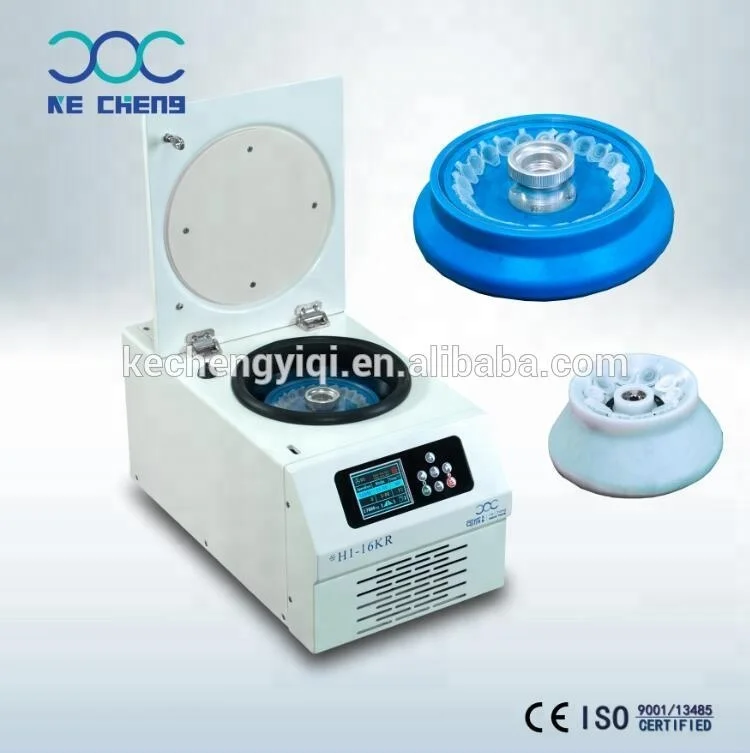

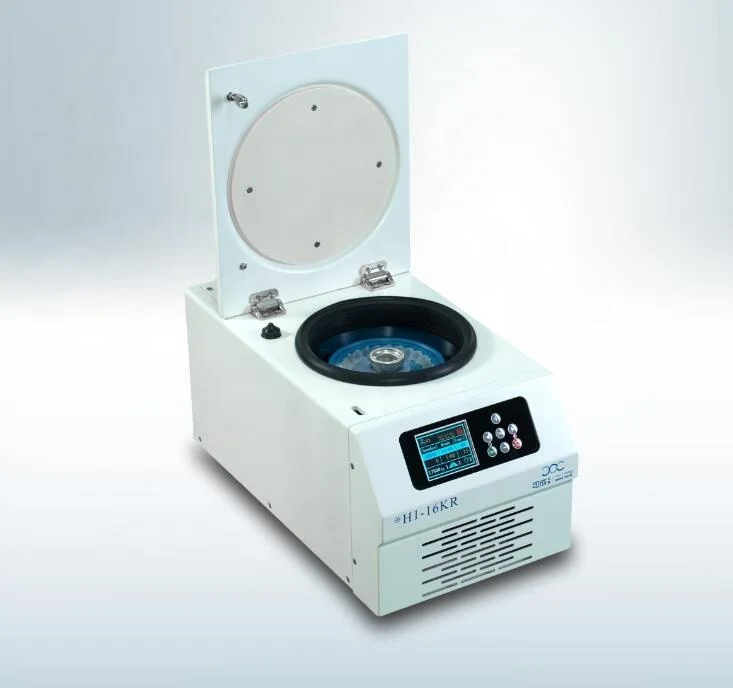

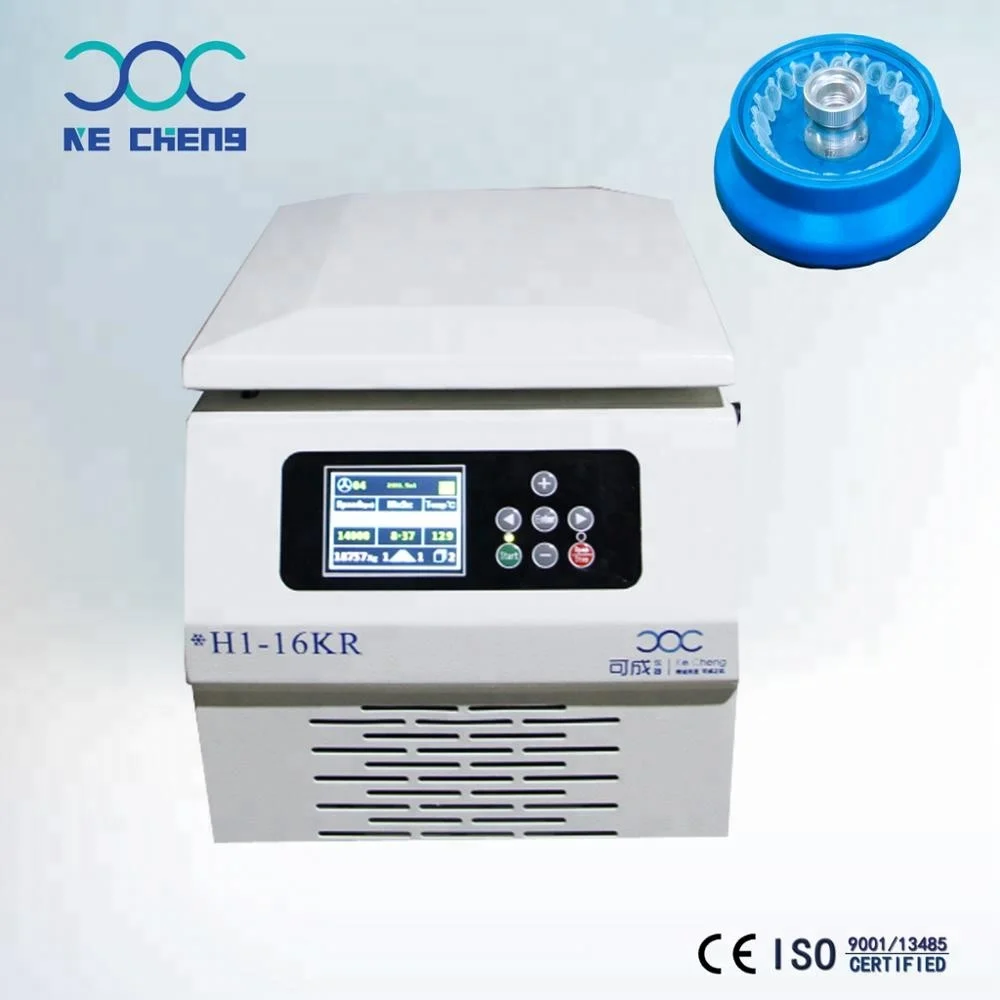

H1-16KR Table High Speed Refrigerated Centrifuge







Key Features:



Small size with LCD display, great space saver for the lab.

Steel structure, centrifuge chamber made of stainless steel.

AC frequency variable motor drives, stably and quietly during operation.

Parameters can be revised during operation without stopping.

Automatic calculates and displays RCF at the same time.

10 level speed control with 9 groups of program.

Emergency lid safety lock.

Imported energy-efficient ECO friendly refrigeration system.



Applications:

H1-16KR high speed refrigerated centrifuge is widely used in clinical medicine, biochemistry, genetic engineering, immunology, etc. It is an indispensable instrument for centrifugation at all levels of hospitals, research institutes, and universities.



Technical Parameter:



Model	H1-16KR
Max RPM  (rpm)	16500rpm
Max RCF	18757×g
Max Capacity	12×5ml
Timer	1min~99min
Revolutions/min	±10r/min
Temp Range	-20℃~40℃
Temp Accuracy	±1.0℃
Voltage	AC 220±22V 50Hz 10A
Power	550W
Noise Level	≤ 60dB(A)
Chamber Diameter	Φ160mm
Dimensions (L x W x H)	510×280×270 (mm)
Packaging Dimensions	610×380×370(mm)
Net Weight	40kg







Rotor	No	Capacity	RPM/RCF
Angle Rotor	1	16×1.5/2.2ml	16500rpm/18360×g
	2	12×5ml	15000rpm/15940×g
	3	24×1.5/2.2ml	14000rpm/18757×g
	4	4x8x0.2ml PCR	13500rpm/11610×g
