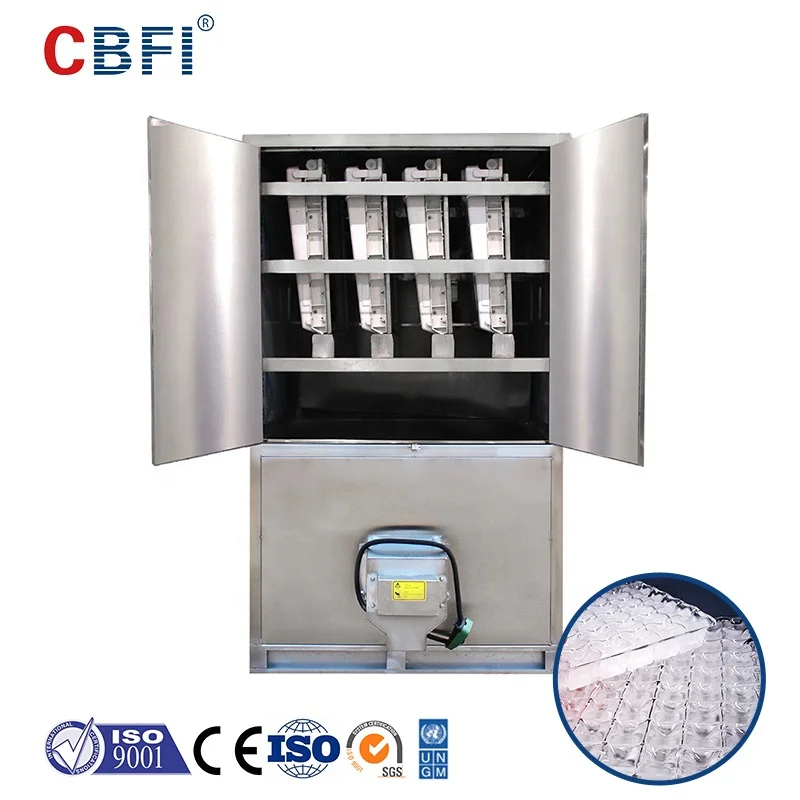

Automatic Commercial Ice Cube Machine Manufactures 1 3 Tons
- Category: >>>
- Supplier: Guangzhou Icesource Co. Ltd.
Share on (1600439570757):
Product Overview
Description
Product Overview

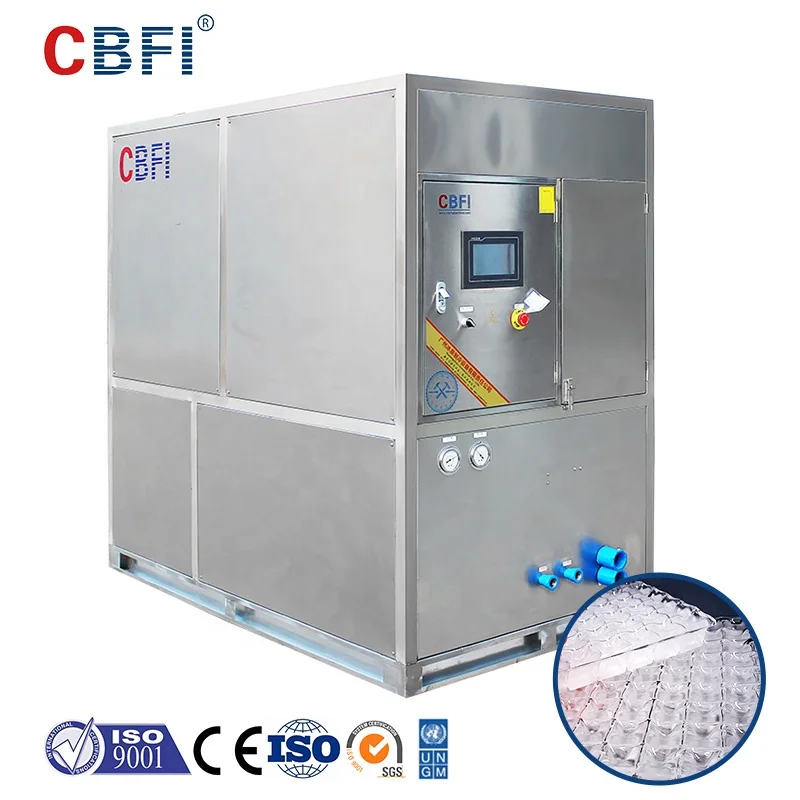

The large-scale edible ice cube machine is a large-capacity ice making machine that produces ice cubes. The ice cube machine is widely used in catering and cold drink shops and other fields.
Highlights
●Safety: The company's ice maker uses SUS304 stainless steel as the main raw material, adopts a special water flow design, and has an automatic cleaning function to ensure that the ice produced is clean, hygienic and edible.
●Available options: different models of ice machines have different output. The company has ice machines with a daily output of 1-20 tons to choose from.
●Stable performance: ice crystals are hard, crystal clear, resistant to dissolution, and can be stored for a long time.
Product Features
1. The ice cube machines all adopt an integrated design, occupy a small area, and have a neat and regular appearance. 2. The core components of the equipment are all the top technical equipment in the industry, with good quality and stable output.
3. The ice produced by this ice maker is a transparent crystal square ice crystal, which is tested by QS and is edible ice, which
is widely used in the catering industry.
3. The ice produced by this ice maker is a transparent crystal square ice crystal, which is tested by QS and is edible ice, which
is widely used in the catering industry.
Product configurations

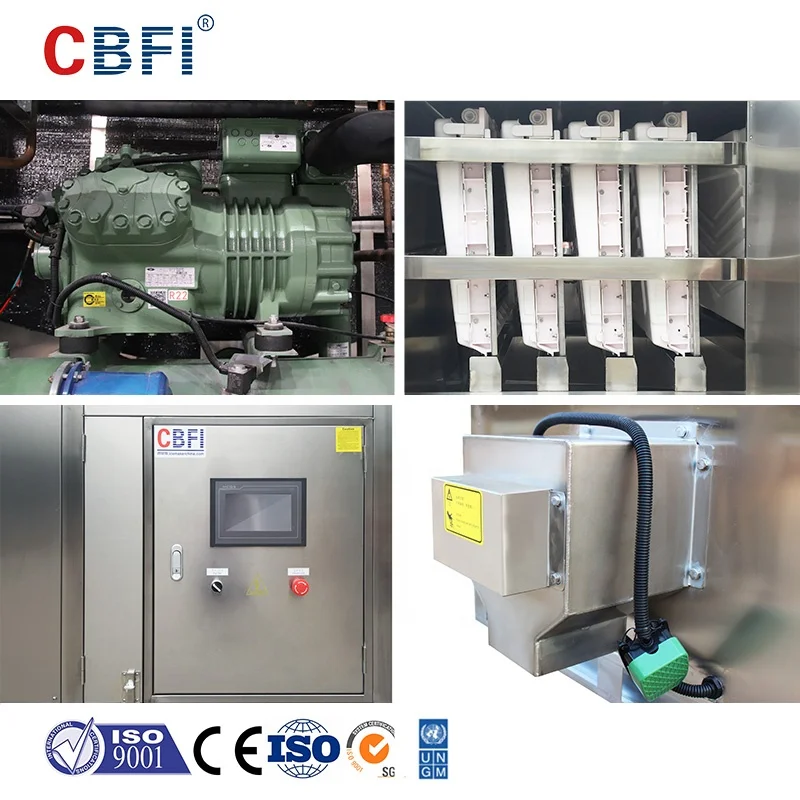

We use German Compressor Bitzer compressor and other famous brand components, you can easily acquire spare parts or after-sale service around the globe.

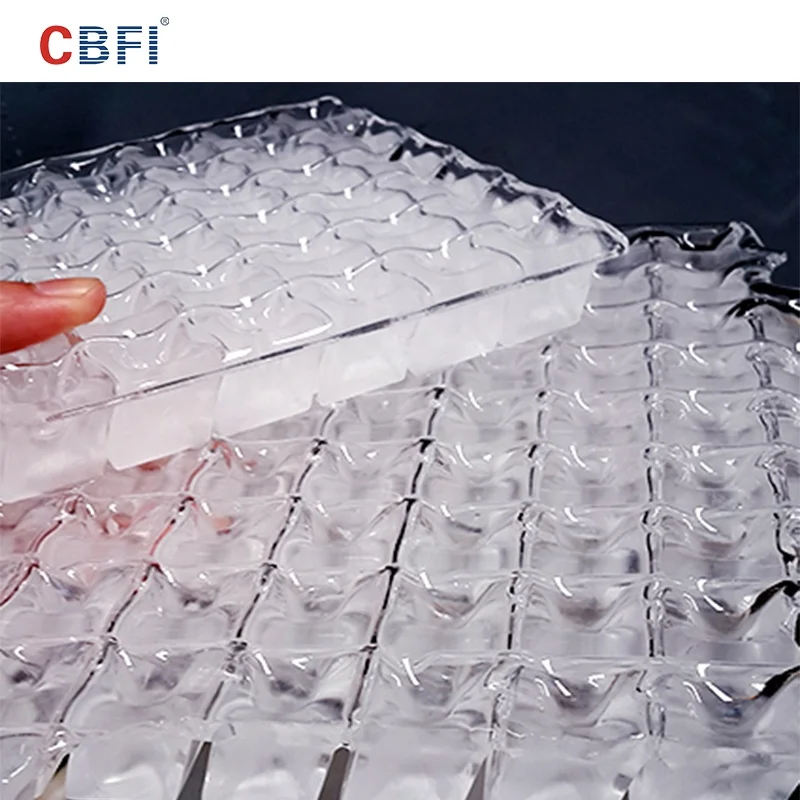

There are three type of molds to choose from. Ice cubes can be customized.Nickeled ice molds is anti-corrosive and sanitary to insure the cube ice is safe and edible.
The evaporator has the characteristics of anti-corrosin, safety and sanitation, large contact area, and accelerated heat and cold exchange with the refrigerant.
The company’s ice machines are made of the best parts, compressors, condensers, expansion valves, and evaporators are all to ensure that the output of the ice machine is stable, the quality is good, and the ice cubes are beautiful in appearance, clean and hygienic, pure and edible.
Product Parameters
Cube Ice Machine Paremeters | ||||||||||
Model Parameters | CV 2000 | CV 3000 | CV 5000 | CV 10000 | ||||||
Daily output (T/24 h) | 2 | 3 | 5 | 10 | ||||||
Compressor Power | 7.88 kw | 10.58 kw | 21 kw | 42 kw | ||||||
Fan Power of Cooling Tower | 0.37 kw | 0.56 kw | 0.75 kw | 1.5 kw | ||||||
Cooling Pump Power | 1.5 kw | 1.5 kw | 2.2 kw | 4 kw | ||||||
Unit Size | L (mm) | 1630 | 1980 | 2890 | 5730 | |||||
W (mm) | 1600 | 1630 | 1780 | 1780 | ||||||
H (mm) | 1706 | 1860 | 1860 | 2130 | ||||||
Unit N.W. (kg) | 1000 | 1200 | 1600 | 3000 | ||||||
1. Size of cube ice: 22*22*22 mm ; 29*29*22 mm ; 38*38*22 mm. 2. Compressor brand: Bizter / Frascold; refrigerant: R22/ R404A; Cooling Method: Water Cooling / Air Cooling. 3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). 4. Operating Conditions: T(water supply):20 ℃, T(ambient):32 ℃, T(condensing): 40 ℃, T(evaporating):-10 ℃. 5. Note: The actual ice production varies due to the influence of the water supply temperature and ambient temperature. 6. The final interpretation of the above mentioned parameter is in Icesource, there will be further notice, if there any technical change. | ||||||||||
The main reason for the good quality of the ice machine produced by our company is that the compressor, condenser, expansion valve, PLC controller and other important parts are imported. The equipment has good performance and strong anti-interference ability. The external environment has an impact on the output and ice. The quality of the product has little effect.A variety of models can meet the needs of customers at different levels.

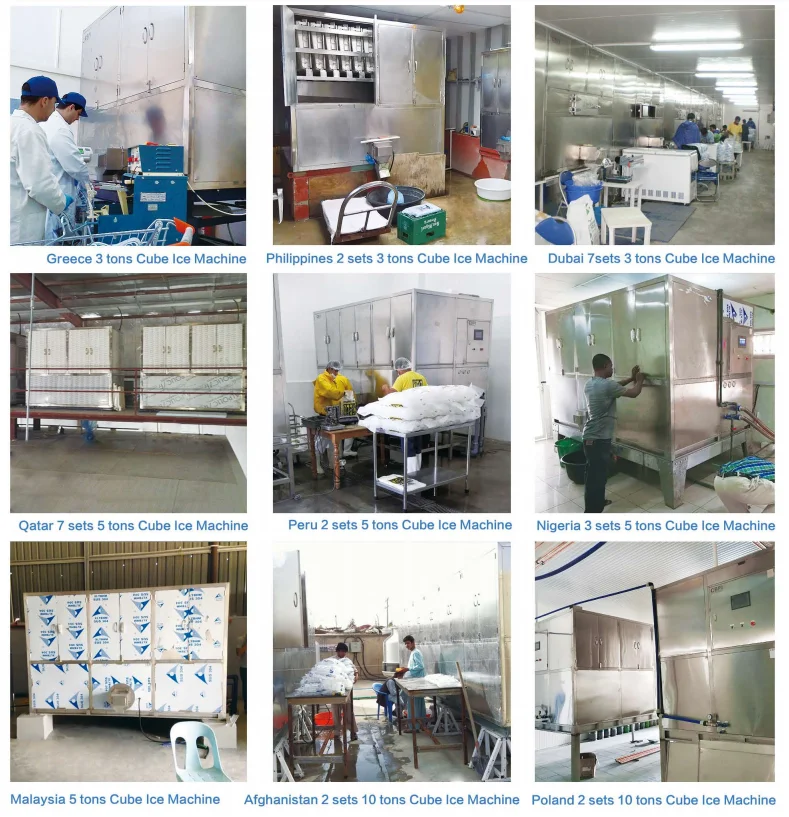

Our Case
Product Application
Cube ice is widely used in hotels, bars, hotels, canteens, restaurants, convenience stores, cold drinks shops and other places where ice is needed. The size of the ice can be adjusted to meet the different needs of customers for ice.
Contact us
About us
Packaging and FAQ
1.Q: Are you add refrigerant in the ice machine?
A:Yes, our equipment is filled with refrigerant, and it can be used as long as it is connected to electricity and water.
2.Q:Do you test the ice machine in your factory?
A: Yes, Our equipment will be tested twice before being put into use: factory inspection and operation test after installation at
the buyer's destination to ensure that we provide the best service to customers.In addition, our company can provide a complete set of solutions for the actual needs of customers. Creating value and fulfilling customers is our principle.
3.Q: All your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for aboard? Such as 440V 60HZ or 220V three phase that suitable for America?
A: Our ice machine and power, voltage can suitable for your country, please make the power requirement be clear in your order.
A:Yes, our equipment is filled with refrigerant, and it can be used as long as it is connected to electricity and water.
2.Q:Do you test the ice machine in your factory?
A: Yes, Our equipment will be tested twice before being put into use: factory inspection and operation test after installation at
the buyer's destination to ensure that we provide the best service to customers.In addition, our company can provide a complete set of solutions for the actual needs of customers. Creating value and fulfilling customers is our principle.
3.Q: All your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for aboard? Such as 440V 60HZ or 220V three phase that suitable for America?
A: Our ice machine and power, voltage can suitable for your country, please make the power requirement be clear in your order.
