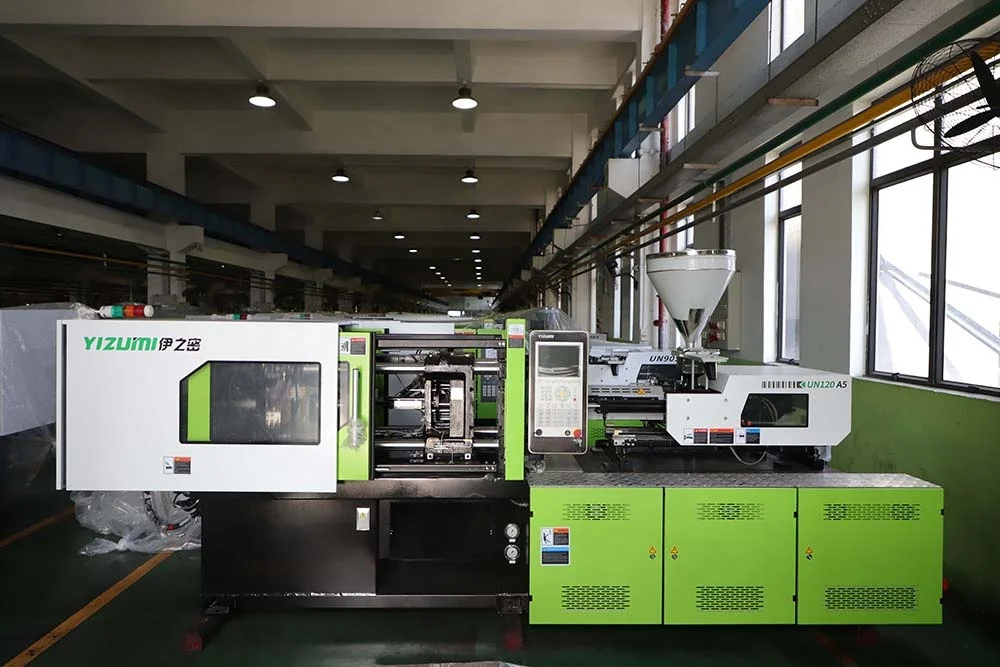

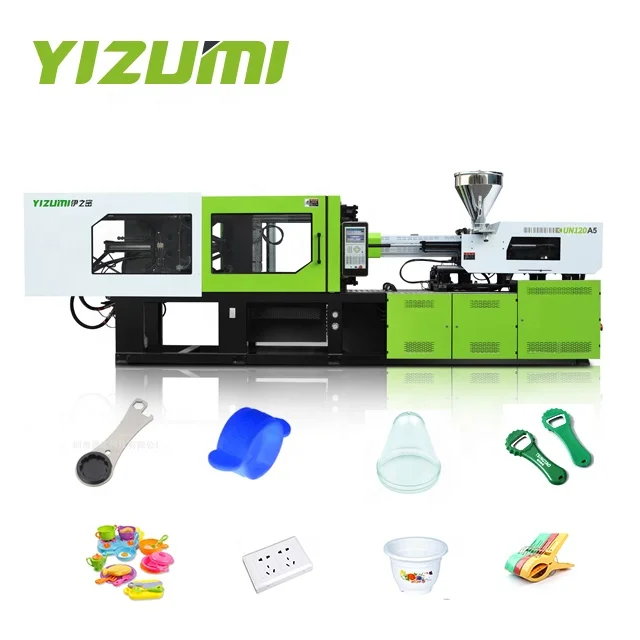

YIZUMI 120Ton 120A5 Injection Molding Machine Plastic Hanger Watch Making Machine inyectoras de plastico
- Category: >>>
- Supplier: Guangdong Yizumi Precision Injection Molding And Die Casting Technology Co. Ltd.
Share on (1600439579502):
Product Overview
Description
Product Description
DESCRIPTION | UNIT | DATA | |
Clamping unit | Shot volume | cm3 | 163.3 |
Shot weight (PS) | g | 150.5 | |
oz | 5.3 | ||
Screw diameter | mm | 35 | |
Injection pressure | Mpa | 256.9 | |
Injection rate | g/s | 83.2 | |
Screw L:D ratio | 24.1 | ||
Max. injection speed | mm/s | 94 | |
Screw stroke | mm | 170 | |
Screw speed(stepless) | r/min | 0-208 | |
Clamping unit | Clamping force | kN | 1200 |
Opening stroke | mm | 360 | |
Space between bars | mm*mm | 410*410 | |
Max. Daylight | mm | 810 | |
mold thickness(Min.Max) | mm | 145-450 | |
Hydraulic ejection storke | mm | 120 | |
Ejector number | 5 | ||
Hydraulic ejection force | kN | 42 | |
Power unit | Hydraulic system pressure | Mpa | 17.5 |
Pump motor | kw | 15 | |
Heating capacity | kw | 9 | |
Number of temp control zones | 4 | ||
General | Dry cycle time | s | 2.0 |
Oil tank capacity | L | 155 | |
Machine dimensions(LxWxH) | m*m*m | 4.82x1.30x2.05 | |
Machine weight | kg | 4000 |
Main Parts
Injection Unit
Optimized injection unit : increase rigidity, ensure coaxiality of the forces on motion and injection, reduce resistance, and enhance the stability and accuracy of injection.
Integrated linear guide rail structure : minimizes the friction to motion, increases injection accuracy and enhances plasticizing efficiency.
Horizontal dual-carriage design : dual-carriage design for two-cylinder parallel injection, effectively eliminating rotary torque to ensure a reliable and stable injection.
New universal screw and barrel unit : easy color change and cleaning, low shear without t empera ture rise and wider applicability, etc.
User-friendly designs:ensure the operation safety, reduce labor intensity and offer more ease of operation and maintenance.
Horizontal dual-carriage design : dual-carriage design for two-cylinder parallel injection, effectively eliminating rotary torque to ensure a reliable and stable injection.
New universal screw and barrel unit : easy color change and cleaning, low shear without t empera ture rise and wider applicability, etc.
User-friendly designs:ensure the operation safety, reduce labor intensity and offer more ease of operation and maintenance.

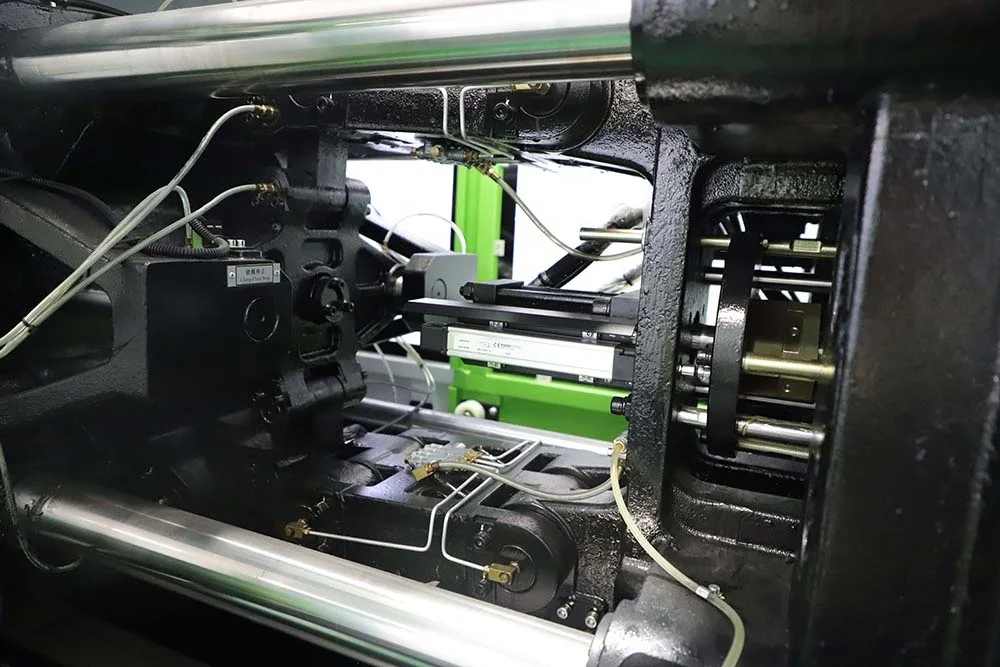

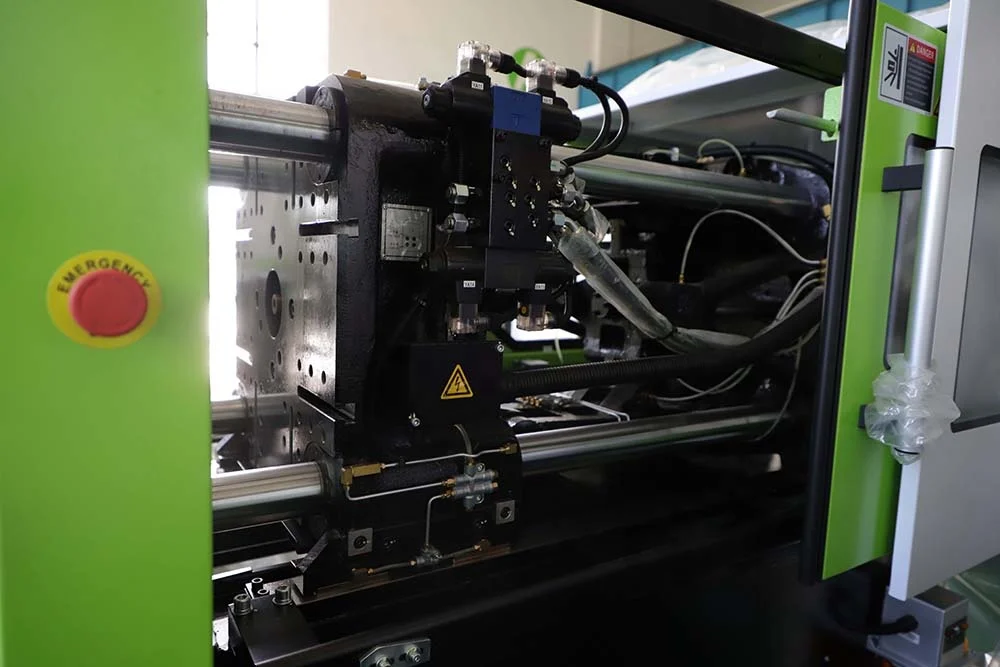

Clamping Unit
Uniform-stress molding technology
High-rigidity T-slot platen
Compulsory ejector return
Closed-loop control of mold open position
Anti-tilt platen support design
Low pressure mold protection

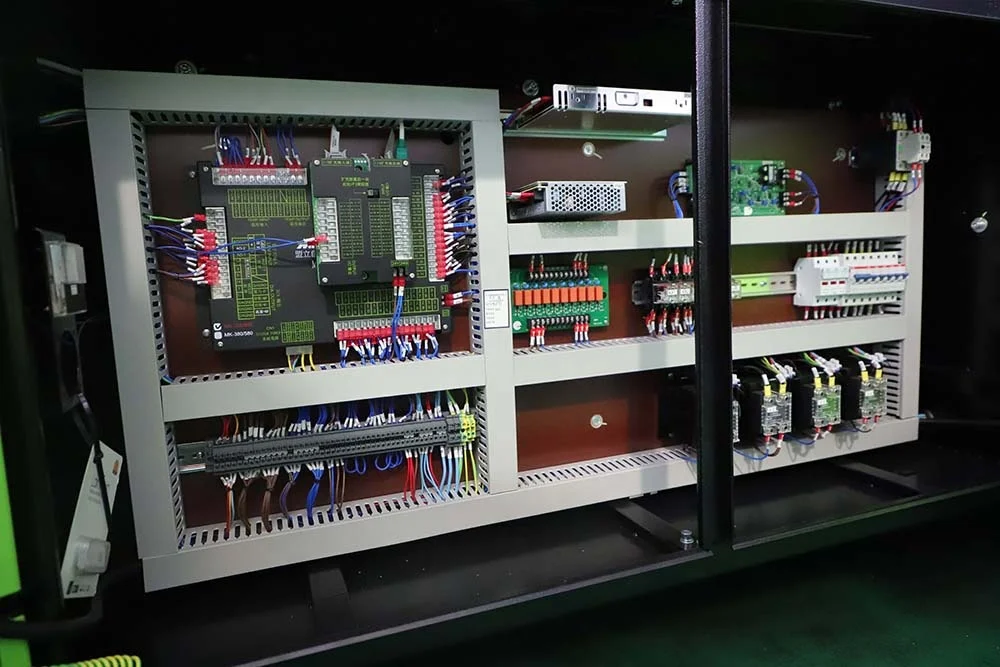

Control System
Mirle MK500 control system delivers better performance in machine control and adds to the stability of product and machine.
Mirle Controller ( Standard)
1:10.4-inch 800X 600 TFT LCD with separate control by 32-bit CPU.
2.240 sets of mold data memory, USB port for extension of storage.
3. 7+1 sections of PID temperature control supports switchover between type J and type K thermocouples.
4.Production quality control, with display of process parameter graphs and statistics tables.
KEBA Controller ( Optional)
1. Expandable with multiple modules including AO, AI, DO, DI, and TM .
2. Real-time monitoring of signals from machine equipped sensors to coordinate corresponding movements for higher operating safety;
3. Support common RS232/485 communication interface, CANOPEN, Ethernet port,temperature compensation sensor connector, and USB port.
2. Real-time monitoring of signals from machine equipped sensors to coordinate corresponding movements for higher operating safety;
3. Support common RS232/485 communication interface, CANOPEN, Ethernet port,temperature compensation sensor connector, and USB port.
Product details
Production Process
Production Video
Packing & Delivery
Company Profile
Exhibition
Why Choose Us
Certifications
FAQ
Q1 : What is the warranty of the machine ?
A1: The whole machine’s warranty period is 12 months and key parts will be depended.
A1: The whole machine’s warranty period is 12 months and key parts will be depended.
Q2: Are you an integrated supplier for injection molding machine, mold, robot and auxiliary?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Yizumi has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold and auxiliary selection but also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also. Currently we provide visit online by video call for the COVID-19.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month.
Q7 : Mold trial will be available in Yizumi factory ?
A7： Yes, Customer can send the mold to Yizumi factory and test.
Q8 . Do you provide any spare parts with machine?
A8: Yes, Yizumi will provide one set standard spare parts to customer including heater ,filter, screw head ,screw washer, checking ring ,sealings, etc.
Q3: How about the quality control in your factory?
A3: Yizumi has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold and auxiliary selection but also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also. Currently we provide visit online by video call for the COVID-19.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month.
Q7 : Mold trial will be available in Yizumi factory ?
A7： Yes, Customer can send the mold to Yizumi factory and test.
Q8 . Do you provide any spare parts with machine?
A8: Yes, Yizumi will provide one set standard spare parts to customer including heater ,filter, screw head ,screw washer, checking ring ,sealings, etc.
