Explosion Proof Mti High Temperature Dry Lab Vacuum Oven Drying Machine For Laboratory

Share on (1600439596607):


Price:$4,400.00 - $13,000.00

Quantity:


Product Overview

Description

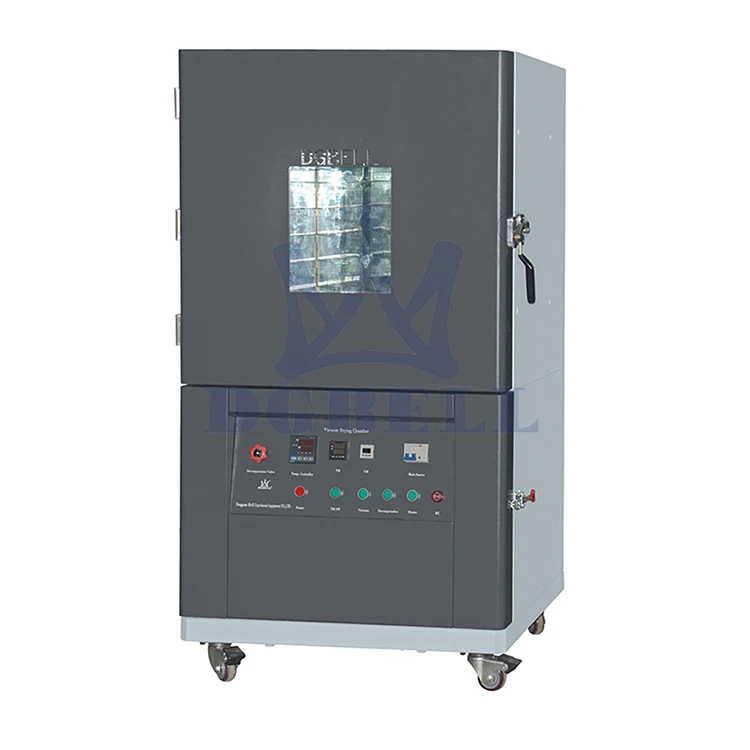

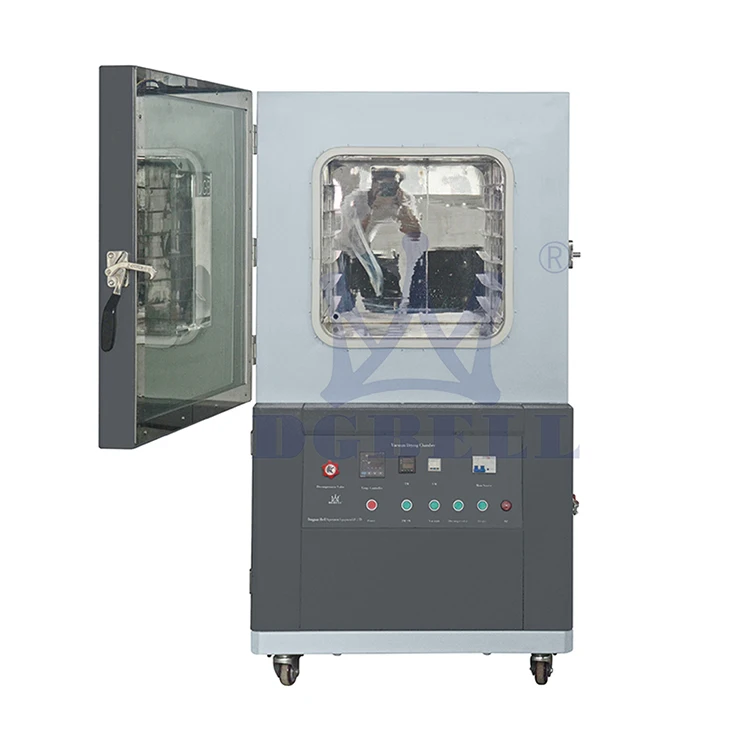

Explosion Proof Mti High Temperature Dry Lab Vacuum Oven Drying Machine For Laboratory



Product Description

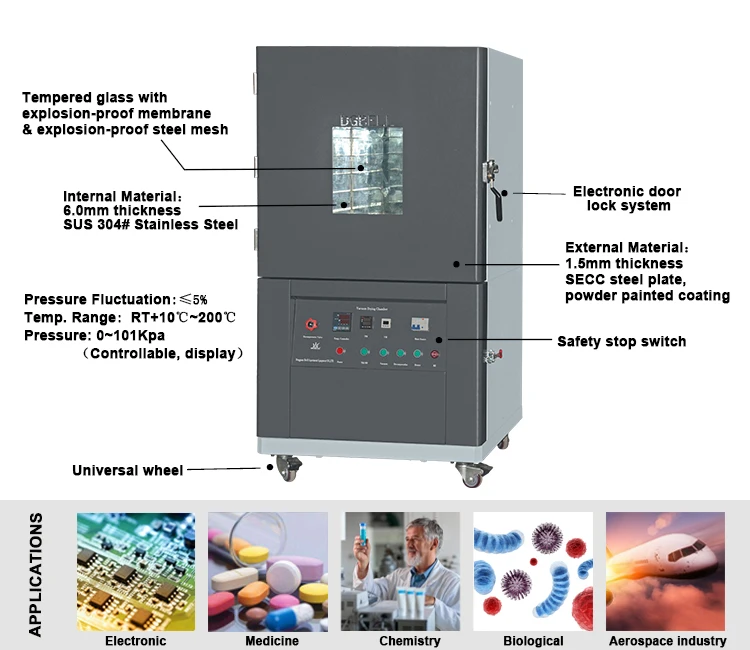

 Vacuum drying oven4


Application:


Bell’s Industrial High Quality Automatic Vacuum Drying Oven For Laboratory is designed for drying powder, curing, sterilizing and many other application which sensitive to heat and pressure. It provides a elevated temperature range from RT+10°C to 200°C when reducing environmental pressure.





Features:


1. With cold rolled plate electrostatic powder coated material, so the machine with strong rust resistance.


2. With 6mm thick high quality stainless steel plate, It is easy to clean.


3. Tempered glass door, easy to observe the testing.


4. Energy saving, , simple installation, convenient maintenance.





Product specification:







































Model



BE-ZK-27L



BE-ZK-64L



BE-ZK-125L



BE-ZK-216L



BE-ZK-512L



Test Space


W x H x D (mm)



300x300x300



400x400x400



500x500x500



600x600x600



800x800x800



External Dimension


W x H x D (mm)



600x470x710



700x570x810



800x670x910



900x870x1010



1100x1070x1210



Power Supply



AC 220V /


50HZ / 3.0KW



AC 220V


50HZ /4.0KW



AC 380V


 50HZ / 6.0KW



AC 380V /


50HZ / 8.0KW



AC 380V


50HZ /10.0KW







Performance parameters:















































Temp. Range



RT+10℃~200℃



Display Mode



Digital Display



Internal Material



6.0mm thickness SUS 304# Stainless Steel



External Material



1.5mm thickness SECC steel plate, powder painted coating



Bottom



Installed with universal wheel



Observation Window



Tempered glass with explosion - proof membrane



Timer



4 digits display 0~9999(Hour, Minutes, Seconds changeable)



Vacuum Rate



1.3Kpa(standard requires 11.6Kpa,vacuum gauge indication value -89.7Kpa)



Pressure



0~101Kpa(Controllable, display)



Pressure Fluctuation



≤5%






































Company Information


 Company information1Company information2.


Company information3


GuangDong Bell Experiment Equipment Co., Ltd is located in Dong Cheng District, Dong Guan City Guangdong Province, with register capital of RMB16.8 million. The factory covers an areas of 20,000 square meters with a building area of over 12,000 square meters. We are a high-tech enterprise specialized in manufacturing Battery Safety Test Equipment, Environmental Test Equipment and Mechanical Test Equipment, with more than 10 years’ experience of R&D.





Bell boost a team that consists of more than 120 employees and 60 of them with college educated background and 15 of them with senior engineer qualification. Enable us to provide excellent equipment and service to satisfy various customers, especially the customized non-standard equipment. Our experienced and well trained engineer team provides installation and after-sales service, making Bell to be the leading manufacturer of test equipment in China.


process








Packaging & Shipping


 packaging


Packing:


1.    Fully packed with PE film;


2.    Wooden box;


3.    Machine is fastened to the corners of the containers;


4.    If export to European countries, the wooden box will be fumigated;


5.    Customized package is available.

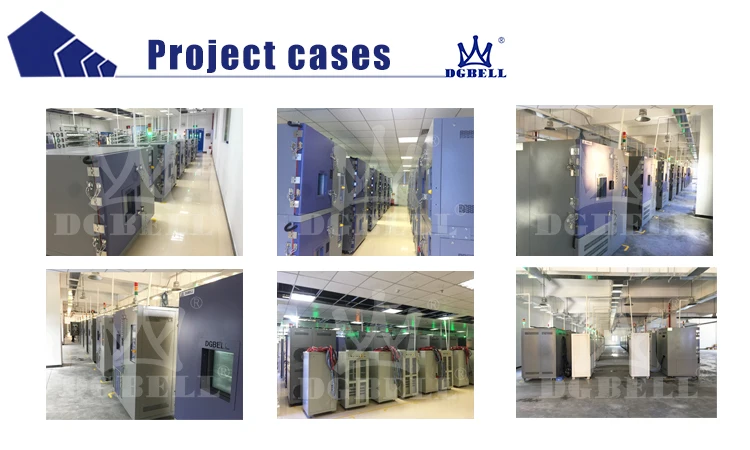

customercustomer logoProject cases








Certifications


 certificate





FAQ





FAQ:





1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?


-Yes, we are manufacturer of Industrial High Quality Automatic Vacuum Drying Oven For Laboratory. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.





2. What’s the delivery term?


-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.





3.  Do you accept customization service? Can I have my logo on the machine?


-Yes, of course. We can not only offer standard machines, but also customized


machines according to your requirements. And we can also put your logo on the machine





4.  what about the products' quality?


-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.





5.what about the packing of equipment?


-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.contact us
