4mil 7mil 10mil Translucent Reusable Mylar Stencils Blank Mylar Sheet
- Category: >>>
- Supplier: Shijiazhuang Dadao Packaging Materials Co. Ltd.
Share on (1600439613309):
Product Overview
Description
Product Description

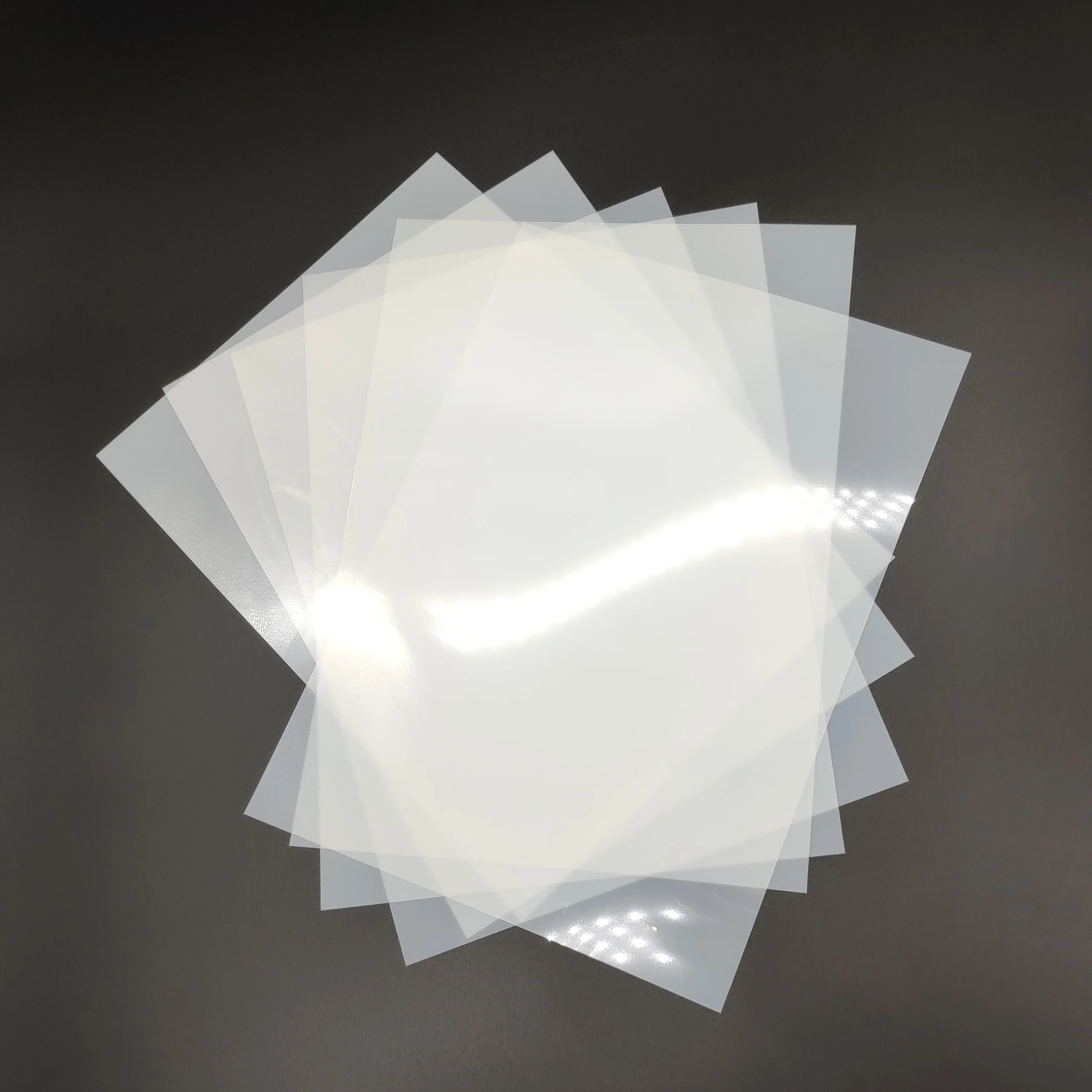

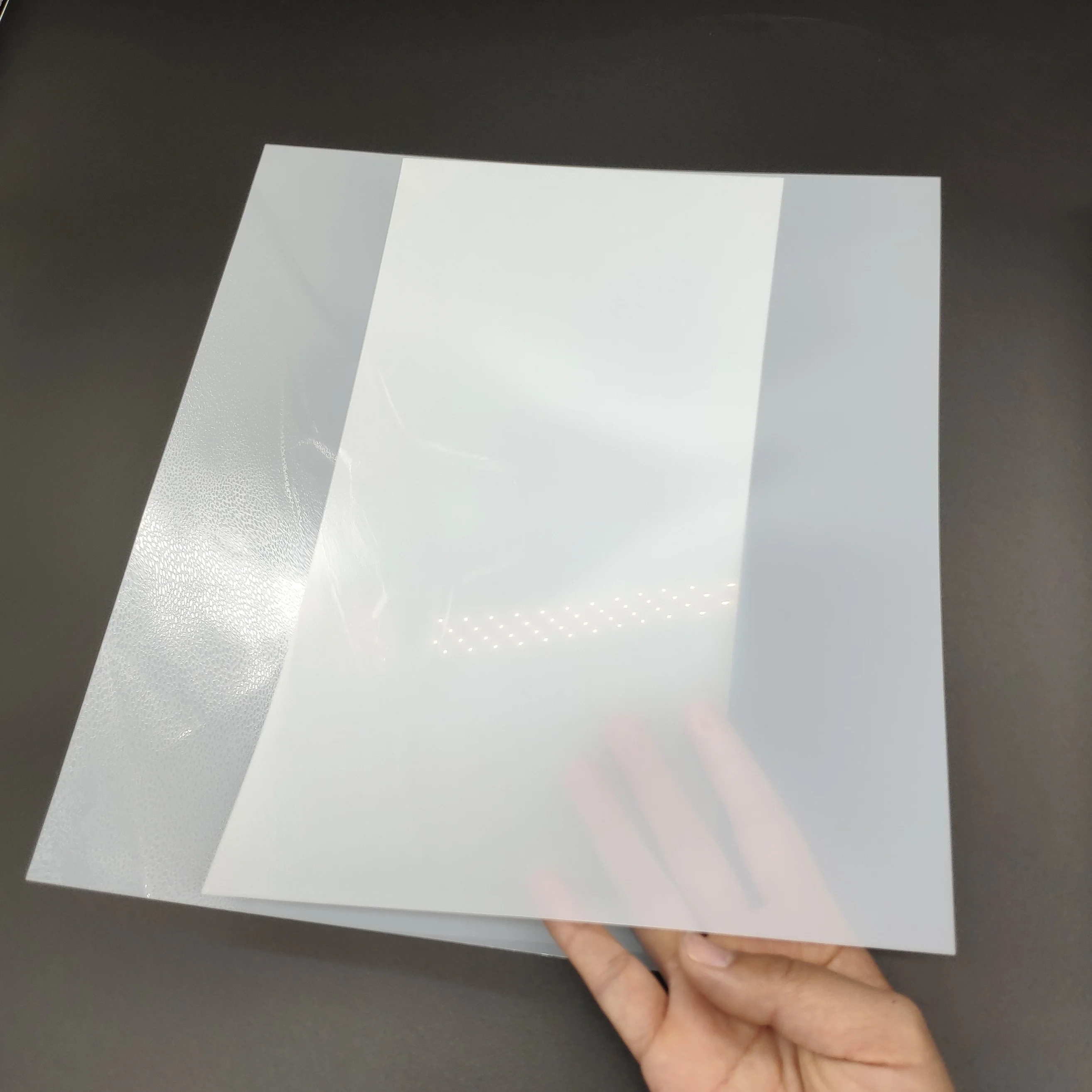

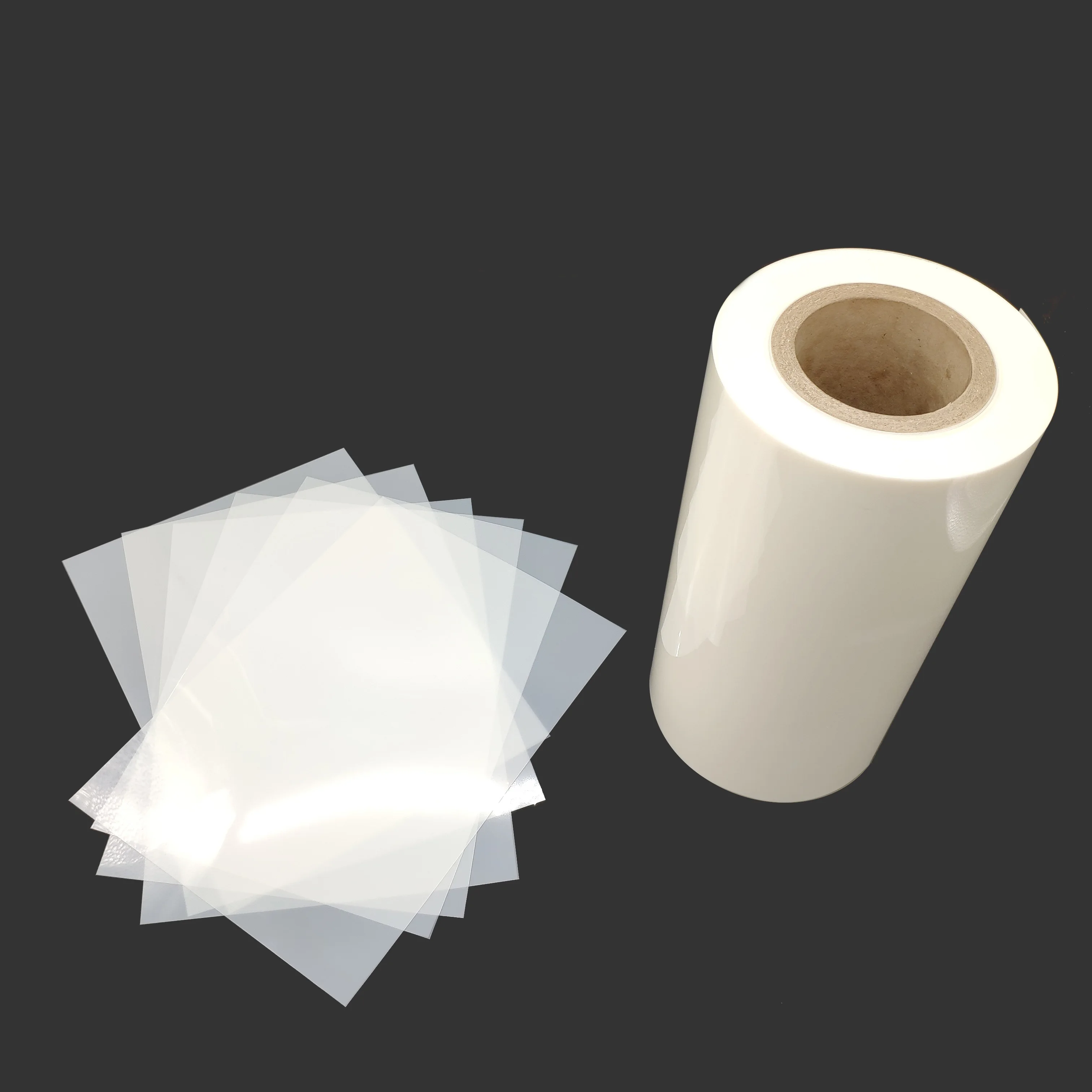

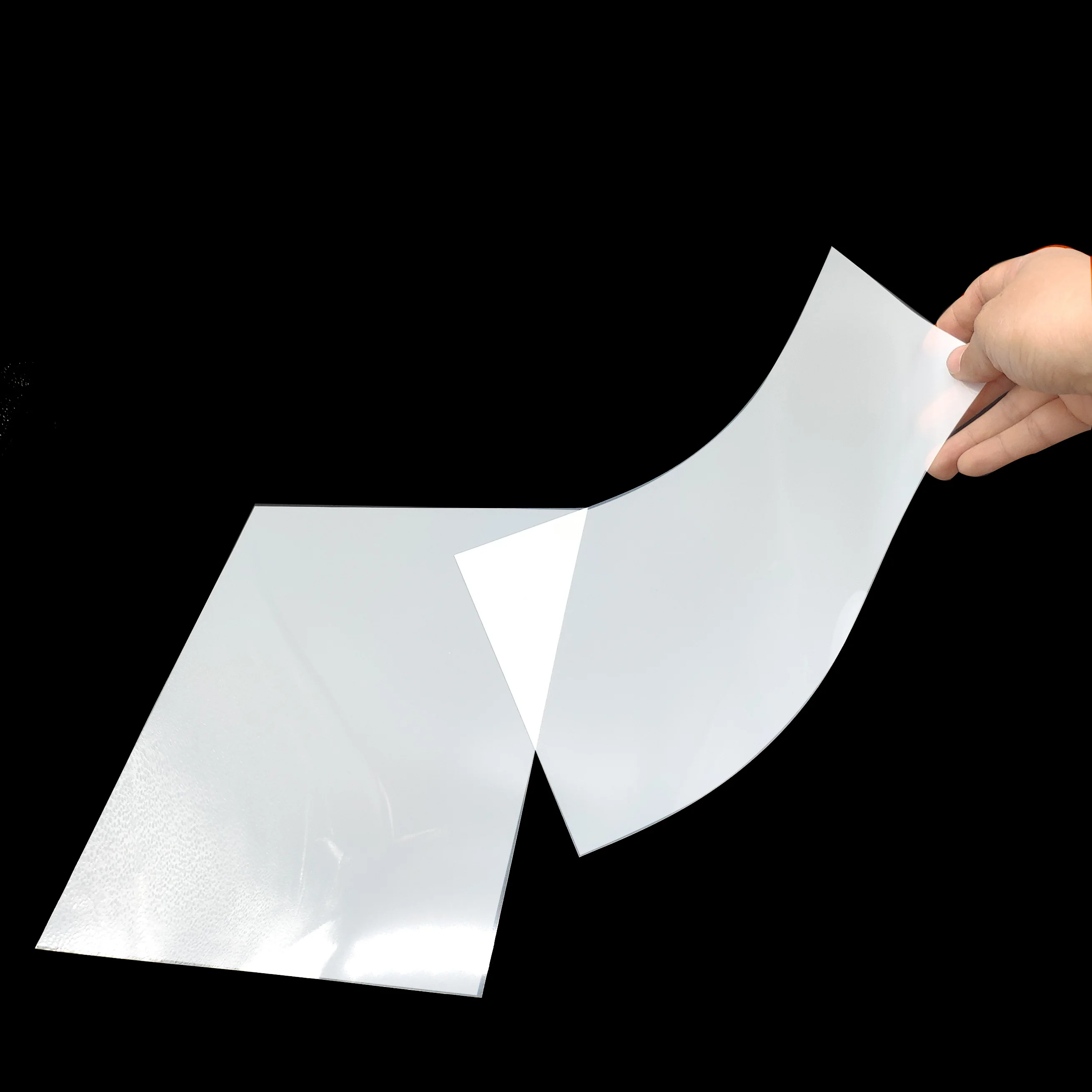

4mil 7mil 10mil Translucent Reusable Mylar Stencils Blank Mylar Sheet
4mil 7mil 10mil Translucent Reusable Mylar Stencils Blank Mylar Sheet is Durable and reusable. The color is milky white or translucent , it can be used for For Stencil/Laser cutting , The mylar film is the best materials of making stencil .
PET is milky white with smooth and shiny surface.In a wide range of temperature has excellent physical and mechanical properties, long-term use temperature up to 120℃, excellent electrical insulation, even at high temperature and high frequency, its electrical properties are still good, creep resistance, fatigue resistance, friction resistance, dimensional stability are very good.
Application:
- DIY Stencil
- Packaging ,Printing , lable
- Insulation of Electrical Motors and Transformer, Capacitors and Electrical Cables
- Thermal and Physical barrier
- Release Liner
Features:
- Reduction of Volume and Weight
- Higher Insulation Values
- Higher Temperature Values
- Increased Automatic Production Solutions
- Packaging ,Printing , lable
- Insulation of Electrical Motors and Transformer, Capacitors and Electrical Cables
- Thermal and Physical barrier
- Release Liner
Features:
- Reduction of Volume and Weight
- Higher Insulation Values
- Higher Temperature Values
- Increased Automatic Production Solutions
Technical Data Sheet
Specification date:
Thickness :100micron,125micron,150micron,188micron,200micron,250micron,300micron,350micron
Width:8-2000mm
Thickness :100micron,125micron,150micron,188micron,200micron,250micron,300micron,350micron
Width:8-2000mm
Item | Unit | Value | Test condition | ||||||||||||
Thickness | Um | 100 | 125 | 175 | 188 | 200 | 350 | GB/T13542.1-2009 | |||||||
Tensile strength | MD | Mpa | 196 | 179 | 180 | 182 | 182 | 171 | GB/T13542.2-2009 | ||||||
TD | 200 | 190 | 205 | 193 | 195 | 177 | |||||||||
Elongation at break | MD | % | 131 | 137 | 165 | 170 | 176 | 185 | GB/T13542.2-2009 | ||||||
TD | 100 | 114 | 112 | 110 | 106 | 115 | |||||||||
Heat shrinkage （150℃,30min） | MD | % | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | GB/T13542.2-2009 | ||||||
TD | 0.5 | 0.5 | 0.5 | 0.6 | 0.7 | 0.5 | |||||||||
Haze | % | 25 | 28 | 42.3 | 44.6 | 46.5 | 55.1 | GB/T2410-2008 | |||||||
Electrical strength | V/um | 123 | 105 | 97 | 87 | 80 | 72 | GB/T13542.2-2009 | |||||||
Volume resistivity | Ω.m | 1.3X1015 | GB/T13542.2-2009 | ||||||||||||
Dielectric loss tangent （50Hz） | 2.5X10-3 | GB/T13542.2-2009 | |||||||||||||
Relative dielectric constant （50HZ） | 3.4 | GB/T13542.2-2009 | |||||||||||||

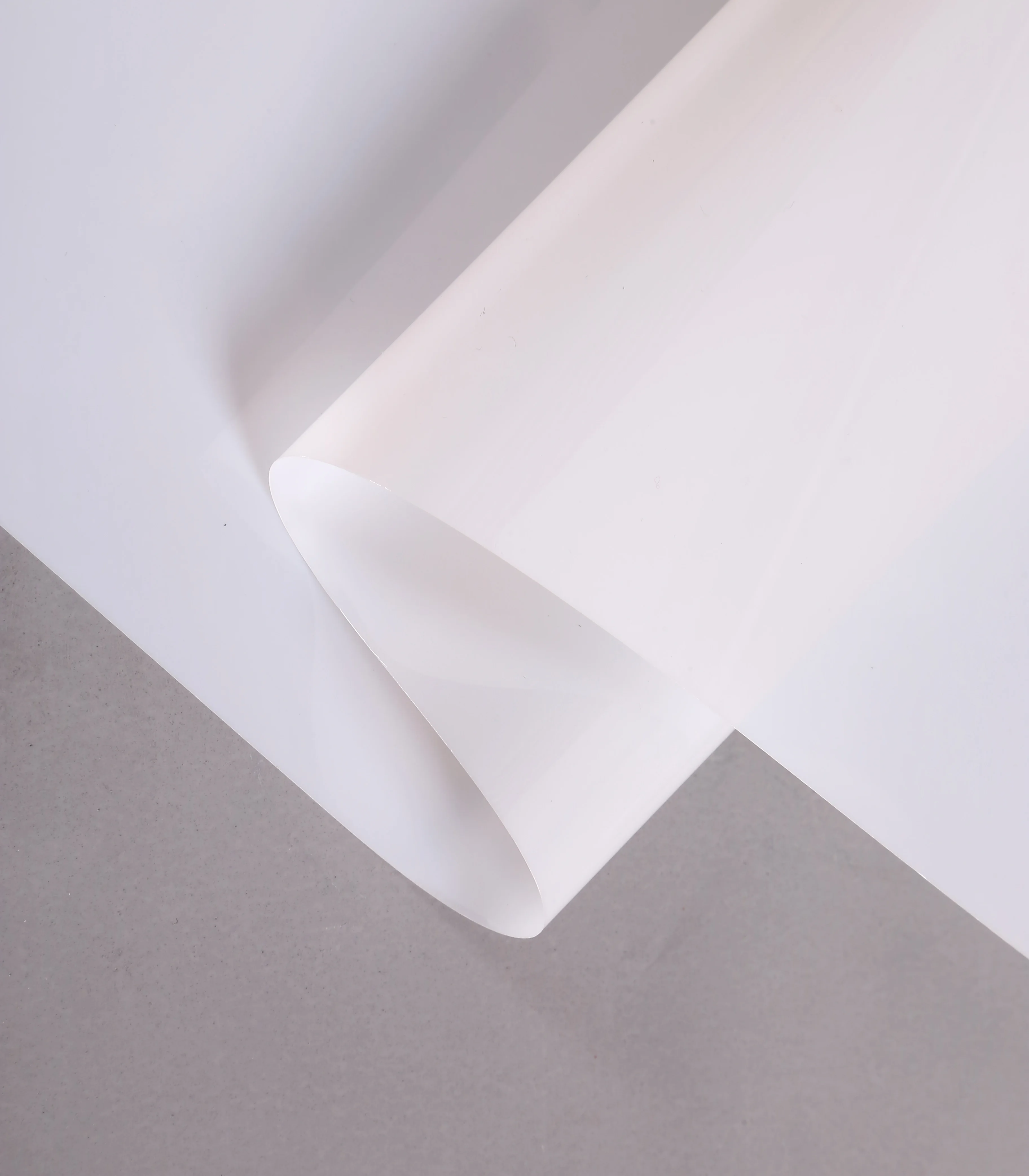

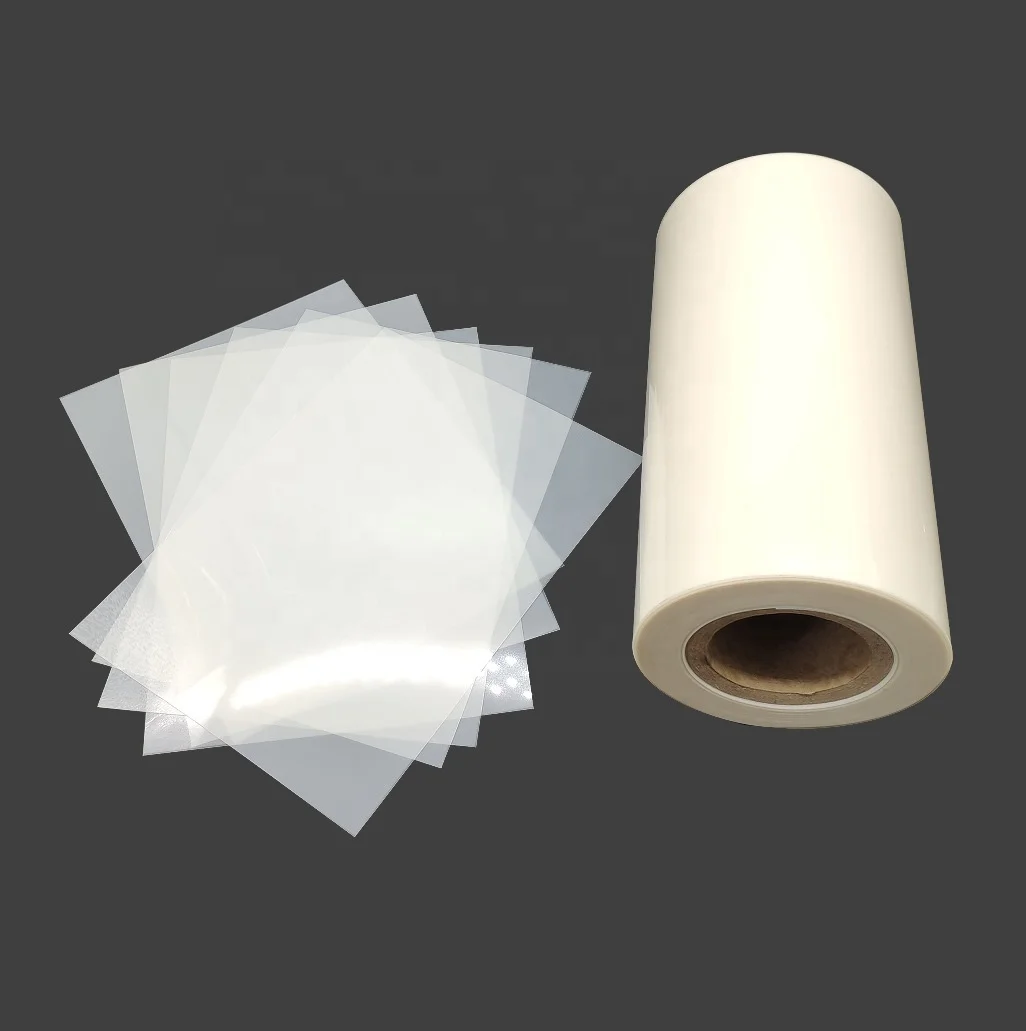

Details Images
Application
Main applications:

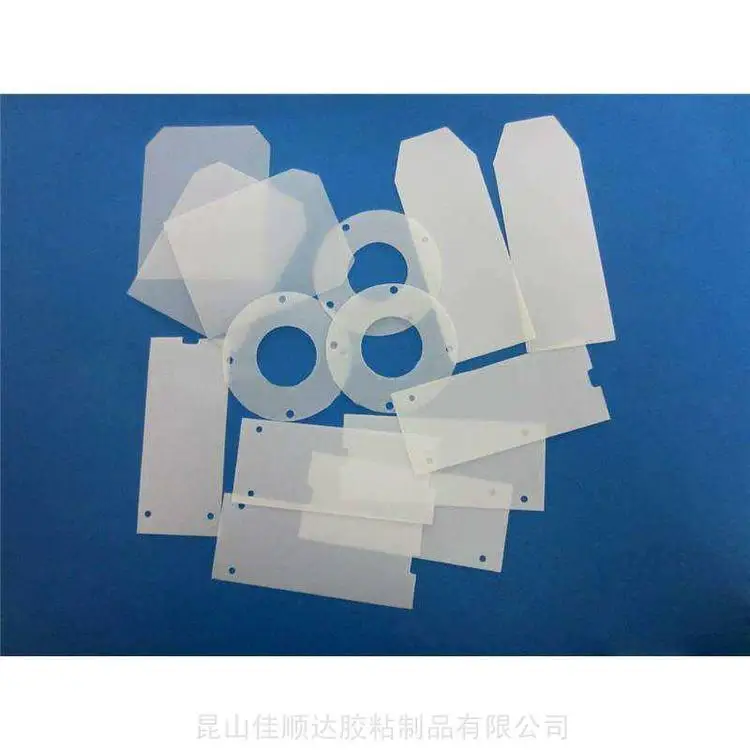

motor and generator insulation, can also be used for electrical wires, cables insulation layer,Slot and coil insulation of motor,separate insulating base material between the coils of dry transformer etc
motor and generator insulation, can also be used for electrical wires, cables insulation layer,Slot and coil insulation of motor,separate insulating base material between the coils of dry transformer etc

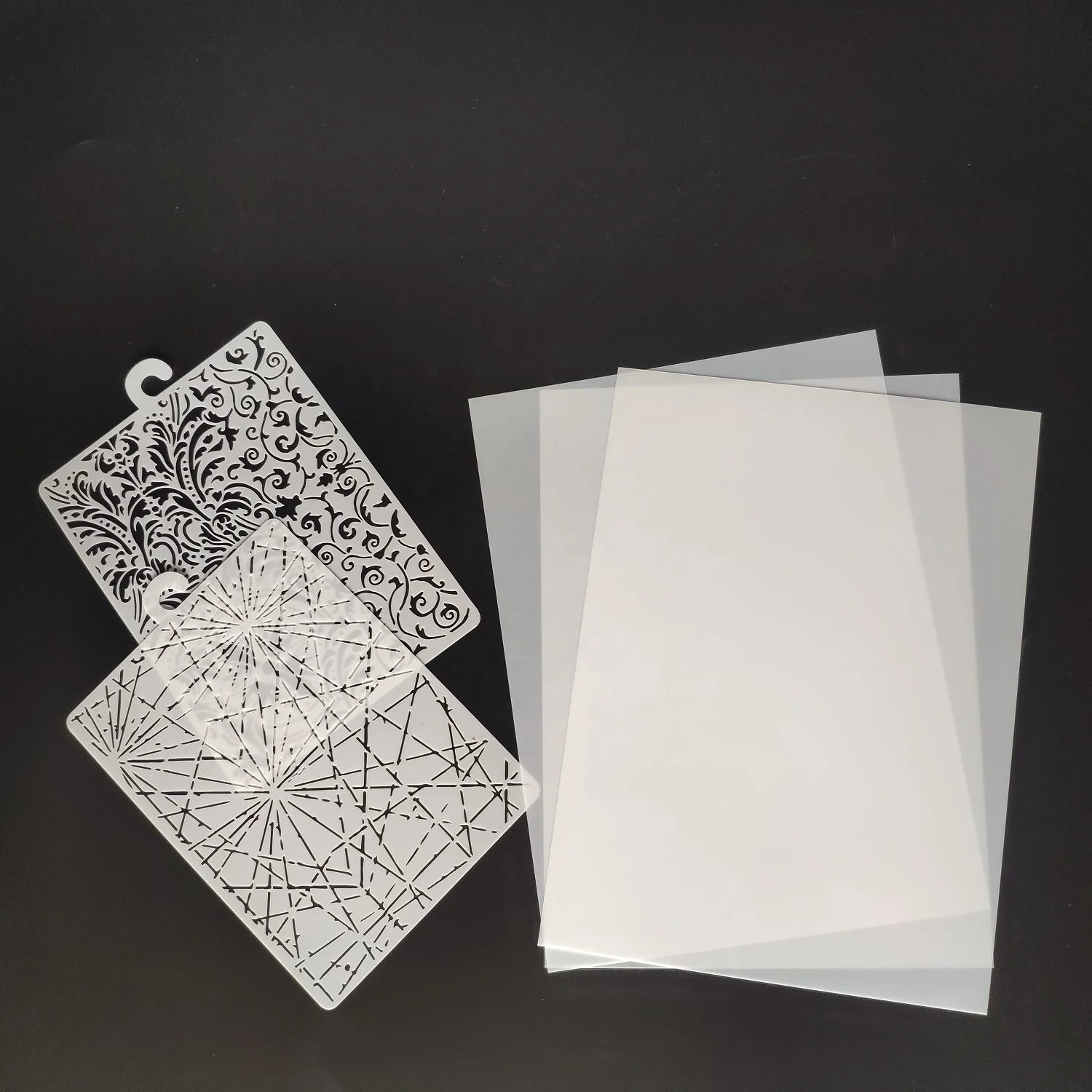

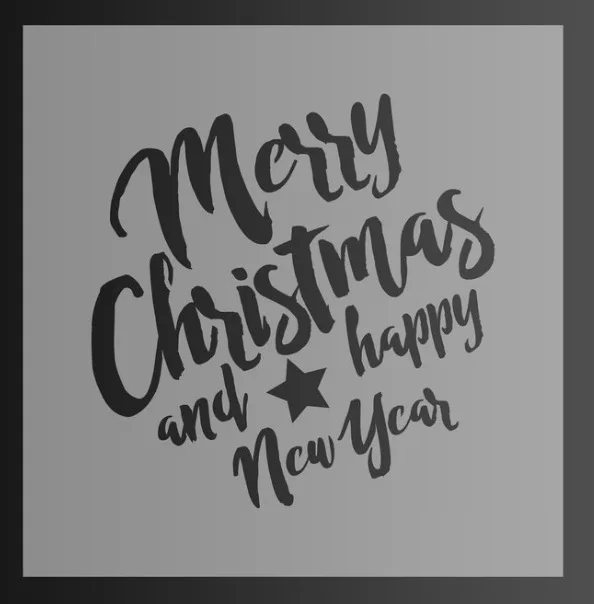

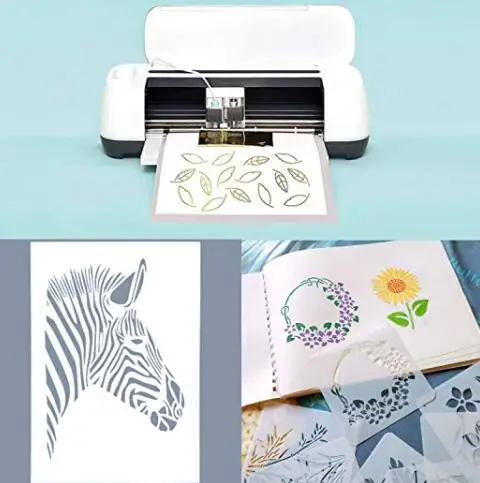

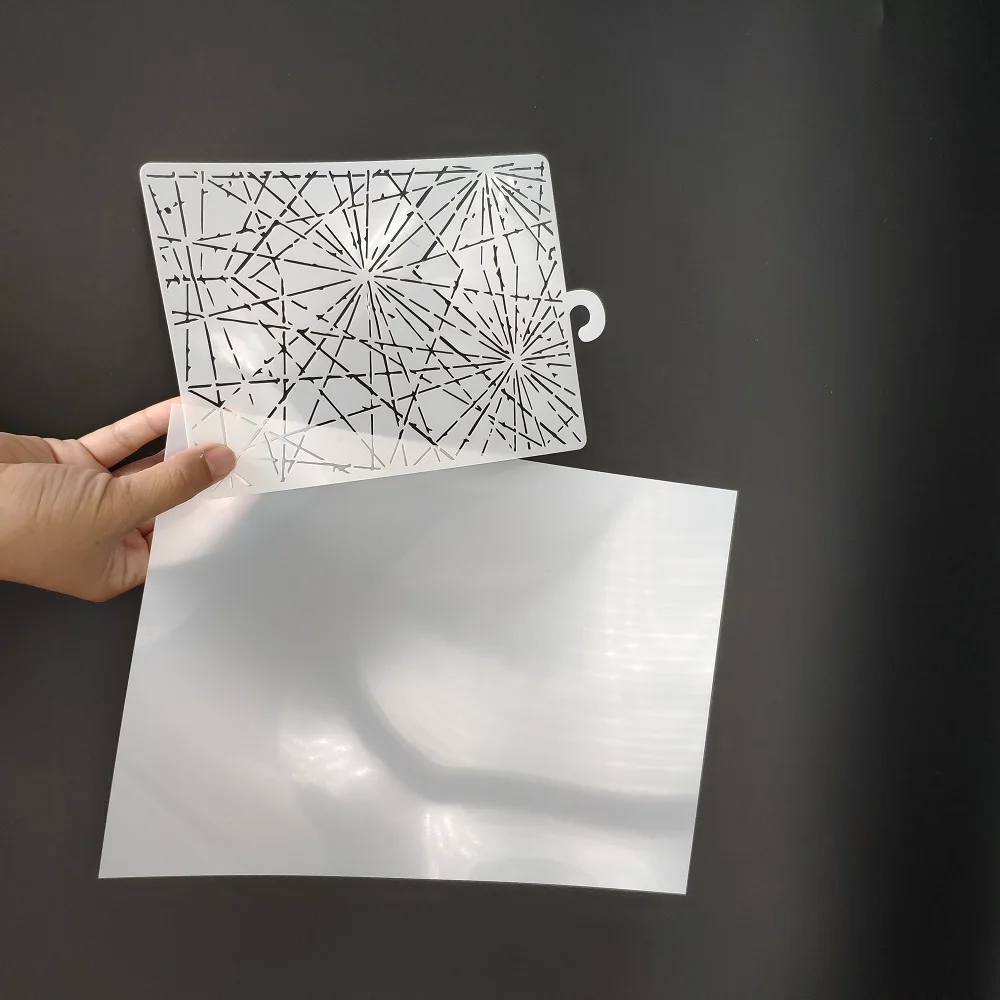

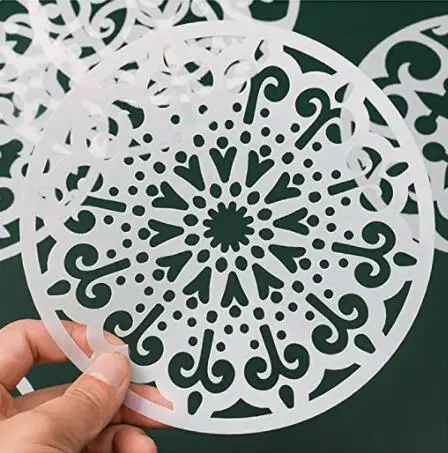

milky white or translucent Reusable Mylar Stencils Blank Mylar Sheet it can be used for For DIY Stencil/Laser cutting

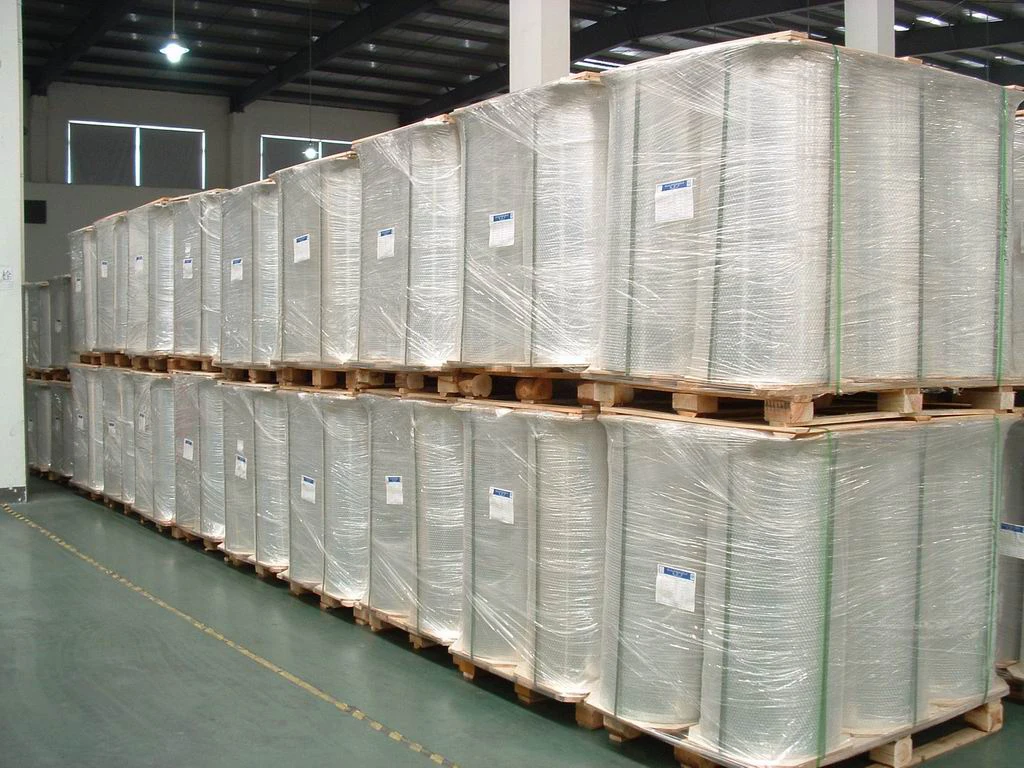

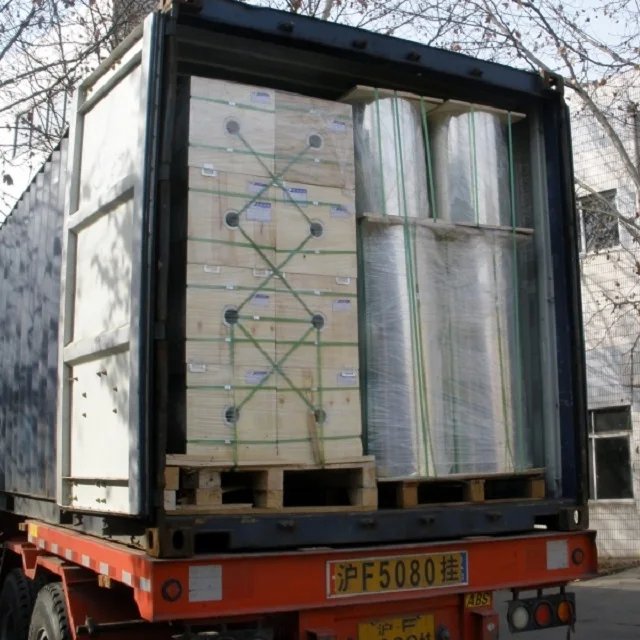

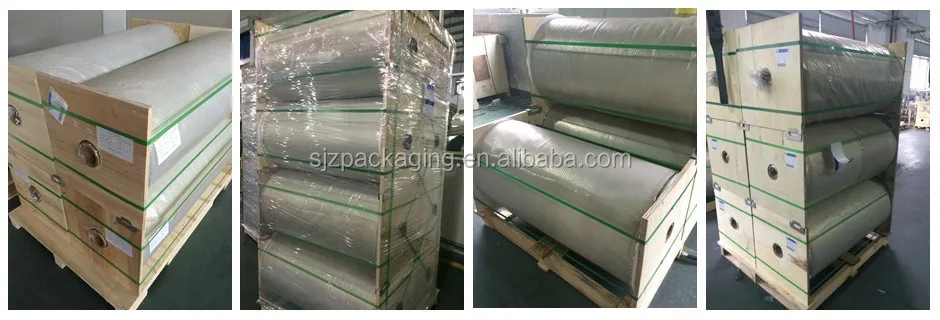

Product packaging
