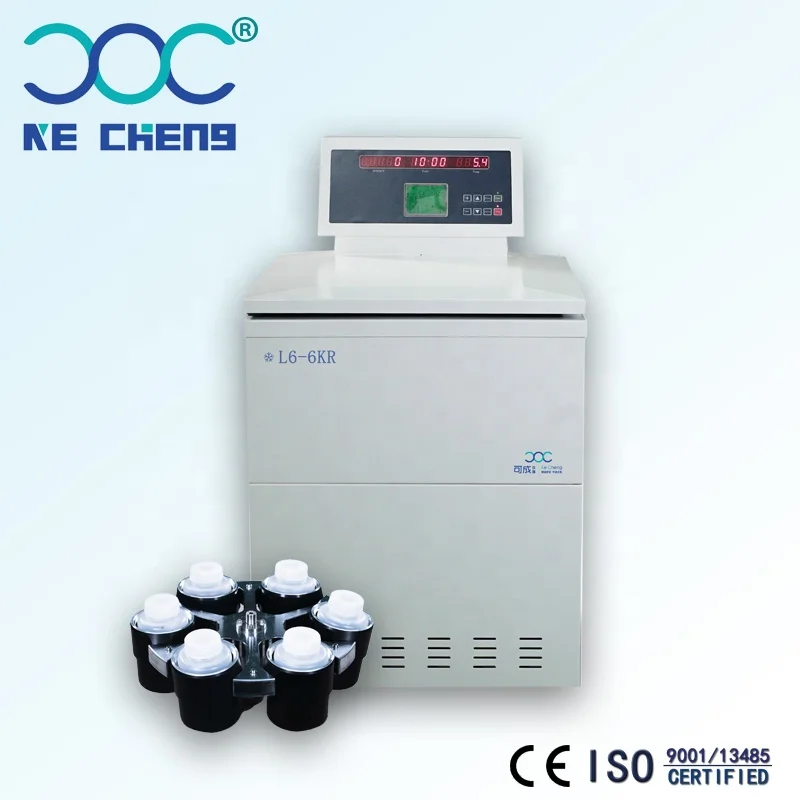

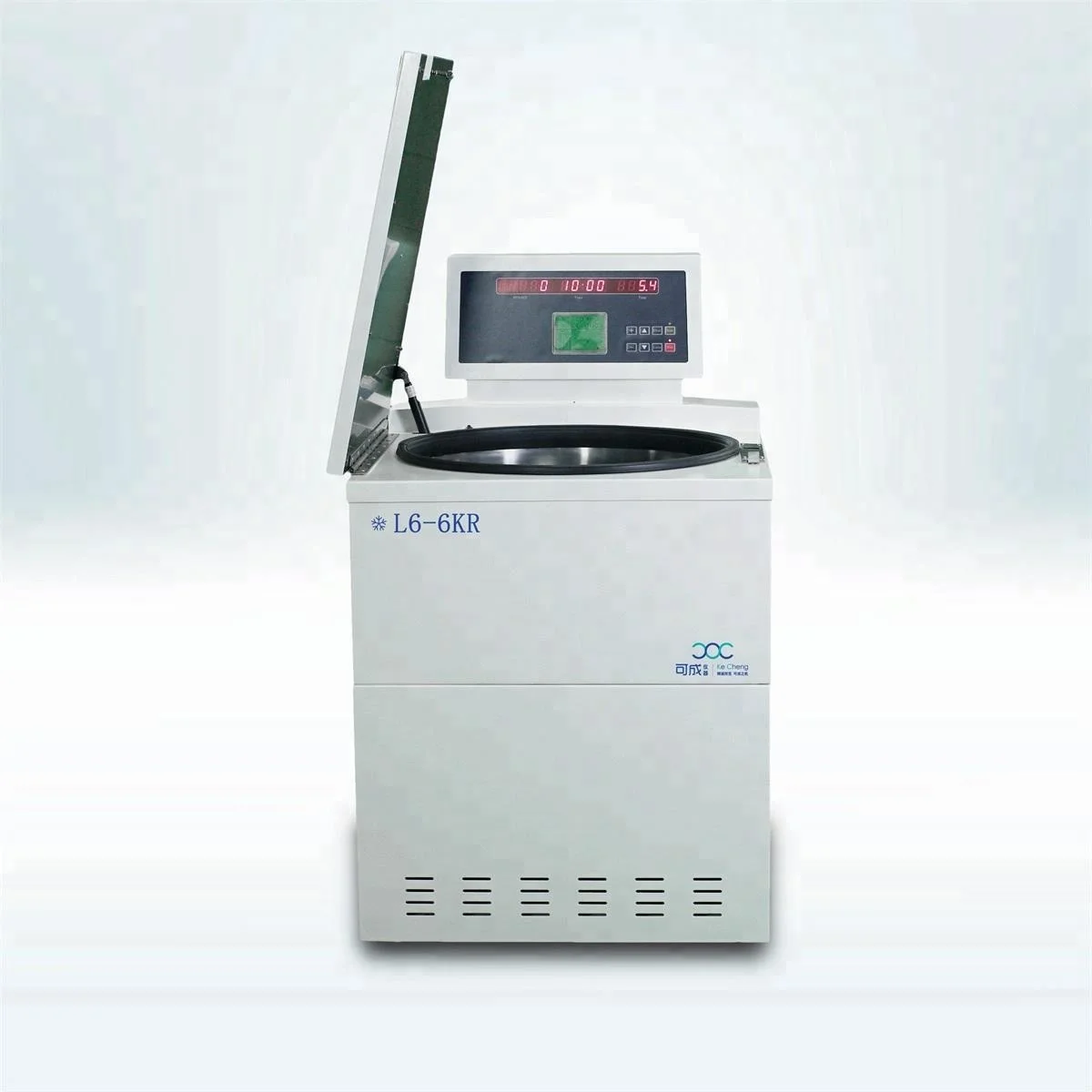

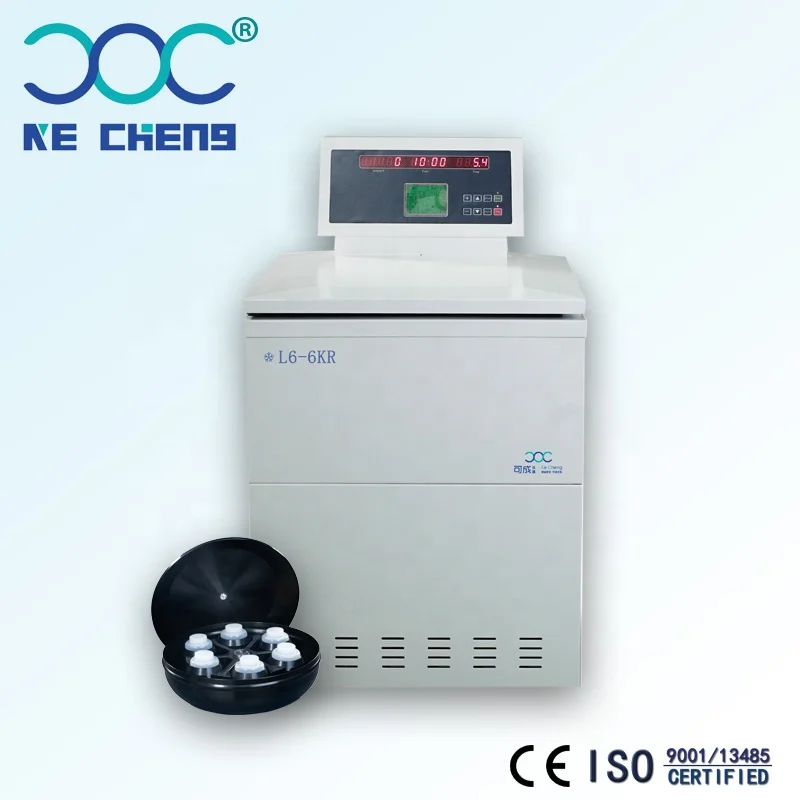

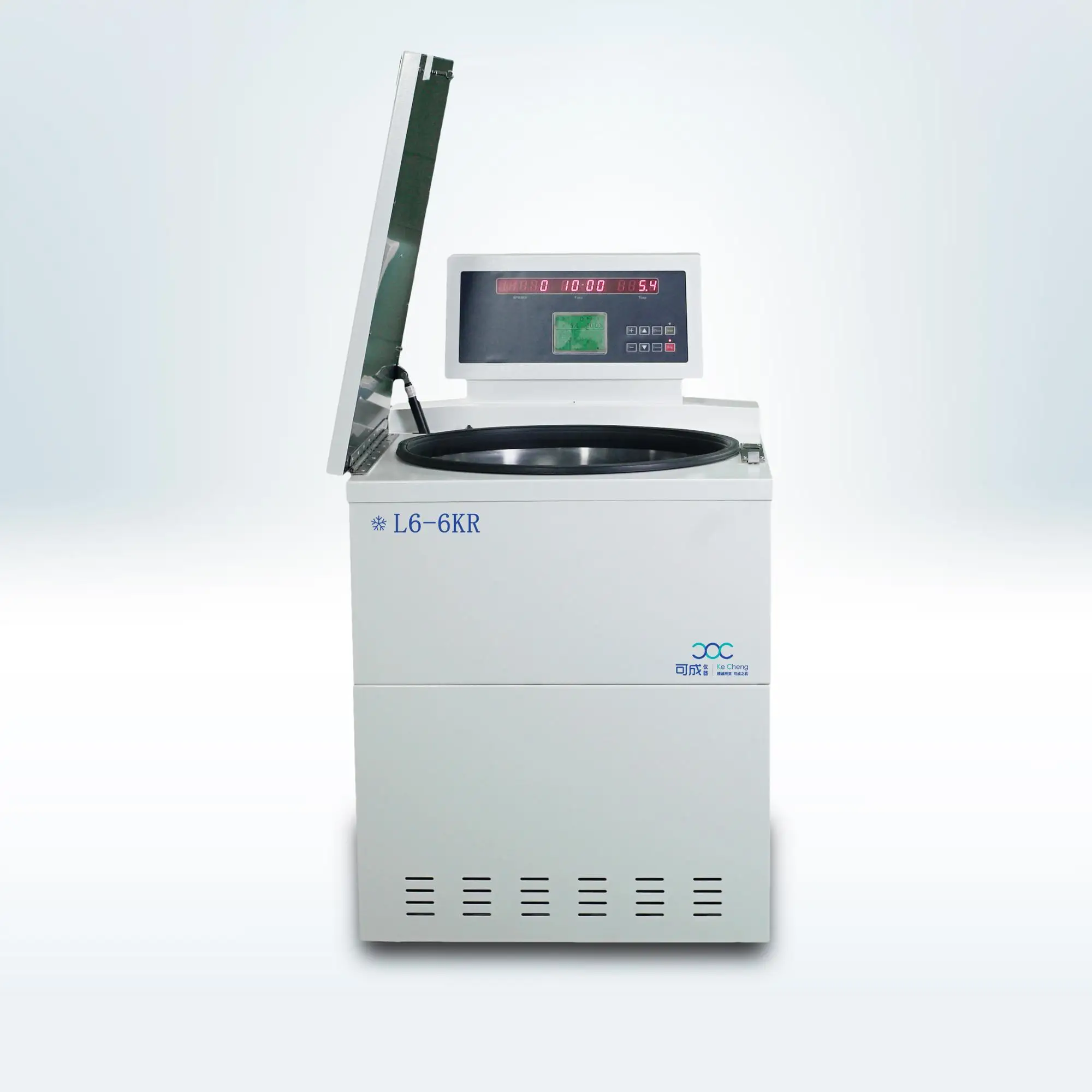

Kecheng factory lab test equipment Floor Type low speed large capacity refrigerated Centrifuge L6 6KR

Product Overview

Description





Low speed large capacity refrigerated Centrifuge



Key Features:



Brushless AC frequency conversion motor , maintenance free.

Speed stepped in 100rpm with accuracy ±20rpm and customizable.

Imported Eco-Friendly refrigerating system, temperature between -20℃~40℃.

Over speed, over temperature, imbalance protections with auto lid lock.

Self-correction balancing swivel (Optional), up to 3 * 50g weight imbalanced.

Full stainless steel body ,more stable and quite during operation ,noise level ≤60dB(A).

High capacity up to 6 * 1000ml swing out rotor ,especially for blood bank.



Application



The L6-6KR has large capacity, stable and durable, with continuously optimized electrical control. It equipped with the latest ultra-light and high-capacity rotor, specially designed for customers with large capacity requirements, such as blood stations, pharmaceuticals, bioengineering and etc.





Technical Parameter:





Model	L6-6KR
Max RPM	6500rpm
Max RCF	6680×g
Max Capacity	6×1000ml
Timer	1min~23h59min
Revolutions/min	±10r/min
Temp Range	-20℃~40℃
Temp Accuracy	±1.0℃
Voltage	AC 220±22V 50Hz 30A
Power	4500W
Noise	≤ 60dB(A)
Chamber Diameter	Φ600mm
Dimensions (L x W x H)	840×730×1240 (mm)
Packaging dimensions	940×830×1340(mm)
Net Weight	260kg

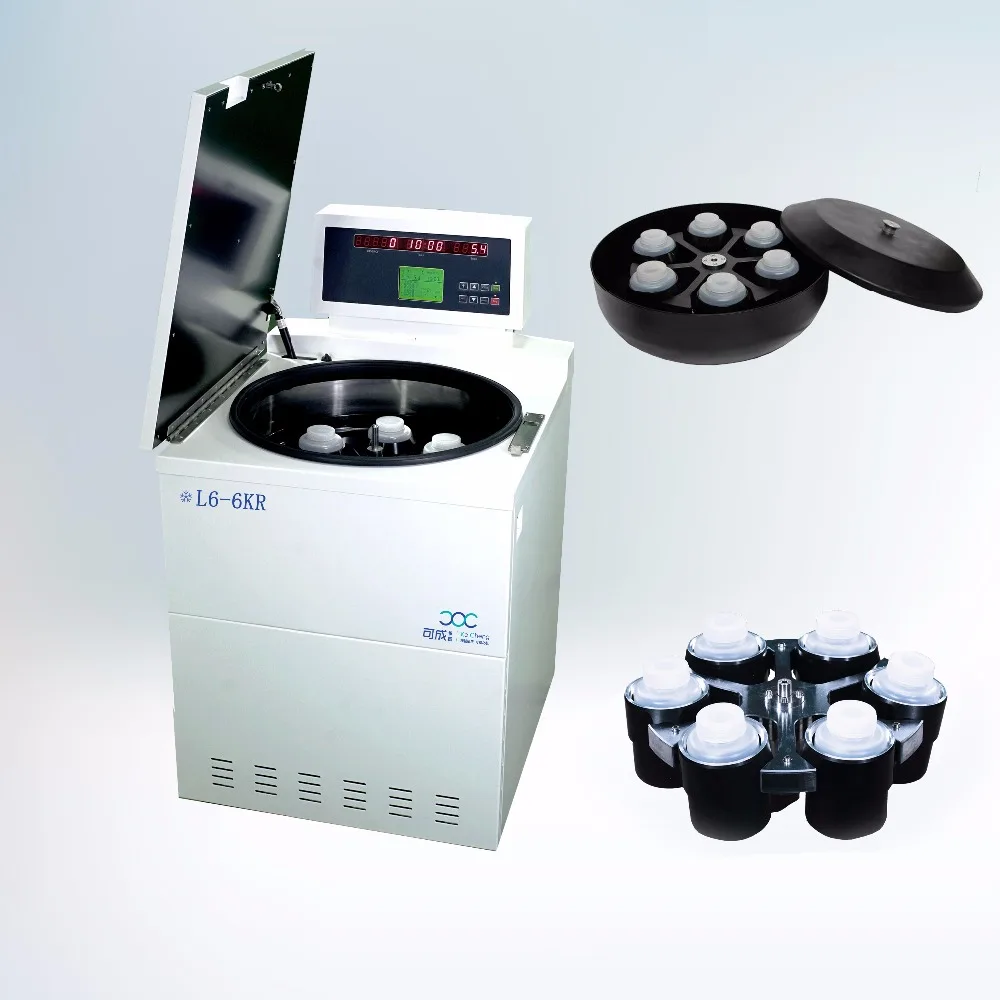

Rotor	NO.	Capacity	Max Speed(r/min)	Max RCF(×g)
Angle Rotor	1	6×250ml	6500rpm	6610×g
	2	6×300ml	6500rpm	6610×g
	3	6×500ml	6000rpm	6680×g
Swing-out Rotor	4	6×1000ml Round Type	4200rpm	5100×g
		6×1000ml Square Type	4200rpm	5100×g
