Two Wires Fine Wire Drawing Machine with two spool
- Category: >>>
- Supplier: Jiangsu Brainpower Intelligent Technology Co. Ltd.
Share on (1600439653897):
Product Overview
Description
PRODUCT OVERVIEW
Two Wires Fine Wire Drawing Machine with two spool
Two Wires Multi Wire Fine Wire Drawing Machine is used for drawing two copper wires .Finished wire is wound by 300 steel bobbin or similar size plastic bobbin.
FEATURE
(1) Wire quantity: 2 wires
(2) Max.Inlet wire: 1.2 mm, outlet wire: 0.15-0.40 mm
(3) Raw material: pure copper
(4) Take-up: two spool or single spool
(2) Max.Inlet wire: 1.2 mm, outlet wire: 0.15-0.40 mm
(3) Raw material: pure copper
(4) Take-up: two spool or single spool
MAIN SPECIFICATION
Machine Type | BRN-B24/2 | BRN-B22/2 | BRN-B17/2 | ||
Drawing Wire No. | 2 Wires | ||||
Inlet Dia.(mm) | 1.0 | 1.2 | 1.83 | ||
Outlet Dia. (mm) | 0.15-0.35 | 0.15-0.40 | 0.30-0.7 | ||
Max. Die No. | 24 | 22 | 17 | ||
Max. Line Speed (m/min) | 1800 | 1800 | 1500 | ||
Main Motor Power (kw) | 22/18.5 | 22 | 30 | ||
Take-up Motor (kw) | 4 | 4 | 5.5 | ||
Fix Speed Capstan Dia.)(mm) | 160 | 160 | 200 | ||
Take-up bobbin size(mm) | 300/400or changed by requirement | ||||

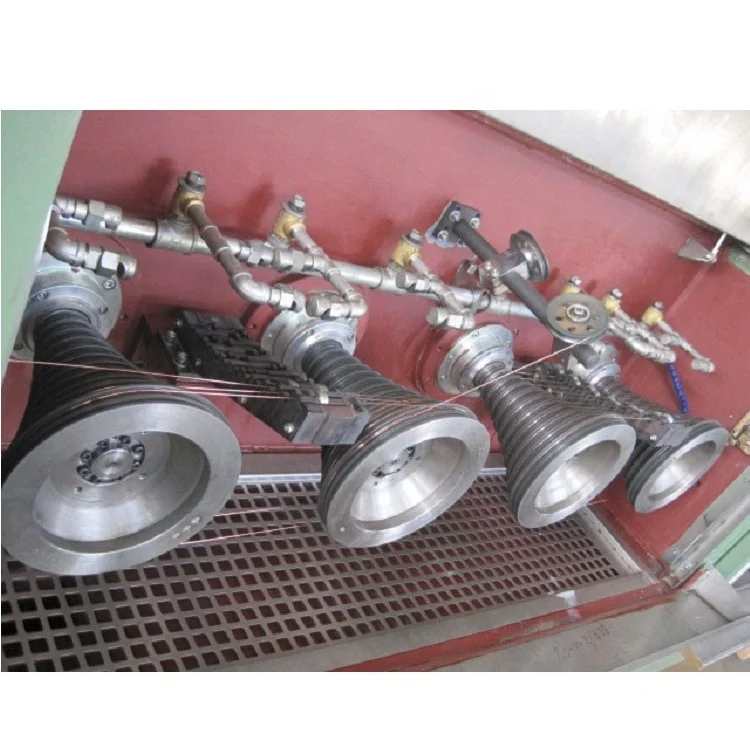

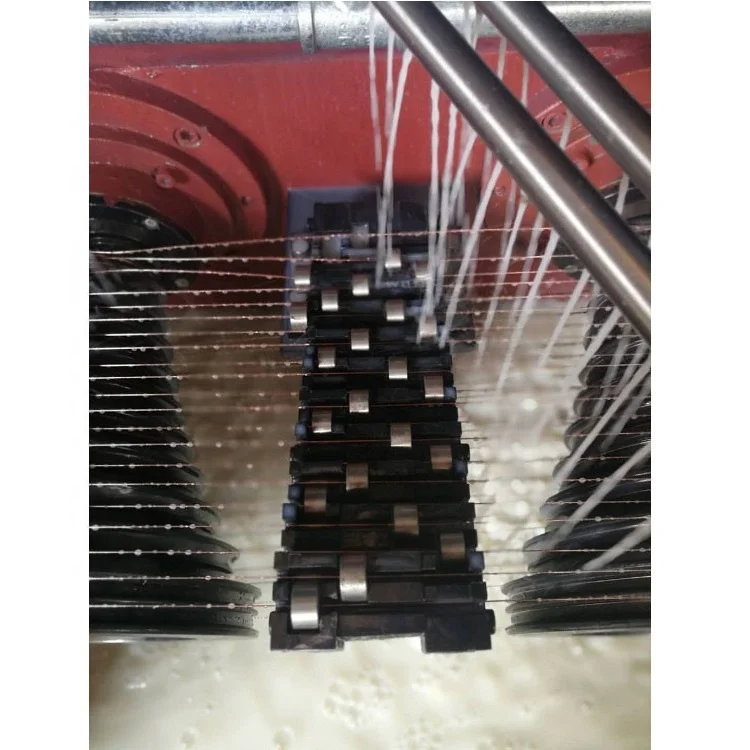

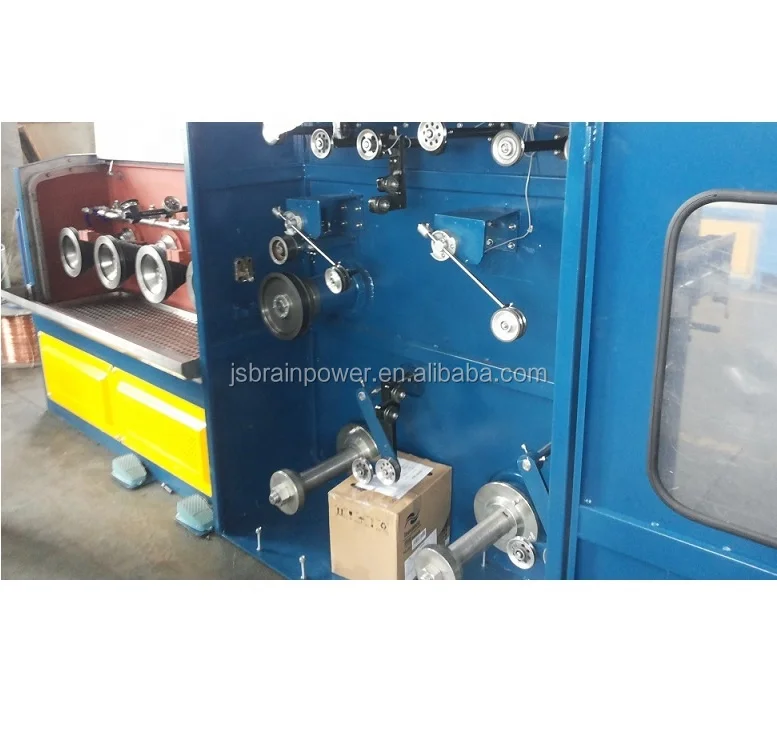

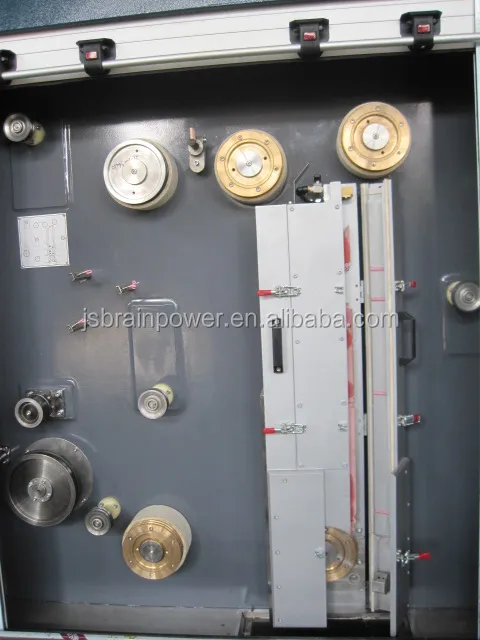

PHOTO SHOW
ADVANTAGES
(1) Double drivers ensure precisely tension and minimum ratio of the wire.
(2) Easy string-up and maintenance operations.
(3) Energy saving and excellent wire surface quality.
(4) Best choice for diversify products manufacturer.
(5) Two wires, energy saving and space saving, high efficiency.
(2) Easy string-up and maintenance operations.
(3) Energy saving and excellent wire surface quality.
(4) Best choice for diversify products manufacturer.
(5) Two wires, energy saving and space saving, high efficiency.
TRADE SHOWS
PACKAGING & SHIPPING
FAQ
Q1: What’s the payment terms?
A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.
Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.
Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.
Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
