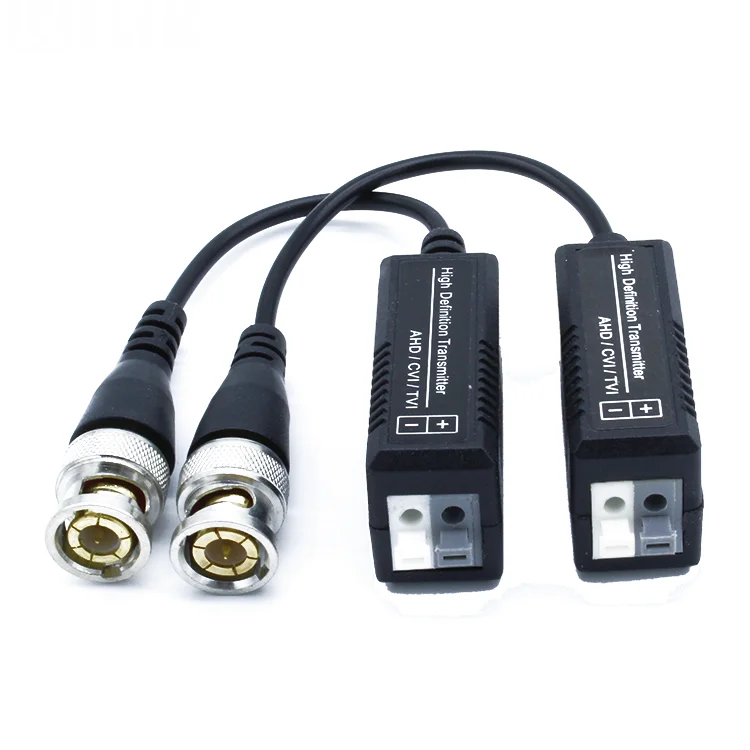

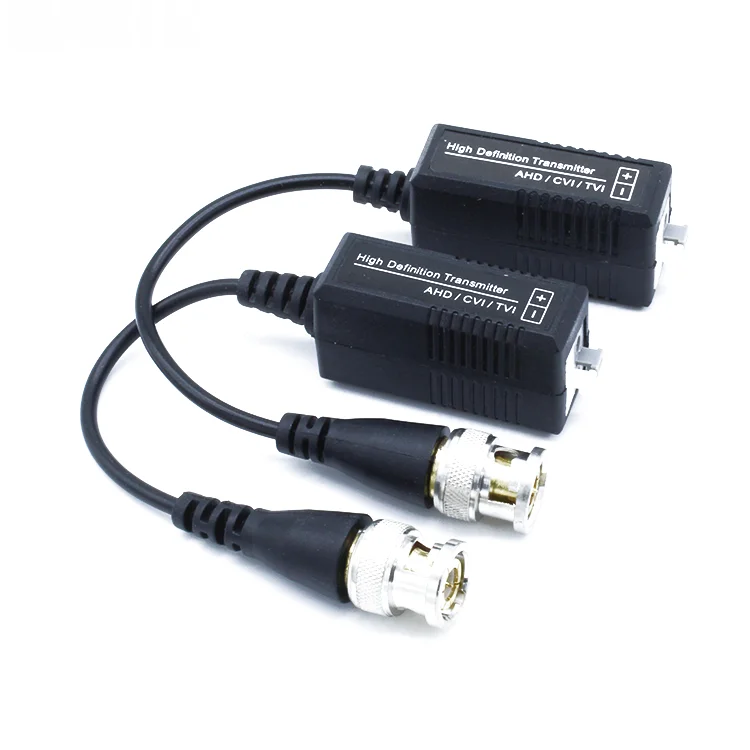

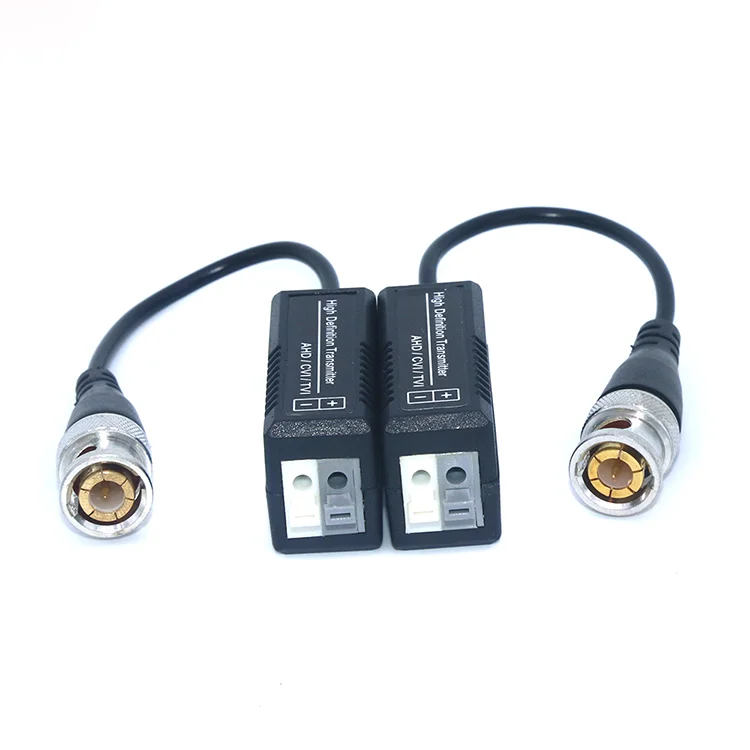

Surveillance Accessories 1ch Passive Price AHD TVI CVI HD BNC to RJ45 Converter 4k blue hdcvi video balun
- Category: >>>
- Supplier: Shenzhen Wearplus Technology Limited
Share on (1600439663872):
Product Overview
Description
Product Description
Specification
Model | B208H |
Transmission Signal | Single Channel HD Passive Balun |
Compatible Format | AHD/ HDCVI/ HDTVI/CVBS Analog |
Resolution | 720p/1080p |
Max. Distance 720p | AHD/CVI 300M, TVI 190M |
Max. Distance 1080p | AHD/CVI 220M, TVI 190M |
Video Format | PAL,NTSC,SECAM |
Operating Frequency | DC to 42MHz |
Anti-interference | > 60dB |
Impedance | Coax, Male BNC 75 unbalanced UTP, screw terminal 100 balanced |
Attenuation | 1.5 dB typ Max. |
Network Wiring | One Unshielded Twisted Pair 24-16 AWG (0.5-1.31mm) |
Category Type | 2-pins UTP cat5e/6 |

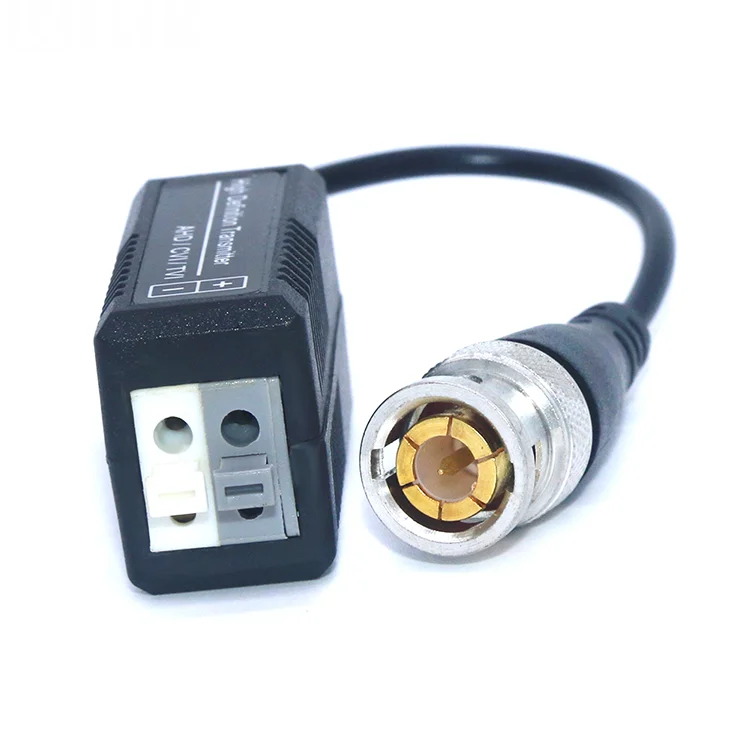

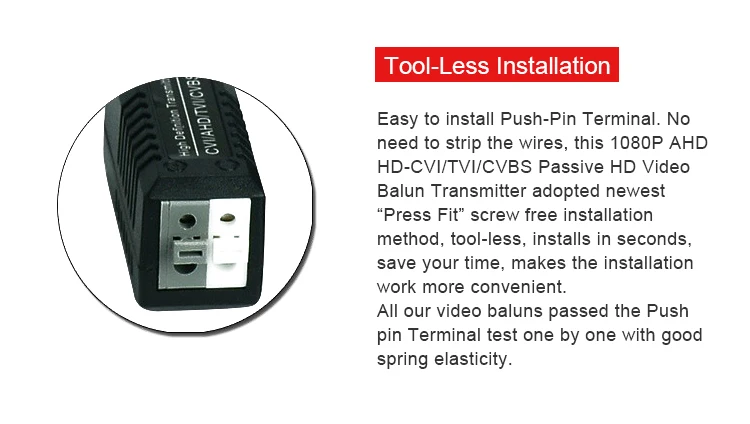

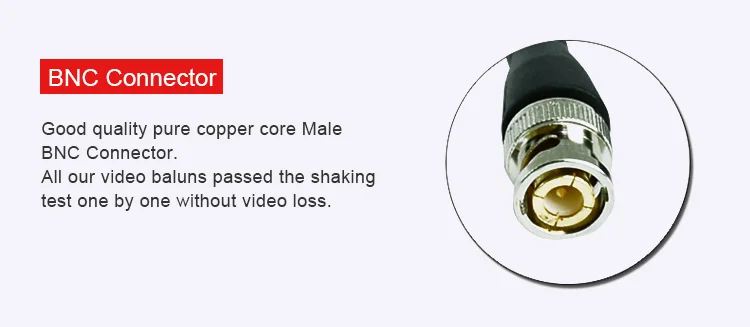

Coaxial Video Connector | Male BNC connector screw terminal |
DC Loop Resistance | 52 ohms per 1000ft(18ohms per 100m) |
Differential Capacitance | 19 pF/ft max (62 pF/m max) |
BNC Male Imperance | 75 Ohms |
UTP Cable Imperance | 100 Ohms |

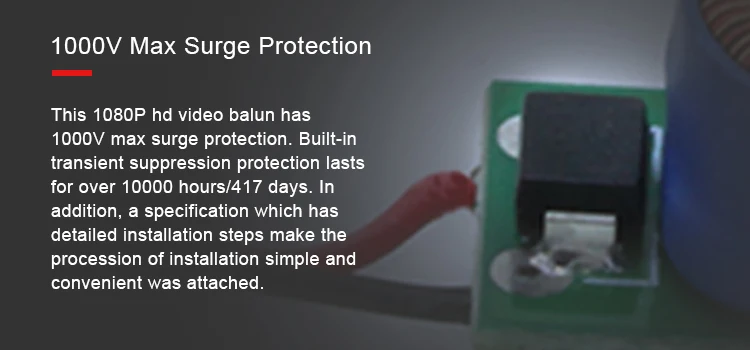

Surge Protection | Renewable solid state surge protection |
ESD | 1a contact discharge electricity level 3 per IEC61000-4-2 |
ESD | 1b air discharge electricity level 3 per IEC61000-4-2 |
Coaxial Video Connector | 2KV (common mode) per IEC6100-4-5 |
UTP Cable Connector | 2KV (different code), 4KV (common code) per IEC6100-4-5 |
Housing | ABS engineering plastic |
Power Input | No external power required |
Body Color | Black |
Dimensions(L*W*H) | 13.7*11.6*3mm |
Net Weight | 60g |
MTBF | > 10000H |
Operating Temperature | -10°C~55°C |
Relative Humidity | 0-95% (non-condensing) |

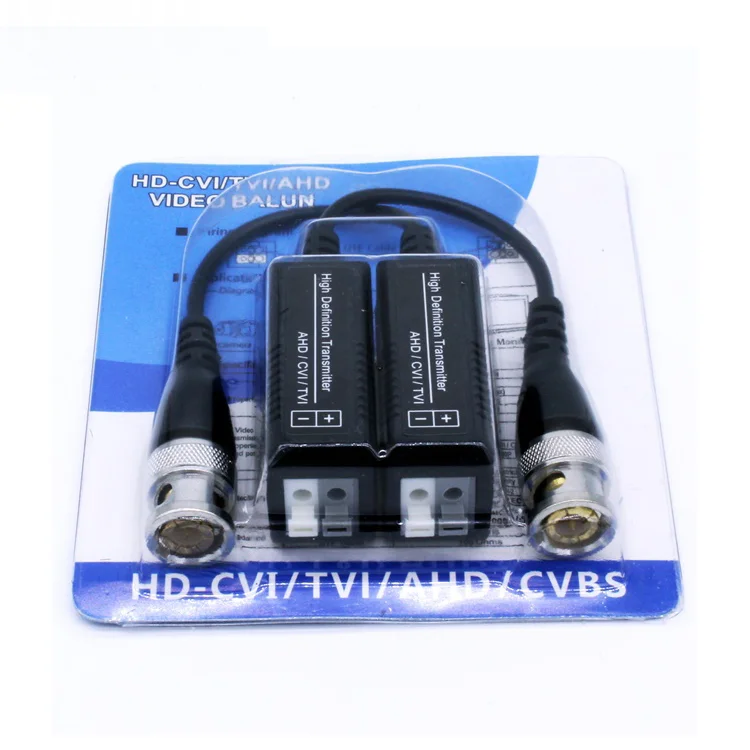

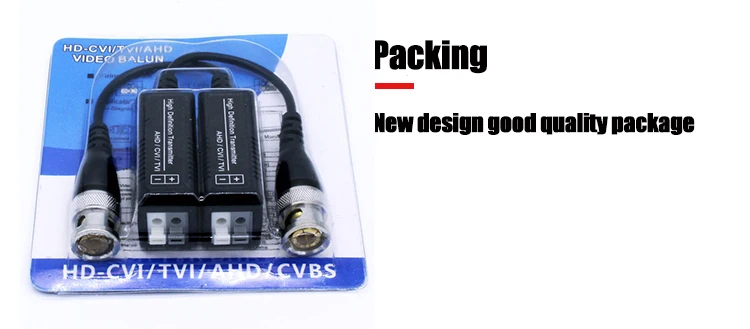

Packing & Delivery
500PCS/CARTON
Company Profile
Headquartered in Shenzhen, SHENZHEN WEARPLUS TECHNOLOGY LIMITED is an industry leading designer, developer and manufacturer of enterprise-level CCTV Accessories and Power Supply. The company produces the most advanced and respected offering of CCTV Accessories based on its owned patented algorithms. Being a true manufacturer from board level design to hardware and software development, WEARPLUS is able to control every aspect of the process from end-to-end.
