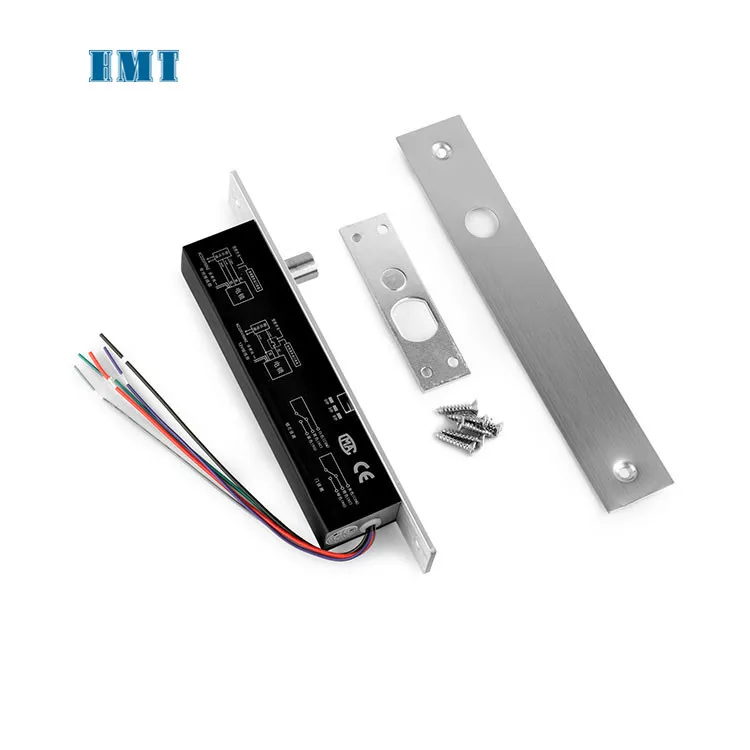

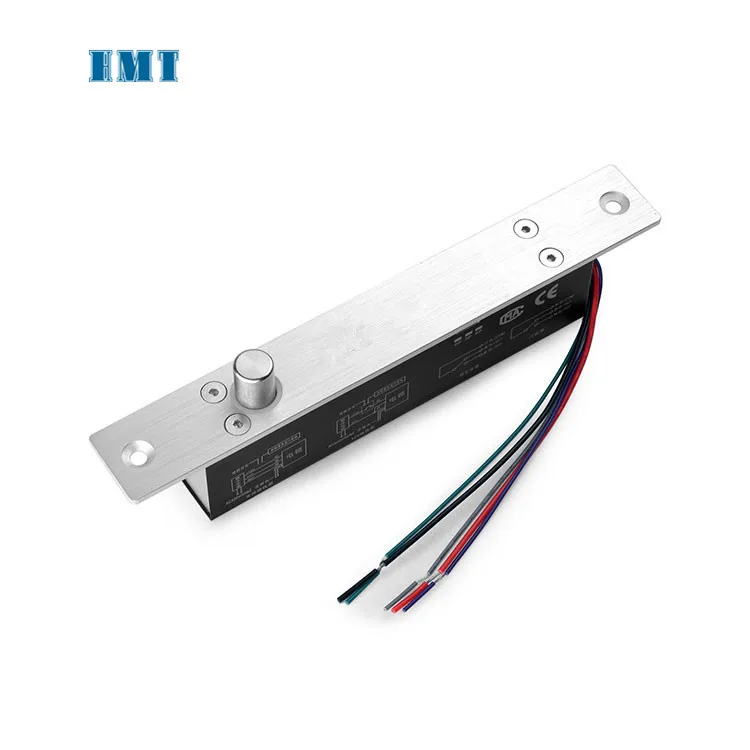

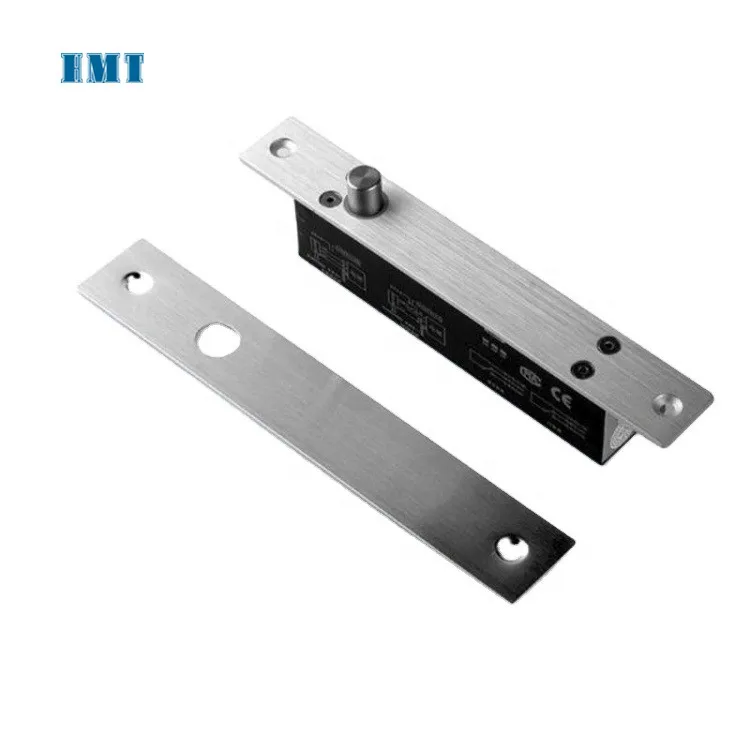

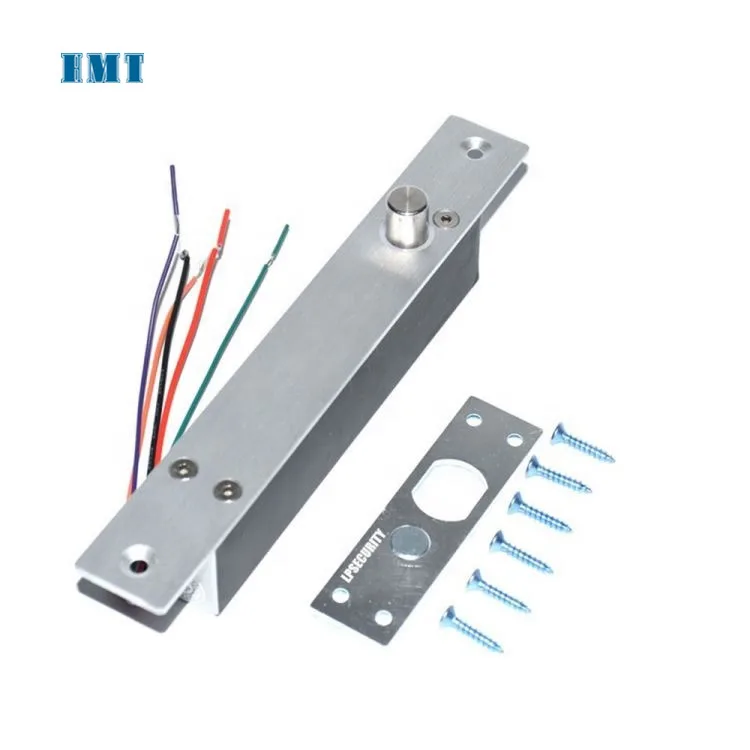

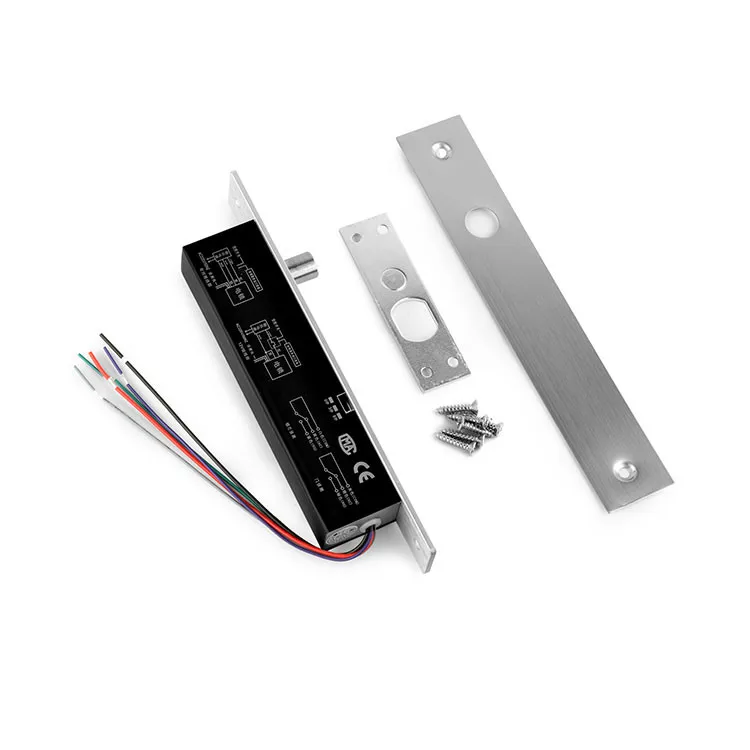

Fail secure Low temperature Narrow Panel Electric Power to open signal feedback smart Narrow deadbolt door lock
- Category: >>>
- Supplier: Shenzhen Huiyuxin Technology Co. Ltd
Share on (1600439700388):
Product Overview
Description
Product Description
Fail secure Low temperature Narrow Panel Electric Power to open signal feedback smart Narrow deadbolt door lock
Features:
1. Low Power, Environmental Protection

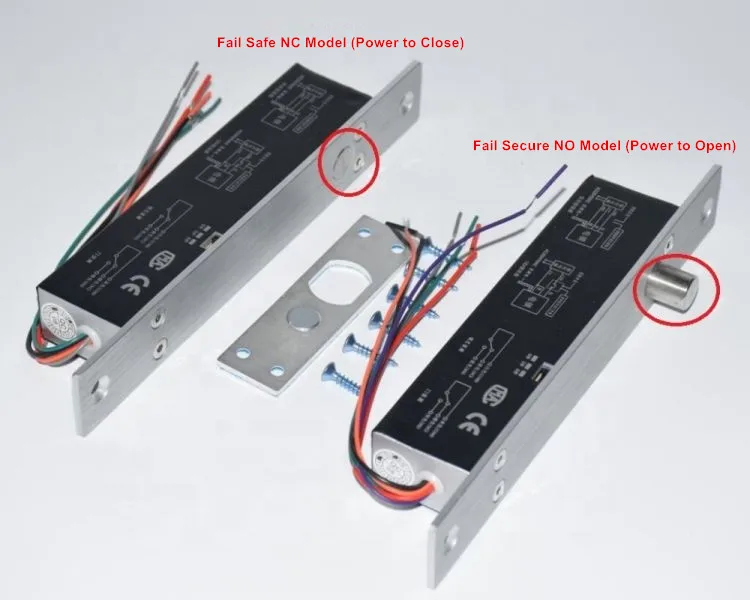

2. Low Temperature, fail secure type (power to open)
3. Special photoelectricity control, three steps current application
4. Long Life with 500000 Operations
1. Low Power, Environmental Protection
2. Low Temperature, fail secure type (power to open)
3. Special photoelectricity control, three steps current application
4. Long Life with 500000 Operations
5. Autolock Time Delay: 0,3,6 sec
6. Door statue signal output contact(NC.COM)
7. Double protection for loading current
Specification
Product Name | Fail secure drop bolt lock power to open with time delay | |||
Model number | HMT-M201 | |||
Lock material | Aluminum alloy | |||
Voltage | DC12V(DC24V need order ) | |||
Start Current | 1.2A | |||
Standby Current | 150mA | |||
Solid Bolt | polishing housing, 1000Kg Holding Force | |||
Suitable For | Wooden Door, Glass Door, Metal Door, PVC Door | |||
Signal Output | Door Status Output, NO/NC/COM | |||
Surface Temp | Low Temperature | |||
Features | Power to open, normally open, fail secure | |||
Induction Distance | 8mm | |||
Operating temp | -10~+55 degree (14-131F) | |||
Operating Humidity | 0~90%(non-condensing) | |||
Special Designed | Tested to 500000 operations | |||
Face place material | Stainless Steel | |||

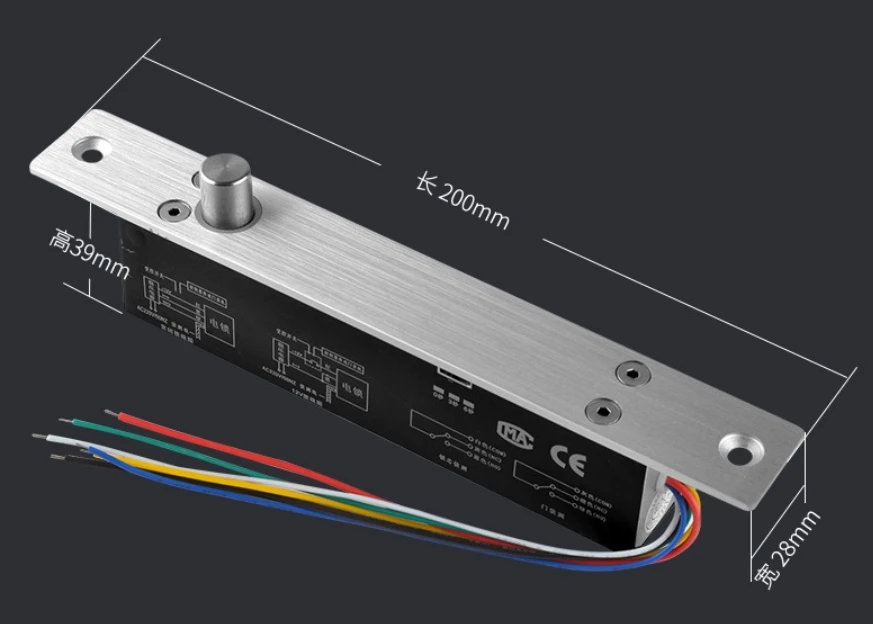

Lock Size | 200*28*39mm | |||
Lock cylinder size | diameter 12.5mm, extension length 16mm | |||
Weight | 0.55kg | |||

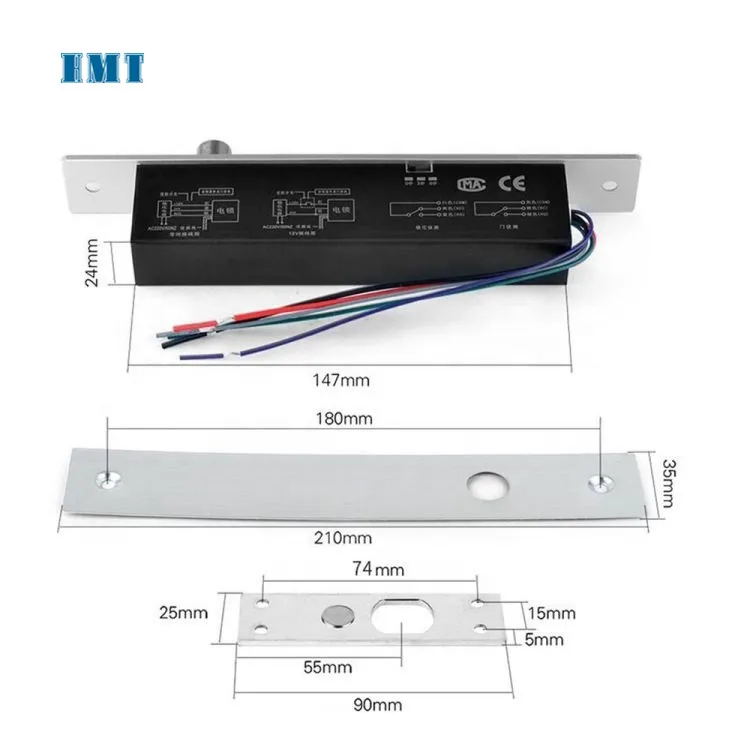

Details Images

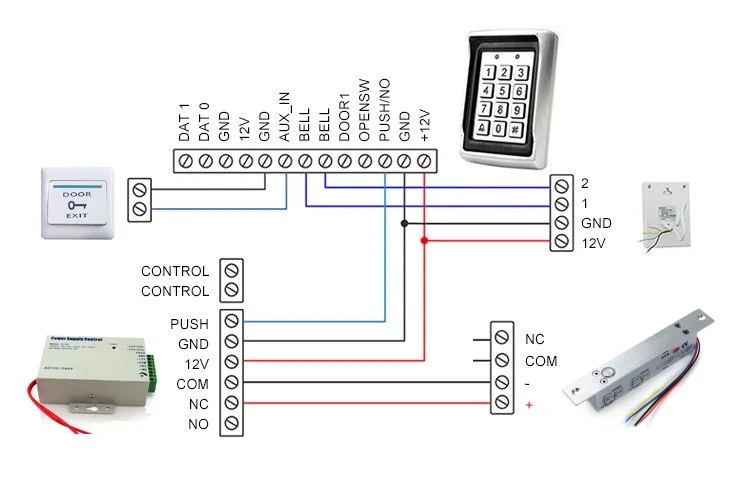

Product Wire Connection
Related Products
Electric drop bolt lock, HMT-M200
Electric drop bolt lock, HMT-M185
Electric drop bolt lock, HMT-M195
Electric drop bolt lock, HMT-M205
Magnetic Lock 280kgs, HMT-M280
Fingerprint Drawer Lock, HMT-CL01
Recommend Products

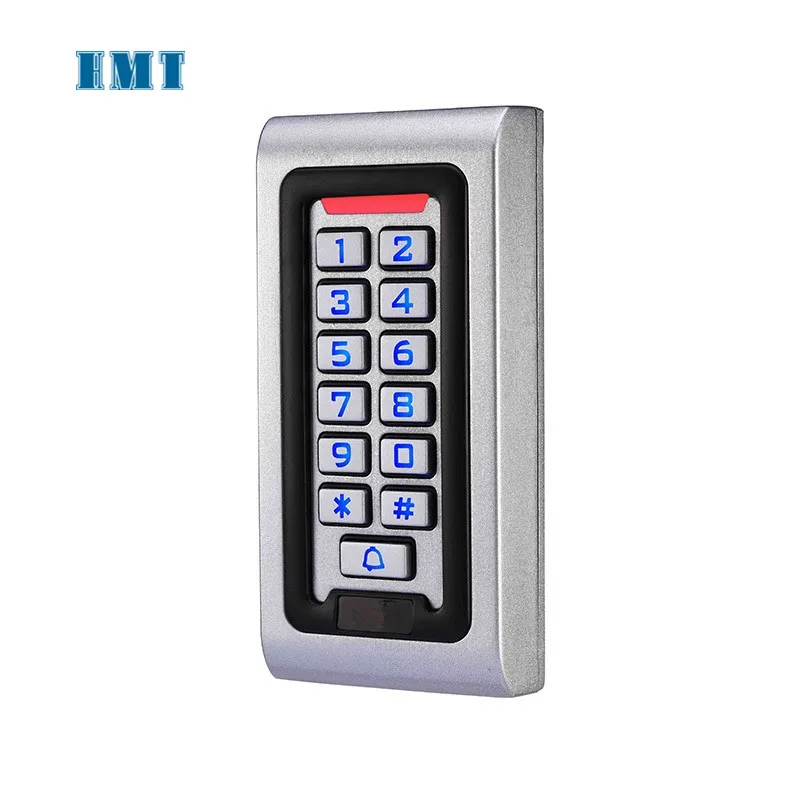

125khz Keypad Access Controller, HMT-ST56

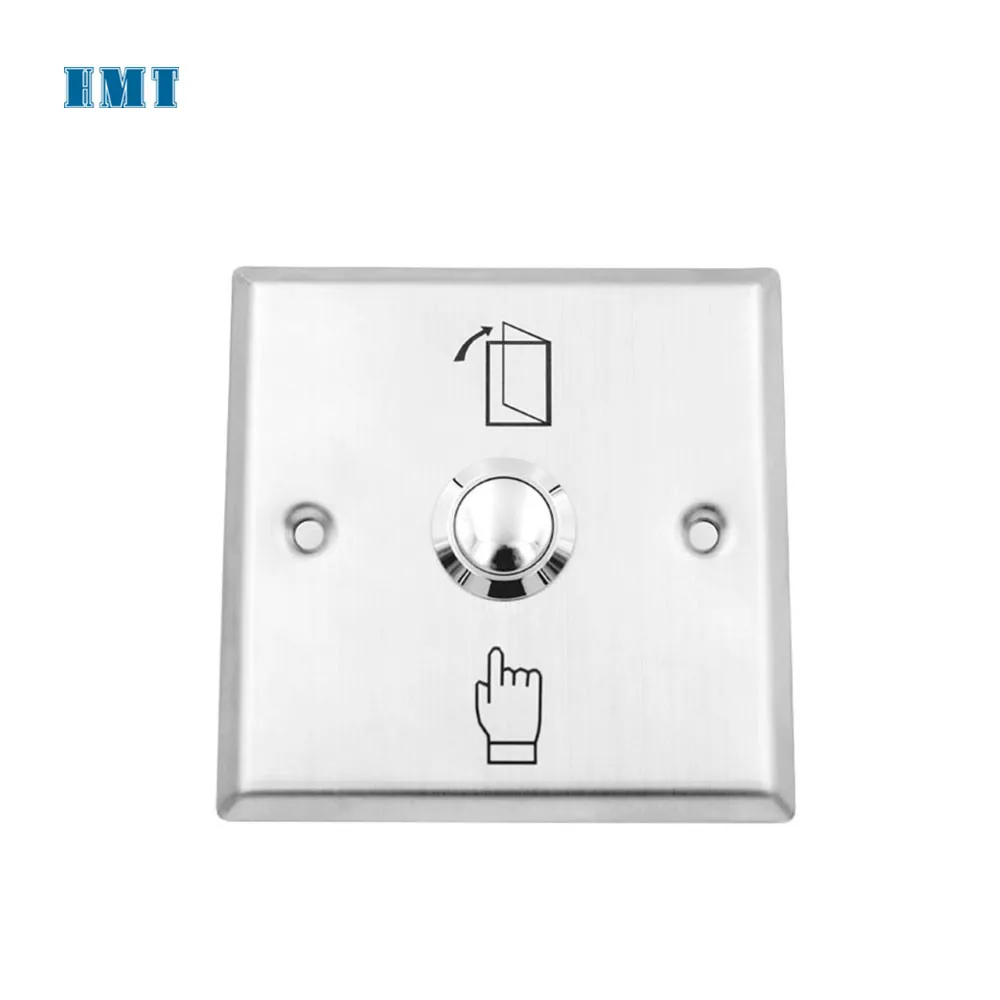

Stainless Steel Access Control Exit Button, HMT-EB1S
