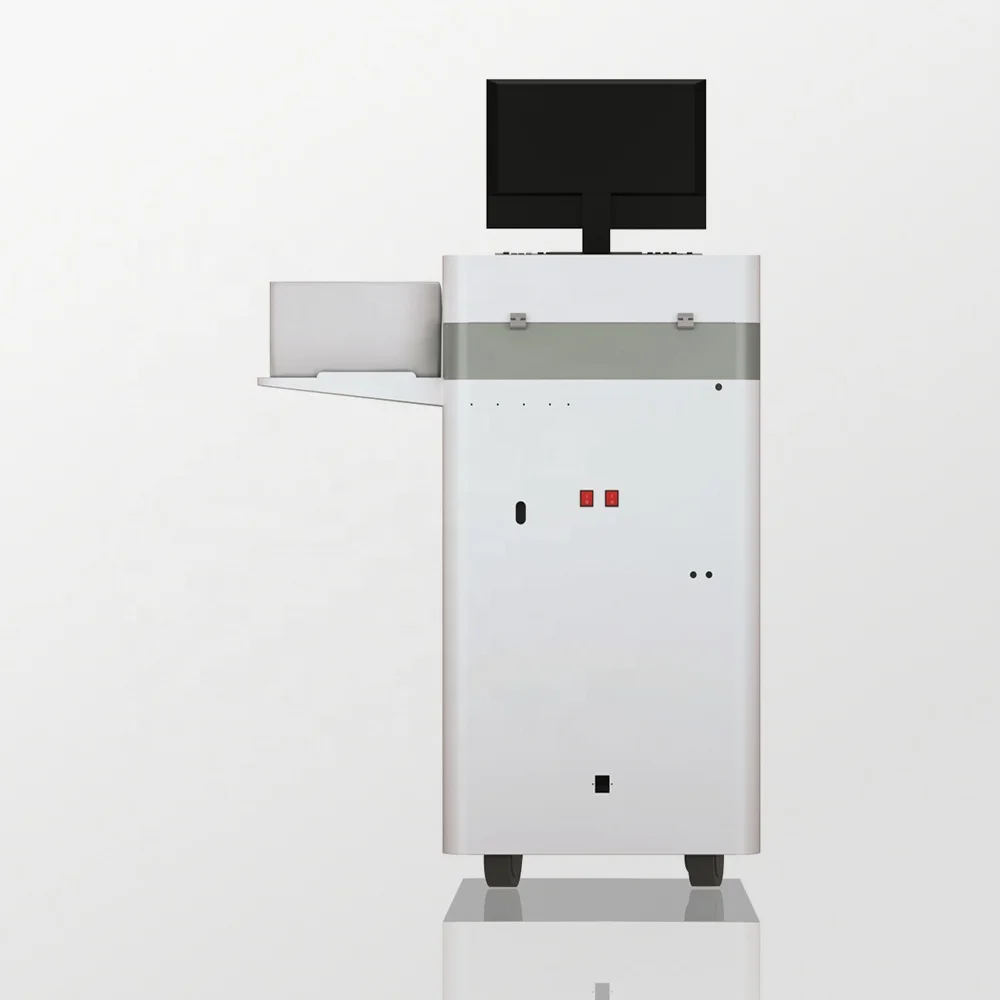

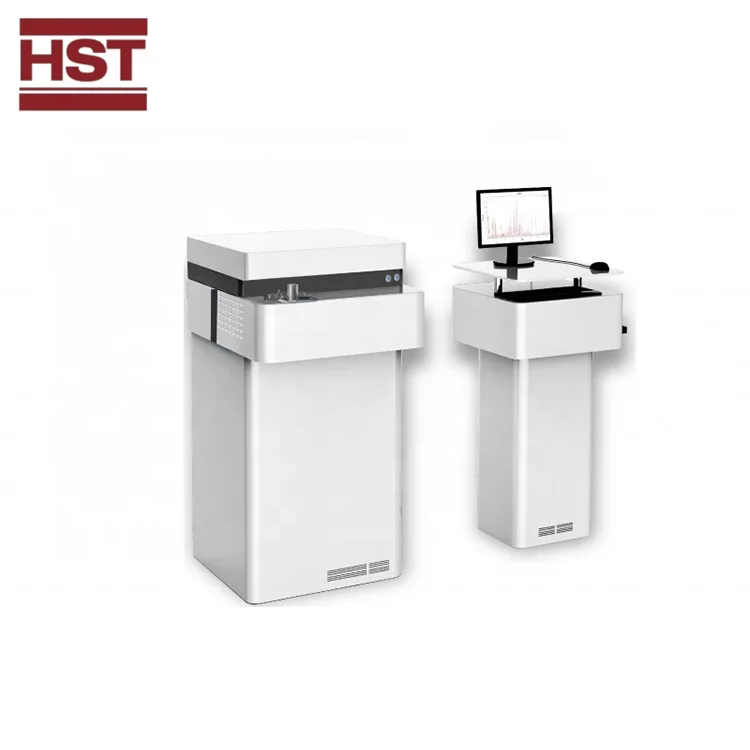

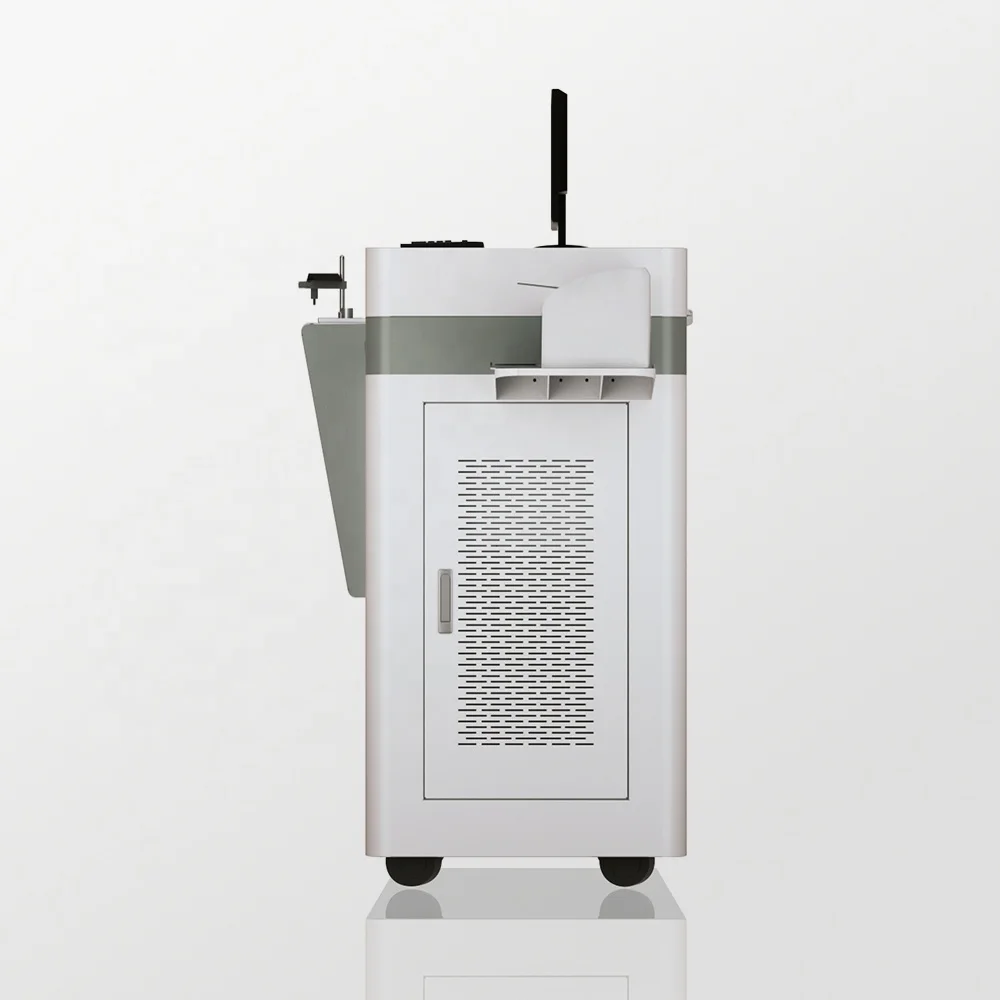

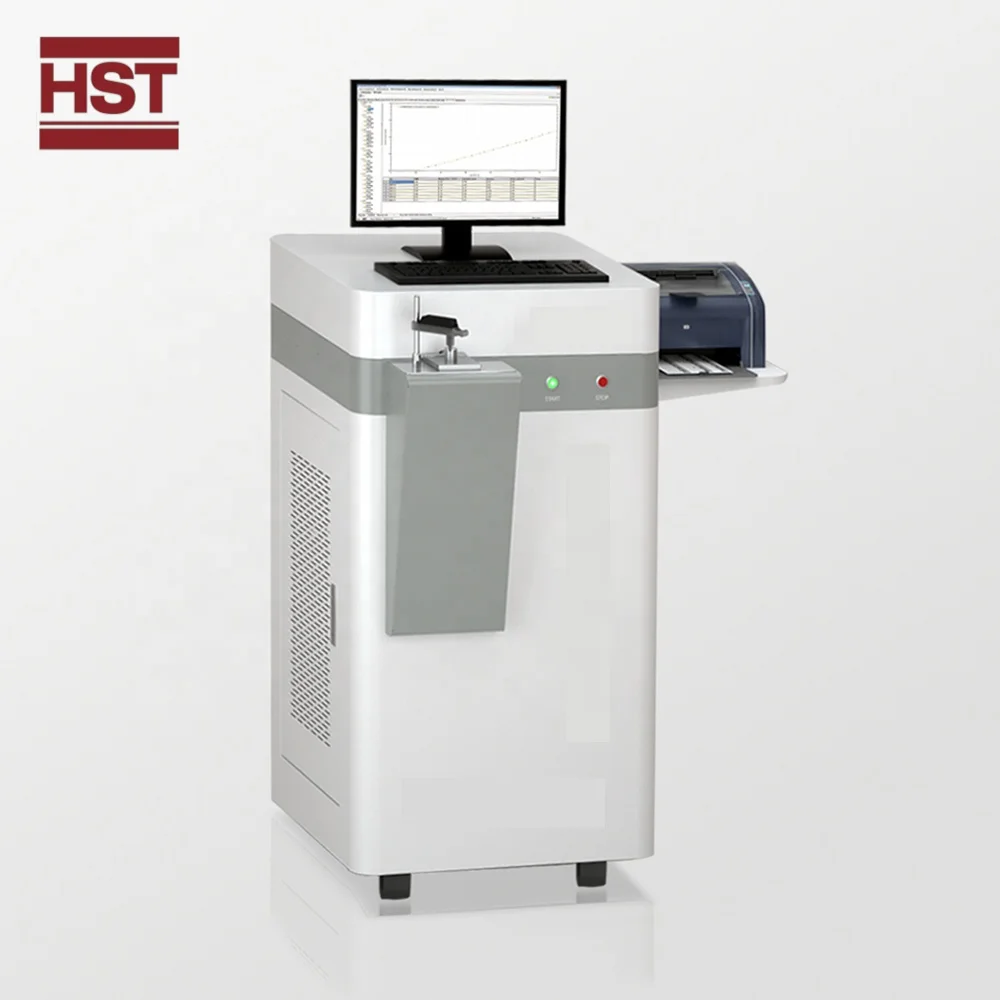

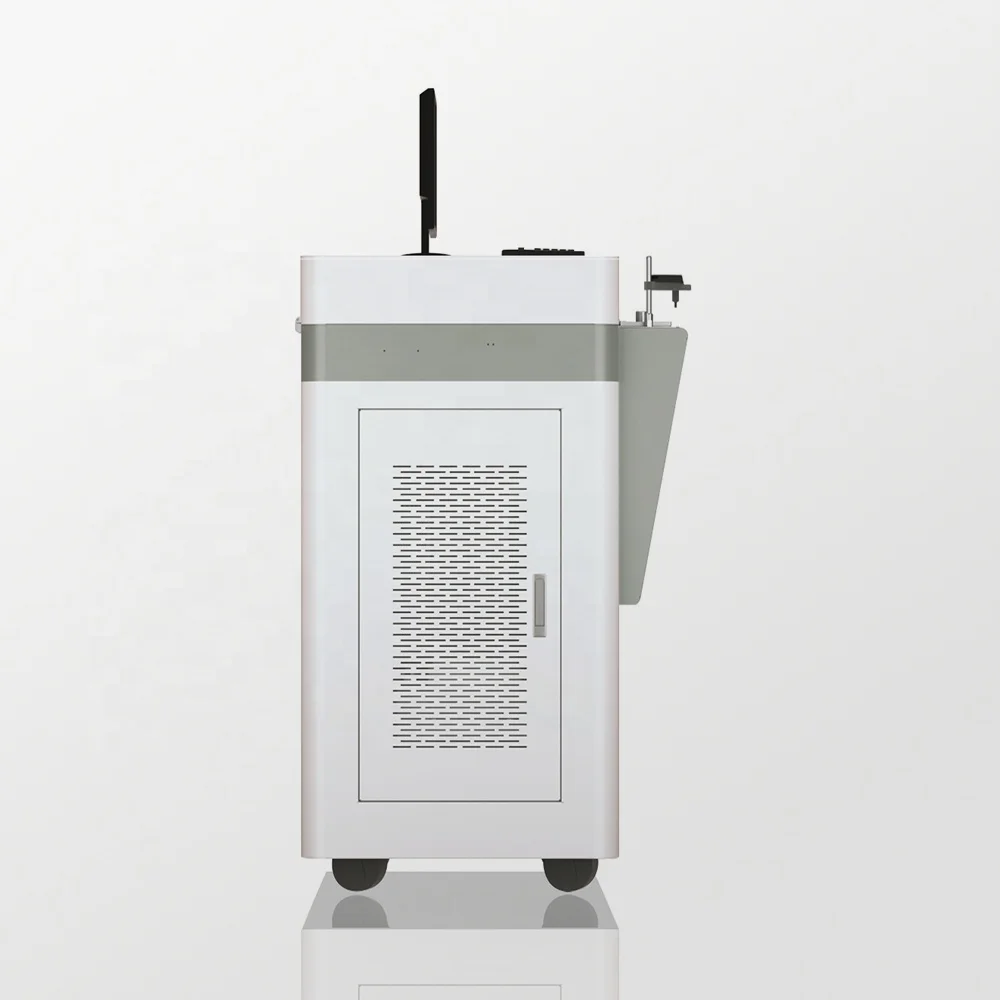

HST 9800 Optical Emission Spectrometer for Non Ferrous Metal Alloy Analysis
- Category: >>>
- Supplier: Jinan Hensgrand Instrument Co. Ltd.
Share on (1600439713024):
Product Overview
Description
HST 9800 Optical Emission Spectrometer for Non Ferrous Metal Alloy Analysis
Product Description
| Production Description |
Technical parameter of HST-9800 spectrometer
Optical System of Spectrometer
l Paschen-Runge Mount Structure, Rowland circle optical system.
l Diameter of Rowland circle:350mm
l Wavelength Range:160 – 800 nm
l Detector:Multi high resolution CCD detector
l Optical chamber temperature:Temperature autocontrol:34℃±0.5℃
l Pixel Resolution:10pm
l Optical grating groove:3600 l/mm
l Level One spectral dispersive power:1.2 nm/mm
l External Incident window, convenient cleaning and replacement
l Excellent drift correction, thanks to automatic peak-finding(accuracy of 0.1 pixels)
l Excellent UV sensitivity, thanks to the new improved vacuum technology
Digital plasma Generator
l All-digital plasma spark source technology
l High efficiency thanks to compact design and semiconductor control technology
l High-energy pre-combustion technology (HEPS)
l Excitation parameters can be user-defined by the user according to the actual needs
l Frequency 100 - 1000Hz
l Current 1-80A
l Parameters adjustment may need to adjust the components
