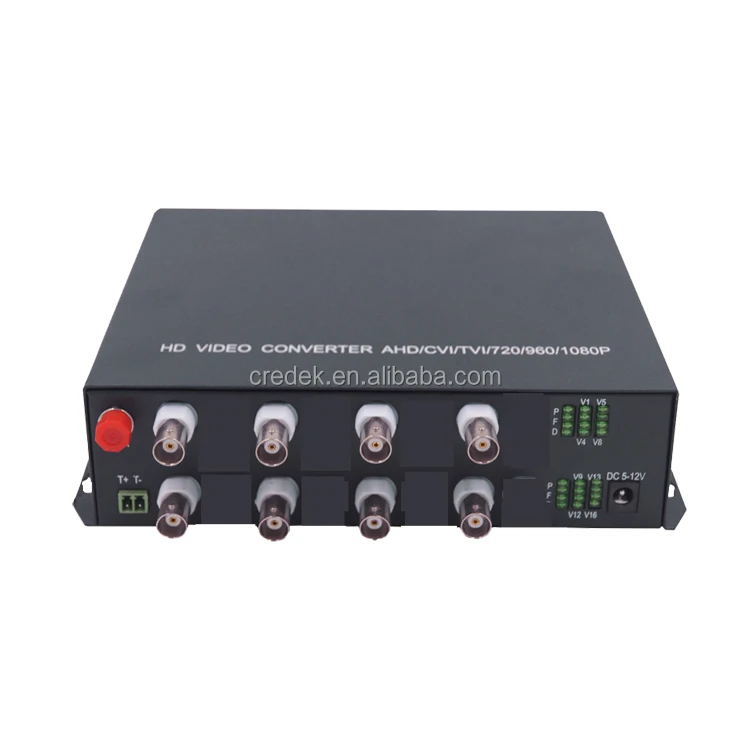

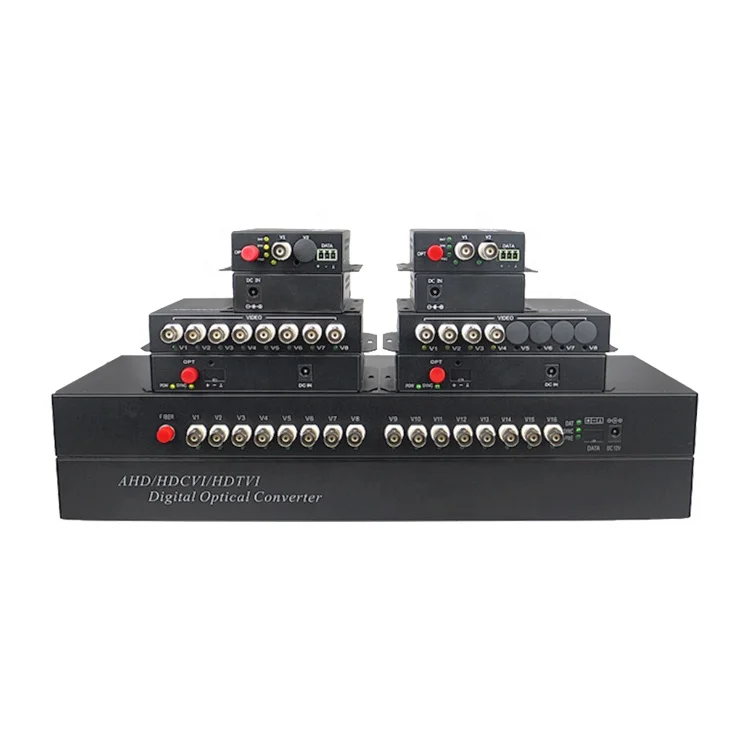

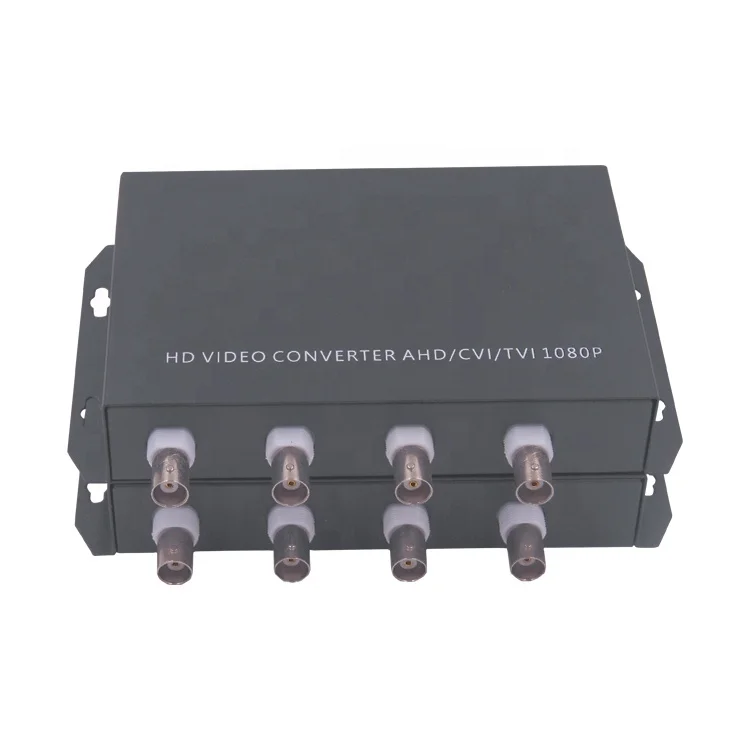

4 Port 1080P AHD CVI TVI CVBS Analog Video Fiber Optic Converter
- Category: >>>
- Supplier: Shenzhen CREDEK Technology Co. LTD
Share on (1600439723814):
Product Overview
Description
4 Channel 1080P AHD/CVI/TVI/Analog to Fiber Converter upto 20KM
Descriptions:
The converter can transmit 1-16 channels 1080P HD-CVI/TVI/AHD over one multimode or single-mode optical fiber simultaneously. LED indicates instantly monitoring system status. Modular in design, stand-alone or rack-mounted installation is available. In addition, The Compatible with AHD-H,AHD-M,AHD-L. It is without loss and non-compression real time transmission.Features:
1. Non-compression coding technology.
2. Automatically identify formats of input videos.
3. Support 1~16ch 720P or 1080P AHD/CVI/TVI signal and controlling data simultaneously through simplex fiber cables.
4. DC 5V power supply.
5. Support 720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30 video etc.
6. Through LED indicators to inform its functional mode.
7. Plug and play, simple installation.
2. Automatically identify formats of input videos.
3. Support 1~16ch 720P or 1080P AHD/CVI/TVI signal and controlling data simultaneously through simplex fiber cables.
4. DC 5V power supply.
5. Support 720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30 video etc.
6. Through LED indicators to inform its functional mode.
7. Plug and play, simple installation.
Product Paramenters
Optical | Fiber Type | Multi-mode fiber or Single mode fiber |
Fiber Connector | FC/ST/SC | |
Distance | 0~120km (Optional) | |
Wavelength | Transmitter Tx1310nm, Rx1550nm. Receiver Tx1550nm,Rx1310nm. | |
Tx | Input level | >500mVp-p |
self-adaption cable equilibrium | 1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m | |
Input/Output Impedance | 75Ω | |
Physical Interface | 1/2/4/8 channel BNC connector | |
Rx | Output level | 1Vp-p |
Input/Output Impedance | 75Ω | |
Physical Interface | 1/2/4/8/16 channel BNC connector | |
Data | Transmission Media | Coaxial cable |
Baud Rate | 1200～9600bit/s | |
Bit Error Rate | ≦10 | |
Operation Mode | Half-Duplex | |
Indicators | LOS,PWR,DATA,VIDEO | |
Mean time between failures (MTBF) | ＞100 000 hours | |
General | EPS | DC5V |
Power Consumption | ≦5W | |
Operation Temperature | -40℃～75℃ | |
Operation Humidity | 10%～90% | |
Atmospheric Pressure | 86kpa~106kpa | |
Mounting Method | Wall-mounted |
Recommend Products

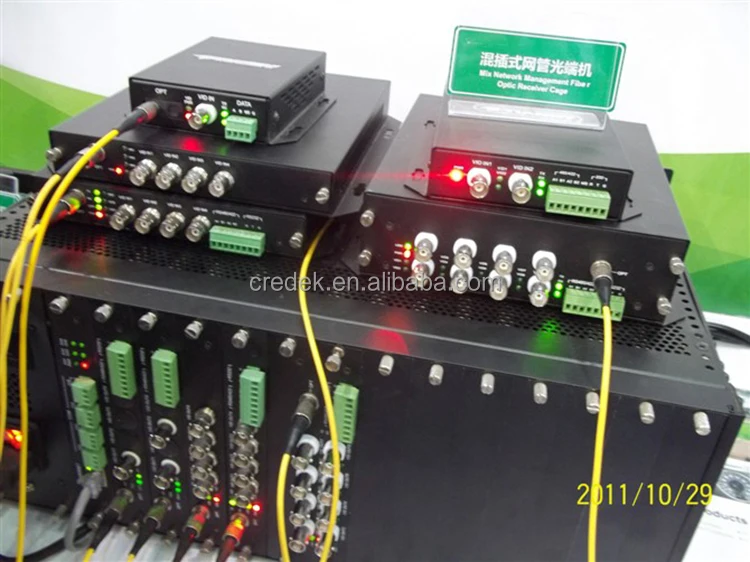

Workshop
Exhibition
Certificate

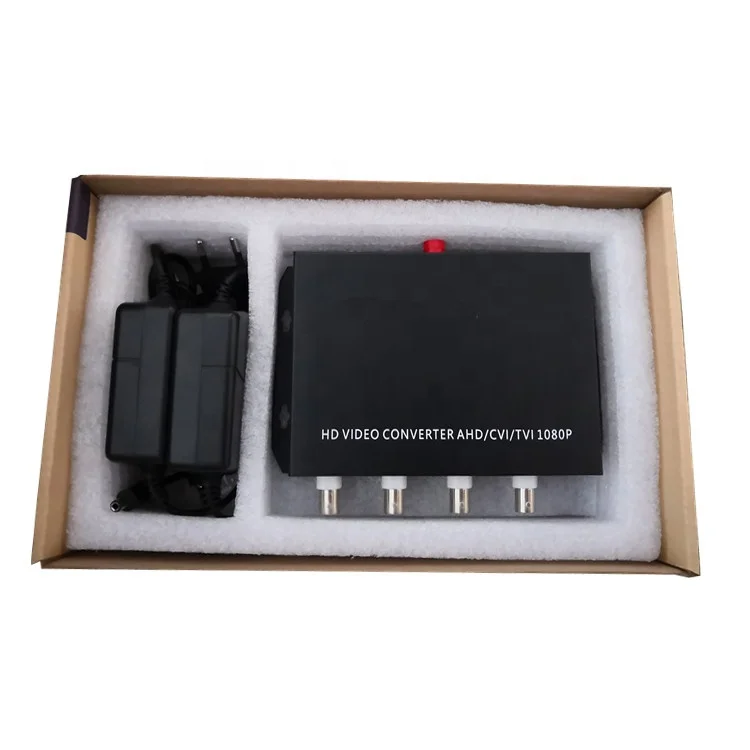

Packing And Shipping
