Машина для отжига и лужения проводов CCS
- Category: Cable Manufacturing Equipment >>>
- Supplier: Jiangsu Brainpower Intelligent Technology Co. Ltd.
Share on (1600439741490):
Product Overview
Description
APPLICATION
CCS Wire Annealing and Tinning Machine
CCS Wire Annealing and Tinning Machine is special for annealing 40 copper wires or CCS Wire 0.15-0.70 mm at the same time.
Finished wire is wound by plastic bobbin.
Finished wire is wound by plastic bobbin.
FEATURE
(1) Max.Wires Quantity: 40
(2) Max speed: 300 m/min
(3) Annealing Body Length: 7.5 m
(4) Temperature Preservation: four insulation layers
(2) Max speed: 300 m/min
(3) Annealing Body Length: 7.5 m
(4) Temperature Preservation: four insulation layers
MAIN SPECIFICATION
Machine type | BRN-40H/7.5 M |
Length of annealing tank | 7.5 m |
Wire dia | Φ0.15-Φ0.7mm |

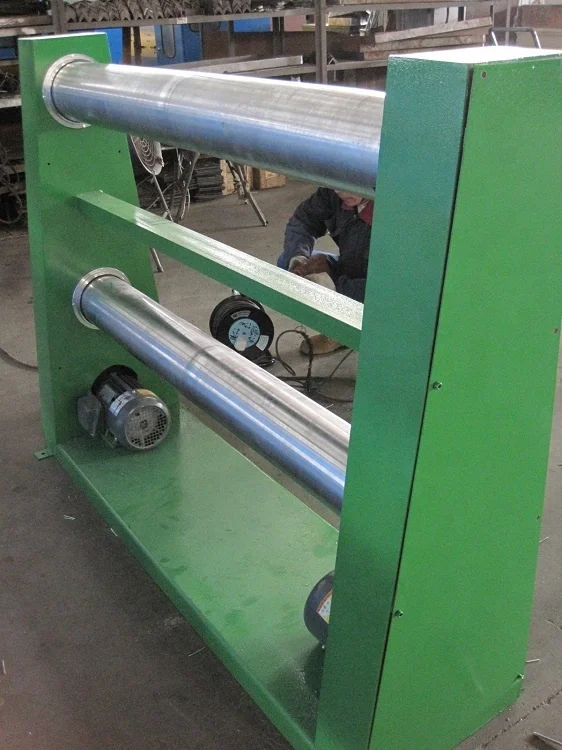

Pay-off stand | By brush wire |
Max. speed | 300m/min |
Tin-coating type | Dual parts by heater(optional) |
Pay-off bobbin size | Φ300 or customized |
Spool bobbin size | PT5-PT25 or customized |

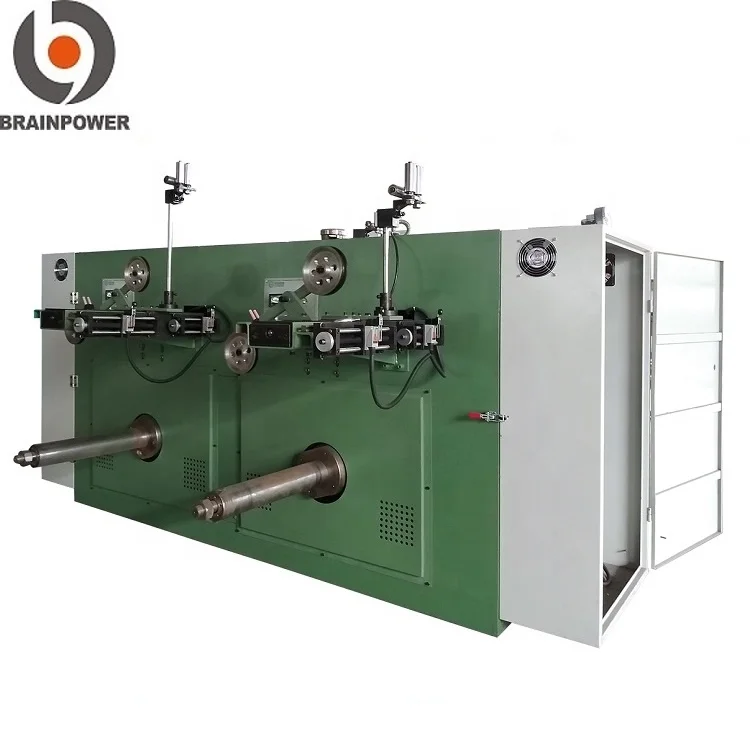

Take-up type | Single spooler drive by torque motor |
Annealing type | Continuous annealing by heater |
Total power consumption | 75KW |
Machine dimension | 2500L×2200W×1900Hmm |

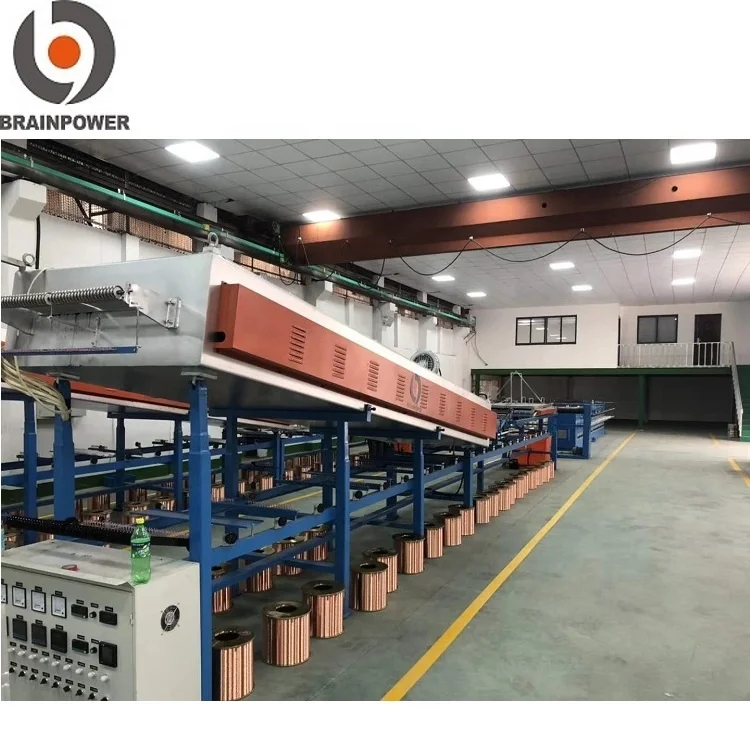

PHOTO SHOW
ADVANTAGES
(1) Add one room inside the annealing, which can make the temperature impartial distribution.

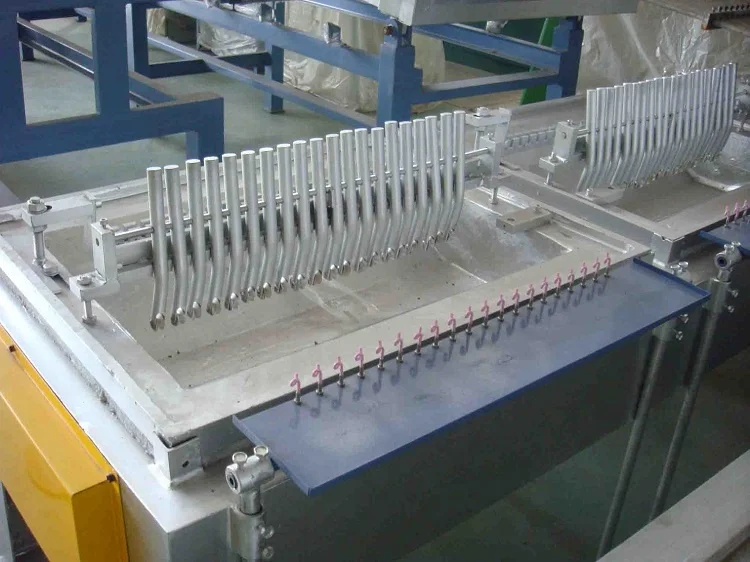

(2) Dual tinning tank design, it can produce two kind of tin-coating copper wire in the same time.

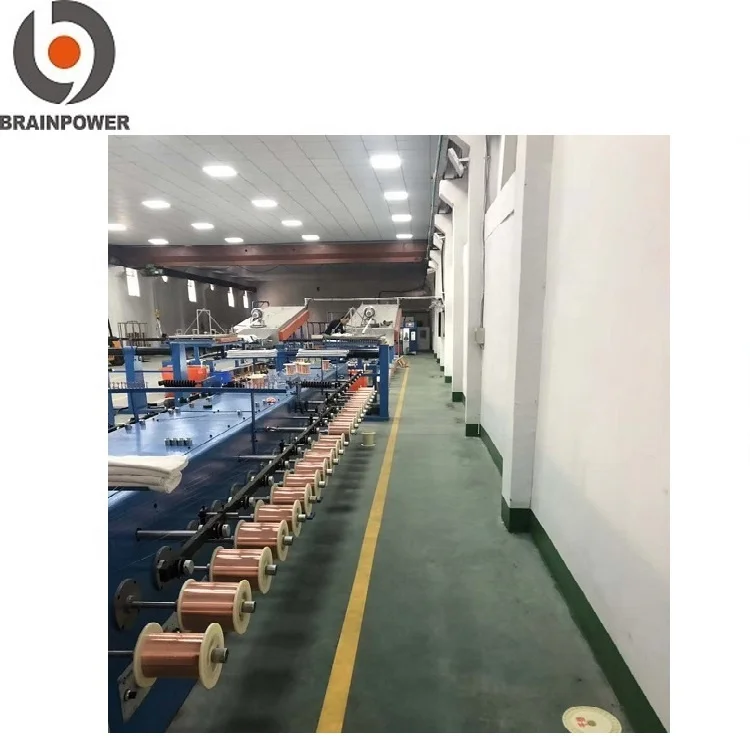

(3) Spooler arranged in double layer can save space.
(4) It is energy-saving (good heat preservation effect) and high efficiency (low Maintenance rate).
(5) Support steel for annealing tube won’t touch up and down site of the annealing body,the heat won't be dissipated quickly.
(2) Dual tinning tank design, it can produce two kind of tin-coating copper wire in the same time.
(3) Spooler arranged in double layer can save space.
(4) It is energy-saving (good heat preservation effect) and high efficiency (low Maintenance rate).
(5) Support steel for annealing tube won’t touch up and down site of the annealing body,the heat won't be dissipated quickly.
ABOUT US
PACKAGING & SHIPPING
FAQ
Q1: What’s the payment terms?
A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.
Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.
Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.
Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
