600W Integrated Truck Canvas engine 1802061

Product Overview

Description

DC Right Angle Gear Motor for Truck Tarp System

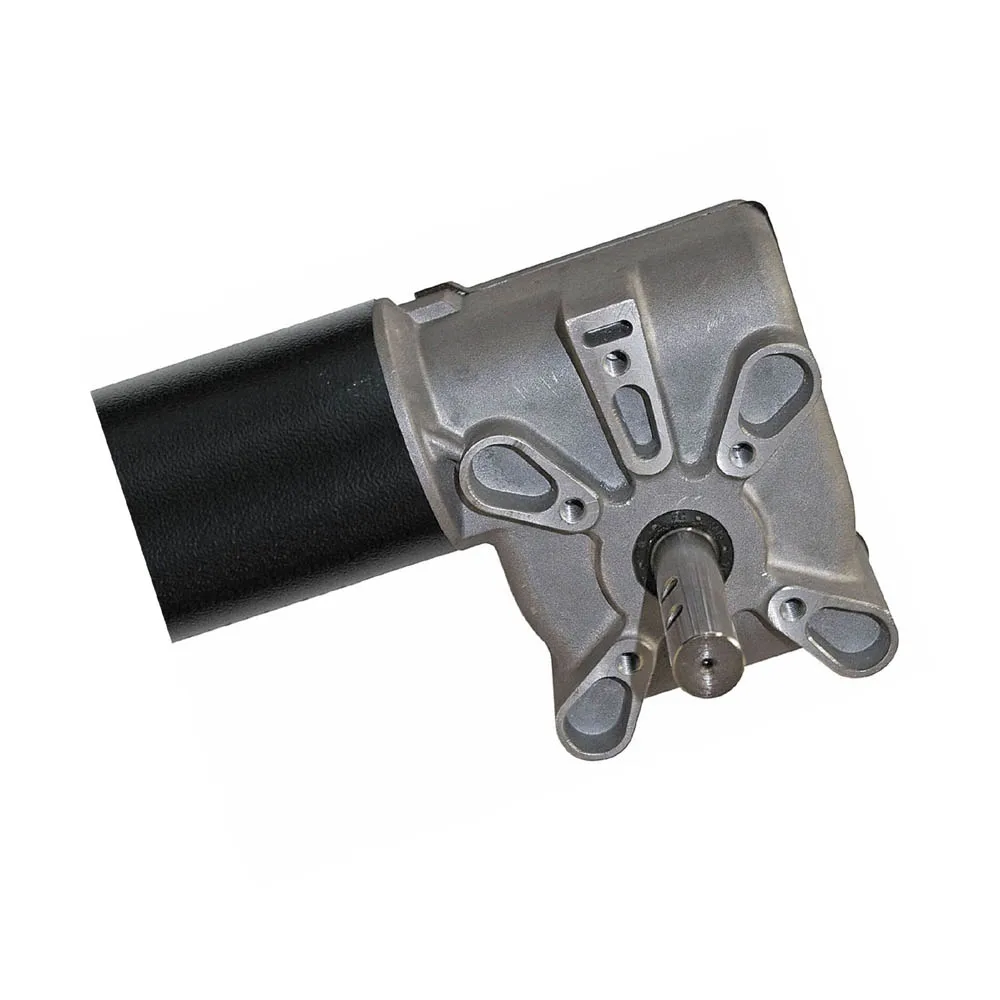

600W Integrated Tarp Gear Motor 80ZYT-12/JW-7 w/Chrome Cover
This Hi-torque, direct drive 12V motor has a 3-1/8" x 3/4" extended output shaft that fits a wide range of front to back tarp systems. The forged, 90 tooth drive gear provides more torque and extended life while the sealed drive shaft and encased bearing prevents contamination. Chrome cover included.



600W Integrated Truck Canvas engine 1802061, Dump Truck Tarp Motors

MOTOR SPECS AND FEATURE:

·  Epoxy sealed gearbox maintains lubrication

·  185.8 inch-lbs.

·  15.5 ft.-lbs.

·  1,394 ft.-lbs. output torque

·  90:1 gear ratio

·  40 RPM (+ / -5)

·  33 Amps

·  3 years warranty

·  Optional 24V DC, 60:1 or 45:1 gear ratios, 900W ( 1.2HP ) or 1200W (1.5HP )



Replaces Aero Power Plus, Donovan 1704878, 1800716, 1801965*, 1802061, 1802066, Roll-Rite #1030/1031, US Tarp #13732, 13957, 15275, 15938, 15364, 13655; Pulltarps 517-0906/517-0909; SHUR-CO 1703823; SuperWinch 90-33319/90-33295; Tarps and Beyond 1000XT/2000XT; Buyers Products 5543965/5541065, TSI Apache, Tomahawk, Enforcer.



12V Motor (Power Drive #'s 719527, 716527, 719520, 729520)  Part No.: 90-33319

12V Motor (Power Drive #'s 719627, 716627, 716620, 729620)  Part No.: 90-33295

24V Motor (Power Drive #'s 719537, 716537)  Part No.: 90-33320

24V Motor (Power Drive #’s 719637, 719630, 719632)  Part No.: 90-33318

12V Motor (Power Drive #’s 716727, 719727)  Part No.: 90-33294
